Vamzdžių suvirinimo aparatas Zeen-800plus su registracija

Trumpai apie prekę

Prekė: Vamzdžių suvirinimo aparatas Zeen-800plus su registracija. Kategorija: Sandarikliai.

• Gamintojas: NOVATECH
• Modelis: ZEEN-800PLUS

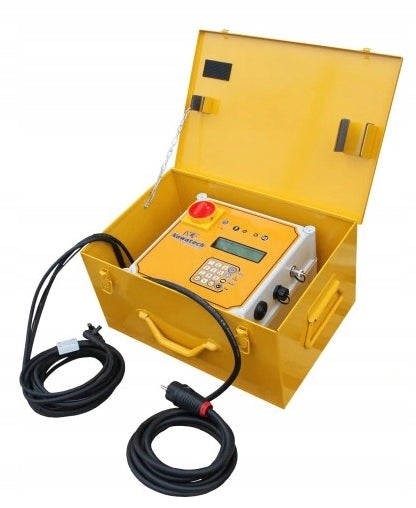

The subject of the auction is a proven and appreciated electroresistance welding machine for electroresistance fittings max fi 160 with registration of welding parameters Nowatech zeen-800plus.

This modern welding machine is the ideal solution for welding electrocouplings in diameters from 16 to 160 mm. Thanks to the automatic process, the operation of the device is simple and intuitive, which makes it a favorite tool for installers performing home connections and industrial installations. Ideally suited for water and sewage and gas connections.

The possibility of recording welding parameters allows for full quality control and reliable settlement of the work performed. Solid metal housing protects advanced electronics from harsh conditions on the construction site.

Most important functionalities:

✅ Versatility: Support PE, PP, PVDF electrocouplings

✅ 4 operating modes: Manual, Scanner, Barcode manually, Repeat

✅ Archiving: Memory up to 3000 welds and export to USB

✅ Intelligent system: Automatic time compensation against ambient temperature

✅ Safety: Protection of the transformer against overheating

The subject of the auction is a proven and appreciated electroresistance welding machine for electroresistance fittings max fi 160 with registration of welding parameters Nowatech zeen-800plus.

Welding machine specification:

Range of diameters supported: 16-160[mm];

Power: 1450W;

Weight: 13kg;

Dimensions (mm) 390 x 240 x 160

The device supports pressure fittings used in the WOD-KAN and GAZ industries; ( PE, PP, PVDF)

Angle tips Ø4 and Ø4,7 included;

Four operating modes: manual, barcode scanner, barcode manually, as last time;

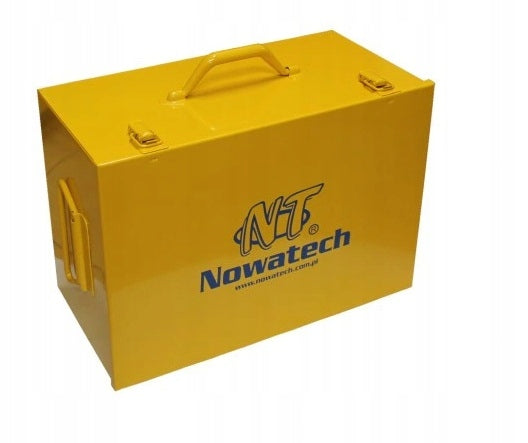

The device permanently mounted in a metal transport box, which protects against mechanical damage, dust, sand and rain, and also guarantees convenient transport of the device;

• power cord and output wires for 3m long fitting;
• intuitive keyboard;
• simple and transparent way of operating the welding machine control program;
• possibility of connecting a barcode scanner (the scanner is an additional option)
• transformer temperature measurement system, protecting the welding machine from overheating;
• automatic compensation of welding time depending on the ambient temperature. registration of parameters-memory of welds (500-700);
• communication with a PC via cable (included);
• software for printing registered welds on any printer in the office (downloadable from the manufacturer's website)

ATTENTION!! calibration valid until January 2027.
