Vandens cirkuliacinis siurblys AY4132, 12V, 32W

Trumpai apie prekę

Prekė: Vandens cirkuliacinis siurblys AY4132, 12V, 32W. Kategorija: Siurbliai.

• Gamintojas: no brand
• Modelis: VMHLO6195
• Galia: 32 W

⏺ SCOPE OF WORK: Brushless DC electric water pump, with a maximum flow rate of 31 l/min and a maximum lifting height of 8 meters, efficient and practical.

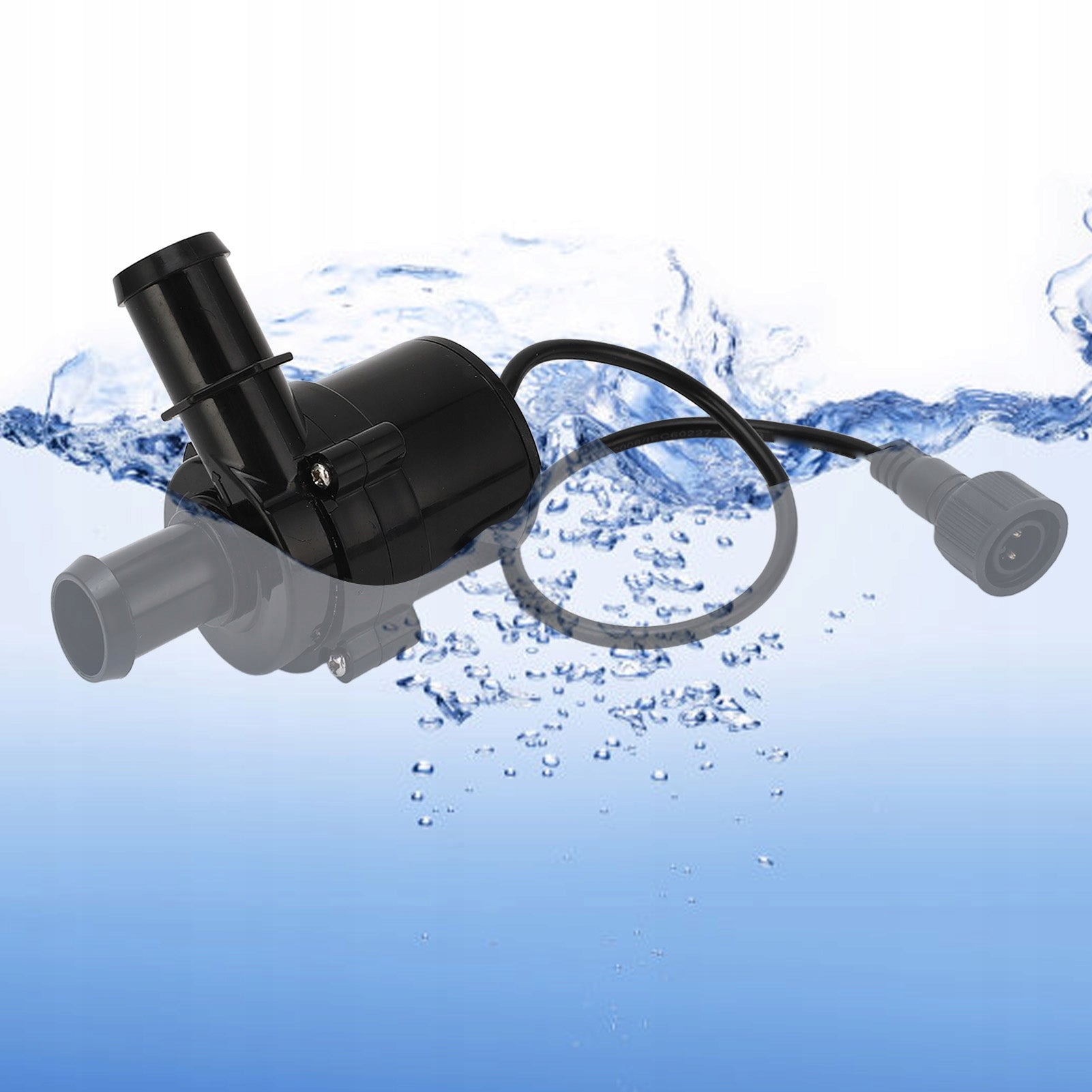

⏺ IMMERSION PUMP: This electric pump can be submerged in water during use, suitable for clean water with a temperature of 0-50℃ or antifreeze, without self-priming function.

⏺ QUIET OPERATION: This DC submersible pump is designed with very quiet sound, providing a quiet working environment, reliability and reusable capability.

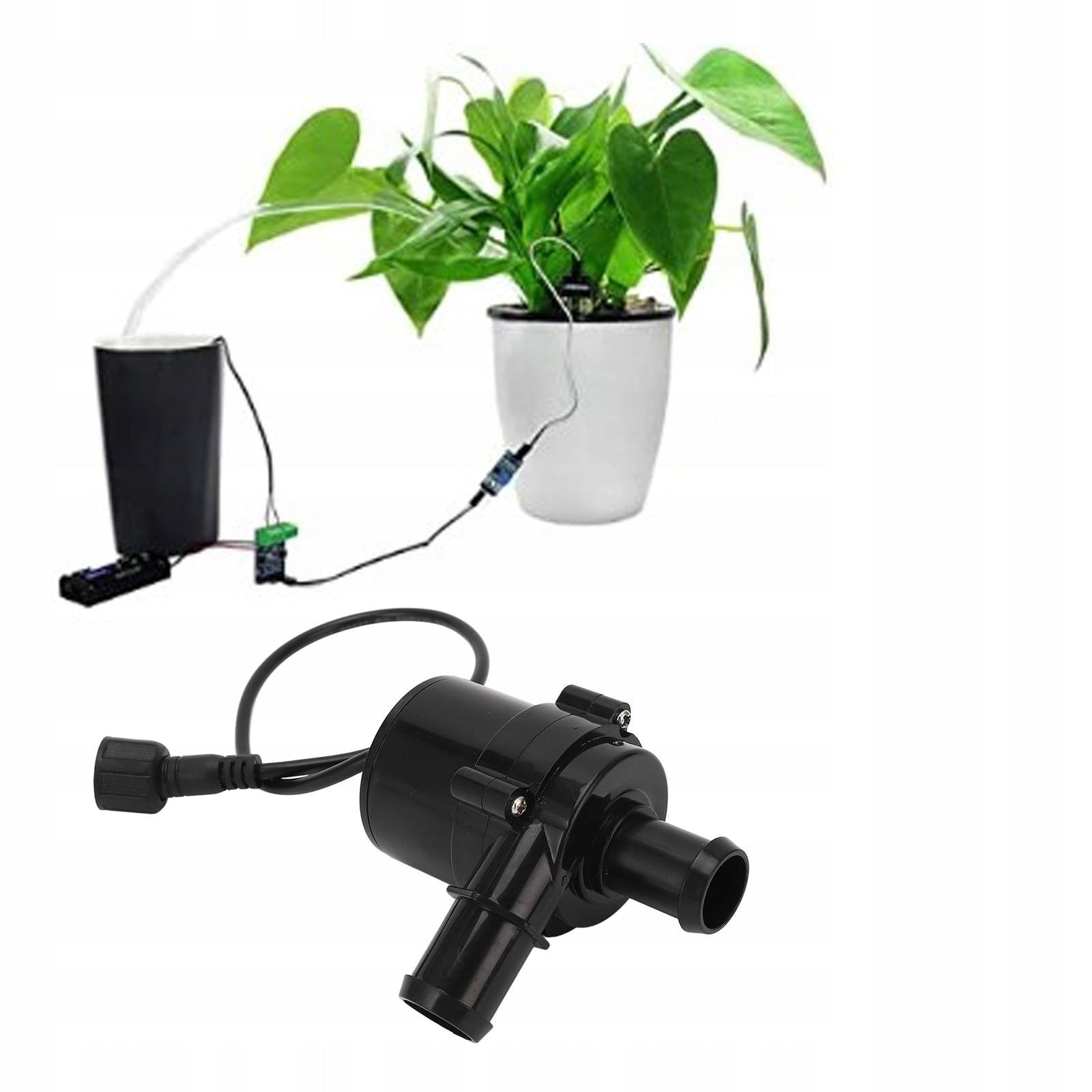

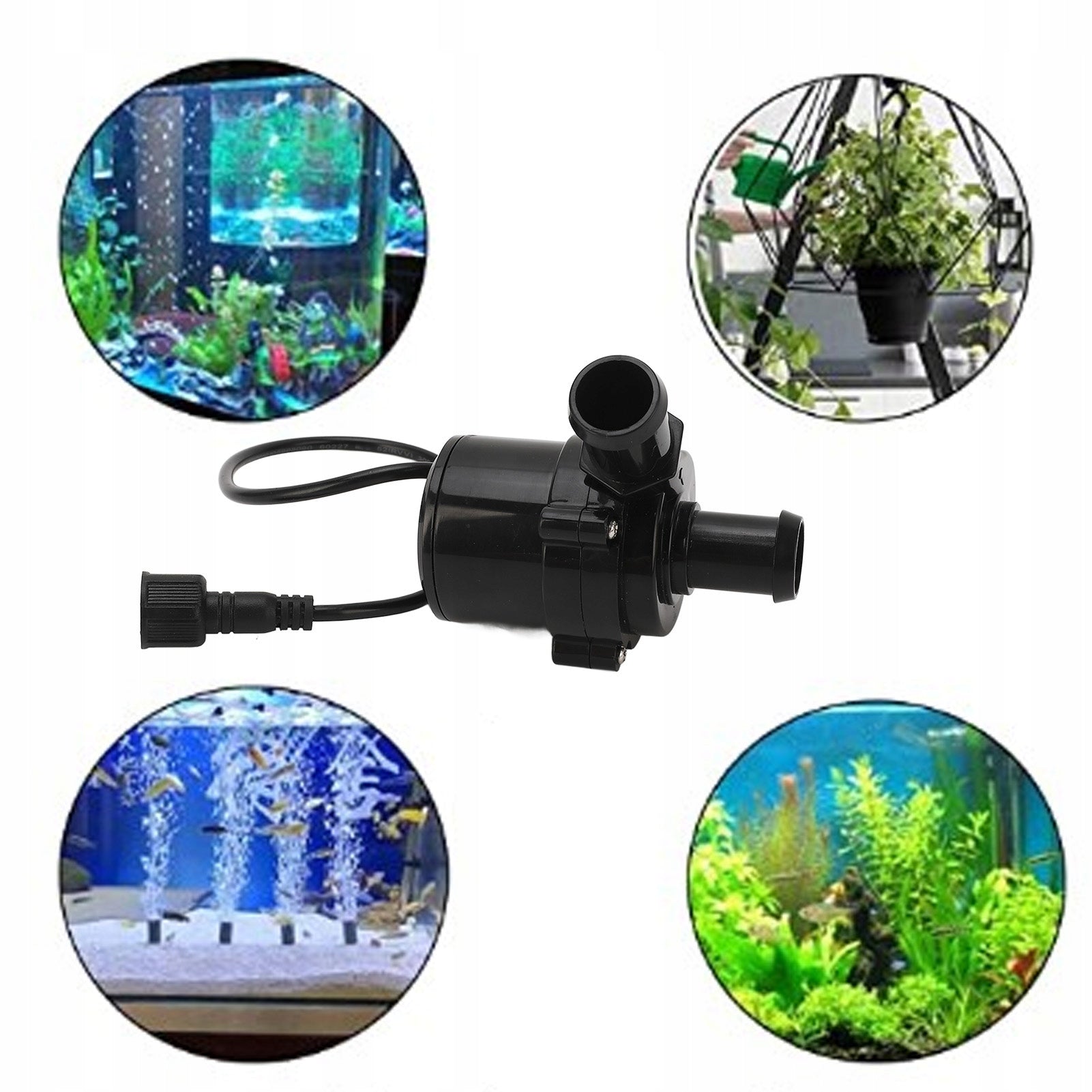

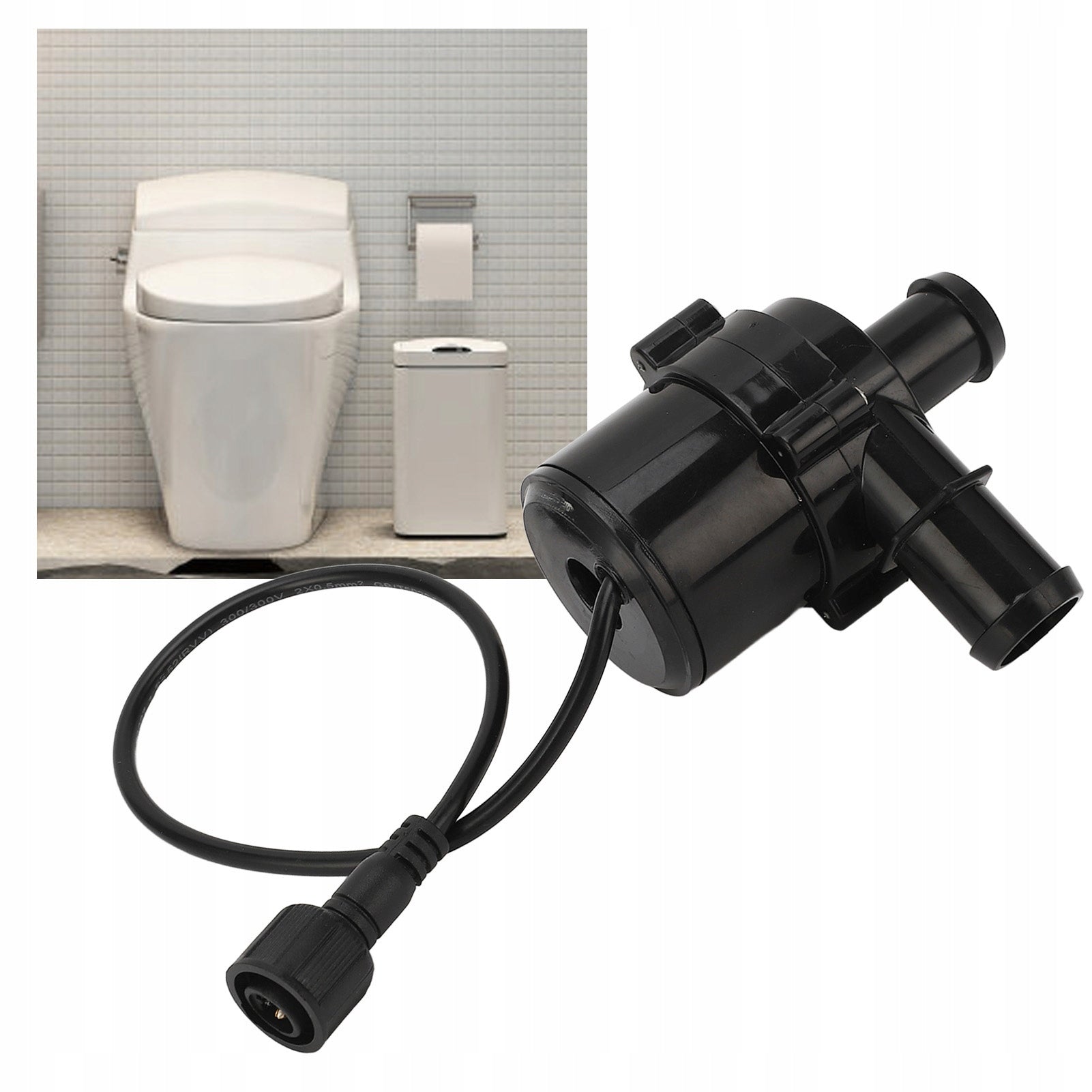

⏺ WIDE APPLICATION: Widely used in smart toilet, fruit vegetable machine, kitchen and bathroom equipment, aquarium, aquarium, fountain, hydroponics, etc.

5. IP68 PROTECTION: This water pump has IP68 protection rating, ensuring no load, overcurrent, overvoltage and undervoltage protection, safe and durable.

• Article type: DC water pump
• Model: AY4132
• Pump Body Material: ABS
• Pump Blade Material: PPO
• Pump Cover Material: ABS
• Rated current: 2,7 A
• Rated power: 32 W
• Maximum flow rate: 31 l/min
• Maximum head: approx. 8 meters / 26,2 feet
• Lifespan: ≥20000H
• Noise: ≤45dB
• Insulation level: Class F (155 ℃)
• Ambient temperature: -25-55 ℃
• Environmental Humidity: Submersible
• Type of liquid used: pure water, antifreeze
• Applied liquid temperature: 0-50 ℃
• Degree of protection: IP68
• Environmental protection level: Meets ROHS environmental protection requirements

◼ When the pump body is dry and idling, the water pump slows down five times in a row

◼ No load protection: When the pump body is running without water, the water pump slows down and starts and stops five times in a row. The water pump stops working for a total of 50 seconds and must be turned on again before starting.

◼ Overcurrent protection: when the working current is greater than 4A, the water pump stops working, and when the current is less than 4A, the water pump resumes working.

◼ Overvoltage protection: when the voltage exceeds 18 ± 1 V, the water pump protection does not work; The water pump resumes operation when the voltage drops below 15 V.

◼ Undervoltage protection: when the voltage drops below 7 ± 1 V, the water pump protection does not work, and when the voltage is more than 8 V, the water pump resumes operation.

• 1 x water pump

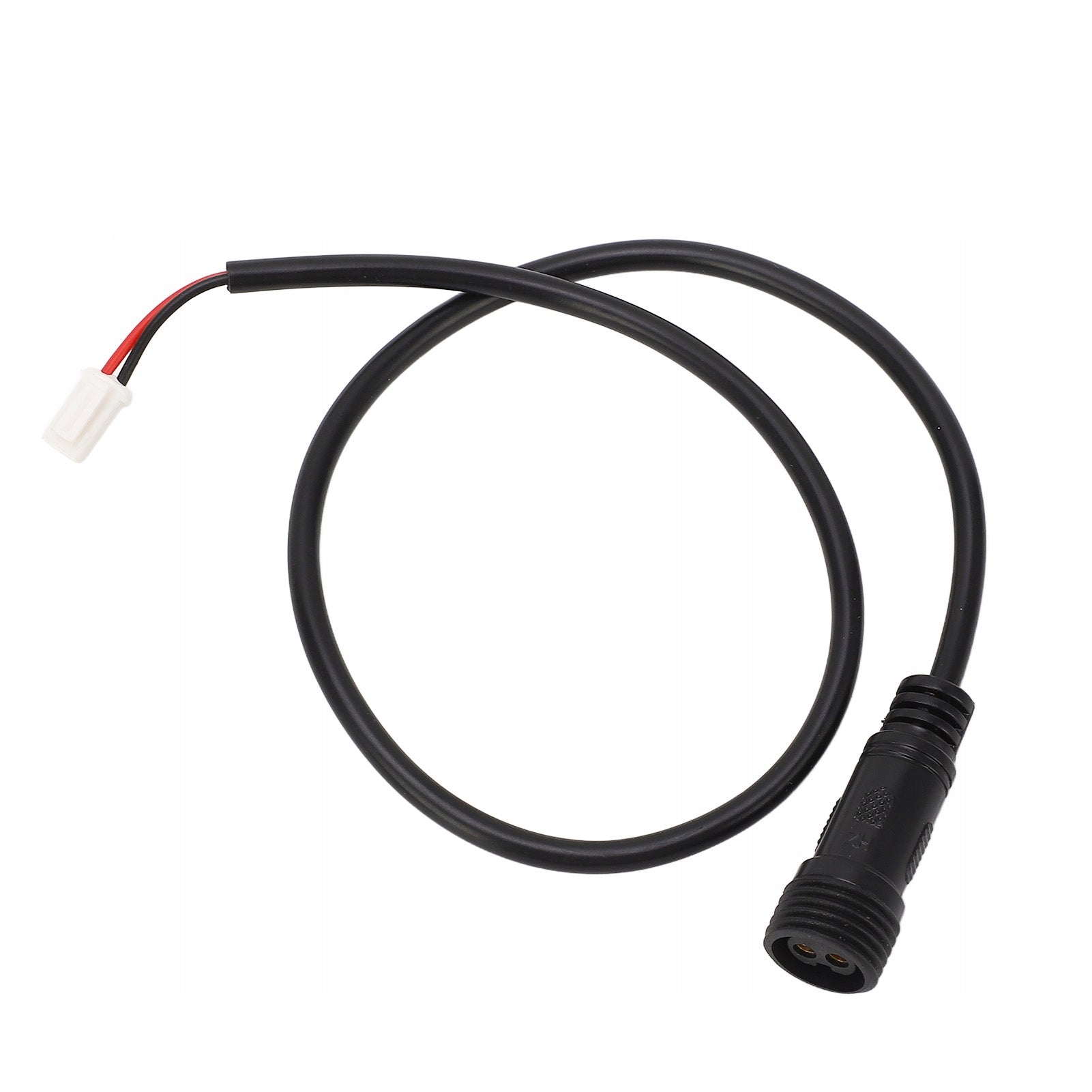

• 1 cable

Direct installation and use of wiring.
