Vandens filtras su UV sterilizatoriumi, 25W PHILIPS, ATEST PZH

Trumpai apie prekę

Prekė: Vandens filtras su UV sterilizatoriumi, 25W PHILIPS, ATEST PZH. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: Sanitline
• Modelis: UV25
• Talpa: 2.5 l

Sanitline UV lamp / Sterilizer / Filter

– high-quality stainless steel S304

25W complete set with 1/2" connection

and PHILIPS filament

All our lamps have a PZH CERTIFICATE allowing the lamp to be used in disinfection processes of water intended for human consumption.

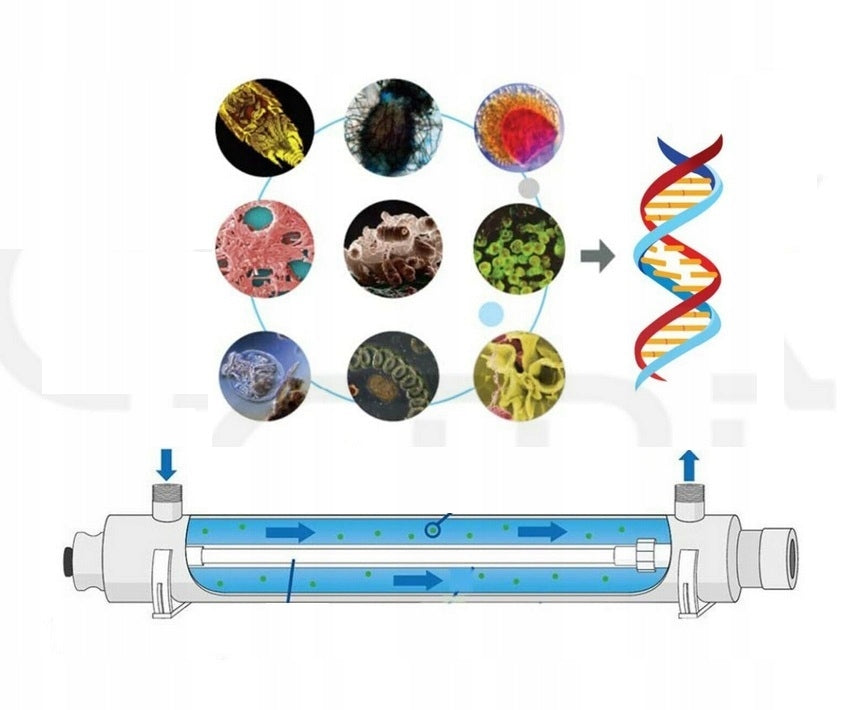

The Sanitline UV Sterilizer eliminates up to 99% of bacteria from the water (e.g. E-coli), viruses and algae.

The operation of the lamp in no way affects the turbidity, color, smell and taste of water.

All lamps are opened and checked in detail before shipment to avoid possible damage caused during transport and storage (lamps are sent new and unused )

25W lamps are used in:

• Households up to 3-4 people
• Agriculture
• Widely understood aquaristics
• Breeding (e.g. poultry )
• Food industry, catering and the like
• Water ponds and garden ponds up to 20 m³
• Well shots

UV lamp specification:

✅ Lamp filament life: up to 10000h

✅ Power: 25W

✅ Input voltage: 220~240

✅ Voltage frequency: 50/60Hz

✅ Connection: 1/2" external thread

✅ Chamber material: Stainless steel S304

✅ Nominal flow rate:

at UVC dose 300J/ m ² - 1,40 m3/h

at UVC dose 400J/m² - 1,00 m3/h

✅ Operating pressure - up to 10 bar

✅ Reaction chamber dimensions: 508mm x ⌀64mm

✅ The sterilizer works in a continuous 24-hour system (you can optionally use a timer, e.g. for a night or longer absence from using water )

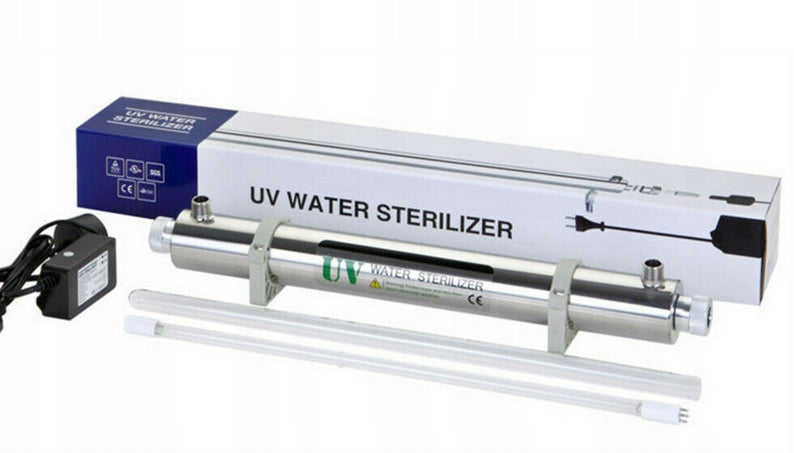

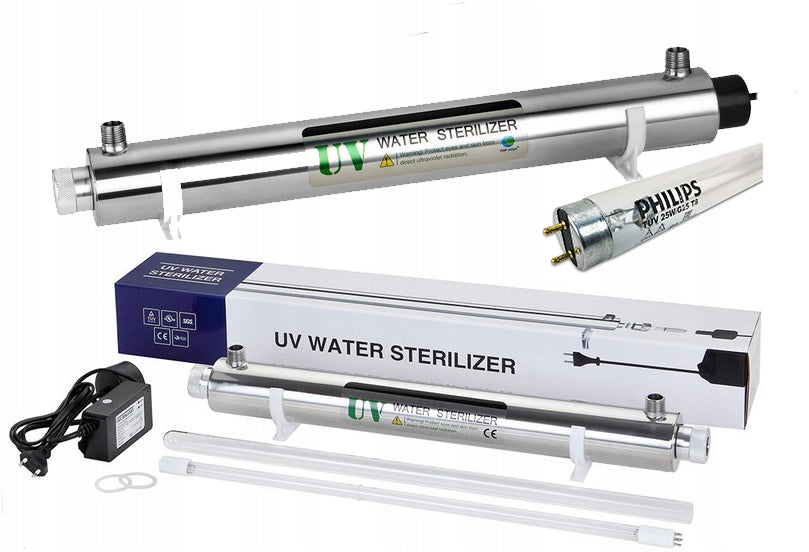

The set contains all the necessary elements :

✅ reaction chamber / UV lamp housing

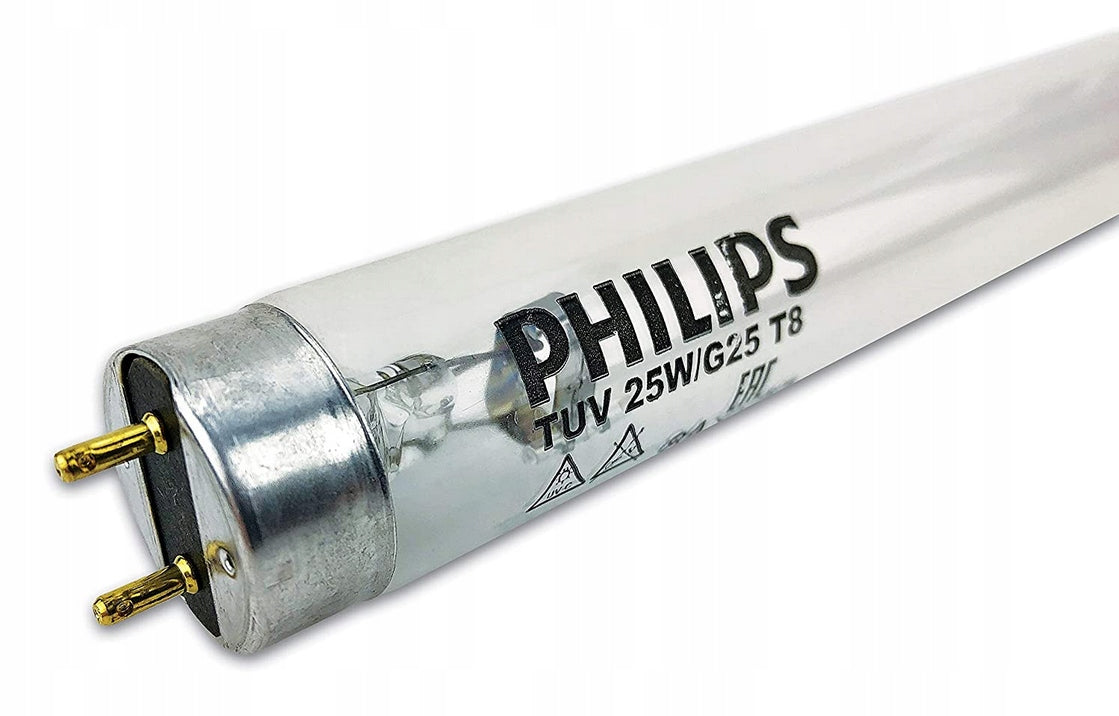

✅ original PHILIPS UV lamp filament model PHILIPS TUV 25W G25 T8

✅ AC adapter with ground cable 230V with operating signal / filament burnout

✅ set of mounting brackets

✅ O-rings / gaskets

✅ quartz menzura

Indications during assembly:

To prevent damage to the filament:

- do not touch the filament glass with your bare hands (the bulb may burn out)

- before placing the filament and quartz tube in the chamber, wipe with a cloth soaked in alcohol.

- the filament is activated only when placed in the reaction chamber, otherwise you can damage your eyesight

- before the lamp in the water system, it is recommended to install a filter (e.g. string ) to catch thicker elements contained in the water before getting into the lamp housing / reaction chamber
