Vandens filtras Wessper 1", 3 pakopų, visam namui, su kasetėmis išankstiniam filtravimui

Trumpai apie prekę

Prekė: Vandens filtras Wessper 1", 3 pakopų, visam namui, su kasetėmis išankstiniam filtravimui. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: Wessper
• Modelis: TripleMax 1"
• Talpa: 2 l

Wessper Triplemax 1'' 3-Stage Water Purification In-line System

Wessper Triplemax 1" is a 3-stage pre-filtration system for sediment, pesticides, chlorine and other contaminants. Suitable for home, rainwater, garden and well water. Ideal for indoor and outdoor use as a pre-filter (sludge and pollution filter) for domestic waterworks, wells, submersible pumps, centrifugal pumps, ponds and swimming pools.

The high-quality c pre-filter also protects your devices from damage caused by sand and dirt particles.

The set includes:

✅ 3-stage water filtration system 1"

✅ 3 filter cartridges: foam, carbon, string

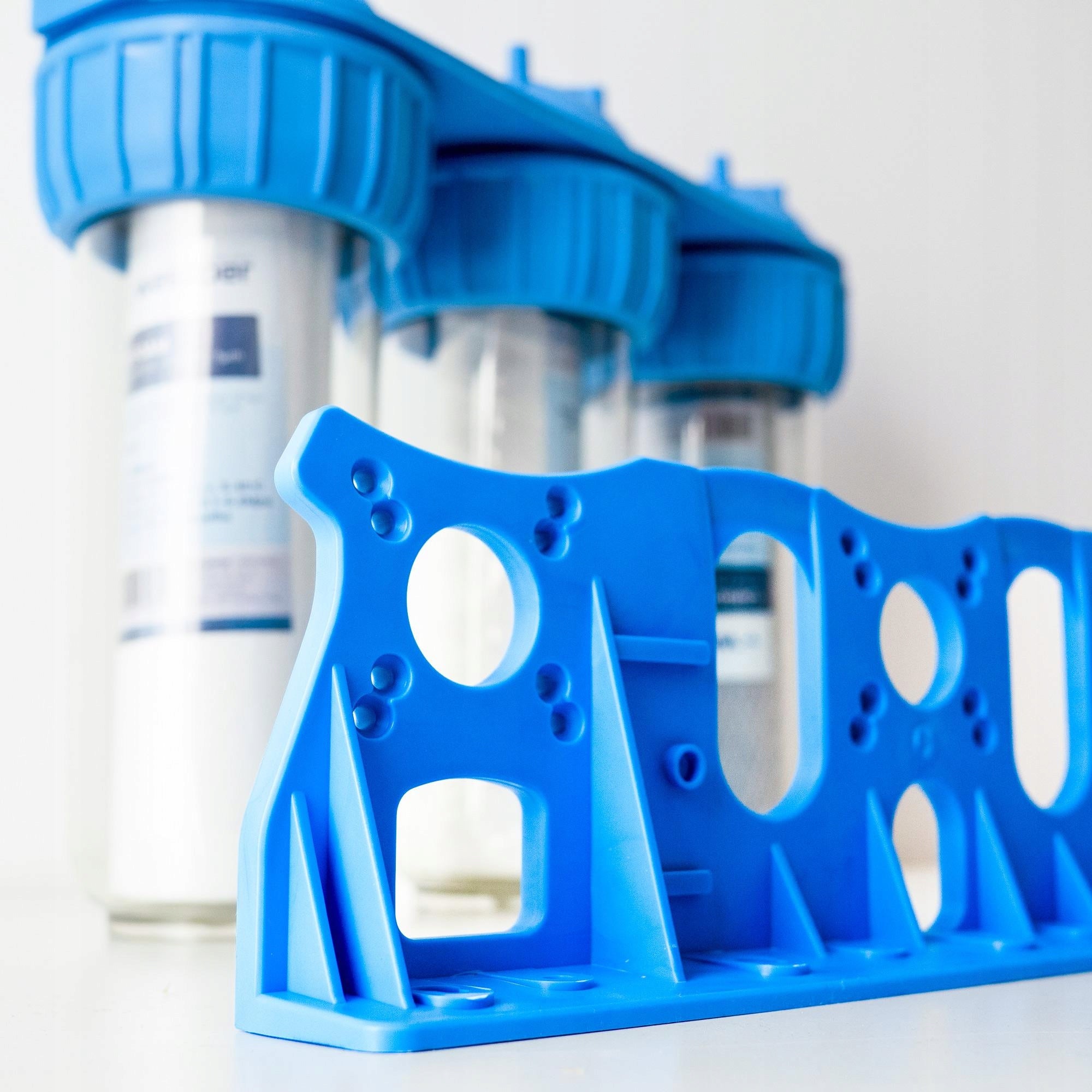

✅ wall mounting element with screws

✅ mounting key

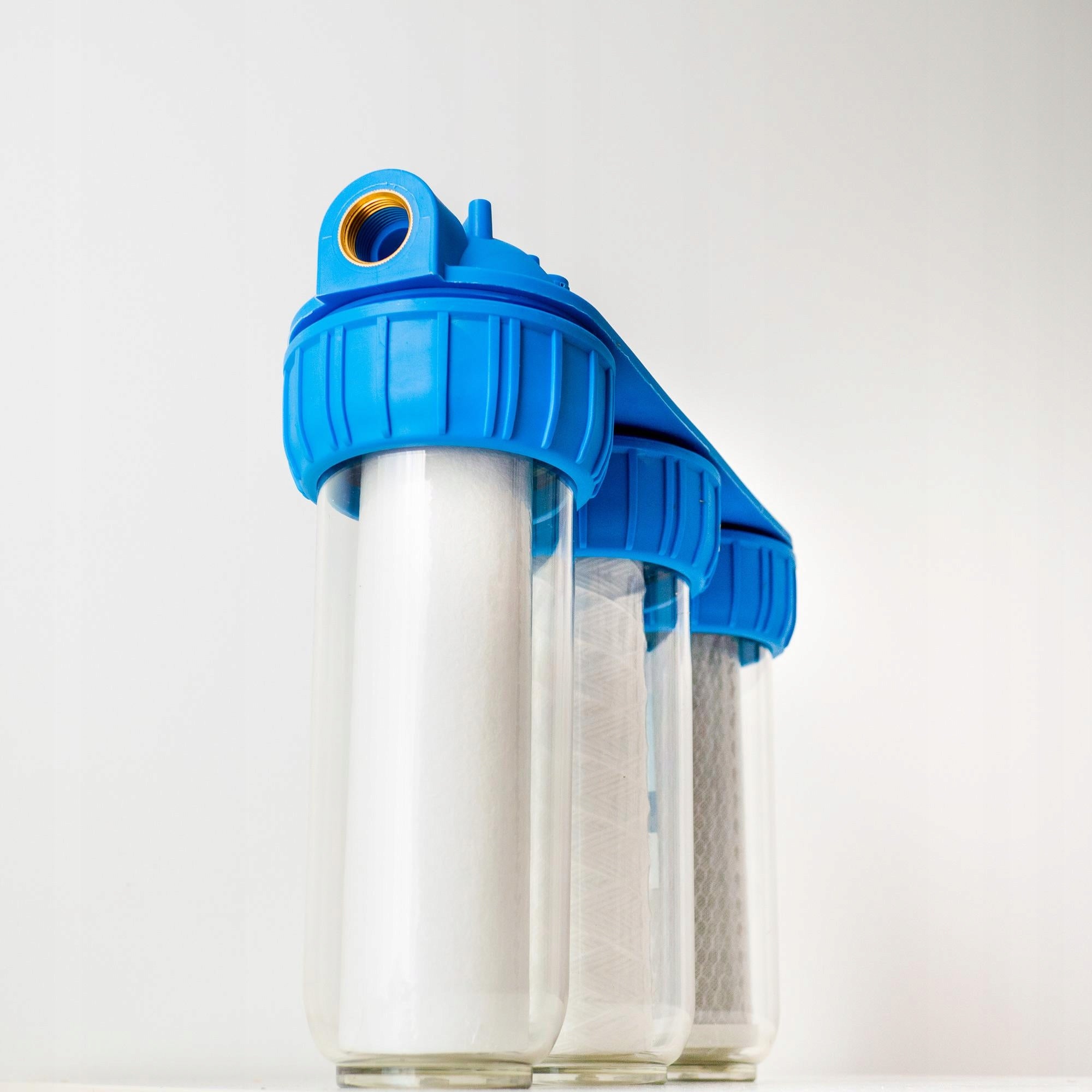

Wessper Triplemax 1''

✅ The Wessper Triplemax in-line body is made of a durable, transparent housing with a length of 10 inches, which makes its operation extremely easy.

✅ Replacing the water filter is extremely simple and convenient, and the set includes a key to lock the bodies, which is the only necessary tool to carry out the service.

✅ Water connection inputs and outputs are terminated with a brass internal thread with a diameter of 1 inch (2,54 cm / 25,4 mm)

Recommended water filtration order:

1 String filter - stops larger mechanical contaminants such as sand, rust, silt and larger deposits. It works well as the first stage of filtration, especially with more polluted water.

2 Foam filter - purifies water from finer mechanical particles. It can retain dust, fine sand, sediment and smaller rust particles. This protects the carbon filter from clogging faster.

3 Carbon filter - used as the last stage. It improves the taste, smell and color of water, reduces chlorine and substances responsible for unpleasant aftertaste.

The most important parameters:

▶ robust, transparent filter housing 2L (10")

▶ filter cartridges (sieve cartridge) available as a spare part

▶ connection on both sides through 1-inch brass internal thread

▶ set includes vent valve

▶ optical control through a housing made of impact-resistant plastic

▶ Capacity: approx. 2 liters

▶ Connection thread: thread diameter 2,54 cm (25,4 mm)

▶ Max. working pressure: 10-12 bar

▶ Max. water temperature: 45 degrees

▶ Max. water flow: 3000 litres/h

▶ Connection Input: 1" (i.e. 2,54 cm) internal thread (brass socket)

▶ Connection Output: 1" (i.e. 2,54 cm) internal thread (brass socket)

▶ Material: pet, plastic

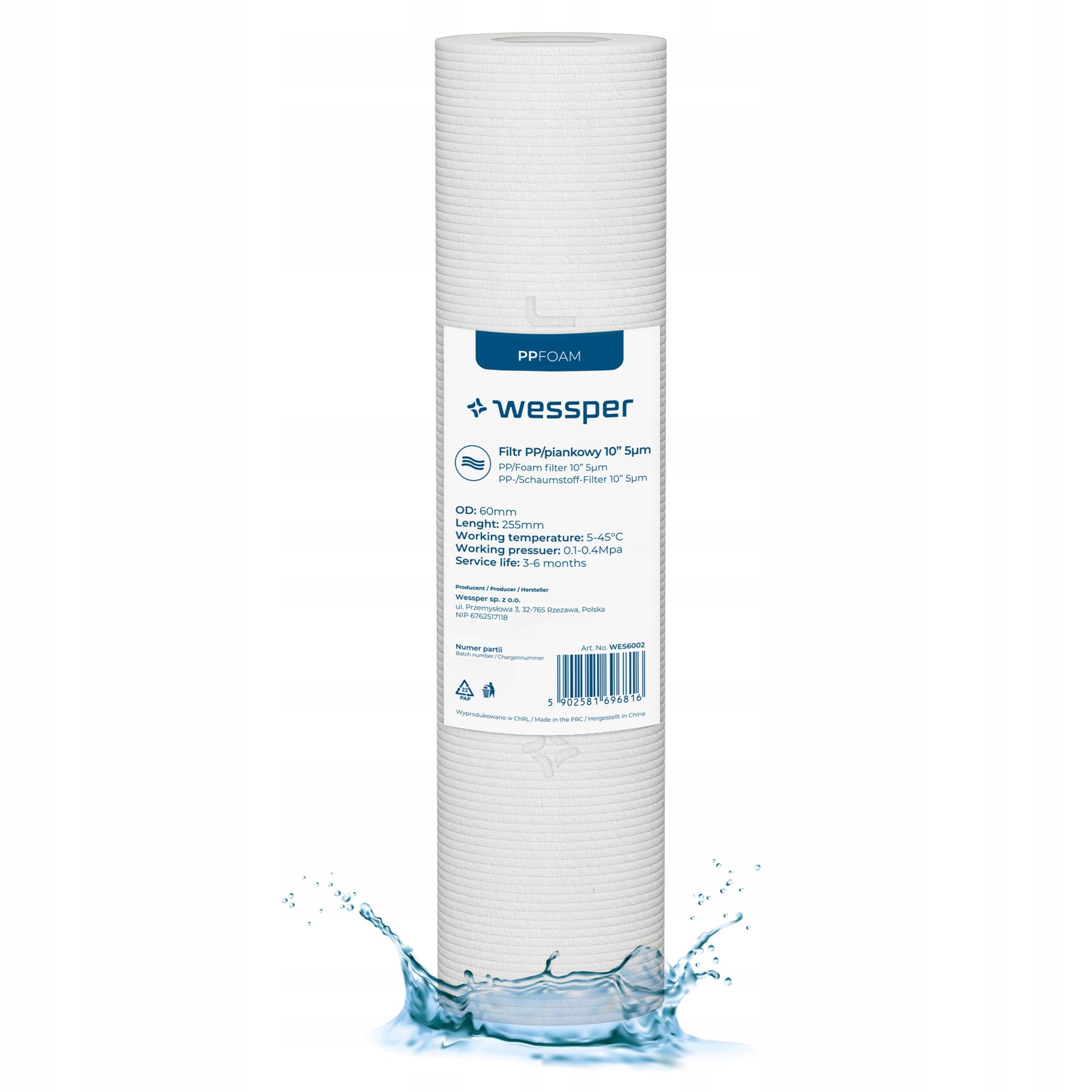

Water filter Wessper - foam cartridge 10"

Foam cartridges are a practical and cost-effective solution for pre-filtration of water. Thanks to the structure made of foamed polypropylene, the filter stops mechanical impurities such as sand, rust, silt, dust and other deposits present in the water.

The foam filter works well as the first stage of filtration, protecting the water system, fittings and subsequent filter cartridges from faster wear. Its task is to mechanically purify water from particulate matter without changing its basic properties.

The cartridge can be used in homes, apartments, offices, utility installations and wherever pre-filtration of domestic water is needed.

Main advantages:

✅ Effective mechanical filtration - foam cartridge traps fine solid impurities such as sand, rust, silt, dust and sediment.

✅ Protection of installations and equipment - filter limits the entry of contaminants into further elements of the installation, which helps to protect fittings, household appliances and subsequent stages of filtration.

✅ Without affecting the taste and smell of water - foam cartridge does not change the taste or smell of water. It works by mechanically stopping particulate matter.

✅ Universal application - fits standard 10" filter bodies, so it can be used in many popular water filtration systems.

✅ Easy to replace - the cartridge is easy to install and replace, so it will work well in everyday home and business use.

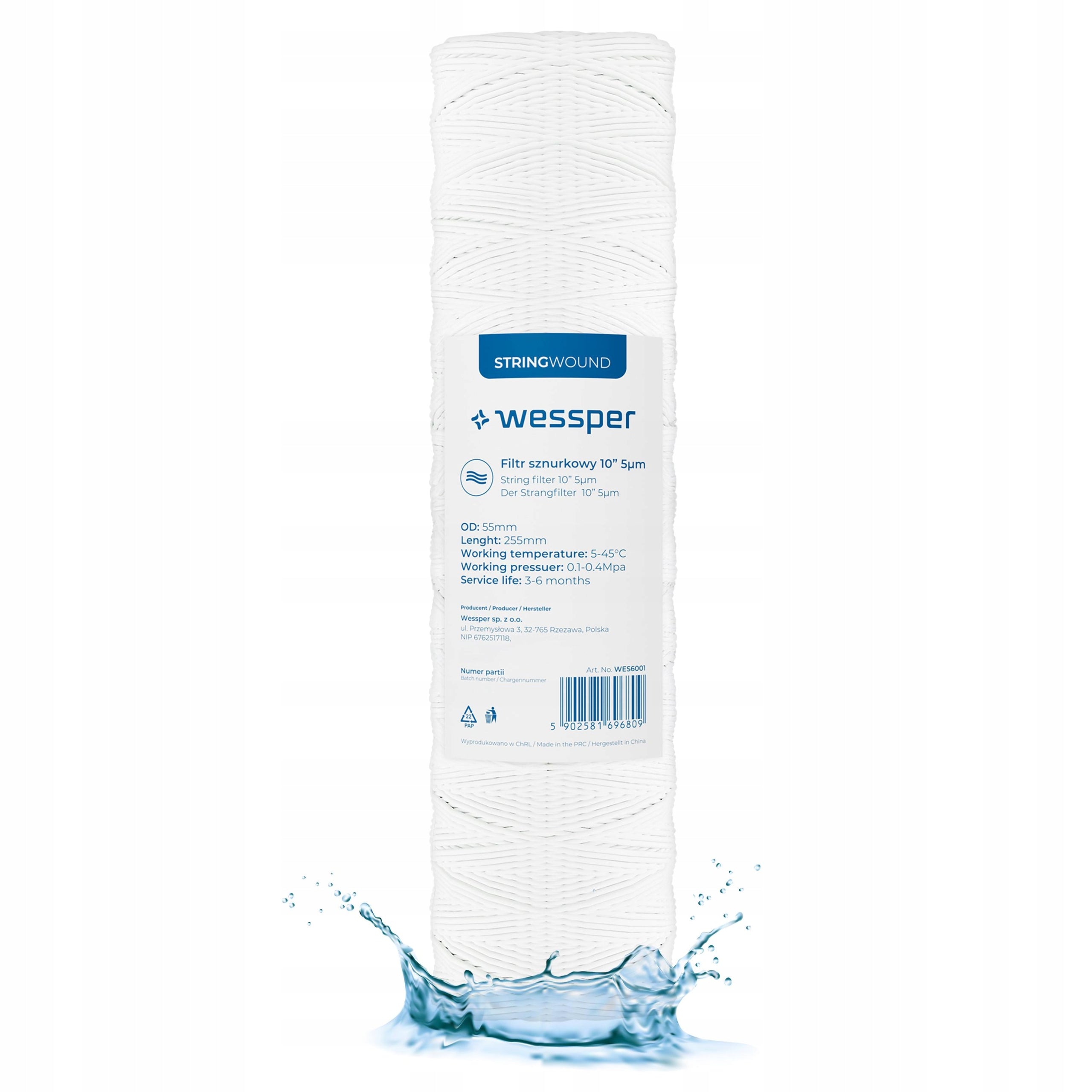

Water filter Wessper - string cartridge 10"

String cartridges are a proven and cost-effective solution for pre-filtration of water. Thanks to the special construction of polypropylene fibers, they retain sand, rust, silt and other mechanical impurities, protecting the installation and subsequent stages of filtration. The layered construction ensures that larger particles are retained outside and finer particles inside - which increases the effectiveness and extends the life of the cartridge.

String filters are resistant to chemicals, can work at higher temperatures and at high pressures, and are cheap and easy to replace. Ideal for use in homes, apartments, offices and industrial installations as the first stage of water filtration.

Main advantages:

✅ Without affecting the taste and quality of water: The string filter does not change the taste or quality of water, which is important for its users.

✅ Bacterial resistance: Thanks to its design, the filter surface does not accumulate bacteria and contaminants, ensuring safe filtration.

Water filter Wessper - carbon cartridge

• The carbon cartridge is a practical solution designed to improve water quality. Its task is to reduce chlorine and substances that can affect the taste, smell and color of water.
• Thanks to the use of active carbon filter helps to reduce unpleasant aftertaste and smell, improving the comfort of daily use of water. The cartridge can be used as the next stage of filtration after a mechanical filter that previously retains sand, rust, silt and other deposits.
• The carbon filter is best used after the earlier stage of mechanical filtration. The mechanical cartridge traps larger deposits such as sand, rust, and silt, so the carbon filter can improve the taste and smell of water more effectively.
• Regular replacement of the cartridge helps maintain the proper functioning of the filtration system and proper water quality.

Instructions for replacing the cartridge:

1 Cut off the water supply to the purifier.

2 Release the pressure inside the water purifier.

3 Place a container of at least 1 liter under the purifier to pour out the remaining water.

4 Unscrew the body with a wrench from the set and remove the used cartridge from it, then rinse the body and cover.

5 Install the new cartridge in the housing.

6 Place the rubber O-ring in place of the housing.

7 Screw the case all the way down, then tighten with a wrench.

8 Bring water to the water purifier and check the tightness of the body and cover connection.

⭐ The replacement period is determined depending on the water quality, the method of use of water purification, the content of impurities in the water, as well as based on the user experience.

⭐ The service life of the cartridge, regardless of the use of the water purifier and water quality, should not exceed 6 months. This is due to the danger of contamination of the bacteriological filter cartridge at room temperature.

⭐ Only original Wessper cartridges should be used for replacement.

Installation of water purifier:

The cleaner should be installed in the cold water network. When connecting, observe the direction - water supply to the water purifier.

✅ Cut off the water supply in the pipeline before starting the installation.

✅ After installing the water purifier, carefully open the water supply and make sure all connections are tight. In case of water leakage, tighten the locking ring with a special key.

✅ The air initially in the body of the product after installation can be released by unscrewing the appropriate screw on the lid.

❗❗Note❗❗

In order to ensure proper operation of the water purifier, the manufacturer recommends to use an additional pressure regulator, installed in the line between the water supply and the purifier.

Dimensions:

✅ External dimensions of water filtration system: 405x142x345 mm

✅ Size of the internal body of the filter "winded": length: 254mm, diameter: 51mm

✅ Thread type: 1 inch
