Vandens filtras WODARO HBB10, anglies, 10", BIG BLUE, geležies šalinimui

Trumpai apie prekę

Prekė: Vandens filtras WODARO HBB10, anglies, 10", BIG BLUE, geležies šalinimui. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: Aquafilter
• Modelis: ODŻELAZIACZ WODY HHBB Z FCCFE10BB KPL
• Talpa: 0 l

✅ Triple water filter WODARO HBB10 – clean water throughout the house

The WODARO HBB10 set is a robust, central flow filter in the BIG BLUE standard (i.e. BB / bb), designed to improve water quality throughout the installation. In one stable construction you get three in-line bodies and a set of WODARO cartridges:

1 x mechanical

1 x de-ironing

1 x carbon.

If you want to make the water in your home cleaner, have a better smell and taste, this de-ironing water filter is a very versatile solution.

✔ Versatility: Three-stage filter based on BIG BLUE 10 columns, allowing you to customize the cartridges to your individual needs.

✔ Stable design: The steel frame allows you to place the device on the floor without having to attach it to the wall.

✔ Complete Set: The set includes 3 WODARO filter cartridges that will provide you with clean and healthy water.

✔ Cleaner installation and equipment – mechanical filtration stops sand, rust, silt and sediment

✔ Better taste and smell of water – chlorine carbon filter and compounds responsible for the “tube”

✔ Complete set – cartridges + elements for easy installation (centering discs, key)

✔ BIG BLUE 10" standard in-line bodies – easy cartridge availability and simple replacement

The body has a standard 1 inch thread (fits 98% of installation)

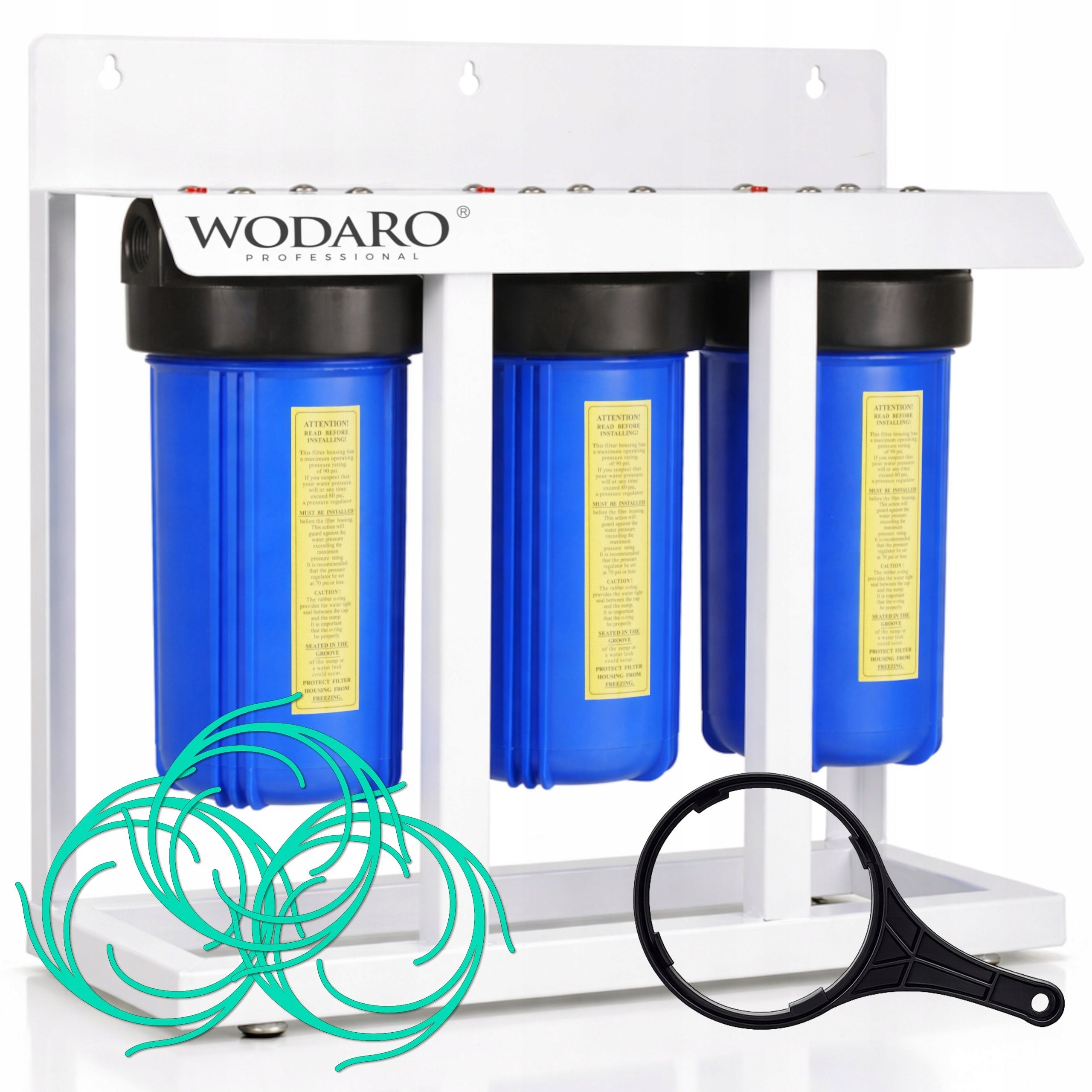

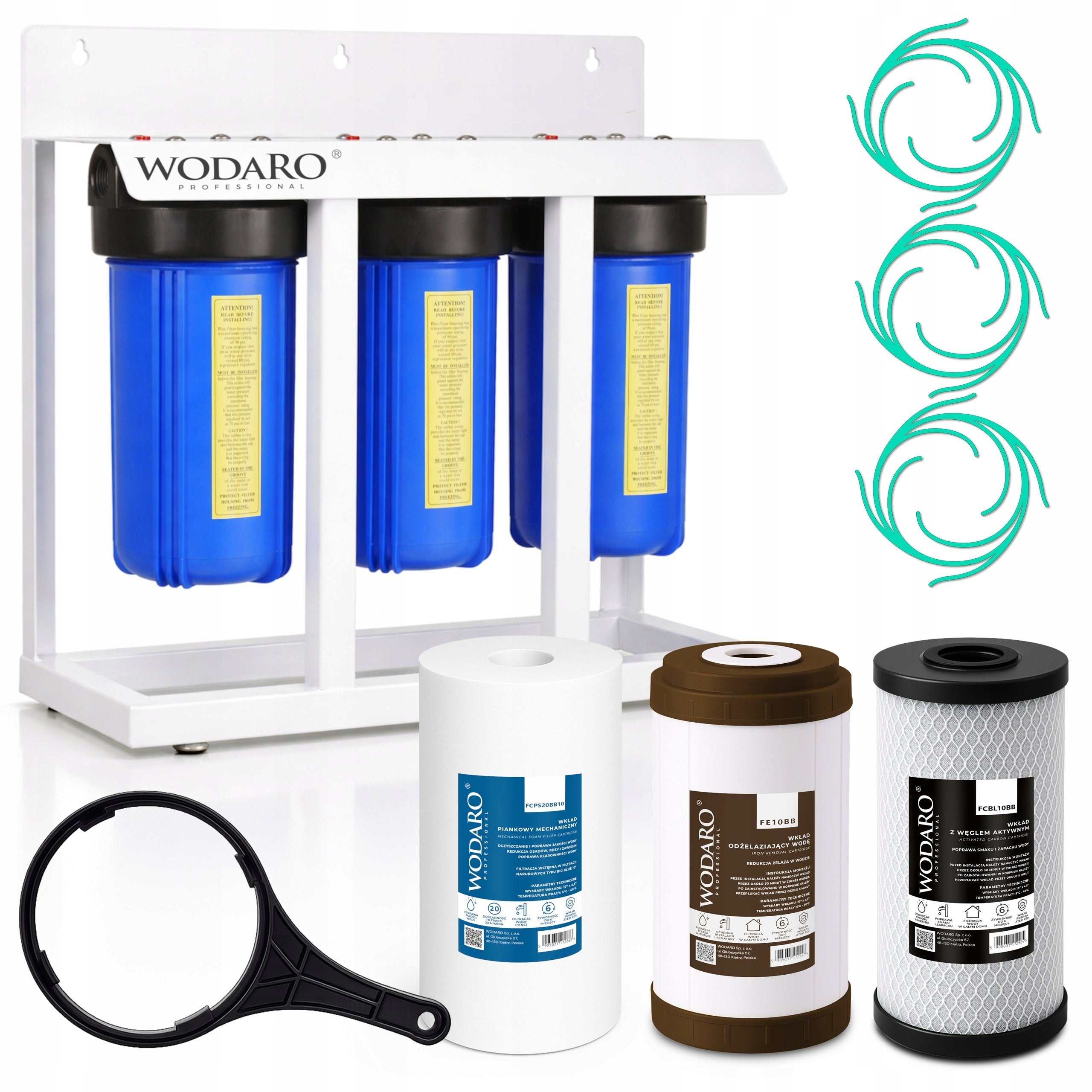

📦 What is included? (HYDROGEN HBB10)

You get a complete set ready for assembly:

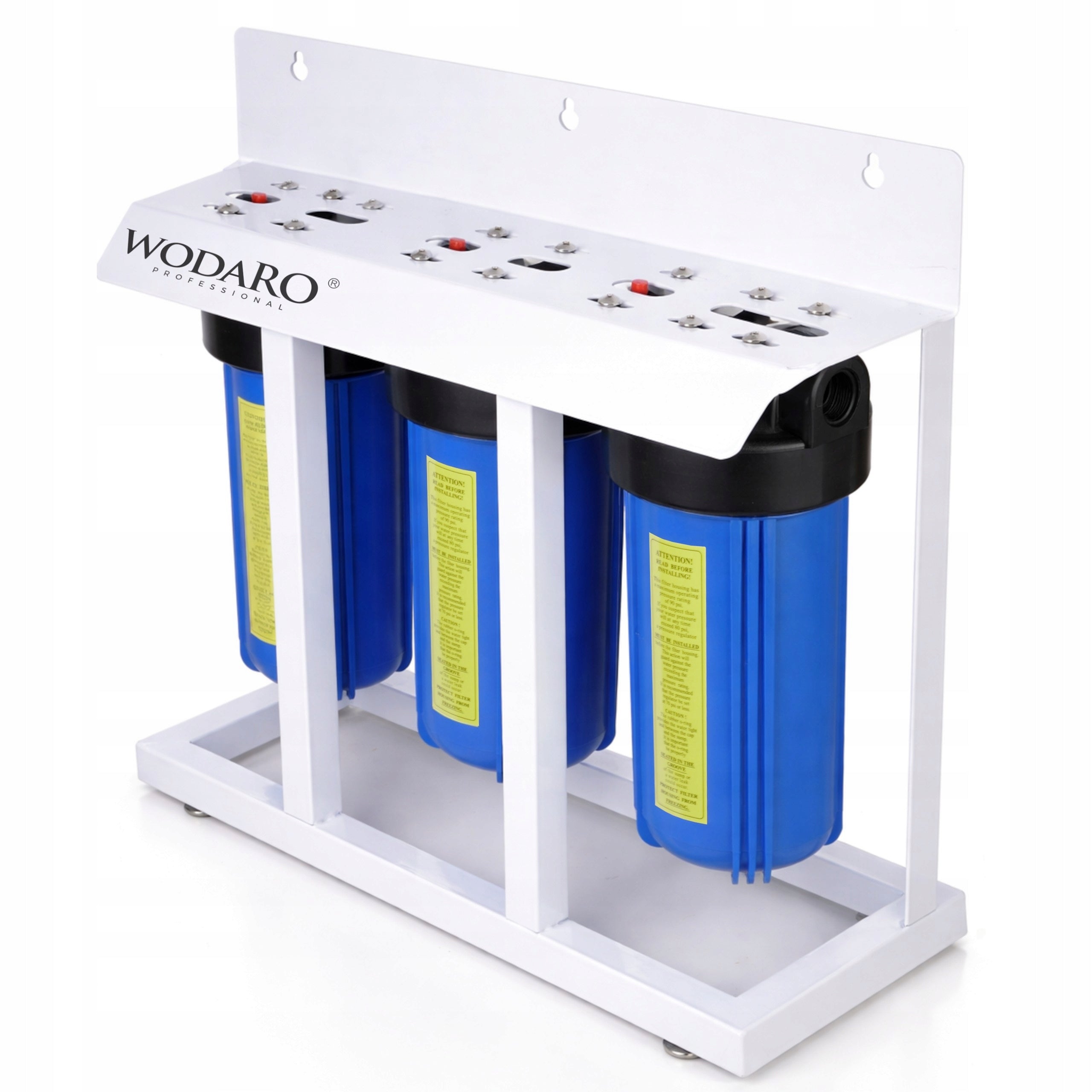

✅ triple filtration station on steel frame (3 × BIG BLUE in-line body)

✅ 1 x 20 micron BIG BLUE foam cartridge (WATER)

✅ 1 x BIG BLUE carbon cartridge (WATER)

✅ 1 x BIG BLUE (WATER) demanganizing/ironing cartridge

✅ 3 x antibacterial centering discs (easier cartridge installation and stable positioning)

✅ key for unscrewing enclosures

💧 What does a flow water filter do in practice?

The water iron remover is mounted at the entrance of the installation (usually in the boiler room or technical room), so that the water is filtered before it reaches all taps and devices.

In practice, you gain:

✅ less sand, rust and deposits in the installation

✅ better taste and smell of usable water

✅ protection of faucet, shower cabin, washing machine, dishwasher and boiler against minor contaminants

✅ no yellow water in the tap

✅ convenience – you replace the cartridges quickly, and the steel frame stands/keeps the set stable

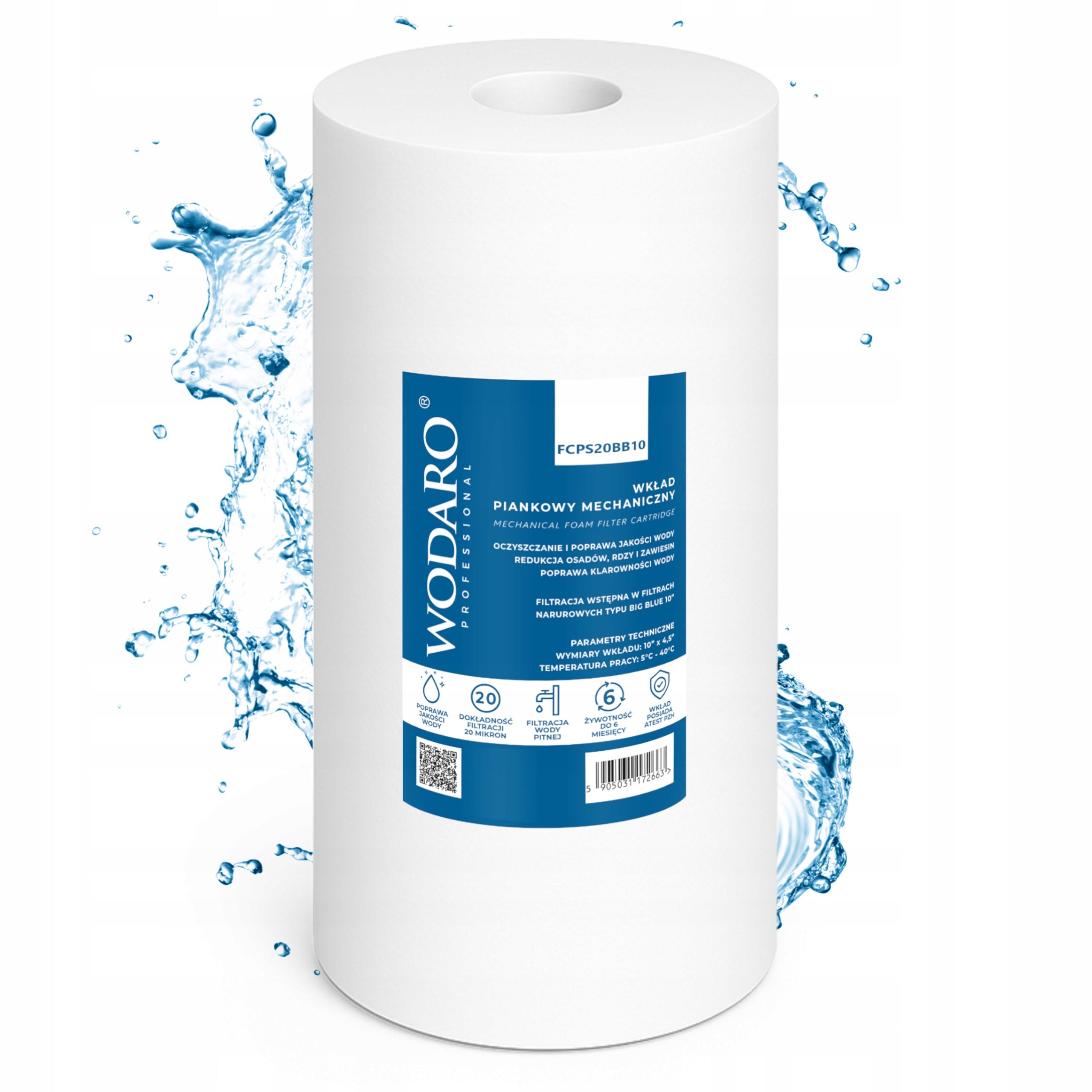

☑ WODARO mechanical filter (FCPS20BB10)

✔ Function: Specializes in removing mechanical impurities.

✔ Advantages: Perfectly removes sand, silt, rust and other mechanical contaminants.

✔ Material: Made of polypropylene nonwoven fabric, resistant to chemicals and microorganisms.

✔ Additional information: Made in the EU, ideal for protecting domestic water installations and household appliances.

✔ Exchange on average every 2-6 months*

The cartridge should not be used for microbiologically contaminated water and unknown origin.

*depending on the quality of the input water

☑ WODARO de-ironing filter (FE10BB)

✔ Function: Designed for reduction of iron and manganese dissolved in water, which cause brown deposits, metallic taste and discoloration of fittings and sanitary facilities.

✔ Advantages: Limits the formation of brown deposits, improves clarity and usability of water.

✔ Material: Filled with a specialized de-ironing/de-manganizing bed.

✔ Additional information: It is certified by PZH, which confirms its high quality.

✔ Exchange on average every 2-6 months*

*depending on the quality of the input water

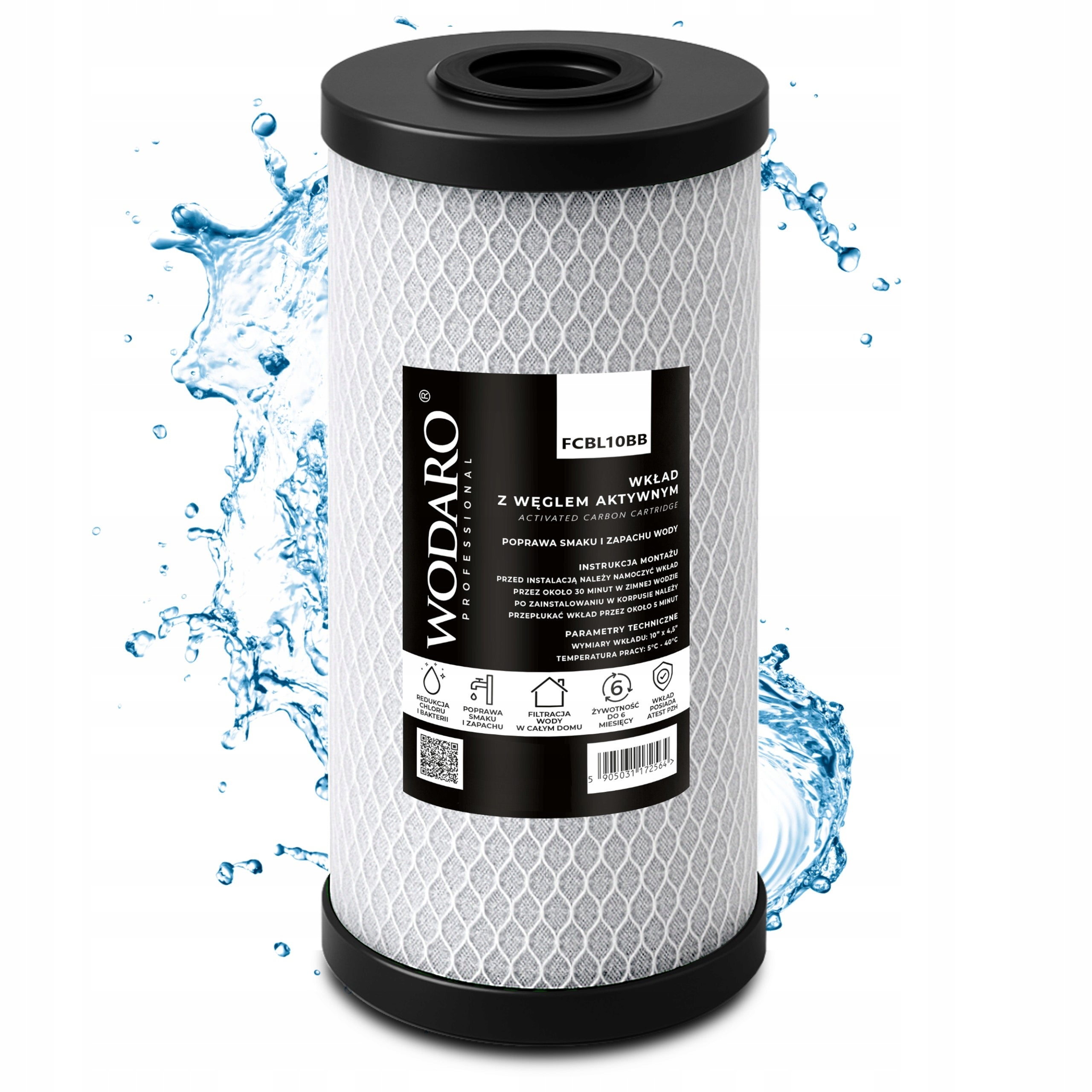

☑ WODARO carbon filter (FCBL10BB)

✔ Function: Focused on removing chemical impurities from water.

✔ Advantages: Removes up to 99% of free chlorine, improves the taste and smell of water.

✔ Material: Filled with the highest quality coconut shell carbon.

✔ Additional information: It is certified by PZH, which confirms its high quality.

✔ Exchange on average every 3-6 months*

*depending on the quality of the input water

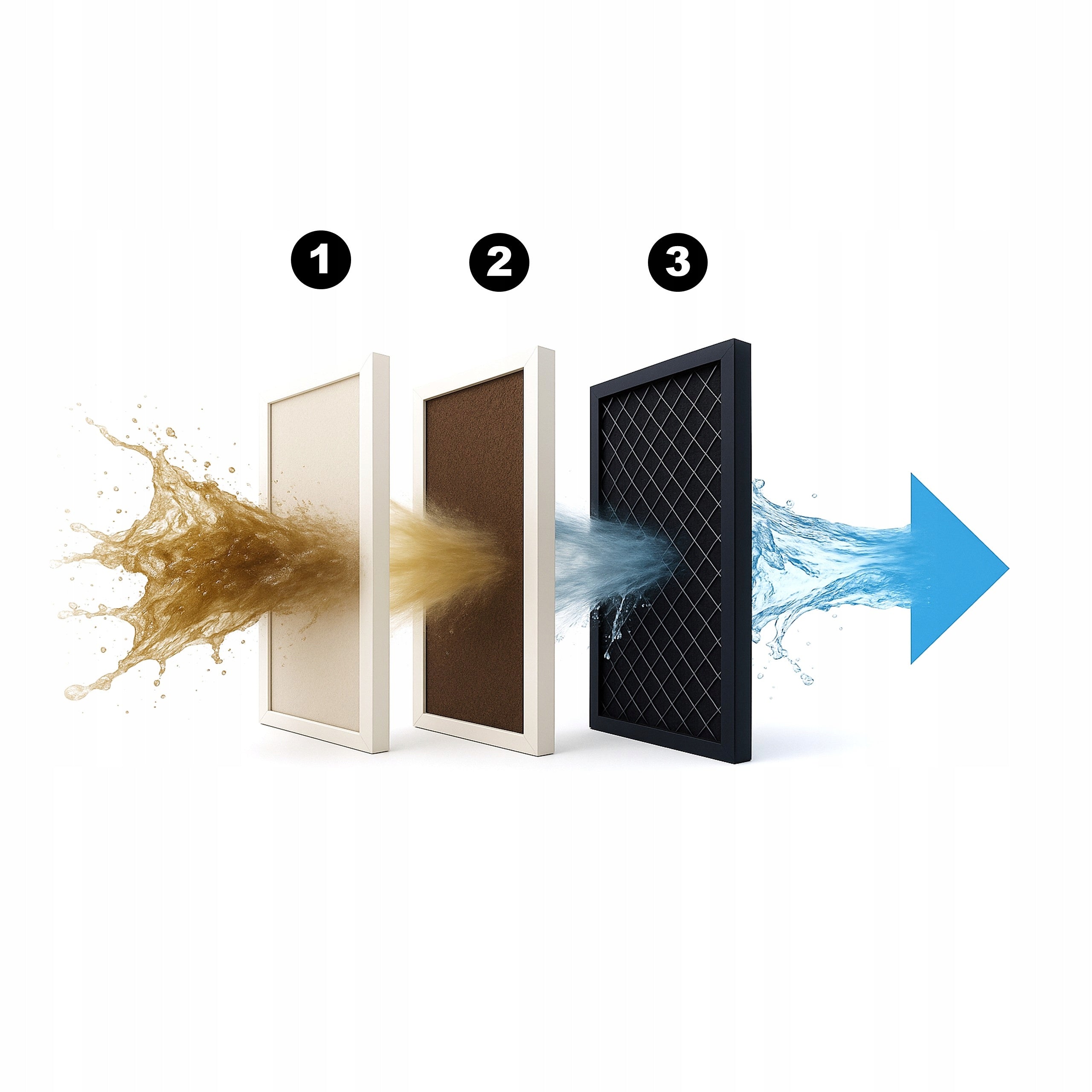

🔁 Recommended cartridge order (simple and effective)

1 mechanical – foam 20 µm

2 water de-ironing filter

3 carbon filter

This is the most frequently chosen system for homes – first you remove mechanical “dirt” and then improve the quality of water with coal.

The offered product has current PZH certificate, confirming its safety and quality in contact with drinking water. Each element has been exactly tested in accordance with applicable standards, which ensures safe use.

It is worth noting that many competing filters do not have PZH certificate, despite similar declarations – with us we focus only on solutions confirmed by research.

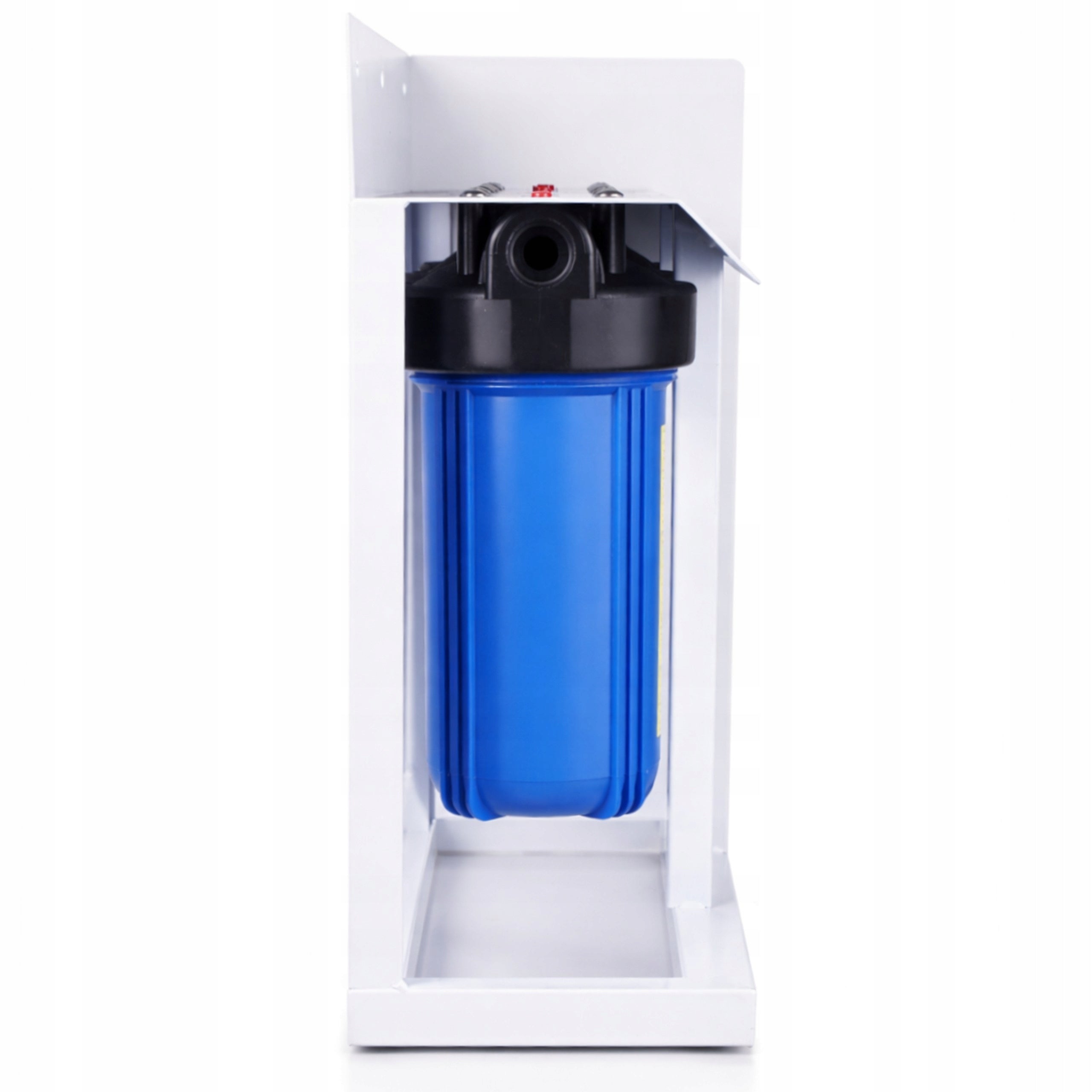

🧩 BIG BLUE (BB) in-line body – a standard that facilitates service

The set includes three in-line bodies in the BIG BLUE 10" standard. This standard is popular, so you can easily choose other cartridges in the future – if you ever want to change the configuration (e.g. for other needs).

☑ 3 antibacterial centering discs:

✔ BACInix™ technology with nanosilver provides antimicrobial protection.

Centering disk:

✔ facilitates the correct installation of the cartridge

✔ prevents the development of bacterial flora

✔ reduces the risk of developing pathogenic microorganisms

✔ made of the highest quality materials in the European Union

✔ compatible with most cartridges on the market

✔ ensures proper positioning of the cartridge when twisting components

✔ reduces the likelihood of damage to the cartridge during installation

✔ BACinix technology based on nanosilver, provides antimicrobial protection

⚙ Connections: 1″ GW

⚙ Operating temperature range: 1 – 45 °C

⚙ Working pressure: 1 to 6 bar (decrease 0,1 to 0,4 bar)

⚙ Dimensions of the twisted set:

• width: 58 cm
• height: 60 cm
• depth :24 cm
• weight : approx. 17kg

⚙ Insert size: standard, BIG BLUE 10

❓ FAQ – Frequently Asked Questions

1) Is WODARO HBB10 suitable as a whole house filter?

Yes. It’s a flow filter mounted on the installation input (usually behind a water meter), so it filters water for the whole house – as long as the installation is plugged in one place.

2) Does this set soften water (remove stone)?

No. It is a triple water filter: 1 mechanical stage + 1 carbon stage and 1 iron and manganese reducing stage. Improves water quality (sediment, taste, smell), but is not a softener. If you need a hardness reduction, you need a separate softener.

3) What removes 20 µm foam cartridge?

Stops mechanical contamination: sand, rust, silt and slurry. This is the first degree of protection for installations and carbon cartridges.

4) What does a carbon filter (active carbon) give?

The activated carbon filter improves the taste and smell of water and helps reduce chlorine and some of the organic compounds responsible for the “tap” aftertaste.

5) How often should I replace cartridges?

It depends on water quality and consumption. Most often, the mechanical cartridge is replaced more often (on average every 2-4 months) (because it collects dirt), and carbon less often (on average every 3-6). The signal for replacement is a drop in pressure/flow or a deterioration in taste and smell.

6) Can I change the configuration of the cartridges in the future?

Yes. The BIG BLUE standard is popular, so you can choose other cartridges that match your enclosures if your needs change.

7) Is there a key to unscrew the enclosures?

Yes, the key is included. In addition, you get centering discs to facilitate the correct installation of cartridges.

8) Is it suitable for well water?

It can be used for well water, however, we recommend doing a water test before installation. It allows you to determine the level of iron and manganese exceedances and check whether a single cartridge will be sufficient or whether a more extensive treatment system will be necessary. The cartridge works well with small to moderate exceedances.

9) Is assembly difficult?

Installation is simple for a person with basic plumbing experience (without it also possible :))

HBB10 WODARO® is an excellent choice for anyone who values clean and healthy water at home. Professional design, high-quality filter cartridges and additional features such as pressure gauges make it a recommendable product. Don't wait, take care of the water quality in your home today!

⚙ Operation and assembly manual – WODARO HBB10 (BIG BLUE / BB10)

1 Preparation before assembly

1.1. Checking the contents of the set

• 1 × filtration station WATER HBB10: 3 × BIG BLUE bodies on steel frame with connected heads
• 1 × key for unscrewing bodies
• 3 × centering discs (facilitate the correct arrangement of cartridges)
• 3 × WODARO filter cartridges:

  foam cartridge 20 µm BIG BLUE (mechanical)

  ironing cartridge BIG BLUE

  carbon cartridge BIG BLUE

• O-ring seals in heads/body – pre-mounted

1.2. Tools and materials (outside the set)

• Teflon tape or Teflon thread for sealing threads
• adjustable / flat wrench for connections
• Technical petroleum jelly (for O-rings)
• hydraulic connections matched to the threads of the set
• (optional) pegs/screws if mounting to the wall

1.3. Preparation of contributions

• Remove the cartridges from the packaging.
• Carbon cartridge and de-ironing cartridge should be soaked in clean water approx. 25 to 30 min to reduce airing and speed up rinsing.
• The foam (mechanical) cartridge does not need to be soaked, but it can be rinsed with water.

2 Selection and preparation of the assembly site

• Choose a place behind the main valve (usually behind the water meter, in the boiler room / garage / pump. technical).
• Provide convenient access to operation and replacement of cartridges.
• Leave min. 10 to 15 cm space under the bodies (for unscrewing) and above the set.
• Close the water supply and drop the pressure by unscrewing the nearest tap

3 Station mounting (frame) – setting / mounting

WATER HBB10 can be mounted in two ways (depending on the conditions):

• Putting of the set in a stable place (if the design and installation allow it)
• Attachment to the wall (recommended in most installations to make the kit immobilized)

If you are mounting to a wall:

1. Level the frame and mark the attachment points
2. drill holes and fix the set stably to the wall (choose studs to the ground)

4 Installation of water connections (IN / OUT)

• Check the markings on the head: IN (input) and OUT (output).
• Threads in the head: 1" GW
• Wrap the hydraulic connection with Teflon tape (several turns).
• Screw in the connections and tighten with the key “with sensitivity” (without wrestling).
• Connect the water system to the input and output.

Good practice: use shut-off valves before and after the filter – makes it easier to replace cartridges.

5 Installation of filter cartridges (with centering discs)

Recommended filtration order (input side IN):

1 mechanical – foam 20 µm

2 deferrous

3 carbon

Step by step:

1. Unscrew the body with a key.
2. Check if the O-ring is in place.
3. Apply a thin layer of technical petroleum jelly to the O-ring.
4. Insert the cartridge into the body and use the centering disc (1 disk per 1 body) – facilitates even placement of the cartridge.
5. Spin the body manually to the resistance, then tighten gently with a key (not “by force”).
6. Repeat for the other two corps.

6 Commissioning and leak test

1. Slowly open the water supply (e.g. 1/4 turn).
2. Observe connections and bodies for 2 to 3 minutes.
3. If there is a leak – gently tighten the body or connection.
4. When everything is tight, open the water supply completely.

7 Rinsing cartridges and putting them into service

• Open the faucet behind the filter and rinse the installation:

  active carbon: usually 5 – 15 min (until the water is clear)

• At the beginning, there may be a slight “coloration” from the coal – this is normal during the first rinse.
• Check the tightness again after a few minutes of operation.
• Save the installation date – it will make it easier to plan the replacement of cartridges.
