Vandens filtravimo sistema su virtuviniu 3 krypčių maišytuvu

Trumpai apie prekę

Prekė: Vandens filtravimo sistema su virtuviniu 3 krypčių maišytuvu. Kategorija: Vandens filtrai čiaupams ir montuojami po kriaukle.

• Gamintojas: Ari
• Modelis: Z4 Z-1208

⭕ BLACK MATT

⭐ 7-Stage Filtration

⭐ Natural Filtration Process Without Chemicals

⭐ Mineralization and Ionization

⭐ 75 GPD Osmotic Membrane

⭐ Removable Rotary Spout

⭐ Built-in Aeration Perlator

⭐ Different Forms of Spraying

⭐ Additional Filtered Water Spout

---------------------------------------------

✅ Features of Kitchen Battery

• Brand: Ari

• Series: BKTA.00006.01 - Flexible

• Valve type: Ceramic

• Color: Black matt

• Tap outlet: Two spouts

• Aeration aerator: YES

• Rotating spout: YES

• Body Material: Brass

• Ability to connect filter: YES

• Mounting hole: 32-40mm

• Connection: 3/8'' + reduction to 1/2''

• Filter connector: YES (included)

• Snakes: YES (included)

• Number of handles: 2

✅ Features of Kitchen Filter

• Filteration: 7-step
• Body material: PP (polypropylene)
• Head material: PP (polypropylene)
• Hose material: PE (polyethylene)
• Membrane: 75 GPD (up to 270 l/day), micron 0,001
• Water connection: 3/8"
• Hose diameter: 1/4''
• Working temperature: 2-45°C
• Working pressure: 2,8-6,0 bar
• Pre-filtration cartridge life: 6 months
• Linear cartridge life: 6-12 months
• Membrane: every 3-4 years

✅ Aesthetic and Compact

The RO7 SLIM filter is designed with functionality and aesthetics in mind, making it a perfect fit for modern kitchens. Its housing is distinguished by both its elegant appearance and practical solutions.

Modern Design:

• Minimalistic and stylish design that blends perfectly with various kitchen arrangements.
• The elegant design makes the filter blend harmoniously into the environment, becoming part of the kitchen equipment.
• Aesthetic finish:
• High-quality materials that are durable and resistant to damage, while maintaining an elegant appearance for a long time.
• Space saving:

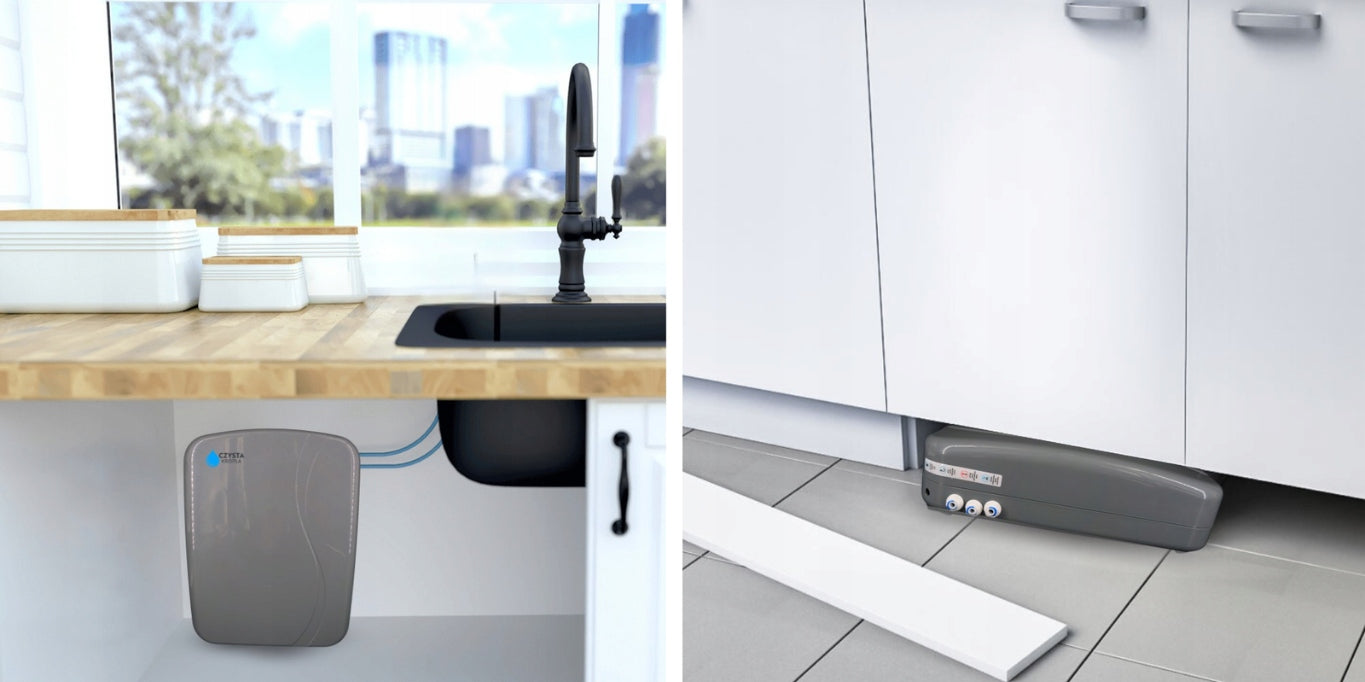

• The compact dimensions allow for easy installation in the cabinet under the sink without taking up too much space.
• Ideal for smaller kitchens or places where space is limited.
• Convenient access to components:
• The modular design allows for easy access to filter cartridges, making it quick to replace and maintain your system.
• Ergonomic placement of elements inside the housing facilitates operation.

✅ Stages of Filtration

The filtration system in RO7 consists of seven stages that combine advanced reverse osmosis technology with processes to improve water quality. Each stage performs a specific function, contributing to obtaining clean, tasty and enriched water with beneficial minerals and health-promoting properties.

✅ Pre-filtration

The first three filters prepare water for the further process, removing larger impurities and protecting the osmotic membrane from damage.

1 Sediment Filter 5 Microns

How does the Sediment Filter work?

Construction of the filter:

• The sediment filter is made of high quality polypropylene nonwoven fabric.
• Nonwoven fabric is in the form of dense foam with micropores that effectively retain particles of impurities.
• Filters with different degrees of accuracy are available (e.g. 5 microns and 1 micron), allowing you to customize the filtration process to suit your water type and expected purity level.

Action mechanism:

• Water flows through the filter, and larger solid particles are retained on the surface of the nonwoven fabric or inside it.
• Thanks to the structural microchambers and multi-layer construction, filtration is carried out evenly, which increases the efficiency and extends the life of the filter.
• Purified water flows further to the next stages of the system, such as a carbon filter or osmotic membrane.

2 Sediment Filter 1 Micron

The principle of operation is very similar to that of the 5 micron filter.

Gradual Pollution Removal:

RO7 usually uses two sediment filters:

• 5 Micron Accuracy Filter: Removes larger contaminants such as sand, mud, and rust.
• 1 Micron Accuracy Filter: Works as a finer filtration, eliminating smaller particles and preparing water for further filtration steps.

3 Carbon block (from activated carbon)

How does Active Carbon Filter work?

Active carbon structure:

• The filter is made of activated carbon, which is characterized by an extremely large active surface area – up to 1000 m² per gram. This surface is formed by an activation process that gives carbon a micropore structure that allows it to absorb pollutants at the molecular level.

Adsorption process:

• During the flow of water through the filter, pollutant particles are attracted and retained on the surface of the carbon pores. The filter acts as a "magnet", catching:
• Free chlorine and its derivatives, such as chloroform.
• Organic substances, including pesticides, herbicides and phenols.
• Volatile organic compounds (VOCs) that can cause unpleasant taste and smell of water.
• Heavy metals, to a lesser extent (e.g. lead or mercury).

Neutralization of Taste and Smell:

The carbon filter effectively removes factors responsible for the unpleasant smell and taste of water, such as chlorine or organic compounds. This makes the water more pleasant to consume and ideal for cooking.

✅ Main Filtration

The key stage in which the most precise water purification takes place.

4 Osmotic Membrane 75 GPD

How does the osmotic membrane work?

Construction of Membrane:

• The osmotic membrane consists of thin-film polymer sheets spirally wound onto a perforated mandrel.
• Each layer contains microscopic pores of 0,0001 microns, which allow only water molecules and several other very small molecules to pass through.
• Unwanted impurities, larger than the size of the pores, are retained on the surface of the membrane and removed into the sewage system.

Reverse Osmosis Process:

• High pressure water flows through the membrane.
• The natural process of osmosis (where water flows from an area with a lower concentration of impurities to a higher one) is reversed. In reverse osmosis, water passes from an area with a higher concentration of impurities to a lower one, leaving harmful substances on one side of the membrane.

Removal of Pollutants:

• The osmotic membrane effectively stops:
• Heavy metals: Lead, mercury, cadmium, aluminum.
• Chemicals: Nitrates, nitrites, pesticides, herbicides, chlorine, chloramines.
• Dissolved salts and minerals: Calcium and magnesium salts, which are responsible for water hardness.
• Microorganisms: bacteria, viruses, cysts.
• Other contaminants: Microplastics, petroleum products, drug residues.

Pollution Discharge System:

• Pollutants retained on the membrane are automatically flushed and discharged into the drain, which prevents their deposition and extends the life of the membrane.

✅ Final Filtration

These stages are aimed at improving the taste, smell and enrichment of water with minerals and giving it health-promoting properties.

5 Linear Filter with Active Carbon

• Contains high quality activated carbon granules.

Functions:

• Removes chlorine residue and chemical contaminants.
• Improves the taste and smell of water.

Action mechanism:

• The porous surface of carbon absorbs particles of undesirable chemicals.

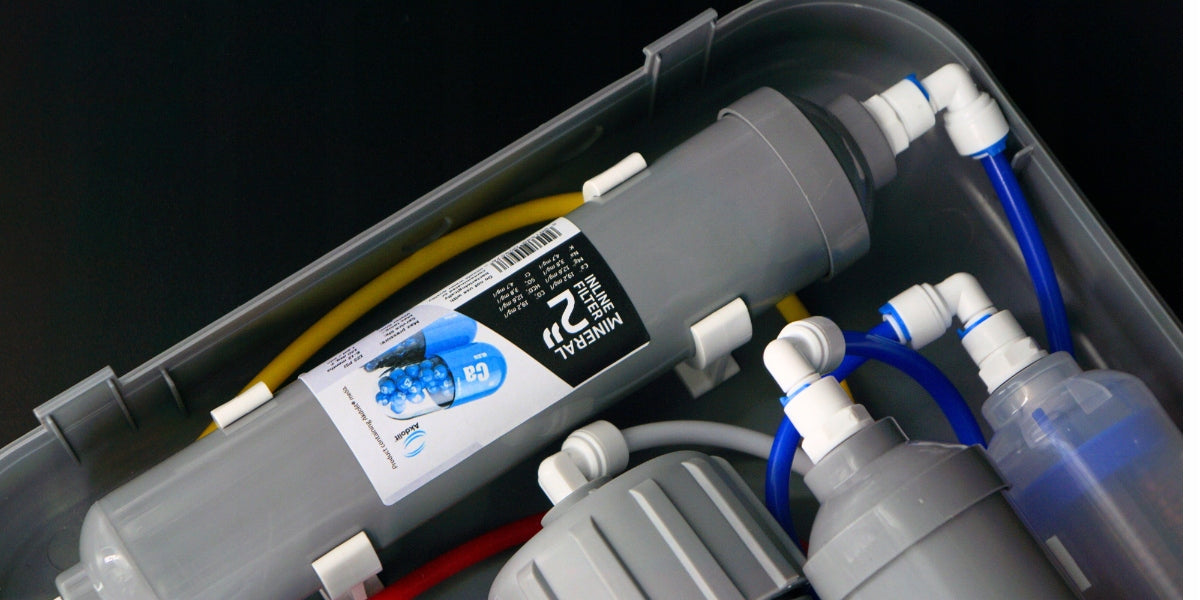

6 Linear Mineralizer

How does the mineralizer work?

Enrichment of Water After Osmosis:

Water purified by the osmotic membrane is devoid of almost all substances, including both impurities and minerals. The mineralizer, placed as one of the last stages of filtration, restores water key elements in the right proportions.

Mineralizer Composition:

The mineralizer is filled with a specially selected dolomite cartridge that contains natural minerals, such as:

• Calcium (Ca): Strengthens bones and teeth, supports the nervous and muscular systems.
• Magnesium (Mg): Regulates heart function, reduces stress, and supports metabolism.
• Potassium (K): It is responsible for proper muscle function and electrolyte balance.
• Sodium (Na): Maintains proper hydration of the body.
• Hydrogen carbonates: Stabilize the pH of water, improving its taste and reducing acidity.

Controlled Minerals Release:

The water flowing through the mineralizer absorbs minerals from the dolomite cartridge. This process is designed to maintain an optimal concentration level of minerals, similar to that in natural mineral waters.

Improvement of Water Parameters:

• Taste: After mineralization, water has a more natural and mild taste, which makes it ideal for both drinking and preparing food or drinks.
• Quality: Thanks to the presence of minerals, water supports the proper functioning of the body.

7 Bioceramic filter (ionizer)

How does the Ionizer work?

Bioceramic technology:

The ionizer in the RO7 system is based on natural bioceramic cartridges that emit long-range infrared radiation (FIR – Far Infrared Rays). This process activates water molecules, improving their structure and ability to dissolve and transport nutrients in the body.

Reduction of Toxins and Free radicals:

Thanks to the negative ions generated by the ionizer, water becomes a natural antioxidant. Negative ions neutralize free radicals in the body, which supports regenerative processes, improves metabolism and slows down the aging process.

Water pH adjustment:

The ionizer increases the alkalinity of the water, which helps to balance the acidity of the body. Regular consumption of alkaline water can support:

• Maintaining proper blood pH.
• Reducing the effects of acidification of the body, such as fatigue or digestive problems.
• Better functioning of the immune system.

Improvement of Bioavailability:

Ionized water has an altered molecular structure, which facilitates its penetration through cell membranes. Thanks to this process, the body hydrates more easily and delivers nutrients to tissues faster.

✅ Set

• Set of cartridges
• Membrane
• Connections
• Key
• Water storage tank
• Mineralizing cartridge C2IM
• Bioceramic cartridge C2IB100

✅ Dimensions

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	under-sink
Parametry	Brand	Ari
Parametry	Dominant color	white
Parametry	Model	Z4 Z-1208
Parametry	Product weight with unit packaging	8 kg
Parametry	Manufacturer code	Zestaw Do Filtrowania Wody Z-1208
Parametry	EAN (GTIN)	5907246681855
Parametry	Packaging status	original
