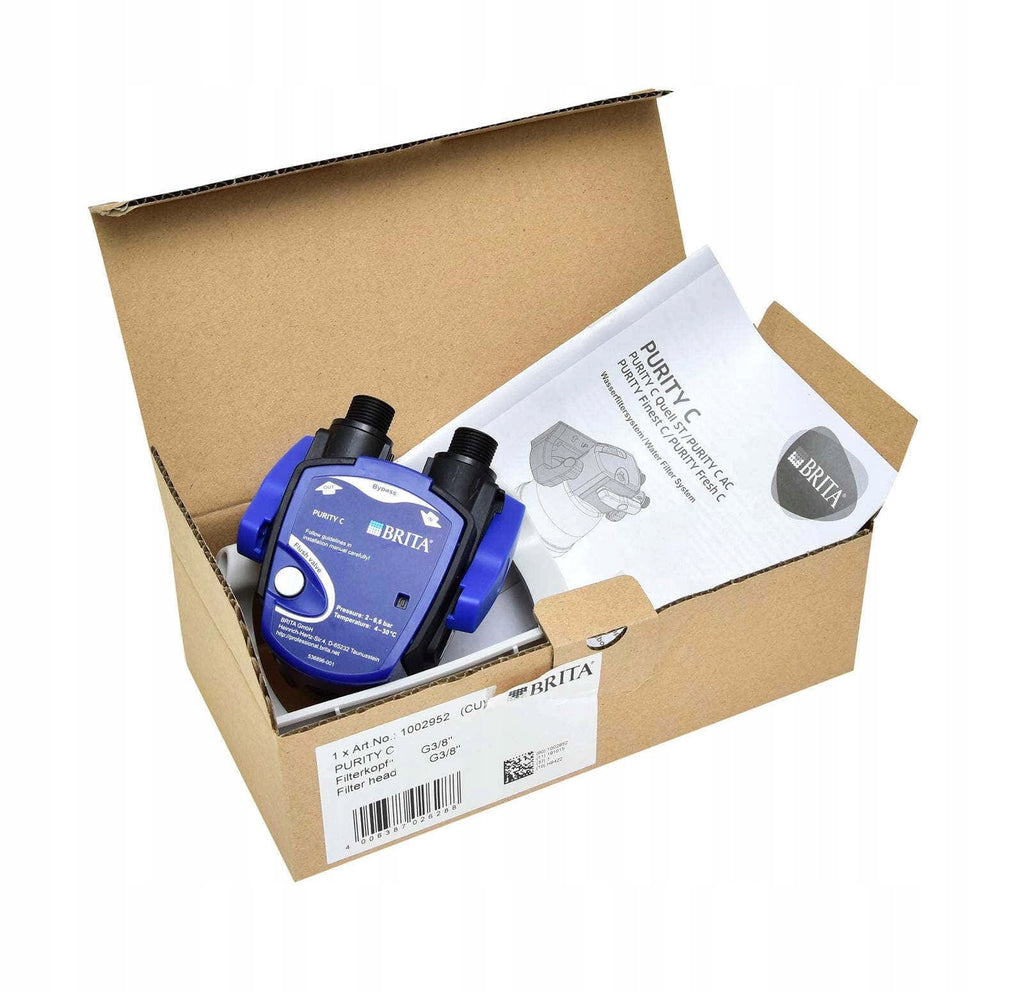

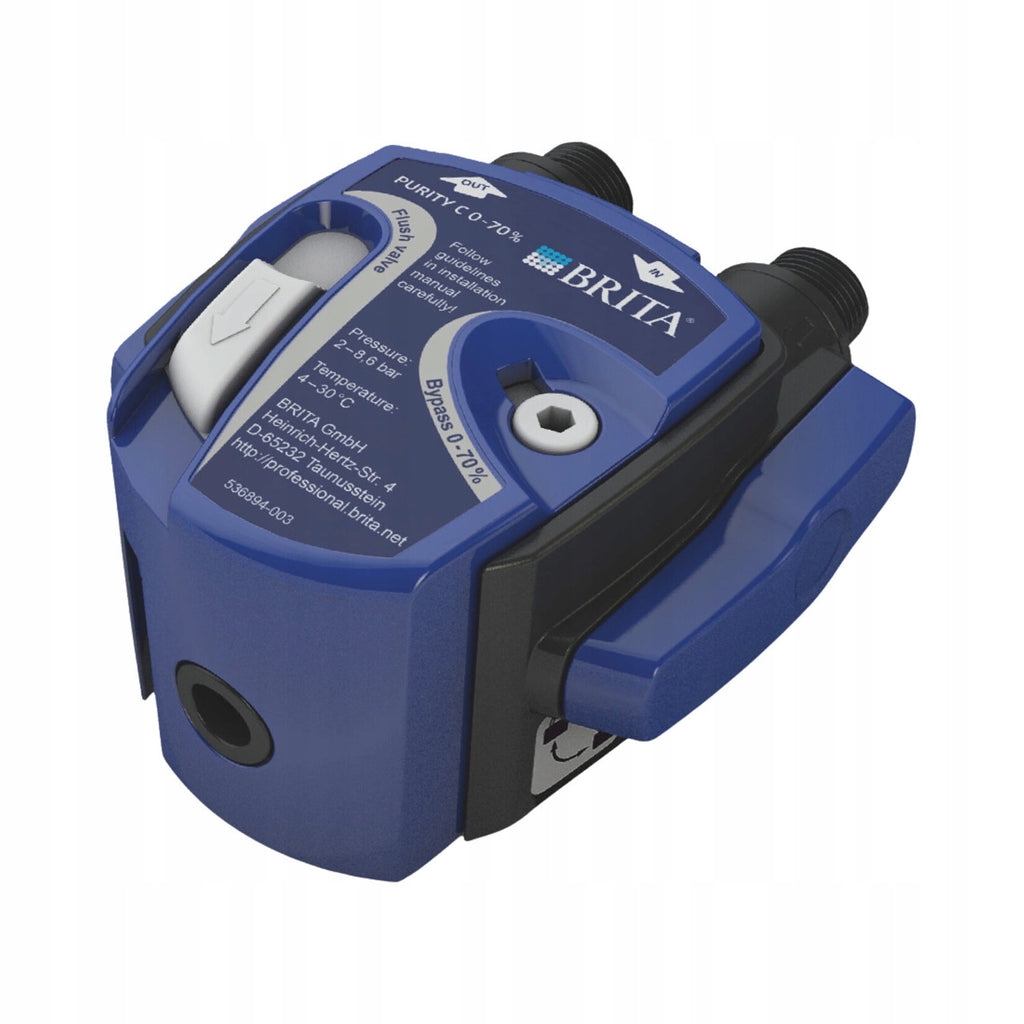

Vandens filtro galvutė BRITA PURITY C, reguliuojamas apėjimas 0–70 %, G 3/8

Trumpai apie prekę

Prekė: Vandens filtro galvutė BRITA PURITY C, reguliuojamas apėjimas 0–70 %, G 3/8. Kategorija: Vandens filtrai čiaupams ir montuojami po kriaukle.

• Gamintojas: Brita
• Modelis: Głowica filtra Purity C 0-70% G3/8

Water filter head BRITA PURITY C with adjustable bypass 0-70% and 3/8” thread

The BRITA PURITY C filter head with adjustable bypass of 0-70% and 3/8 inch thread is an advanced technological solution tailored to the diverse needs of users. It is part of a single head system suitable for many applications, which guarantees optimal water quality for various equipment such as coffee makers, vending machines, ovens, convection and steam ovens and water dispensers. The head with an adjustable bypass of 0-70% means that you can set how much water to be subjected to the filtration process.



What does the degree of bypass in the water filter head mean?

The bypass in the water filter head, expressed as a percentage, refers to the amount of water that flows through the filter without directly undergoing the filtration process. This is a particularly important feature in filtration systems that require protection against too much water flow or too much filter load.

Imagine that we have a filter head with a 10% bypass set. This means that 10% of the water flowing through the head does not pass through the filter medium, but is passed directly. The remaining 90% of the water is properly filtered.

This solution has several key applications:

1. Filter protection: In situations where the water flow is too high, bypassing it can prevent the filters from being too heavy, which could lead to faster wear or damage.
2. Ensuring continuity of access to water: If the filter is blocked, the bypass function ensures that water will still be available, although it will not be fully filtered.
3. Water quality regulation: In some systems where full filtration is not always required, the ability to adjust the degree of bypass allows for flexible management of the output water quality.

This feature is particularly important in professional and industrial water filtration systems, where both filtration efficiency and reliability of access to water are crucial.

Convenience and easy-to-use system of one water filter head BRITA

Brita Professional heads with the possibility of various connections and bypass settings are the basis for a wide range of replacement filters from the entire PURITY C series. A model with the possibility of various connections and bypass settings is available. The workaround setting can be in the following parameters 0%, 30% or adjustable 0-70%. BRITA PURITY C filter heads are an essential and permanent element in filters of this type - only the filter cartridge is replaceable. Various bypass settings in such a wide range guarantee optimal water quality for every application (coffee machines, vending machines, ovens, dishwashers, evaporators, convection and steam ovens and water dispensers).



Designed for maximum convenience, the BRITA PURITY C filter allows for quick and hassle-free replacement of the filter cartridge. This process takes just a few simple steps that can be done in minutes.

1. Cartridge venting: Start the replacement process by pressing the button to vent the cartridge. This is a simple and quick way to prepare the system for cartridge replacement.
2. Removal of used cartridge: To remove the used cartridge, simply twist the locking handle, which ensures its secure attachment. Then remove the used cartridge from the filter head.
3. Easier removal for wall mounting: If the filter is mounted on the wall, tilting it 90 degrees makes it much easier to remove the cartridge.
4. Preparation of a new cartridge: Remove the protective cap from the new filter cartridge. In the date box on the cartridge, select the date of the planned next exchange to maintain the regularity of the service.
5. Installation of a new cartridge: Insert a new filter cartridge into the filter head, then secure it by turning the locking handle until you feel a clear resistance. This ensures that the cartridge is properly installed and ready to use.
6. Rinse the system: Finally, start the rinsing valve and rinse the filtration system until an even stream of water begins to flow. This will ensure that the system is fully ready for use and that the new filter cartridge works efficiently.

The main features and benefits of the BRITA PURITY C filter head include:

• Different versions of heads tailored to individual needs.
• Easy operation thanks to quick change system.
• Innovative locking handle for secure locking.
• Save space during installation by placing water supply and drain on one side of the head.
• Integrated rinsing and venting valve.
• Simple operation of pre-rinsing and venting functions.
• Quick and convenient filter replacement without tools.
• Cut off the water supply in the absence of a cartridge.



Technical specification of the BRITA PURITY C filter head:

• Head Type: PURITY C
• Bypass: 0-70% adjustable
• Connection Types: 3/8" Thread

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	under-sink
Parametry	Brand	Brita
Parametry	Dominant color	silver/gray
Parametry	Model	Głowica filtra Purity C 0-70% G3/8
Parametry	Manufacturer code	1013637
Parametry	EAN (GTIN)	4006387053697
Parametry	Packaging status	original
