Vandens filtro korpusas 1" su 3 pakopų išankstine filtracija ir 3 kasetėmis

Trumpai apie prekę

Prekė: Vandens filtro korpusas 1" su 3 pakopų išankstine filtracija ir 3 kasetėmis. Kategorija: Vandens filtrai čiaupams ir montuojami po kriaukle.

• Gamintojas: Wessper
• Modelis: TripleMax 1"

WESSPER TRIPLEMAX WATER FILTER 3 STAGE IN-LINE 1''

• Water pressure (min-max): 10-12bar
• Connection thread: 1
• Color: Transparent
• Type: Original
• Packaging: Cardboard box
• Unit: Set
• Number of pieces: 1
• Producer: Wessper
• Code: Dx4Nv8NLLhMS9ltSOAJE5aD666MZOGj0HvoI869uQSc=

The set includes:

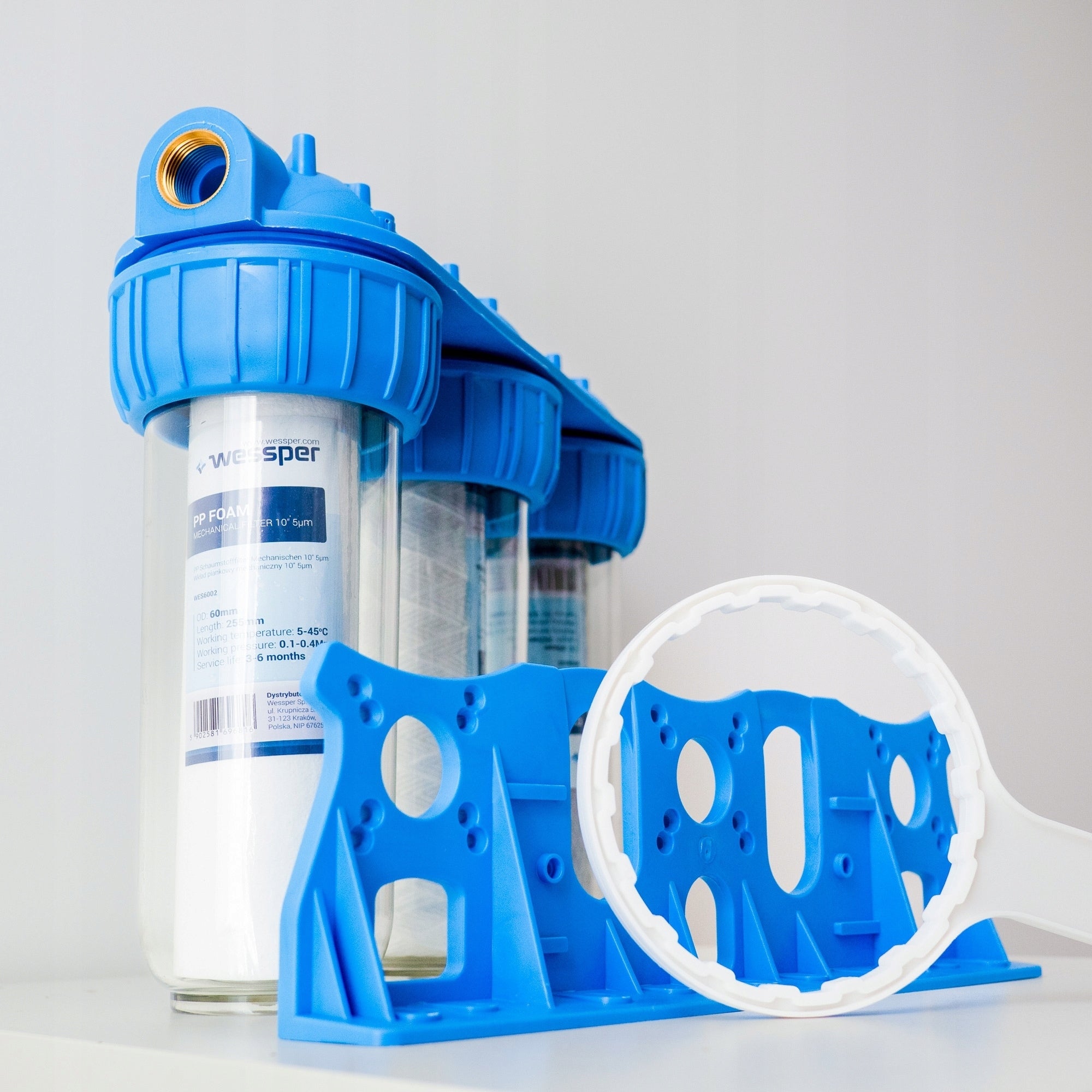

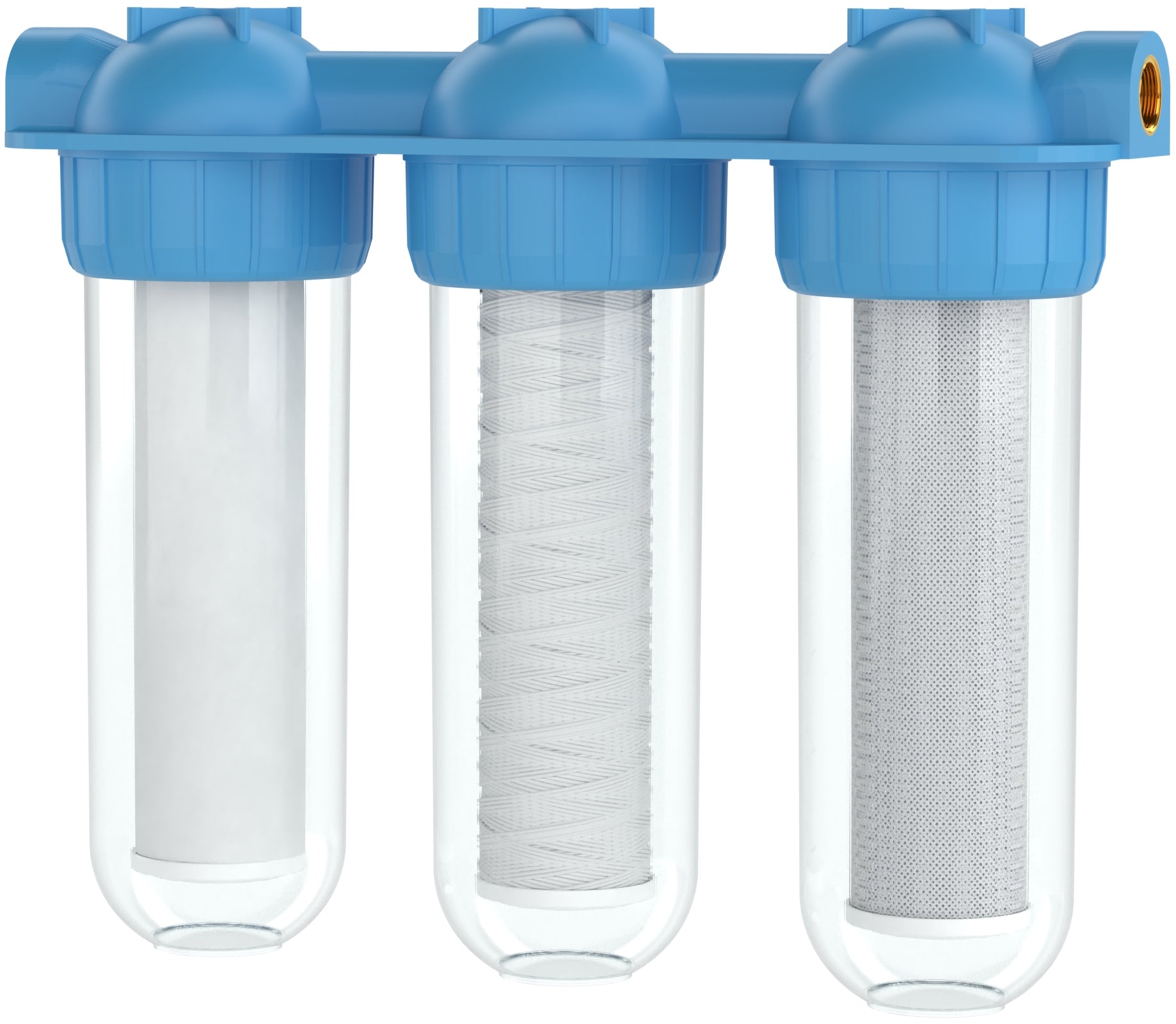

✅ 3-stage water filtration system 1"

✅ 3 filter cartridges: foam, carbon, string

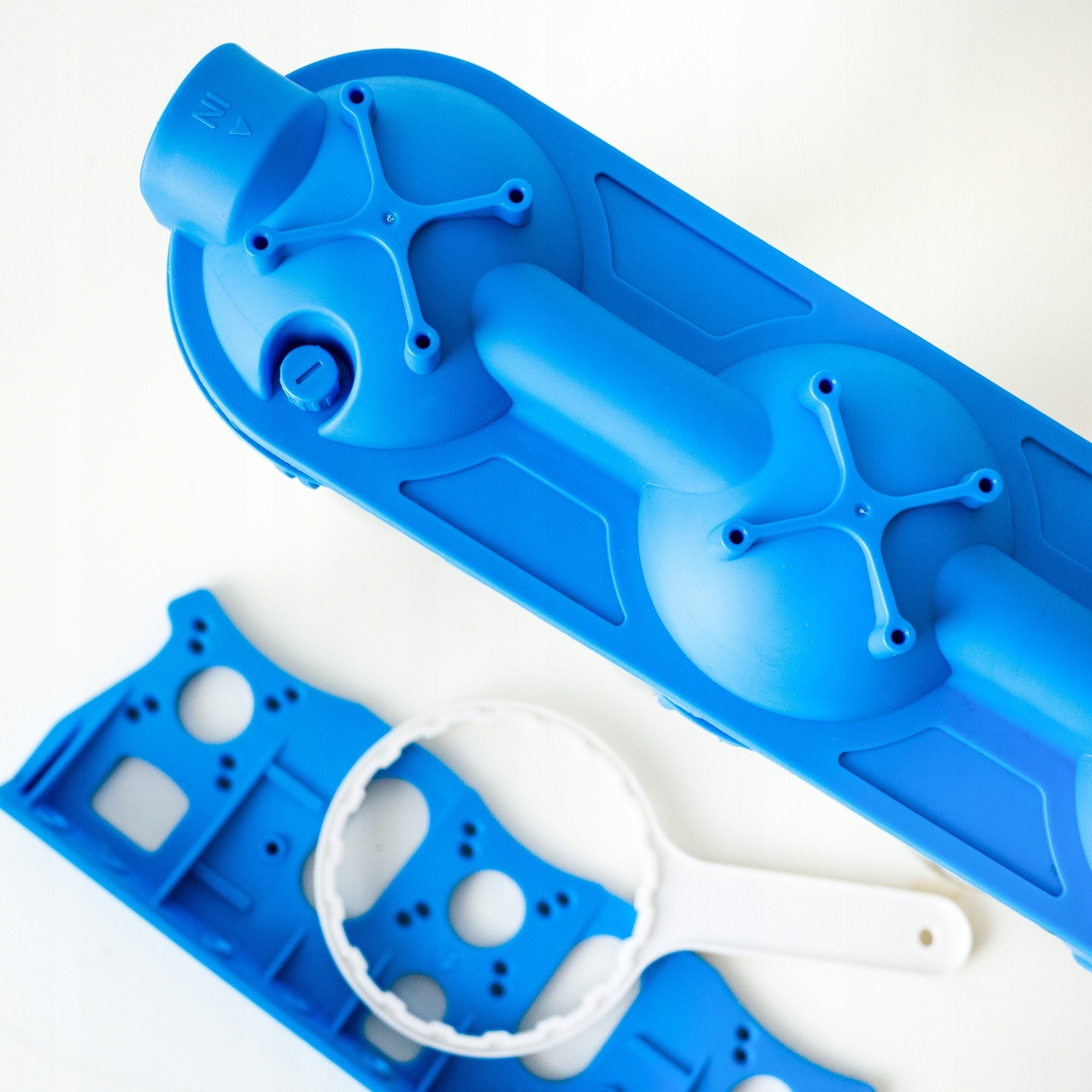

✅ wall mounting element with screws

✅ mounting key

WESSPER TRIPLEMAX

is a 3-stage pre-filtration system for sediment, pesticides, chlorine and other contaminants. Suitable for home, rainwater, garden and well water. Ideal for indoor and outdoor use as a pre-filter (sludge and pollution filter) for domestic waterworks, wells, submersible pumps, centrifugal pumps, ponds and swimming pools. The high-quality c pre-filter also protects your devices from damage caused by sand and dirt particles.

WESSPER TRIPLEMAX

is a 3-stage pre-filtration system for sediment, pesticides, chlorine and other contaminants. Suitable for home, rainwater, garden and well water. Ideal for indoor and outdoor use as a pre-filter (sludge and pollution filter) for domestic waterworks, wells, submersible pumps, centrifugal pumps, ponds and swimming pools. The high-quality c pre-filter also protects your devices from damage caused by sand and dirt particles.

SPECIFICATION

• solid, transparent filter housing 2L (10")
• filter cartridges (sieve cartridge) available as a spare part
• connection on both sides by 1-inch brass internal thread
• set includes vent valve
• optical control through a housing made of impact-resistant plastic
• Capacity: approx. 2 liters
• Connection thread: thread diameter 20 mm
• Max. working pressure: 10-12 bar
• Max. water temperature:45 degrees
• Max. water flow: 3000 litres/h

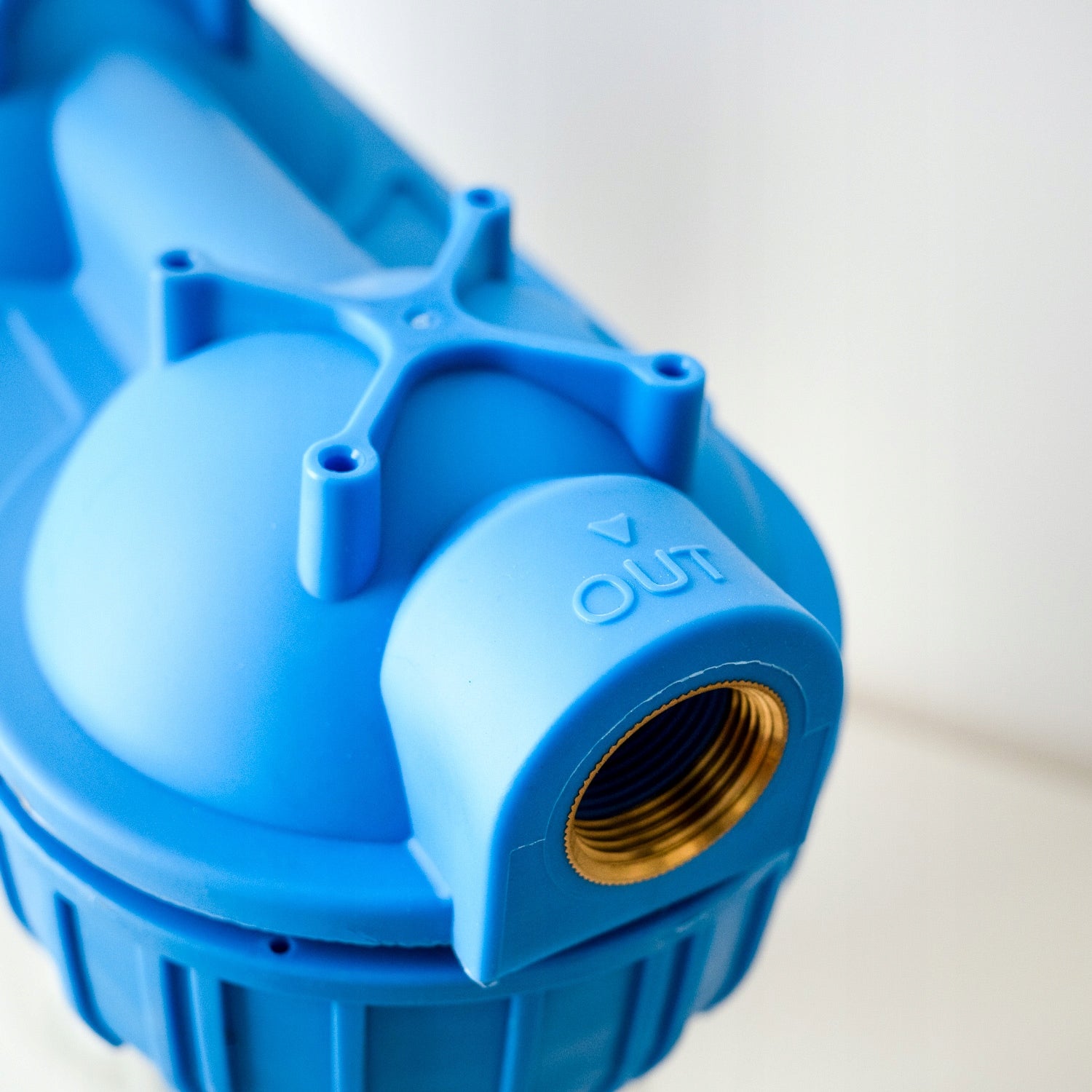

• Connection input: 1" (i.e. 3 cm) internal thread (brass socket)
• Connection output: 1" (i.e. 3 cm)internal thread (brass socket)
• Material: pet, plastic

POLYPROPYLENE/FOAM FILTER

intended for filtration of solid impurities occurring in the home installation. The cartridge is a universal product. The filter stops mechanical contamination: e.g. silt, rust, sand and other deposits without reducing water pressure. It provides ideal protection for all devices available in the household.

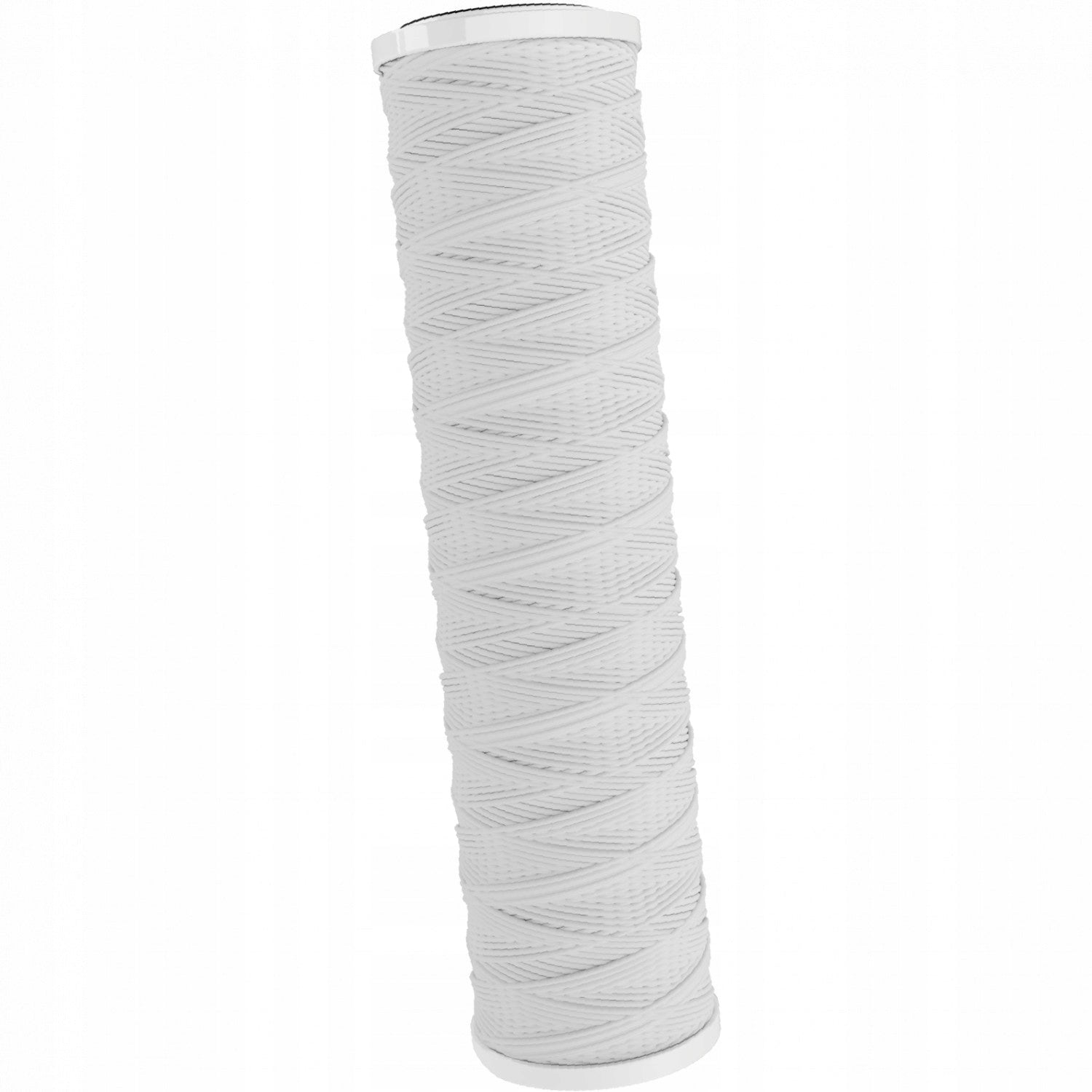

STRING FILTER

intended for filtration of solid impurities occurring in the home installation. The cartridge is a universal product. The filter stops mechanical contaminants, e.g. silt, rust, sand and other deposits without reducing water pressure. It provides ideal protection for all devices available in the household.

CARBON BLOCK

intended for filtration of solid impurities occurring in the home installation. The cartridge is a universal product. The filter stops mechanical impurities, e.g.: chlorine, chlorinated compounds, lead, heavy metals, organic compounds and other deposits without reducing water pressure. It provides ideal protection for all devices available in the household.

Instructions for replacing the cartridge

1. Cut off the water supply to the purifier.

2. Release the pressure inside the water purifier.

3. Place a container of at least 1 liter under the purifier to pour out the remaining water.

4. Unscrew the body with a wrench from the kit and remove the used cartridge from it, then rinse the body and cover.

5. Install the new cartridge in the housing.

6. Place the rubber O-ring in place of the housing.

7. Screw the case all the way down, then tighten with a wrench.

8. Bring water to the water purifier and check the tightness of the body and cover connection.

The date of replacement of the cartridge is determined depending on the water quality, the method of use of water purification, the content of impurities in the water, as well as based on the user experience.

The lifetime of the cartridge, regardless of how the water purifier is used and the water quality, should not exceed 6 months. This is due to the danger of contamination of the bacteriological filter cartridge at room temperature.

Only original Wessper cartridges should be used for replacement.

Installation of a water purifier

The cleaner should be installed in the cold water network. When connecting, observe the direction - water supply to the water purifier.

• Cut off the water supply in the pipeline before starting the installation.
• After installing the water purifier, carefully open the water supply and make sure all connections are tight. In case of water leakage, tighten the locking ring with a special key.
• The air initially in the body of the product after installation can be released by unscrewing the appropriate screw on the lid.

Attention!

In order to ensure proper operation of the water purifier, the manufacturer recommends to use an additional pressure regulator, installed in the line between the water supply and the purifier.

Dimensions:

• External dimensions of water filtration system: 405x142x345 mm
• Size of the internal body of the filter "winded": length: 254mm, diameter: 51mm
• Thread Type: 1 inch

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Wessper
Parametry	Dominant color	clear
Parametry	Model	TripleMax 1"
Parametry	Product weight with unit packaging	0.3 kg
Parametry	Manufacturer code	WES6010
Parametry	EAN (GTIN)	5902668840231
