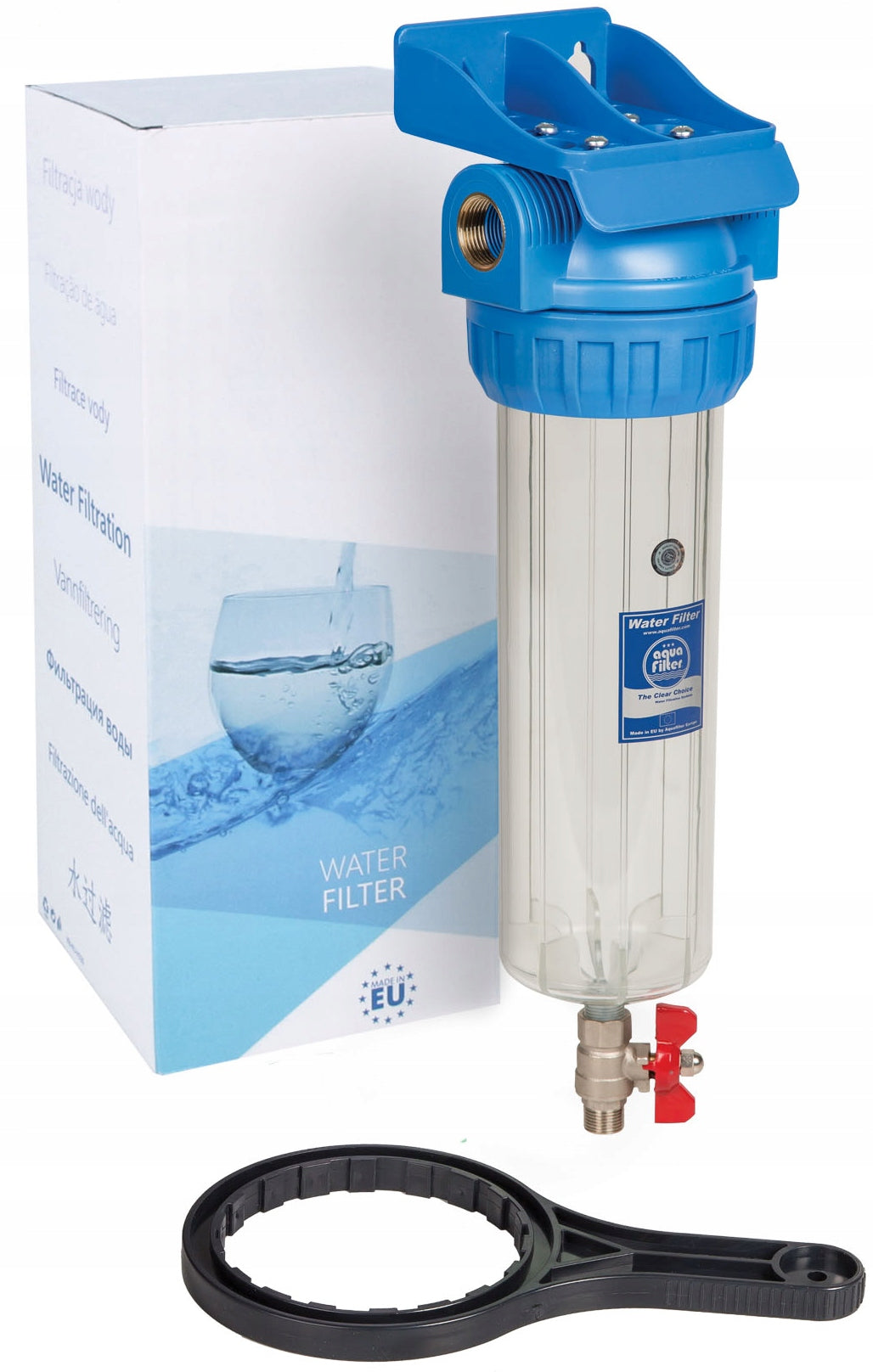

Vandens filtro korpusas FHPR34-3V_R, 10", 3/4", PET, su vožtuvu, plokšte ir raktu

Trumpai apie prekę

Prekė: Vandens filtro korpusas FHPR34-3V_R, 10", 3/4", PET, su vožtuvu, plokšte ir raktu. Kategorija: Vandens filtrai kriauklei ir po kriaukle.

• Gamintojas: Aquafilter
• Modelis: FHPR34-3V_R

The set includes:

• 10” three-piece in-line body with drain valve,
• Mounting plate with four screws,
• The key,
• Drain valve

Advantages:

• Possibility of connecting bodies in series
• Transparent housing makes it easy to assess the contamination status of the cartridge
• Works with AQUAFILTER FCPNN series cartridges,
• Vent valve,
• Brass squirrel,
• Three-piece design, excellent connection tightness,
• Manufactured in Poland by AQUAFILTER EUROPE from the highest quality materials,
• Easy, quick and convenient filter maintenance, thanks to the use of a drain valve.

Example application:

• Domestic water installations
• Industrial water installations
• Laboratory industry
• Wineries

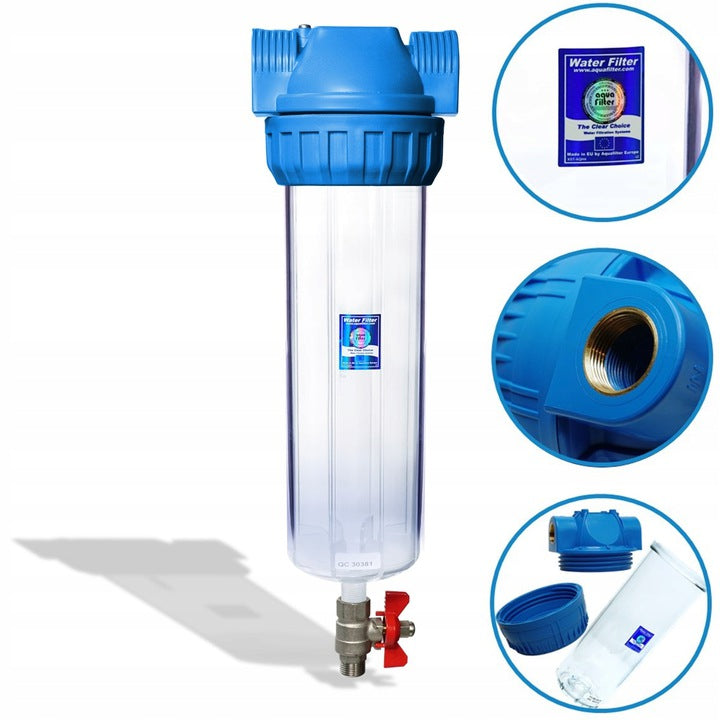

FHPR34-3V_R, 10" three-piece, Polish in-line body of the AQUAFILTER EUROPE brand. The product consists of three parts: a transparent lampshade, a ring and a head with a 3/4” brass thread and a drain valve. The body is equipped with a vent valve that allows you to release the air stored in the filter after replacing the cartridge.

FHPR34-3V_R can be mounted individually or connected in series. The body is installed on the pipe supplying cold water to the apartment Works with FCPNN series cartridges by Aquafilter. The set comes with a blue mounting plate, a wrench, and a drain valve.

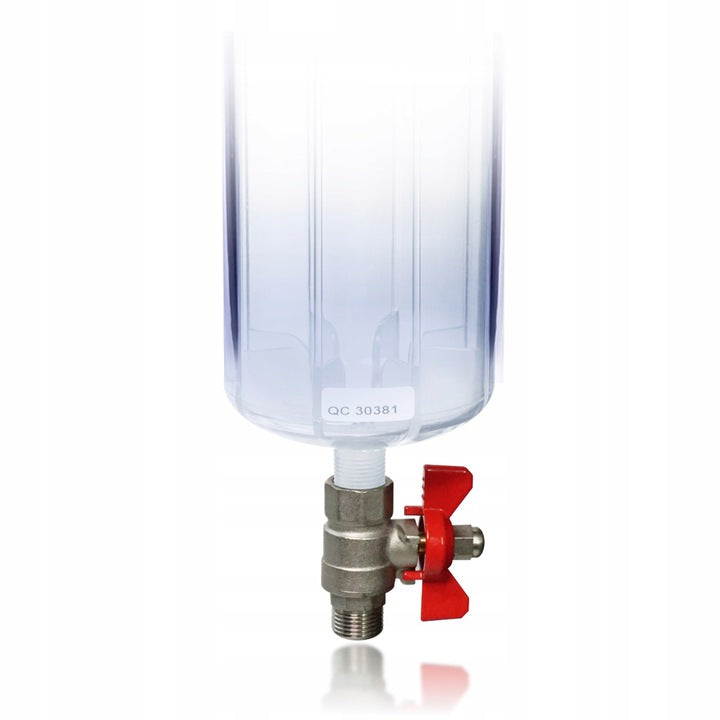

FHPR34-3V_R belongs to filters with so-called. Rinsing the filter mesh. The body FHPR34-3V_R is made of high quality materials. Pollutants are collected at the bottom of the transparent housing and can be easily removed by temporarily opening the ball valve. This solution allows you to flush out impurities accumulating in the filter, without having to unscrew the body.

Technical information:

• Body Type: Three-Piece
• Thread Diameter (Inch): 3/4
• Operating temperature (st. target. ): 2 - 40
• Max. Operating pressure (bar): 6
• Transparent body material: PET (polyethylene terephthalate)
• Head Material: PP (Polypropylene)
• Ring Material: PP (Polypropylene)
• Cartridge dimensions: 9 7/8" x 2 1/2" (FCPNN series)
• Vent: Yes

TIP: To seal the joint use only Teflon tape,IT IS STRICTLY FORBIDDEN TO USE TOWS, VARNISH AND OTHER SEALANTS OTHER THAN TEFLON TAPE.
