Vandens hidroforinis siurblys AQB 60, 370W, 2100 l/val.

Trumpai apie prekę

Prekė: Vandens hidroforinis siurblys AQB 60, 370W, 2100 l/val.. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: BG-INVEST
• Modelis: BG-00003

✅ HYDROPHORE PUMP AQB 60 - new more powerful model

➡ Capacity: 2100 l/h

➡ Maximum pressure: 3,9 bar

⚡ Power: 370 W ⚡

⚡ Power consumption 2.2A ⚡

➡ The AQB 60 hydrophore pump is a compact device with impressive performance and reliability.

➡ Despite its small size, it is perfect for powering domestic water installations and in the process of irrigation of the garden, especially where extremely high efficiency or availability of a water source is not required.

➡ Simple installation and operation make the AQB 60 user-friendly pump. Even people with no experience in the field of plumbing can enjoy the benefits of this device without much difficulty.

➡ Additionally, the solid construction and durable materials used in the production of the pump guarantee a long service life of the device.

➡ Brass impeller is a reliable foundation of the pump, guaranteeing not only durability, but also efficiency and ease of maintaining the device in excellent condition.

➡ The rotor made of brass is characterized by extraordinary corrosion resistance. This feature protects the pump against atmospheric agents and chemicals, which translates into exceptional durability and long-term use.

➡ The brass rotor demonstrates exceptional effectiveness in the process of pumping water.

➡ Additionally, brass rotor pumps are easy to maintain and repair. Thanks to the machinability properties of brass, damage to the rotor can be efficiently repaired or replaced, without the need to completely replace the pump.

➡ Max capacity (l/min): 35

➡ Max capacity (m3/h): 2,1

➡ Lifting height (m): 39

➡ Suction capacity (m): 8

➡ Engine power (W): 370

➡ Engine power (kW): 0,37

➡ Ppower consumption (A): 2,2

➡ Power supply (V): 230

➡ Stub size(inches): 1 x 1

➡ Maximum water temperature: 40°C

➡ Maximum ambient temperature: 40°C

➡ Insulation class: B

➡ Operating mode: continuous

➡ Degree of protection: IP 44

➡ Engine speed: 2850 rpm

➡ Pump body: cast iron

➡ Pump shaft: Stainless steel AISI 304

➡ Rotor: Stainless steel AISI 304

➡ Impeller: brass

➡ Mechanical angina: ceramic/graphite/NBR

➡ Diffuser/Driver: noryl

➡ Console: cast iron

➡ Engine housing: aluminium

➡ Intermediate: cast iron

The first of the key features of the AQB 60 pump is its impressive performance for such a small size. The pump can pump up to 35 liters of water per minute, making it an effective tool for delivering water to various locations.

✅Self-priming is another important feature of the pump. Thanks to this function, the pump is able to draw water from small depths, which increases its versatility and makes it suitable for use in a variety of terrain conditions.

✅Compact size and light weight are the features that make the pump easy to carry and install. This, in turn, affects their mobility.

✅Ease of use is another advantage of the AQB 60 pump. Simple installation and operation mean that even people without specialized knowledge can easily take advantage of the benefits of this device. This is especially important in the context of home use.

✅Durable construction and resistance to mechanical damage are features that emphasize the reliability and long service life of the pump. The high-quality materials used in its production ensure that it is ready to withstand the challenges of heavy use.

✅Competitive price makes the AQB 60 pump an attractive choice for a wide range of users. It offers high quality at an affordable price.

The AQB 60 hydrophore pump finds wide application in various areas, ensuring efficient water supply to different locations.

➡ Powering domestic water installations: The pump is great for powering domestic water installations, ensuring continuous water supply to faucets, showers, bathtubs and other points of water consumption in your home.

➡ Garden irrigation: Due to its efficiency and ability to pump up to 35 liters of water per minute, the AQB 60 pump is the ideal tool for garden irrigation. It works especially in situations where very high efficiency is not required, and at the same time there is a need for systematic watering of plants.

➡ Household water supply: In cases where domestic water sources do not provide enough water, the pump can be used to replenish household water supplies.

➡ Small businesses and workshops: The AQB60 pump can be used in small businesses or workshops where there is a need to supply water to different work areas or to operate specific equipment requiring basic water supply.

➡ Emergency water source: In emergency situations, such as water supply interruptions, the pump can act as an emergency water source, allowing the user to use their own water reserve.

➡ Industrial systems: Although the AQB60 pump is relatively small, it can also be used in some smaller industrial systems requiring a moderately efficient pump.

✅ Hydrophore pump AQB 60

✅ Power cable with plug

✅ Warranty card

✅ User Manual

✅ Original packaging

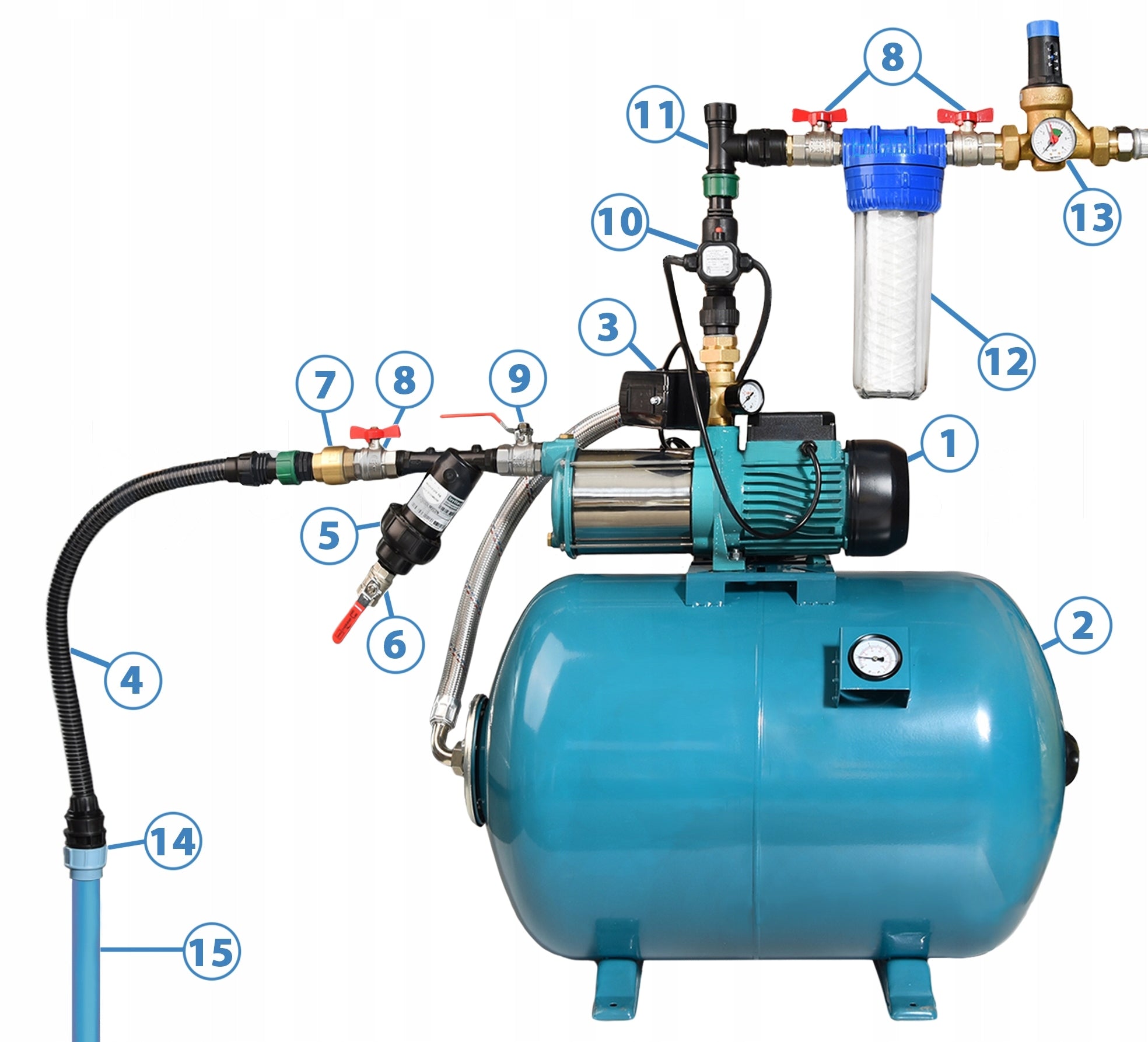

Example of a hydrophore kit connection scheme

1. Hydrophore pump
2. Diaphragm tank
3. Pump accessories with pressure switch
4. Suction tube
5. Anti-sand filter
6. Anti-sand filter valve
7. Check valve
8. Butterfly Nipple Ball Valve
9. Nipple ball valve with handle
10. Protection against dry running
11. Flood tee
12. Flow water filter
13. Pressure regulator with pressure gauge
14. PE coupling
15. PE pipe

Specifications
