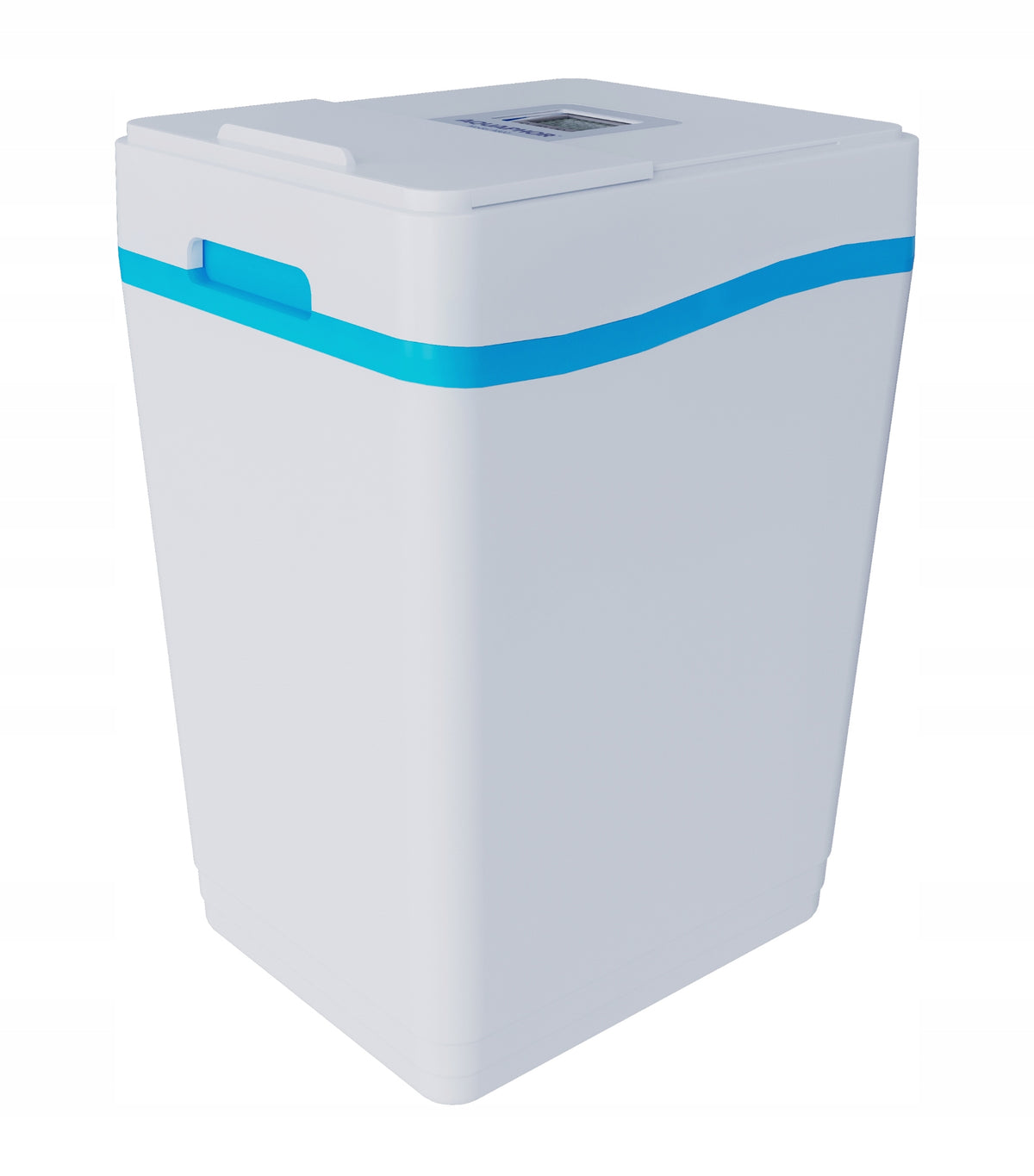

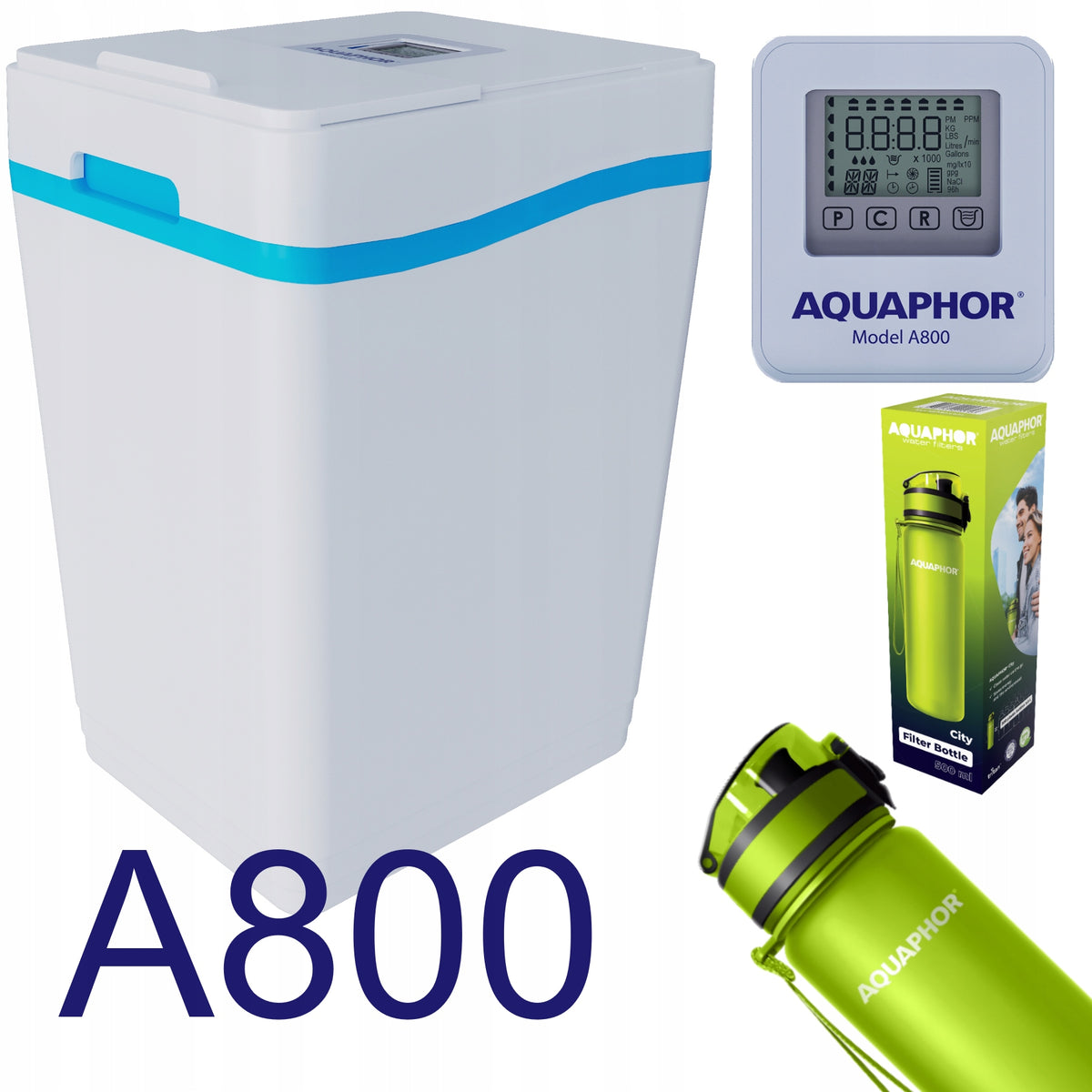

Vandens minkštiklis Aquaphor A800, 23 l, su 50 kg druskos maišų

Trumpai apie prekę

Prekė: Vandens minkštiklis Aquaphor A800, 23 l, su 50 kg druskos maišų. Kategorija: Filtrai ir vandens minkštikliai.

• Gamintojas: Aquaphor
• Modelis: A800
• Talpa: 23 l

• Water temperature operating range: 4-49°C
• Water pressure: from 2,1 to 7,0 bar
• Monodispersion bed: 23 l
• Maximum flow rate: 7,6 L/min
• Regeneration: time / volume
• Power supply: 220V, 50 Hz, 25W
• Connection diameter: 1"
• Minimum drainage diameter: 16 mm
• Maximum bed capacity: 1551 g
• Maximum compensated water hardness: 1200 mg/l
• Electronic controller with LCD display: yes
• Ion exchange capacity: 80 m³ x odH

Dimensions:

• Height of filter tank: 58,40 cm
• Diameter of filter tank: 26,70 cm
• Overall height: 70,60 cm
• Base: 40,40 cm x 48,50 cm

• Automated workflow
• Very high degree of reduction of iron (up to 15ppm) while removing manganese and water hardness
• Installation hoses made of stainless steel
• Reliability at pressures from 1,5 to 7 bar
• Low salt consumption
• Innovative control heads optimize the regeneration process of the deposit
• Two-section tank combines the advantages of a self-cleaning and softening filter
• High density mesh maintains resin bed while ensuring adequate water flow
• Up to 30% less salt and water consumption for regeneration
• Contains 23 liters of ion exchange resin, highly condensed

Three Setting Modes:

1. Economical
2. High Efficiency
3. Automatic adjustment of salt dose for water intake

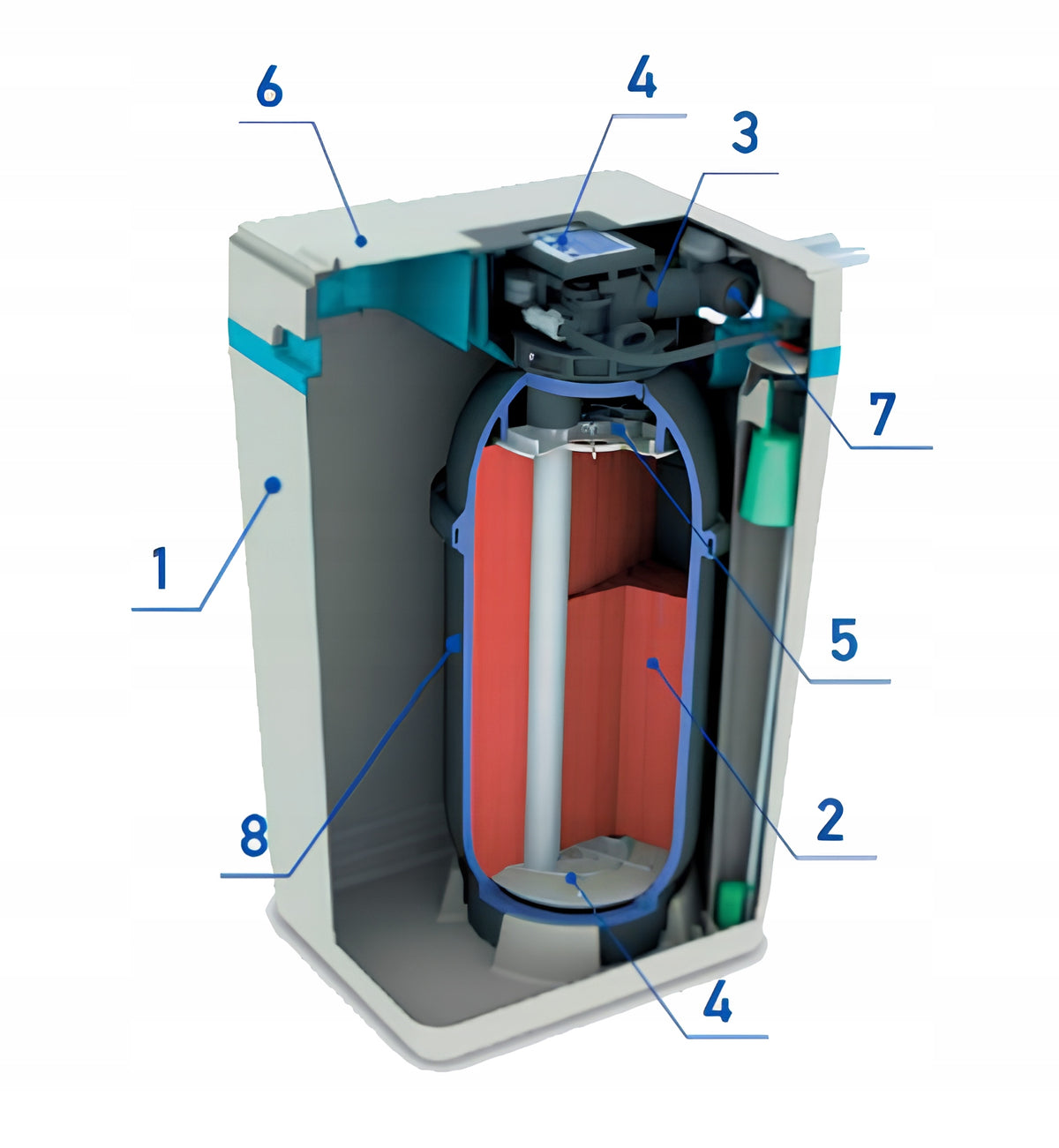

Description of the device:

1. Compact housing
2. Highly dispersive sorption bed for high efficiency and elimination of iron, manganese and water hardness
3. Patented valve enables trouble-free operation throughout the service life
4. Large and clear controller display
5. Patented flow distributor that allows water to be distributed throughout the bed layer, which excludes the formation of free zones
6. Sliding lid for easy salt replenishment
7. bypass valve included
8. Robust tank made of reinforced plastic

Description of the device:

1. Entrance
2. Output
3. Bypass
4. bypass valve
5. Controller
6. Brine line
7. Filter tank
8. Brine tank

Assembly diagram:

1. Well water
2. Water meter - city water
3. Shut-off valve
4. Hard water for outdoor faucets
5. Ground wire and clamps (copper and steel pipes only)
6. Cold, soft water
7. Hot, soft water
8. Water heater, C.O. furnace,
9. Output
10. Entrance
11. Electrical outlet
12. Drain and gravity overflow
13. Break about 2 - 3 cm

Specifications
