Vandens minkštinimo įrenginys AQUAPHOR S800 (A800) su sifonu ir druska

Trumpai apie prekę

Prekė: Vandens minkštinimo įrenginys AQUAPHOR S800 (A800) su sifonu ir druska. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: Aquaphor
• Modelis: A800
• Talpa: 23 l

Water softener for 3-5 person households.

The high-performance superfine deposit removes large amounts of hardness and iron and manganese.

Aquaphor S800 is an advanced water softener that effectively eliminates water hardness and reduces iron. Protects household appliances and installations, as well as improves the condition of the skin and hair.

The water treatment plant AQUAPHOR S800 is characterized by:

✅ fully automated workflow,

✅ reduction of small amounts of iron and manganese,

✅ low salt consumption.

The device uses innovative control heads optimizing the process of deposit regeneration.

Two-section tank combines the advantages of a self-cleaning and softening filter. It guarantees even water flow through a highly condensed deposit of ion exchange resin. The high-density mesh maintains the resin bed while ensuring proper water flow.

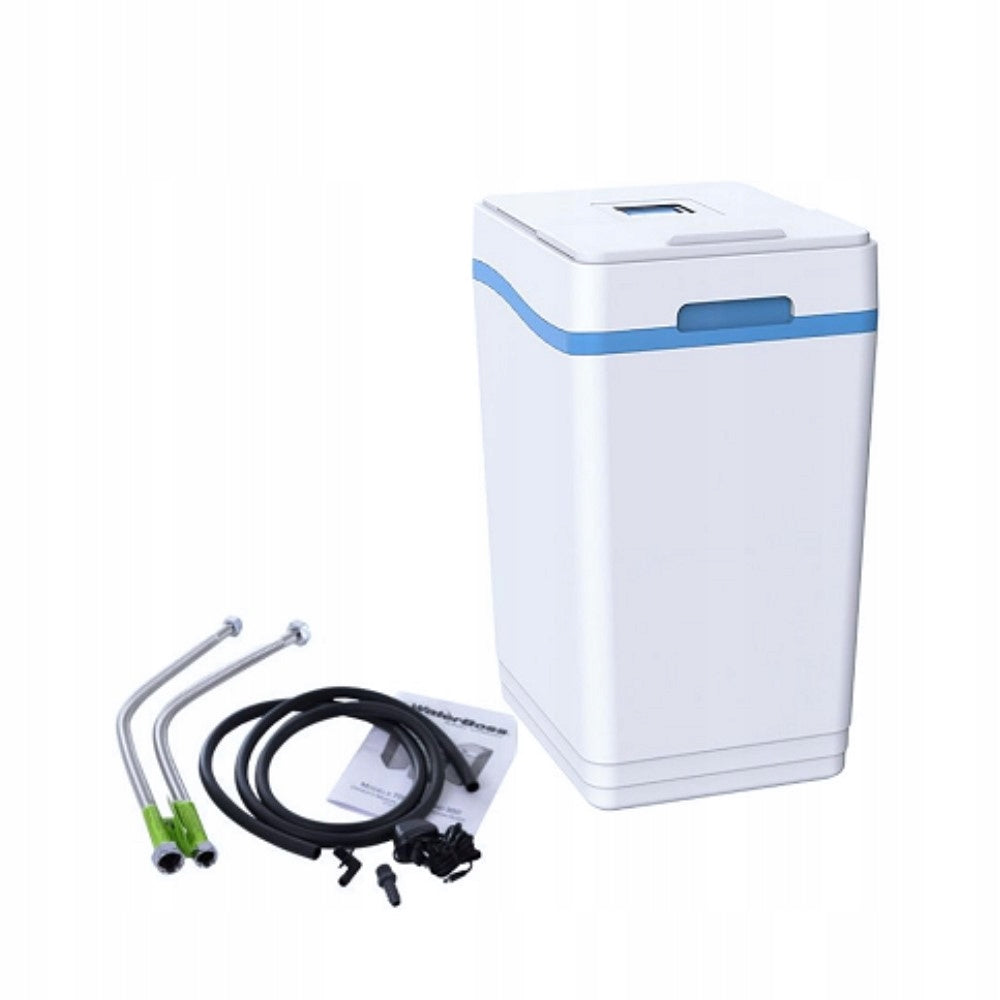

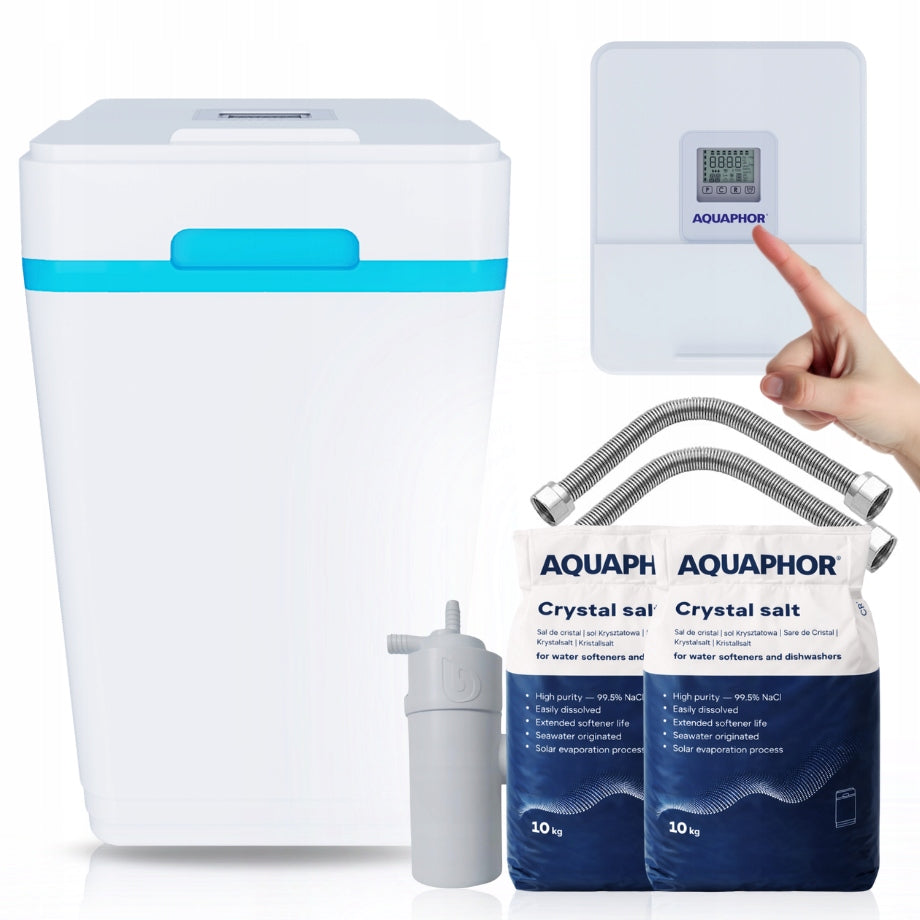

In the freebie you will receive:

• SIPHON FOR DRAINING RINSES FROM SOFTENER
• SALT AQUAPHOR CRYSTAL SALT - 2 BAGS OF 10 KG

Key features and benefits

• Efficient SuperFine ion exchange resin removes hardness and small amounts of iron and manganese.
• A special jet distributor causes water to flow through the entire bed during regeneration. Thanks to this, the resin is thoroughly rinsed.
• It has a sliding lid on the housing for easy addition of salt to the tank.
• Operation of the softener is also convenient thanks to the large and easy-to-read display.
• Compact Cabinet housing with salt tank made of durable plastic.
• The descaler is equipped with a by-pass valve that allows you to mix raw water with softened water.
• A cost-effective bed regeneration system reduces the operating costs of the softener.
• The specially designed tank allows 30% less salt consumption.

Softener regeneration modes

✅ AU (Auto mode, automatic): In this mode, the controller monitors daily water consumption and regulates the amount of salt for regeneration. If the 96h mode is turned off, the regulator will carry out regeneration 2 times a week if there is a need for water.

✅ HC (High capacity, high yield): constant setting of the amount of salt in regeneration, which allows for less frequent rinsing of the deposit.

✅ HE (High economy, economical): constant setting of the amount of salt in regeneration, which reduces the amount of water between regenerations, but also significantly saves salt.

Construction of Aquaphor S800 softener

1. Softener housing.
2. SuperFine dispersion sorption bed.
3. Patented valve for trouble-free operation.
4. Large, clear display.
5. Patented stream splitter.
6. Sliding lid for easy salt replenishment.
7. bypass valve.
8. The tank is made of reinforced plastic.

The kit is complete and ready to connect. The equipment also includes a by-pass valve and connection hoses, which facilitate the installation of a water softener in the house.

Benefits of installing a softener

➡ THE ENTIRE WATER SYSTEM

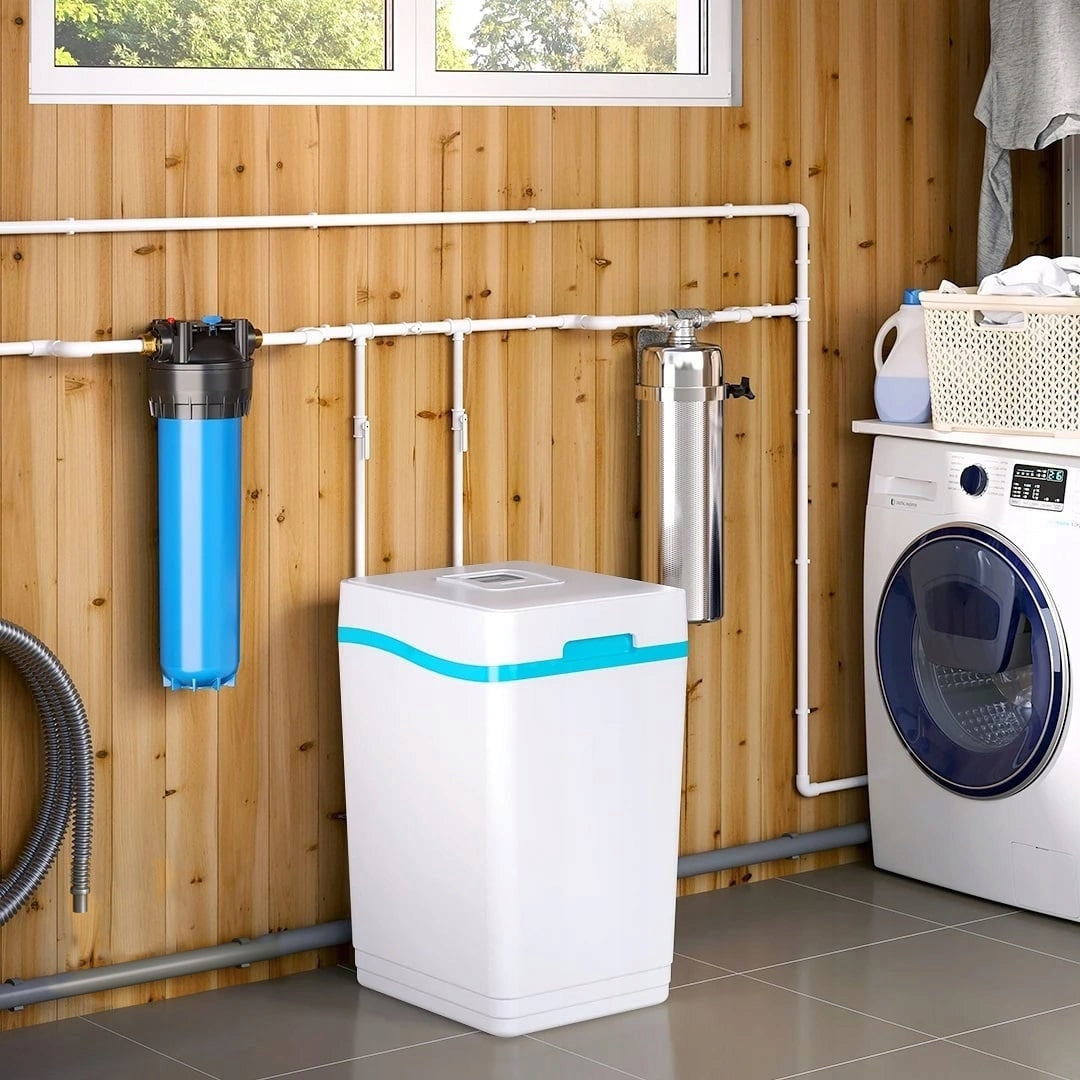

Softener S800 plugged into the main supply of cold water to the house provides descaling of the entire installation, allows you to protect the heat pump, boilers, furnaces co.

➡ KITCHEN

Soft water brought to the kitchen eliminates the problem of overgrowing kettles, coffee machines or dishwashers with stone. In addition, dishes washed in water without stone are shiny and shiny.

➡ BATHROOM

In addition to the lack of stains on the shower cabin, faucets, faucets and washing machine protection, the water softener also allows you to save cleaning products - half the dose is enough.

➡ SKIN AND HAIR

Soft water gently acts on the skin and hair. It reduces irritation, dryness and makes hair soft, smooth and easier to care for. Thanks to the softener, you also use less cosmetics, and the effects of their action are clearly better.

Technical parameters

• Brand: Aquaphor
• Model: S800
• Height: 70,6 cm
• Base: 40,4 × 48,5 cm
• Maximum capacity: 1680 g
• Size of filter tank (dia. ×H ): 267 × 584 mm
• Maximum compensated hardness: 1380 mg/l
• Maximum concentration of dissolved iron and manganese: 12 mg/l*
• Minimum pH value: 6
• Water and ambient temperature: +5...+38 °C
• Water pressure: 1,4 – 7,0 bar
• Minimum backwash water flow: 7,6 l/min**
• Maximum flow to the drain during regeneration: 9,1 l/min
• Nominal / maximum flow rate: 25 / 38 l/min
• Pressure loss at flow rate 22,7 l/min: 1,0 bar***
• High Efficiency HE (High Efficiency) performance: 1,1 kg salt / 670 g hardness
• High Capacity HC (High Capacity) performance: 3,0 kg salt / 1406 g hardness
• Maximum capacity in AU (Automatic) mode: 5,4 kg salt / 1680 g hardness
• Recovery method: intelligent, according to water meter
• Power options: 12 VAC; 50/60 Hz; 0,015 kWh
• Connection connectors: 1" (MNPT)
• Minimum diameter of drain pipe: 16 mm (5/8")
• Gross weight: 43 kg

*Reduction of iron concentration to 0,3 mg/l and less, manganese - to 0,1 mg/l and less.

**Please check the flow rate at the end of the drain line.

***For the correct selection of the filter, the working efficiency and pressure drop should be guided. Long-term operation at flows higher than tested (over 30 l/min) may lead to reduced effectiveness.V

In the attachment you will find full instructions for installation and operation of the S800 softener
