Vandens minkštinimo įrenginys HYDROLIFE ECO 30, 30 l, su druska, testeriu, BY-PASS, valdymo meniu lenkų k.

Trumpai apie prekę

Prekė: Vandens minkštinimo įrenginys HYDROLIFE ECO 30, 30 l, su druska, testeriu, BY-PASS, valdymo meniu lenkų k.. Kategorija: Filtrai ir vandens minkštikliai.

• Gamintojas: Watermarket
• Modelis: HYDROLIFE ECO 30
• Talpa: 30 l

The HYDROLIFE ECO 30, system is a product of Polish manufacturer and was manufactured for the company WATERMARKET according to strictly defined conditions, using the highest quality components and strict quality requirements.

Control valve BNT1650, with which the softener has been equipped, is currently considered one of the most friendly and trouble-free controllers available on the market.

The reliability, high quality of the components used and modern solutions has been confirmed by a wide warranty program of the MANUFACTURER (not the SELLER). The extended warranty covers up to:

• 4 years on the head,
• 10 years for pressure cylinder and compact housing
• 5 years for softening bed*.

If you are tired of white streaks on sanitary facilities, cumbersome "stone" on battery aerators, enough to replace expensive household appliances (washing machine, dishwasher), then the HYDROLIFE ECO 30 system is the perfect product for you. The system effectively removes water hardness, thus protecting expensive household appliances and sanitary facilities from faster destruction. HYDROLIFE ECO 30 is the perfect compromise between quality and price. If you belong to people who pay special attention to the quality of workmanship, this device of the HYDROLIFE ECO series will meet your expectations.

*in the case of installation of a system for tap water and application of a filter with a mechanical insert protecting the softener before the device.

NOTE! Subject to availability, softeners will be available with a head panel in white or gray.

HYDROLIFE ECO series systems are offered for sale with an additional range, such as:

• professional water hardness test tester,
• 5 mb. snake,
• 2 x clamp,
• 25 kg of salt to start the device.

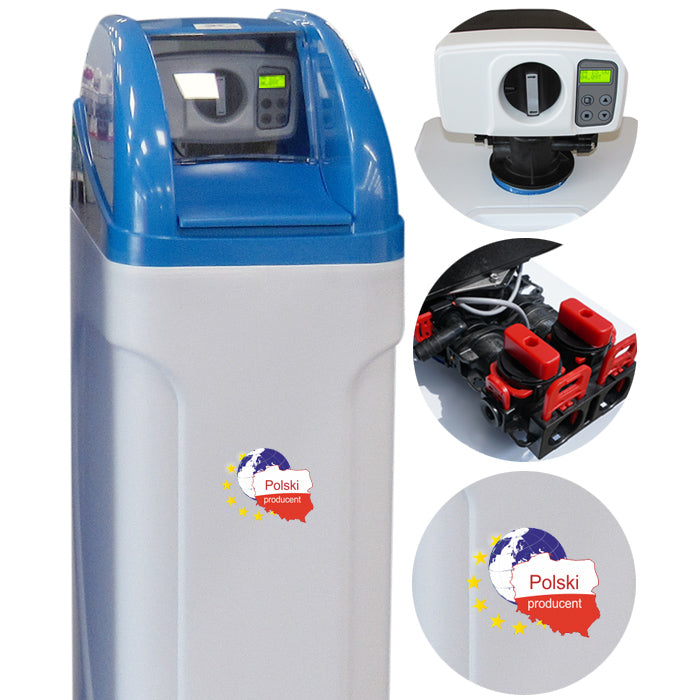

The HYDROLIFE ECO softener uses a large cross-section cylinder, which ensures much better operation of the unit more efficient and thorough rinsing of the bed, and thus extending its efficiency and service life. HYDROLIFE ECO series systems are equipped with an automatic, trouble-free control head of the BNT1650 series (volume - time), from the in Polish. In the BNT1650 head, the piston was protected with Teflon coating. Thanks to the BNT1650 head, the device can operate in two modes, volume (regeneration occurs after the passage of a given volume of water) or time (regeneration occurs "X" days). The set also includes a BY-PASS valve, which can be used to carry out maintenance work without blocking the supply of raw water to the installation. The brine float valve provides effective protection against possible flooding. The BNT1650 control head is equipped with a MIXING valve, which allows for residual hardness at the water output from the device.

Advantages of the BNT1650F head:

• wide range of regeneration modes: volume delayed, volume instantaneous, temporal and time-volume.
• The ability to change the time of individual cycles, which can positively result in lower water consumption, lower flush emissions and lower consumption of the regenerator.
• Possibility of immediate regeneration.
• Possibility to interrupt the rinsing process at any time.
• No cut-off of the water supply to the installation during the regeneration process.

Ladies and Gentlemen, below we present a table on the basis of which you should set the amount of water between regenerations. Just enter the amount of m3 into the head and the device will automatically set individual intervals without your interference.

• 10 OdH (179,00 CaCO3 mg/l) - 8,55 m3
• 11 OdH (196,90 CaCO3 mg/l) - 7,77 m3
• 12 OdH (214,80 CaCO3 mg/l) - 7,12 m3
• 13 OdH (232,70 CaCO3 mg/l) - 6,57 m3
• 14 OdH (250,60 CaCO3 mg/l) - 6,10 m3
• 15 OdH (268,50 CaCO3 mg/l) - 5,70 m3
• 16 OdH (286,40 CaCO3 mg/l) - 5,30 m3
• 17 OdH (304,30 CaCO3 mg/l) - 5,02 m3
• 18 OdH (322,20 CaCO3 mg/l) - 4,72 m3
• 19 OdH (340,10 CaCO3 mg/l) - 4,50 m3
• 20 OdH (358,00 CaCO3 mg/l) - 4,27 m3
• 21 OdH (375,90 CaCO3 mg/l) - 4,07 m3
• 22 OdH (393,80 CaCO3 mg/l) - 3,88 m3
• 23 OdH (411,70 CaCO3 mg/l) - 3,71 m3
• 24 OdH (429,60 CaCO3 mg/l) - 3,56 m3
• 25 OdH (447,50 CaCO3 mg/l) - 3,42 m3
• 26 OdH (465,40 CaCO3 mg/l) - 3,28 m3
• 27 OdH (483,30 CaCO3 mg/l) - 3,16 m3
• 28 OdH (501,20 CaCO3 mg/l) - 30,5 m3
• 29 OdH (519,10 CaCO3 mg/l) - 2,94 m3
• 30 OdH (537,00 CaCO3 mg/l) - 2,85 m3

• OdH - unit of water hardness degree expressed in German degrees.
• CaCO3 - unit of water hardness degree (most commonly found on the Polish market) expressed in mg/l.

Time Cycles for tap water:

• C1 (p. retrograde): 5 minutes,
• C2 (salinity): 60 minutes,
• C3 (p. fast): 5 minutes,
• C4 (water replenishment): 12 minutes (check whether the device adds 12 - 14 liters of water in C4. If the device adds too little water, extend the C4 cycle time, if the device adds too much water, shorten the C4 cycle time.

At the same time, we would like to inform you that the BNT1650F head is fully configurable and it is possible to manually set the times of individual cycles.

Device specification:

• Head: BNT1650F, volumetric - temporal, with menu PL
• Number of deposits: 30 liters of deposit - polyspheric resin
• Power supply: 220-240 V / 50-60 Hz (power consumption: 9W)
• Hydraulic connection: 1" BSP
• Operating temperature: 2 OC - 39 OC
• Operating pressure: 1,4 – 8,6 bar (pressure drop: 0,2 bar)
• Maximum flow rate: 1,9 m3/h
• Average salt consumption/bed regeneration: 5 kg
• Original BY-PASS valve with connection lock with the possibility of quick disassembly from the installation.
• Connection length BY-PASS (bypass) - 125 mm.
• Double anti-flood protection: float valve (cut-off) installed in the brine tank and overflow knee.
• A cylinder with a larger cross-section guaranteeing better operation, efficiency of the device and better flushing of the deposit.
• NOVARAM internal memory: maintaining head settings in the absence of power for 48 hours.
• MIXING valve for mixing raw (hard) water with soft water.
• Possibility of working in time mode: hygienic protection forcing regeneration of the deposit in case of prolonged non-use of the system.
• Backlit LCD panel displaying the necessary information such as: current date, time, as well as volume of soft water to download, until the next regeneration mode.
• Full telephone support (before and after sales): remote, help our service during the first start-up of the device, as well as during the full life of the system.
• Free selection of the right unit based on your water consumption and water hardness.
• KIP CODE: ZMWM-HC-30MX-BB

  Please be advised that we have all consumables and spare parts in stock.

Secure, FREE t_r_a_n_s_p_o_r_t on pallet, warranty d_o_s_t_a_w_y without damage.

When deciding to buy a water softener or other larger device, it is worth taking care of its safe d_o_s_t_a_w_a. That is why we ship our products on a pallet. This ensures that your equipment arrives intact.

During the traditional w_y_s_y_ł_k_i k_u_i_e_r_s_k_i_e_j (devices are repeatedly reloaded – from the car to the sorting room, from the conveyor belt to the next car, and along the way exposed to drops, bumps and crushing with other packages. This is when mechanical damage occurs most often.

T_r_a_n_s_p_o_r_t on the pallet eliminates this risk:

• No multiple reloading – the z pallet is loaded and unloaded in its entirety, without the need to change or move.
• Stable protection – the product is immobilized, wrapped in stretch film and additionally protected against displacement.
• Crush protection – the device does not go to t_a_ś_m_o_c_i_a_g or is placed under other packages.
• Professional service – t_r_a_n_s_p_o_r_t p_a_l_e_t_o_w_y is treated as a size, so drivers and warehousemen handle them more carefully.

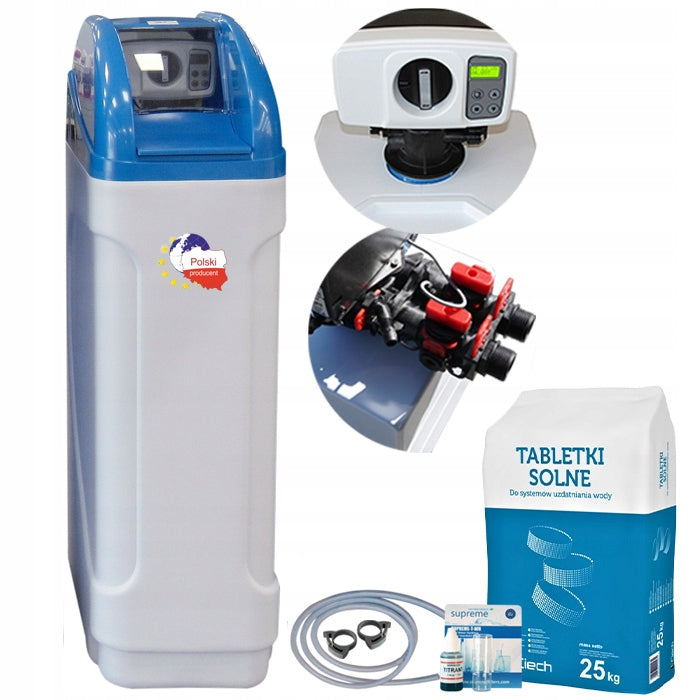

WHEN YOU BUY THE HYDROLIFE ECO 30 SYSTEM, YOU WILL RECEIVE AN ADDITIONAL FREE OF CHARGE.

• 1 pc. original BY-PASS valve.
• 1 pc. droplet water hardness tester.
• 25 kg (bag) of tablet salt.
• 5 mb. flexible hose for draining rinses.
• 2 x Hose Mounting Clip.

At your request, we are able to install the device for a fee and perform the first start-up.

We provide assembly services throughout the country. The cost of assembly and first commissioning is determined individually with each customer and depends on the area in which the device will be installed.

We cordially invite you to submit inquiries and orders.
