Vandens nugeležinimo ir demanganizavimo filtras TECHNIC OXY 42

Trumpai apie prekę

Prekė: Vandens nugeležinimo ir demanganizavimo filtras TECHNIC OXY 42. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: Water Technic
• Modelis: Water Technic Oxy 42
• Talpa: 42 l

We offer you the highest quality well water treatment plant - Water Technic OXY 42. Filter stations from the Water Technic OXY series are effective, economical and long-lasting.

We equipped them with an effective Katalox Light deposit together with quartz ballast, thanks to which they remove even significant exceedances of iron, manganese and hydrogen sulfide from the water very well.

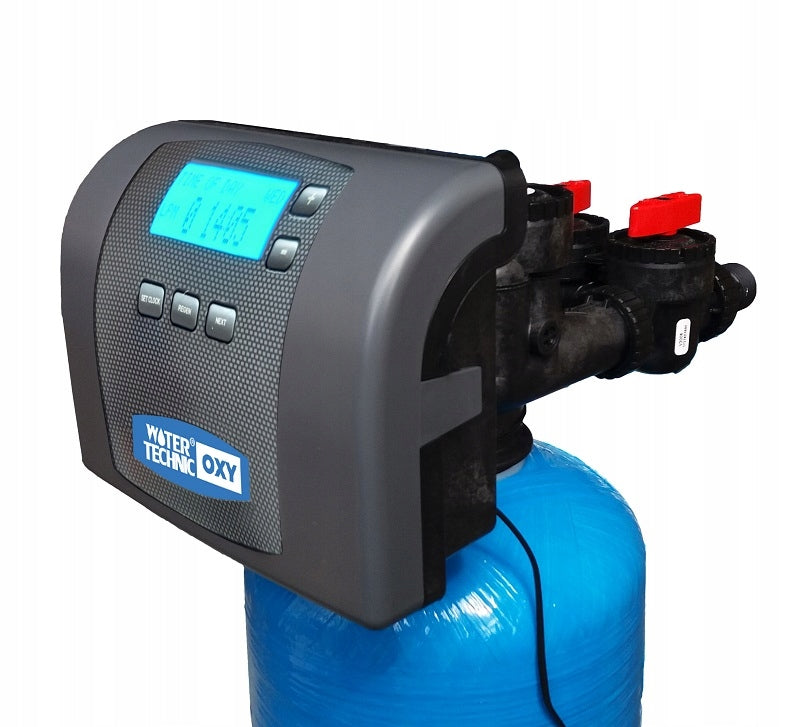

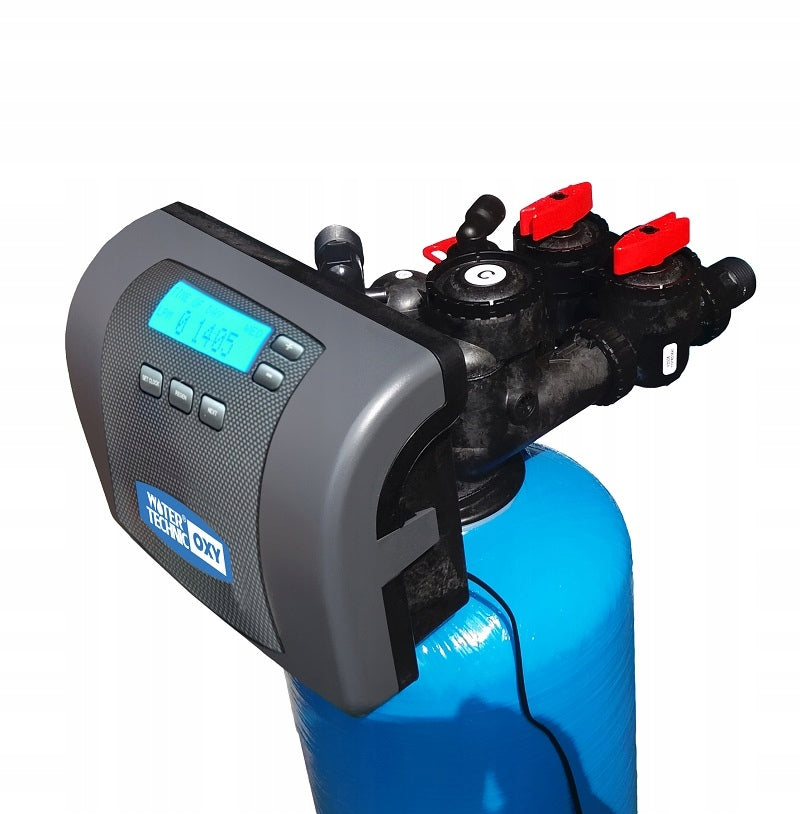

The control valve is a top fully automatic head from a reputable manufacturer from the USA - Clack - Impression model in the Water Technic specification, i.e. with an original aeration injector, bypass by-pass and a solid hose draining rinses during rinsing the bed.

Water Technic OXY devices remove up to 15 mg of iron/litre of water and 2 mg of manganese and 5 mg of hydrogen sulfide. They are so effective thanks to the high degree of water aeration and the properties of the Katalox charge. The purifier rinses them with clean water during the cleaning of the bed and at the same time sucks in the air that forms an oxygen cushion inside the pressure cylinder. Water Technic OXY stations do not require any chemistry for regeneration.

The warranty for the device is respectively 3 years for the Clack Impression control head, 5 years for the Katalox Light bed and 10 years for the pressure cylinder.

The most important features of the Water Technic OXY water treatment plant:

• proven Katalox Light deposit
• Branded Clack Impression USA control head in Water Technic specification
• durable pressure cylinder from the Italian company Eurotrol
• original aeration injector and bypass valve by-pass
• great effectiveness in removing iron (up to 15 mg/l of water), manganese (up to 2 mg/l) and hydrogen sulfide (up to 5 mg/l)
• lack of any chemistry for deposit regeneration
• up to 10 years full warranty
• memory of driver settings in case of power failure
• programming the station for the results of the Client’s water analysis
• instruction in Polish and telephone support at every stage

All components of the Water Technic OXY station have a hygienic certificate of the Polish Institute of Hygiene and are marked with the symbol PZH CERT.

Water Technic OXY water treatment plants are created in Poland, in the family company Technika Woda, which for years has specialized in water treatment, serviced equipment, has all spare parts and is always available for help and kindness.

The Water Technic OXY stations are available in three deposit sizes: 28, 42 and 56 liters of Katalox Light deposit. In addition, there are always several liters of gravel ballast at the bottom of the pressure cylinder to increase the filtration capacity of the device. Thanks to different sizes, the Water Technic OXY can be precisely selected to suit your needs (depending on the degree of water pollution and consumption). Thanks to their high efficiency, Water Technic OXY stations are also suitable for semi-industrial applications (e.g. car washes, printing houses).

The 42-liter model offered here is recommended for households where 4 to 6 people live or we are dealing with heavily contaminated water.

Water Technic OXY iron removers and demanigeners can be used with both diaphragm hydrophores (inside water without contact with air) and membrane. This makes them a very universal solution.

We strongly encourage you to consult the results of water analysis and the selection of the device on this basis. We offer other water treatment plants (Water Technic Pro Multi), which are dedicated to lower exceedances of iron and manganese than the Water Technic OXY series.

When choosing a water treatment plant, it is also worth considering the issue of removing hardness (stone). For the Water Technic OXY station, we recommend using water softeners from the Water Technic series (installation always behind the iron removal station).

In addition, if you provide us with the results of the analysis of your water, we will send you the Water Technic OXY treatment plant with settings corresponding to the quality of your water (we will set the duration and frequency of regeneration of the deposit accordingly). The set also includes instructions in pol. We also provide assistance during assembly.

The set includes a by-pass bypass valve with angle connections 1". Factory, the device is also equipped with a connection adapter 1" that allows you to connect the softener without the use of a by-pass - then to the depth of "we will save" about 20 cm of space.

The set also includes a hard snake to drain water from cleaning the bed. It is suitable for garden applications, but it should be remembered that it will be rich in ingredients that the device removes from the water, i.e. m.in. iron and manganese.

Device specification:

• Automatic, volume control head with Water Quality Associate, NSF and PZH certificate - Clack Impression USA
• Specification Water Technic - aeration injector, by-pass and hose for drainage of rinses
• Type of deposit - Katalox Light
• Bed volume - 42 liters
• Gravel ballast (quartz) - about 4 liters
• Place of completion of the device - Poland
• Dimensions of pressure cylinder for ion exchange bed - 12x52"
• Column dimensions with head (diameter/height) - 25/157 cm
• Depth with by-pass - 37 cm
• Weight of the device: 65 kg
• Height at which the water inlet/outlet is located - 140 cm
• Maximum flow rate - 2,5 m3/h
• Productivity of the device (working) - 1,4 m3/h
• Pump capacity needed (bed flushing) - 2,2 m3/h
• Electrical connection - 220-240 V / 50-60 Hz
• Hydraulic connection - 1" GZ
• Operating temperature - 2-48 degrees C.
• Water working pressure - 1,4-8,3 bar
• Pressure drop - 0,2 bar
• By-pass valve with angle 1" connections
• Volumetric-temporal regeneration control (recommended volumetric regeneration delayed or immediate)
• Maintenance of head settings memory - 48 hours
• Large, clear and backlit LCD screen showing m.in. amount of water to be collected for the next regeneration, date and time
• Robust, certified reinforced plastic housing
• Detailed instructions for programming the head and using the in Polish
• Settings inserted into the control head by the supplier
• 3 years warranty on the control head, 5 years on the bed and 10 years warranty on the pressure cylinder

RECOMMENDED WORKING CONDITIONS

required pH water - min. 6,5

maximum level of iron - 15 mg/l water

maximum level of manganese - 2 mg/l water

maximum level of hydrogen sulphide - 5 mg/l water

maximum level of organic compounds - 2 mg/l water

Each device sold by us is equipped with a set of documents confirming its authenticity and high quality of the components used. Please pay special attention to the hologram along with the unique serial number. It is located on the back of the control head. Devices appeared on the market visually, by name or some parameters similar to water softeners from the Water Technic series, but not covered by our quality guarantees and support.

Each device in the Water Technic series has:

• Proof of sale - invoice or receipt
• Hologram by Technika Woda with a unique serial number
• Warranty card with specified model and serial number of the device compatible with the hologram
• Detailed, dedicated instructions for connecting, starting and using the softener
• Quality certificate (placed on the website), in which we specify all components of the device and their origin
• A special sticker for the housing with the most important usage information, contact details of Technika Wody and a place to save the installation date

EXTENDED WARRANTY

The warranty for Water Technology devices is issued at the time of their shipment to customers. Only our company extends it by another full month by default, giving you time to assemble the station. In practice, this means that if the purchase was made, e.g. June 15, 2020, and the device is covered by a full 10-year warranty, it will end only on July 31, 2030.

As the only company on Allegro, we provide a double guarantee - distributor and manufacturer of water treatment systems. In practice, this means that in the event of any problem, our company is accountable to you, not the wholesaler or manufacturer-subcontractor. This significantly shortens the complaint. Our experienced service technicians are always at your disposal.

SAFE TRANSPORT

Only the company Technika Wody warranty also covers the transport of purchased goods. This way you can be sure that if anything was damaged during delivery - we will replace this item or the entire device immediately. And although every shipment is insured - we never wait for the courier protocol or consideration of the case by the transport company. We know from experience that it takes a very long time. All you have to do is report the problem to us and send us a photo of the damage. We will carry out the exchange immediately. Of course, all return shipments are ordered and paid for by our company.

Our devices are sent via reliable courier companies. Softeners for transport are properly secured and marked. Their transport takes place on a pallet, in an upright position, but if you have a need to transport the device by a passenger car in a lying position - there are no contraindications to this. Our softeners are made professionally and there is no possibility that any of them will spill during such transport or any internal element will be sealed with a resin bed. They also have sturdy housings made of durable and flexible plastic. They are resistant to shocks and possible impacts. You can safely transport, move and install them even in hard-to-reach places.

SIMPLE INSTALLATION

Installation of the water treatment plant is not complicated, and all information on its implementation and programming of the head is available in the attached instructions. We also provide full telephone support. We also recommend instructional videos on our You Tube channel.

The independent, correct execution of the connection does not affect the warranty.

We are practitioners in water treatment. We cordially invite you to consultation!

We also invite you to the YouTube channel of Technika Wody, where you can watch the presentation of Water Technic softeners and instruction of assembly and first launch, as well as get acquainted with other devices in this series, e.g. Water Technic PRO Multi and Water Technic PRO Carbon with RO8 Water Technic filter.

FOR EACH SET FREE

Original bypass valve by-pass with 1" angle connections and a 3-meter strong hose for draining rinses into the sewage system.

Please be advised that the brand of Water Technic devices and its verbal and graphic identification are reserved in the Patent Office of the Republic of Poland under number Z.515910.
