Aprašymas
Trumpai apie prekę
Prekė: Vandens ortakinis šildytuvas Spiro, Ø160 mm, 8,33 kW. Kategorija: Rekuperacinės vėdinimo sistemos.
- Gamintojas: Alnor
- Modelis: NAGRZEWNICA wodna 160

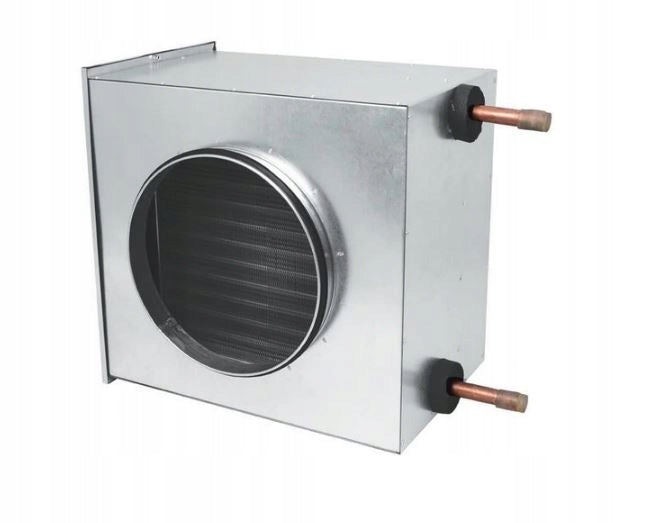

Channel water heater Alnor HDW ⌀ 160mm with a maximum power of 8,33kW
HDW channel water heaters are used for air heating in ventilation systems. The energy carrier is hot water.

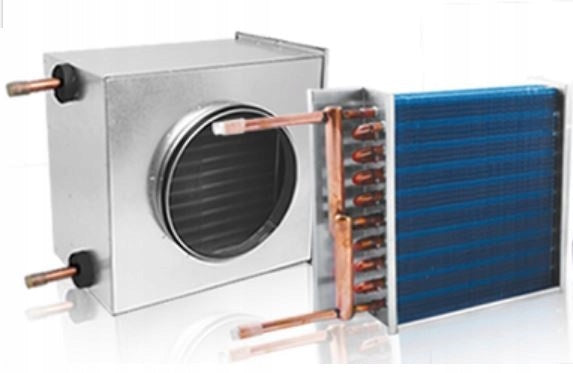

The heater is closed with a lid that allows you to control and clean the exchanger, has two round connection connectors with EPDM rubber gasket. Inside the housing there is a heat exchanger. The housing is made of galvanized steel sheet, it is closed with a lid that allows you to control and clean the exchanger.

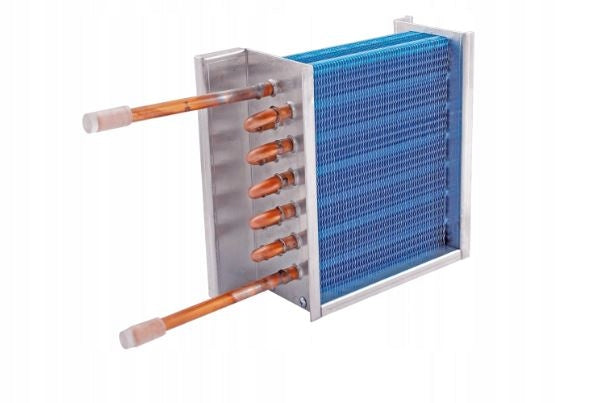

The coil and connection pipes are made of copper and the exchanger lamellas are made of aluminum. The diameters of the exchanger tubes and the diameters of the connection pipes have selected diameters depending on the size of the ALNOR heater.
The exchanger used is second row. The HDW channel water heater has two round connection connectors with EPDM rubber gasket.
HDW water heater can be installed in the channel
ventilation both vertical and horizontal at
any direction of air flow.
Maximum working temperature: +100oC
Maximum working pressure: 1,0MPa (10 bar)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Alnor |
| Parametry | Kind | heat recovery ventilator |
| Parametry | Manufacturer code | NAGRZEWNICA wodna 160 |
| Parametry | Range of energy efficiency classes | A+ - G |
| Parametry | Energy efficiency class | A+ |
