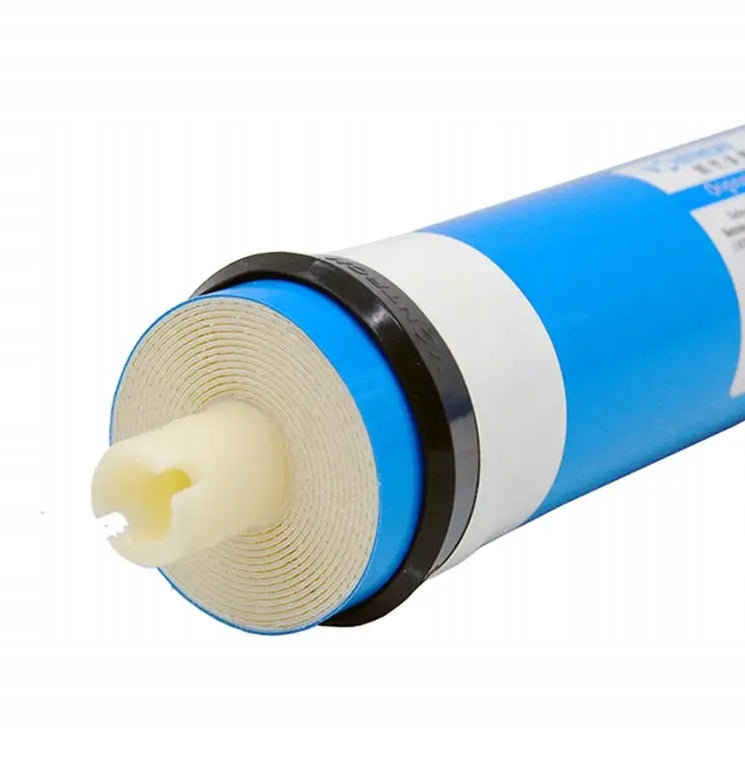

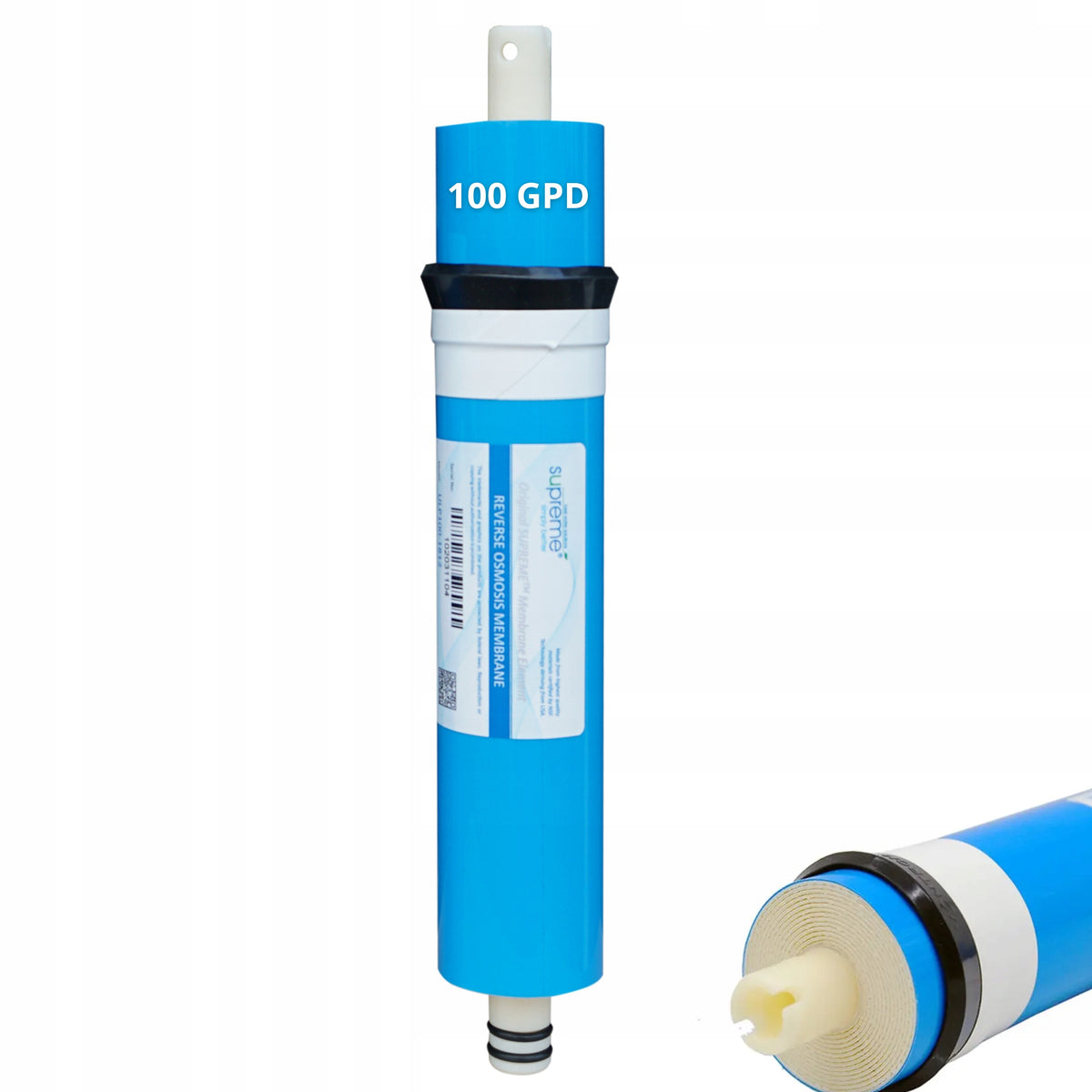

Vandens osmoso membrana RO SUPREME 100 GPD ULP100-1812

Trumpai apie prekę

Prekė: Vandens osmoso membrana RO SUPREME 100 GPD ULP100-1812. Kategorija: Įdėklai.

• Gamintojas: Supreme
• Modelis: other (ULP100-1812)

Osmotic membranes are an essential component of any reverse osmosis system. Made by m.in. from polyamide, membranes separate impurities contained in water from clean water.

The osmotic membrane is composed of many layers that are wound on the mandrel in the middle of the membrane. Water contaminated under pressure is forced onto the surface of the membrane. Water particles pass through microscopic pores on the surface of the filter layers. After separating the impurities, they go to the drain, and purified water passes through the stem holes to the central channel of the membrane and from there under pressure flows out.

Membranes retain up to 99%:

• organic and inorganic pollutants,
• heavy metals and other elements of size min. 0,0001 - 0,0008 μm.

The membrane fits most reverse osmosis systems on the market

TECHNICAL DATA

• Overall length: approx. 298 mm - 12"
• Membrane length: approx. 254mm
• Diameter of membrane: approx. 46 mm - 2"
• Tip diameter: approx. 17mm
• Max durability: 2-4 years - depending on water pollution
• Operating pressure: 3 - 6 bar
• Max capacity: 100 GPD/ up to 378 L/24h
• Operating temperature: 2-45 °C
• Limiter/restrictor required: 550

• When replacing the membrane, we should also mention the flow limiter QFR550 available at our other auctions. This significantly extends the life of the new membrane.

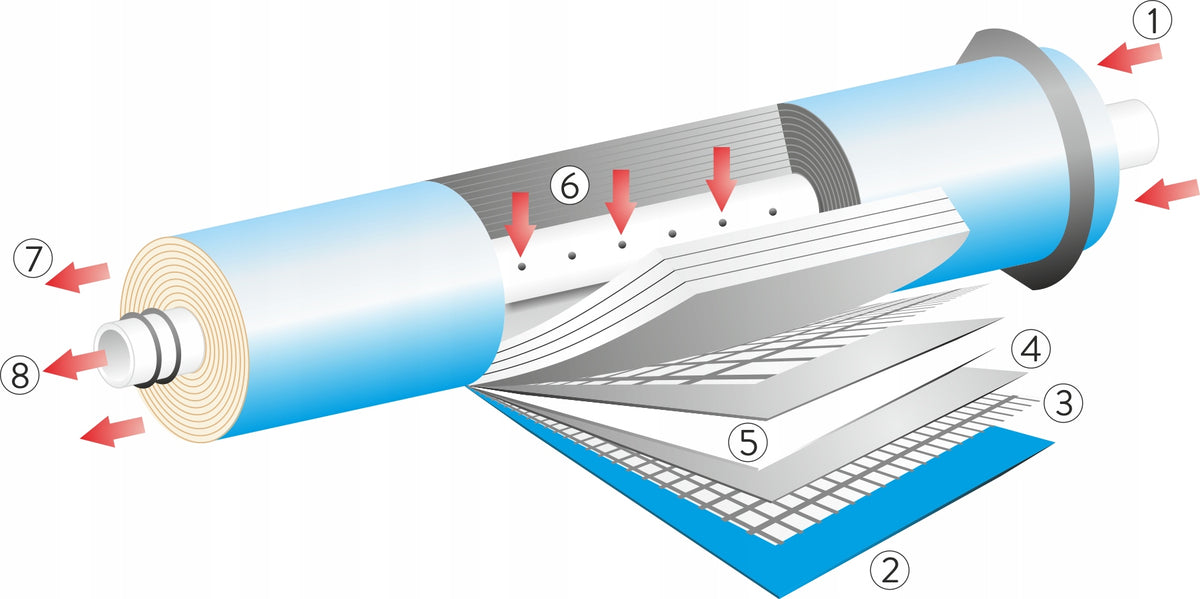

1. Water supply

4. Membrane

7. Recoil

2. Internal embodiment

5. Collecting countries

8. Clean water

3. Separator

6. Collecting channels

Specifications
