Aprašymas
Trumpai apie prekę
Prekė: Vandens šildytuvas 20 kW su EC varikliu ir VTS VOLCANO laikikliu. Kategorija: Oro šildytuvai.
- Gamintojas: Volcano
- Modelis: 1-4-0101-0455

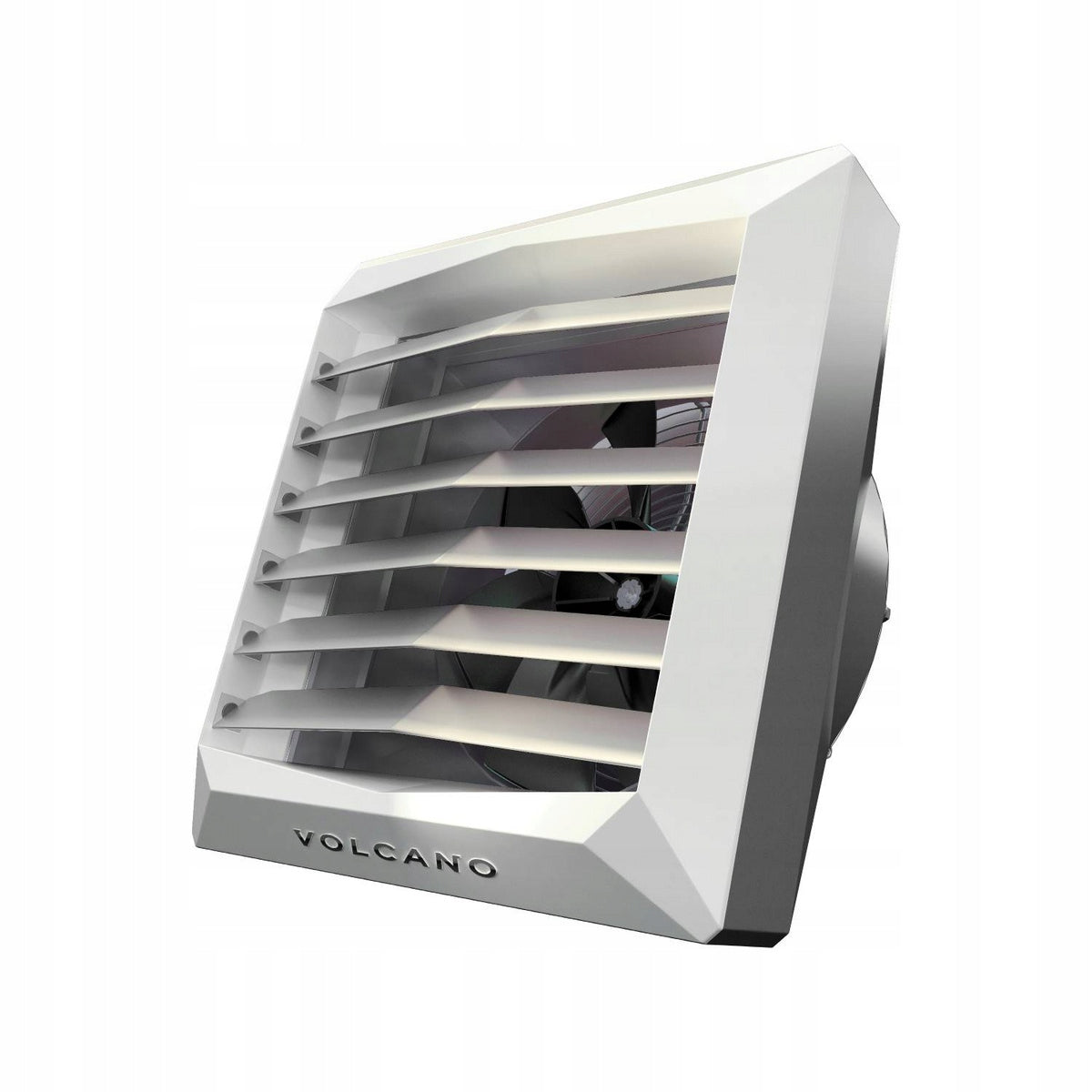

Water heater VOLCANO is a device made mainly for heating rooms and utility facilities, workshops, shops, warehouses. The device has a high heating efficiency and a solid construction, thanks to which it works for many heating seasons!
✅SPECIFICATION:
- Engine: EC
- Number of heater rows: 2
- Type of exchanger: 2-row copper-aluminium
- Power range: 3 - 20kW
- Maximum airflow: 2100m³/h
- Number of fan gears: smooth control
- Connection nozzle diameter: 3/4"
- Air level range: up to 14m
- Vertical air range: up to 8m
- Engine power: 0,095kW
- Weight of the device (without water): 14kg
- Housing dimensions: 530mm x 530mm
- Noise level: from 27 db(A) 3m
- Producer: VTS
THE SET INCLUDES:
- Water heater.
- Assembly console (possibility of wall or ceiling mounting).
✅ENERGY-EFFICIENT ENGINE:
- high-efficiency brushless EC motor -maximum motor efficiency even at reduced revs
- smooth adjustment allows you to adjust the rotational speed to the needs of each room.
- optimal fan blade shape and efficient EC motor provide saving up to 40% electricity compared to traditional solutions
✅STRONG CONSTRUCTION:
- construction made of ABS plastic provides high mechanical strength
- permanent color thanks to the use of anti-UV pigment
- resistance to high temperatures

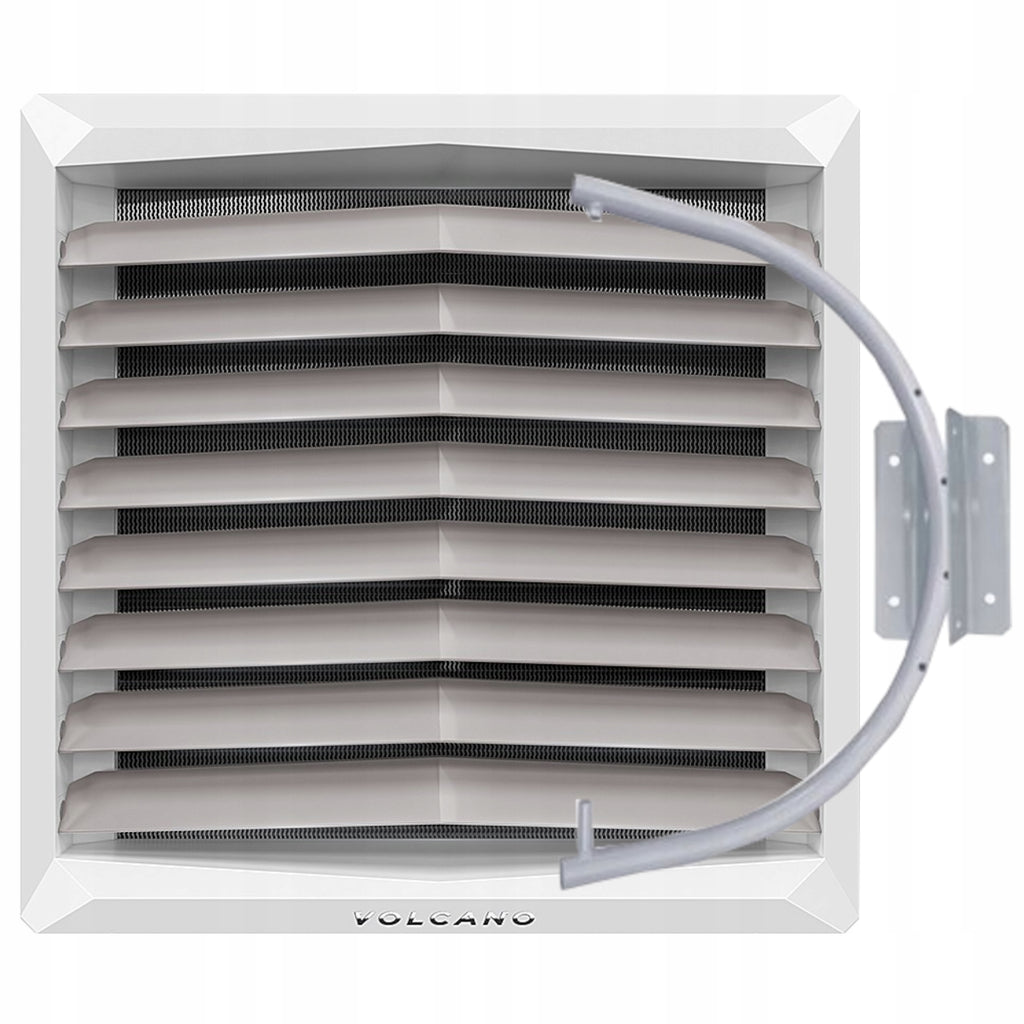

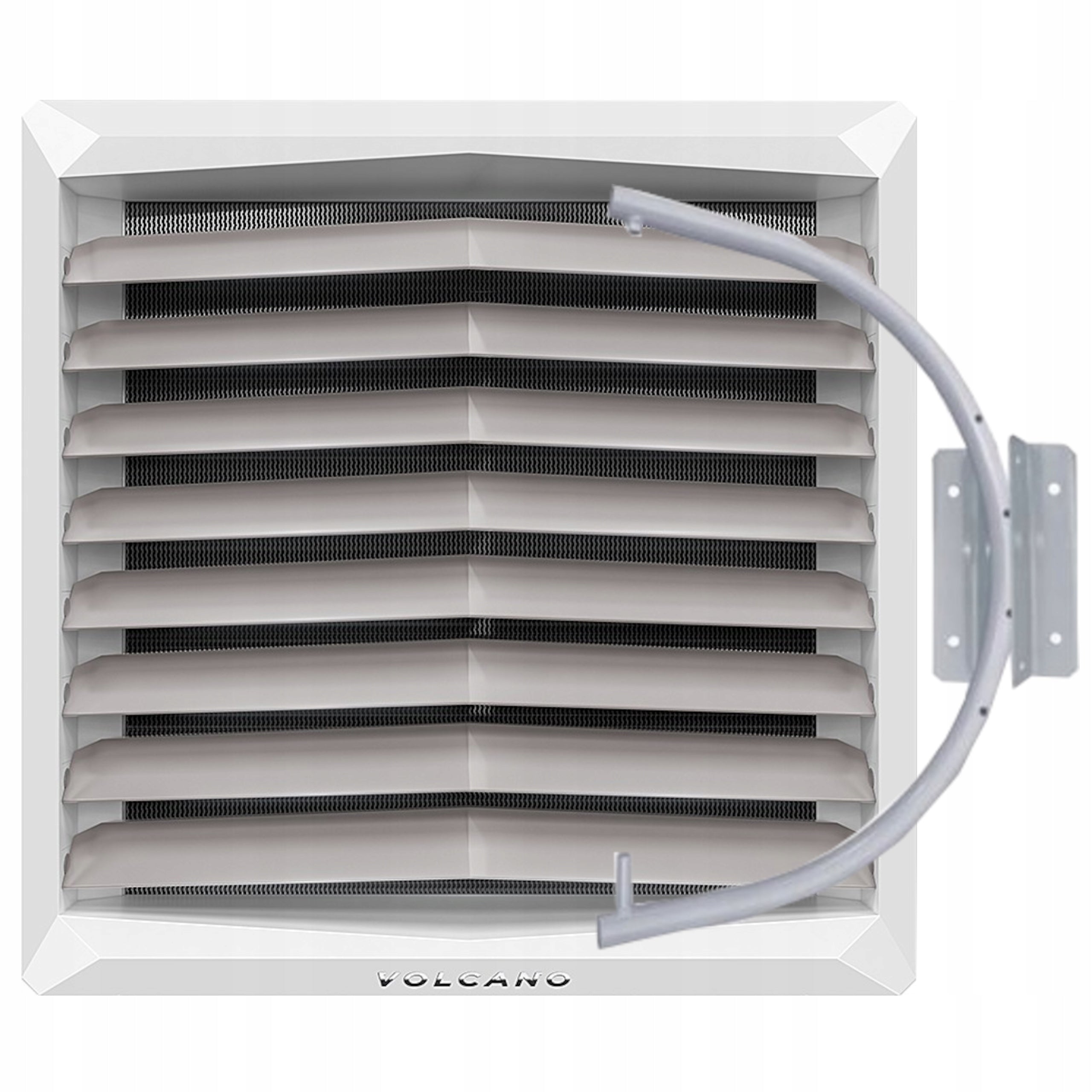

✅ MOUNTING BRACKET INCLUDED!
The VOLCANO heater comes with a mounting console, allowing you to mount the device both vertically and ceiling.
The maximum vertical range of the devices varies from 8-15 m depending on the type of heater. Maximum horizontal range from 14-28 m. Failure to maintain a minimum distance of 35 cm (VR1 EC/VR2EC/VR3 EC/VR-D EC) from the wall or ceiling may cause improper operation of the device, the possibility of damage to the fan or increased volume of its operation.
TAKING CARE OF THE ENVIRONMENT - THE DEVICE HAS BEEN DESIGNED WITH THE ENVIRONMENT IN MIND. 100% OF THE MATERIALS USED CAN BE USED IN THE RECYCLING PROCESS.
1 - AIR STEERING WHEELS - The innovative solution for fixing blades allows their individual adjustment and stable positioning. The steering wheel profile guarantees minimal air flow resistance.
2- DIFFUSER - The diffuser design is designed to guarantee complete integration with the back of the housing and the fan.
3 HEAT EXCHANGERS
- 1, 2 and 3-row heaters with a larger heat transfer area ensure optimal adjustment of heating power to the needs of the facility.
- Developed heat transfer surface and the ability to work with low-temperature factors.
- The test of all exchangers ensures 100% verification of their tightness.
4 - MAXIMUM AIR EXPENDITURE WITHOUT LOSS - Exactly fitted fan housing and specially designed diffuser ensure even distribution of air speed in the exchanger guaranteeing low flow resistance and full use of heater power.
✅STRONG UNIVERSAL HEATER!

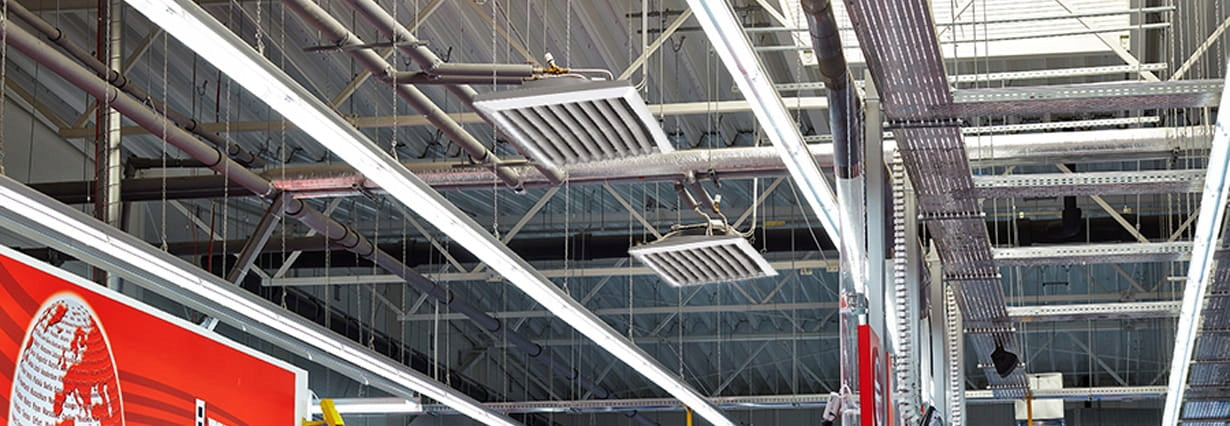

The heater is characterized by a simple and durable construction and can be used in many facilities - it is mainly suitable for:
- workshops and production rooms,
- warehouses,
- shops,
- office rooms,
- greenhouses,
- churches,
- and for many large rooms
✅WHY VOLCANO EC HEATER?
The Volcano heater is a new generation device, combining innovative technical solutions with modern industrial design. Precisely made, light body of the case resembles a beautiful and at the same time perfect in its simplicity form of diamond. The character of the device is emphasized by the composition of selected materials and dynamically shaped air steering wheels.
- mounting console included
- highly efficient EC engine
- smooth regulation of fan speed
- up to 40% lower operating costs
- possibility of connection to the BMS system
- quiet operation at significant rotational speeds
- advanced work calendar functions
- Support up to 8 devices with one controller
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Volcano |
| Parametry | Kind | water |
| Parametry | Heating power | 20 kW |
| Parametry | Model | 1-4-0101-0455 |
| Parametry | Product weight with unit packaging | 14 kg |
| Parametry | Manufacturer code | VOLCANO 20 EC |
| Parametry | Energy efficiency class | brak klasy energetycznej |
| Parametry | Range of energy efficiency classes | no energy class |
