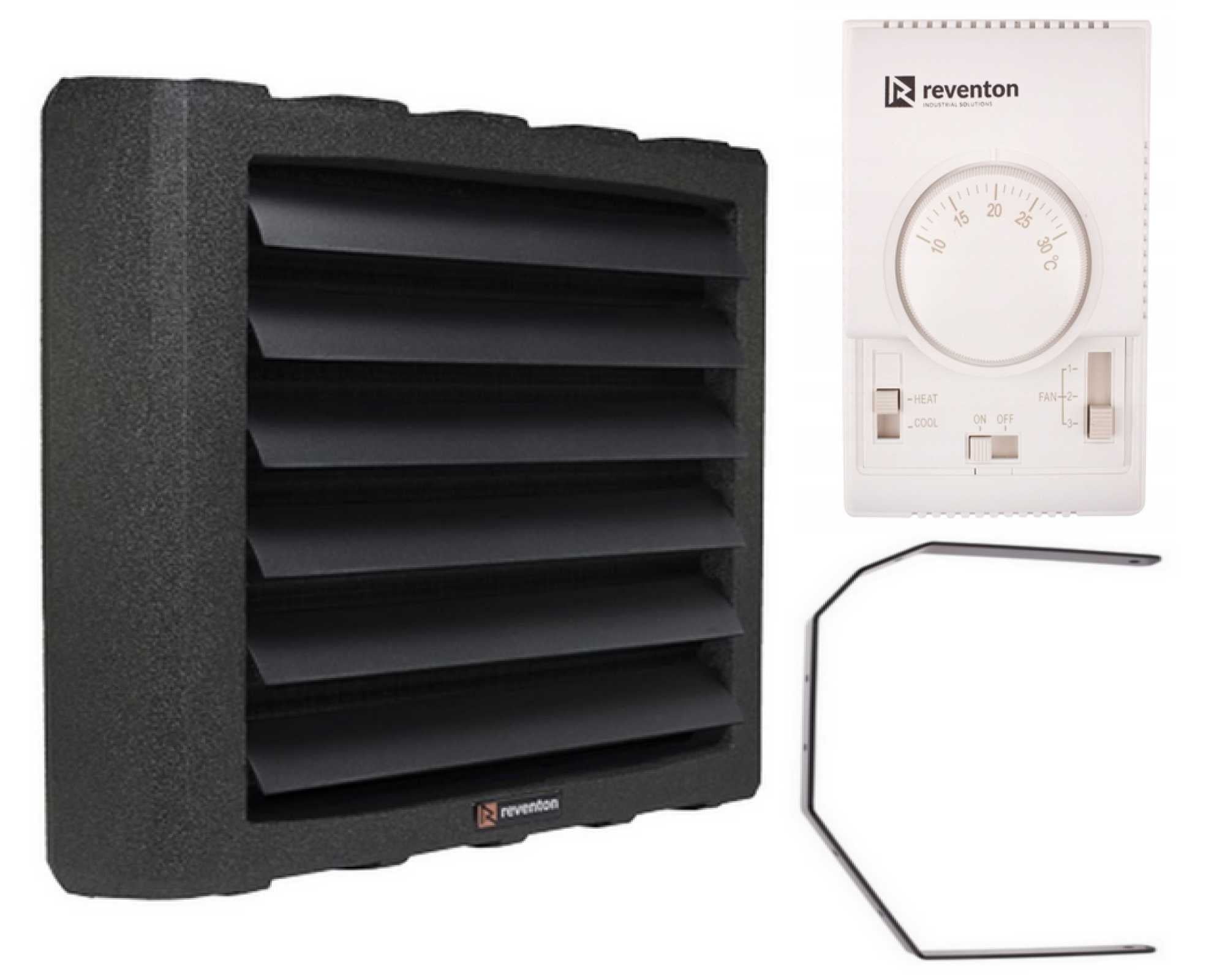

Vandens šildytuvas 91,5 kW HC80 su valdymo pultu

Trumpai apie prekę

Prekė: Vandens šildytuvas 91,5 kW HC80 su valdymo pultu. Kategorija: Oro šildytuvai.

• Gamintojas: Reventon
• Modelis: HC80-3S

Nominal power 69,2kW at 90/70°C , 0°C at inlet , 3 gear.

Nenimal power 6,96kW

Minimum power 40/30°C,20°C at inlet, 1 gear

Maximum power 91,5kW

Maximum power 120/90°C, 0°C at inlet, 3 gear

The Reventon water heater will work in a situation where we have a central heating system. The high efficiency of the device guarantees the possibility of obtaining high thermal comfort in a short time, also in rooms requiring heating (such as: large-size rooms). The proposed water air heaters are perfect for industrial premises:

• production,
• warehouse,
• commercial,
• service,

as well as in heating garages, workshops, greenhouses and garden tents, shops, galleries and shopping arcades.

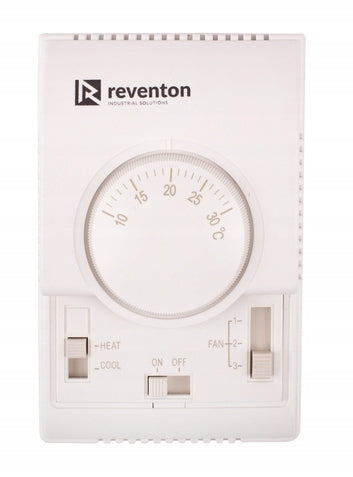

3-DEGREE SPEED CONTROLLER WITH THERMOSTAT HC3S

The regulator is used to adjust devices equipped with three-speed fan motors. It has a three-stage speed control, and the built-in thermostat allows you to turn off the device when the set temperature is reached. In addition, the regulator controls the operation of actuators installed on the control valve. Possible operation in both heating and cooling mode.

• Power Supply/ Frequency: 230V AC /50~60Hz
• Maximum intensity: 3 A
• Adjustment range: 10°C~30°C
• Operating mode: continuous or thermostatic
• Adjustment accuracy: < 1°C
• Dimensions: 130 x 85 x 40 mm
• Weight: 210 g
• Degree of protection of the housing: IP 30

• height - 698mm (a)
• width - 739mm (b)
• depth - 360mm (c)

Water heater for wall or ceiling

The industrial heater can be mounted both on the wall and under the ceiling. Thanks to the rotating mounting console, the installation of the device does not cause much difficulty and allows you to choose a solution that perfectly suits the conditions of a given room.

Each offered water heater is equipped with a housing made of EPP foamed polypropylene, air steering wheels made of PP polypropylene, heat exchanger made of copper and aluminum, axial embossing fan (equipped with a protective mesh made of galvanized steel wire and metal blades). All this makes the proposed water heater stand out for its impressive robustness, durability, and at the same time lightness and aesthetics. Reventon heaters thus guarantee efficient, reliable operation and convenience of operation for its users.

Water heater – characteristics

The devices manufactured by Reventon are above all impressive quality. The housing of the device made of EPP foamed polypropylene is durable, lightweight and reliable. It is a material that is able to carry heavy loads without undergoing deformation. It does not degrade under the influence of oil, grease, oil and most chemicals. It has very good sound insulation properties, thanks to which it operates extremely quietly.

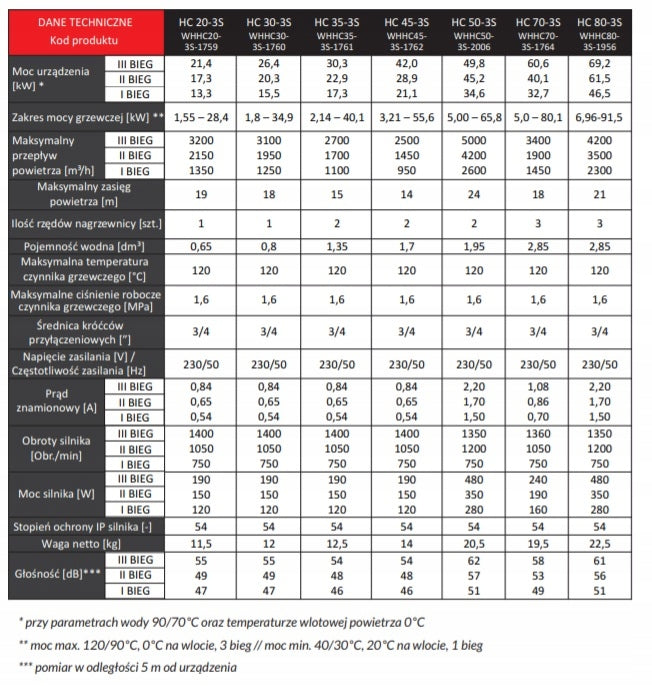

Specifications
