Vandens šildytuvas durims STEEL POWER 29,3 kW, vertikalus ir horizontalus montavimas

Trumpai apie prekę

Prekė: Vandens šildytuvas durims STEEL POWER 29,3 kW, vertikalus ir horizontalus montavimas. Kategorija: Oro užuolaidos.

• Gamintojas: Flowair
• Modelis: 56104
• Galia: 29300 W

The curtain fits 99% of door openings. The curtain is designed for horizontal installation directly above the door opening, as well as for vertical installation at the side parts of the opening.

QUALITY ON 5! ⭐⭐⭐⭐⭐

✅SPECIFICATION:

• Power supply: 230/50 V/Hz
• Max. Power consumption: 0,22kW
• Max. Power consumption: 0,9A
• IP: 20
• Connection: 1/2"
• Capacity: 1400-2850m3/h
• Sound pressure level 5m: 37-58dB(A)
• Sound power level: 53-74dB(A)
• Heating power: 3,7 – 29,3kW
• Max. temp. heating water: 110°C
• Max. Operating pressure: 1,6MPa
• Temperature increase (T): 4,0 – 30,5°C
• Weight of the device: 26,9kg

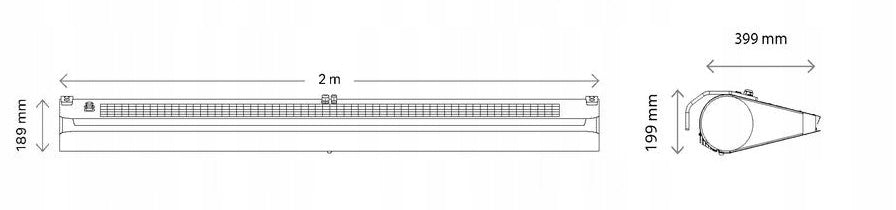

• Range: 4m*
• Width: 200cm
• Height: 19,9cm
• Depth: 44,3cm

*according to ISO 27327-1

✅Can be mounted vertically or horizontally.

SUPPORTS ARE COMPLETED SEPARATELY.

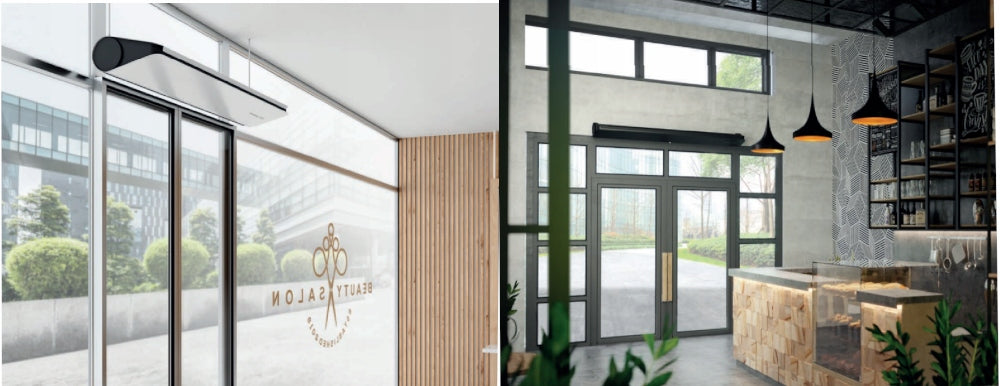

✅ Slim curtains are adapted for horizontal installation above the door opening, without limiting the space inside the room and for vertical installation.

It is possible to mount the curtain using mounting brackets (directly to concrete partitions) or on pins at the glass door, creating almost one invisible line with a door leaf. However, if the space above the door is less than 25 cm, vertical installation is also possible, also with the same mounting brackets as for horizontal installation.

SLIM AIR CURTAIN = AMAZING FEATURES!

✅INTELLIGENT — Smart Savings

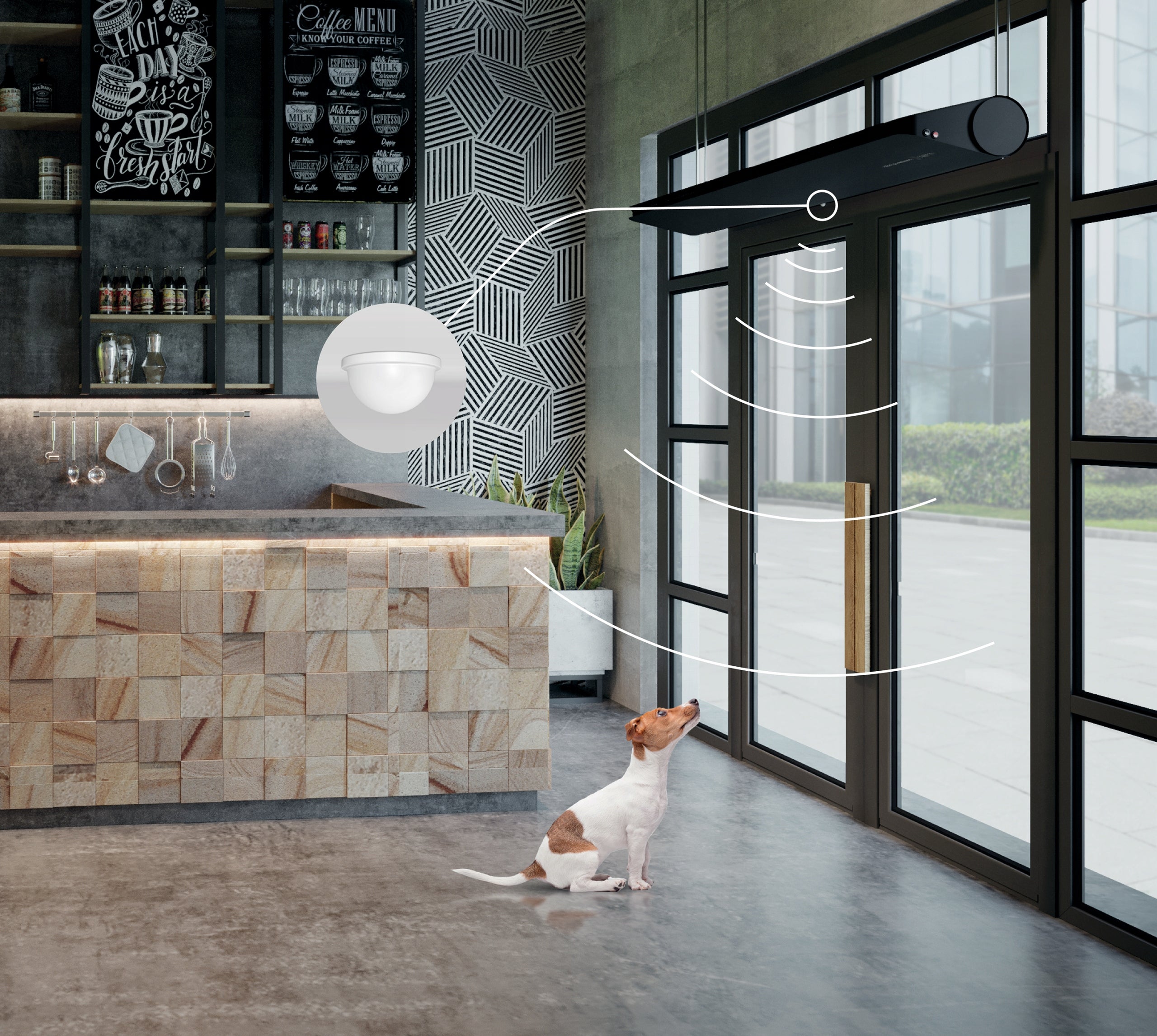

Plug & Play – This device features built-in controls for automatic operation based on the signal from a motion sensor. This allows the air curtain to operate only when needed. Buttons on the side of the unit allow for easy and quick mode changes.

✅IMPROVING AIR — Improves Air Quality

The Slim air curtain design provides complete protection against unwanted airflow across the entire width of the doorway. The device is designed to work with an external filter module, which improves air quality and protects the unit from dirt and other contaminants.

✅INVISIBLE — Discreet Operation

The Slim air curtain is designed to be unobtrusive. It operates quietly, even at the highest speed.

✅IDEAL — Tailored to Your Business

This device fits 99% of door openings.

✅CARE FOR DETAILS

The color of the curtain is due to the powder coating process obtained with the latest technologies, which allows for a flawlessly vibrant and durable color

Timeless and versatile design means that the curtain will fit most interiors!

✅EASE OF USE!

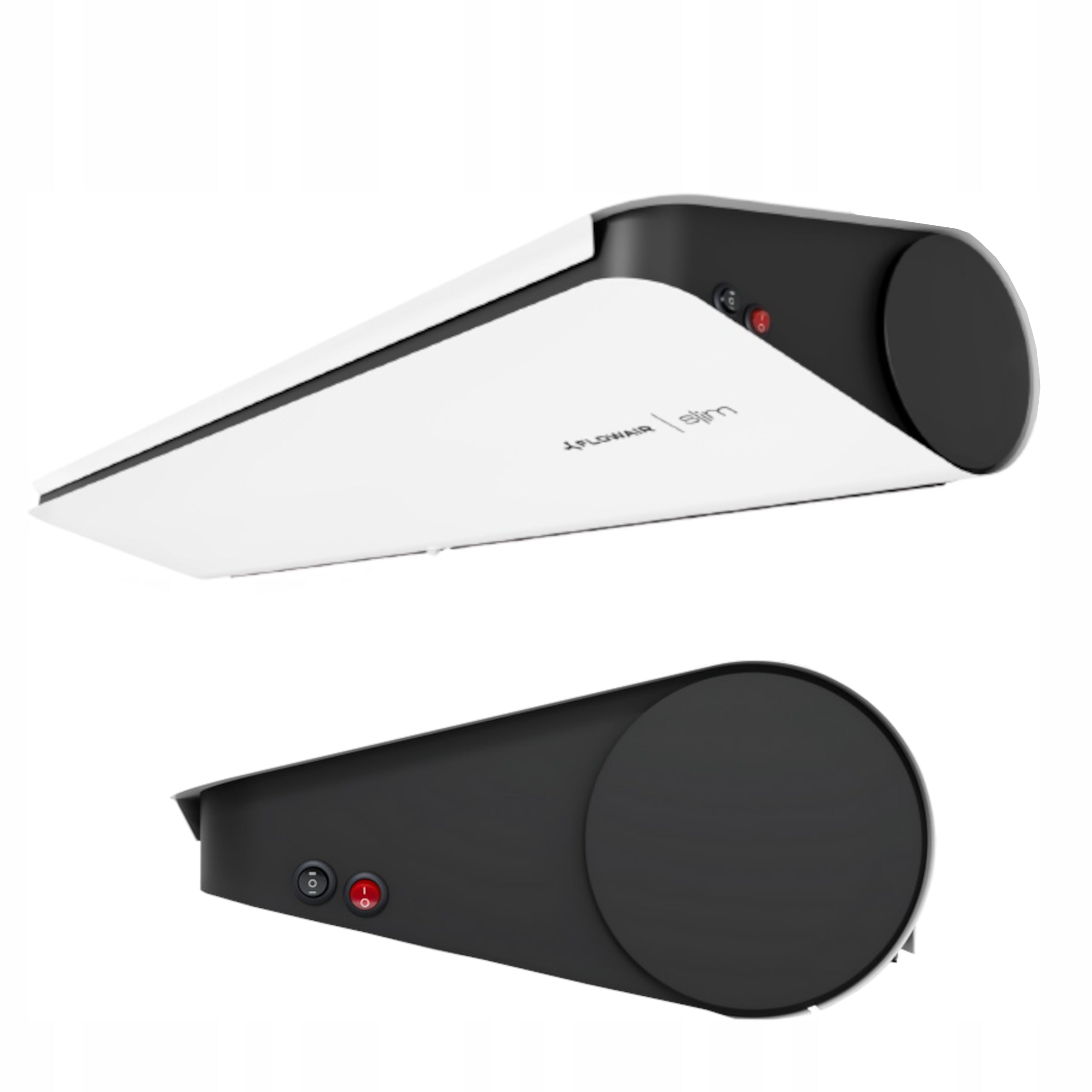

The SLIM W-200 air curtain is equipped with convenient controls:

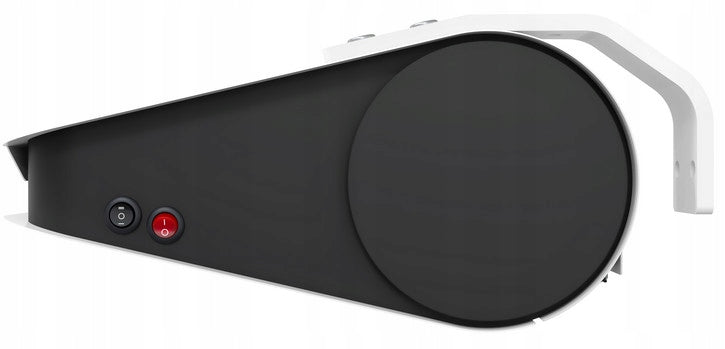

• built-in on the side of the curtain switch and blowing power switch (high/low) and heating function switch:

NOTE: Curtain with water heater requires connection to central heating system.

✅WHY SLIM CURTAIN BY FLOWAIR?

• Built-in control system
• Built-in motion sensor included
• Unique design, small size, low weight
• Silent operation of the rotor of the German manufacturer
• Easy and quick installation with brackets
• Parameters confirmed by accredited laboratories.

✅TECHNICAL DATA:

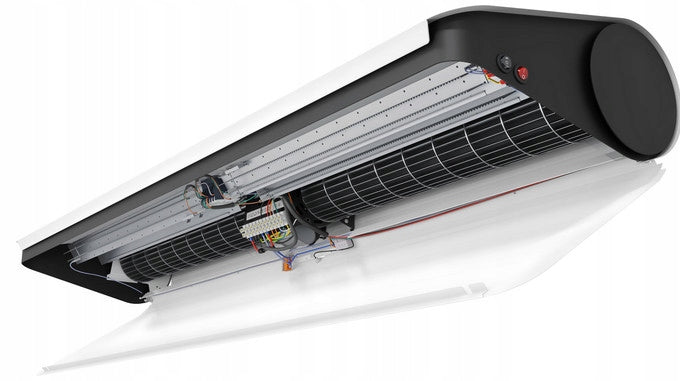

Access to the interior of the curtain for installation and service purposes is provided by an easily opened tilting bottom plate:

Specifications
