Vandens šildytuvas FLOWAIR LEO S2, 2,1–26,5 kW

Trumpai apie prekę

Prekė: Vandens šildytuvas FLOWAIR LEO S2, 2,1–26,5 kW. Kategorija: Oro šildytuvai.

• Gamintojas: Flowair
• Modelis: LEO S2

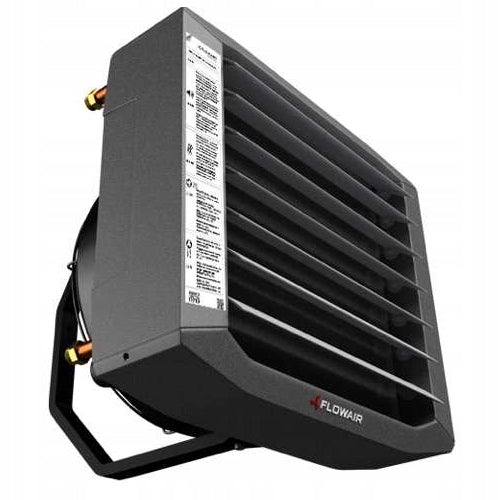

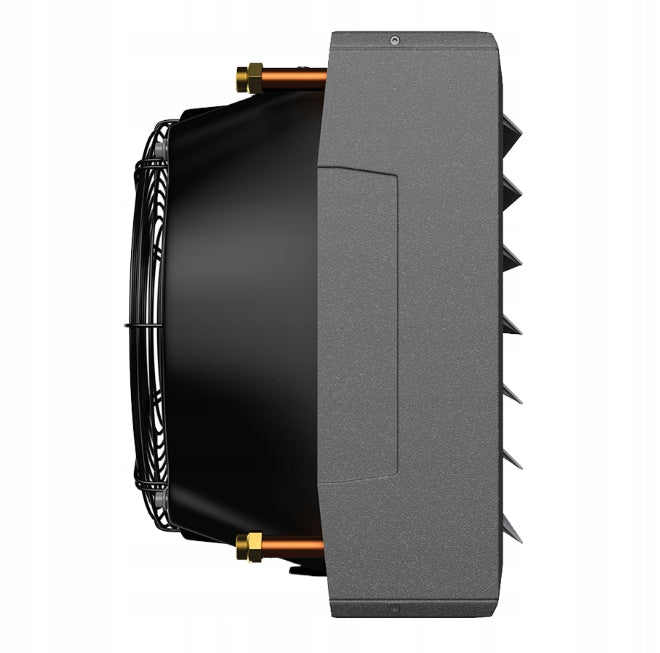

Air heater FLOWAIR LEO S2 - 26,5 kW (2,1-26,5 kW)

Comes with regulator and mounting console

• Number of heater gears: 3
• Airflow: 1 250 / 1 600 / 2 000 m3/h
• Heating power range: 2,1 - 26,5 kW
• Nominal heating power: 10,2 kW (70/50/16'C, III gear)
• Maximum heating power: 26,5 kW (120/90/0'C, III gear)*
• Power supply: 230/50 V/Hz
• Max. Power consumption: 0,3 / 0,4 / 0,6 A
• Max power consumption: 70 / 90 / 130 W
• Sound pressure level: 43,9/50,7/56,3 db(A)**
• Horizontal range: 8,5 / 11,0 / 14 m***
• Vertical range: 3,5 / 4,4 / 5,3 m****
• Max temp. Heating water: 120°C
• Max working pressure: 1,6 MPa
• Connection: ½"
• Max. temp. Working: 60°C
• Weight of the device without water: 10,4 kg

* max. 120/90/0oC III-speed, min. 40/30/20oC I-speed

** Sound pressure level for a room with an average sound absorption capacity, volume of 1500m3 , at a distance of 5 m from the device

*** Level range of isothermal flux, at a limit speed of 0,5 m/s

**** Vertical range of non-isothermal flux at ΔT = 5'C, at a limit speed of 0,5 m/s

LEO water air heaters are used for heating facilities with large volumes of general and industrial construction, public buildings, etc. They are designed to work indoors with a maximum air pollination of 0,3g/m3.

PRODUCT CHARACTERISTICS

• housing made of EPP, grey (similar to RAL 9007)
• energy-efficient fan with 3-speed motor
• wide spin of heating power
• easy installation under different accounts thanks to the rotating mounting console
• small size and weight of devices
• parameters of equipment confirmed by an accredited testing laboratory

APPLICATION

• facilities with large volumes: industrial halls, warehouses,
• commercial pavilions, production halls, sports halls, facilities
• sacred, etc., as well as smaller rooms, e.g. workshops, garages,
• shops, car dealerships, gas stations, etc.

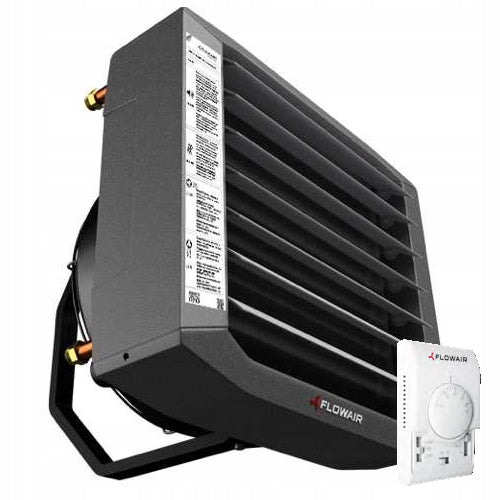

In the offered set

You will receive:

LEO heater

• 3-speed fan
• lightweight and durable EPP housing
• wide range of heating powers

Rotary console

• 170 degree rotation of the device
• wall and substructure mounting
• possibility of mounting at different angles to the partition

TS - 3-stage speed controller with thermostat

• 3 Degrees of Performance Adjustment
• continuous and thermostatic mode
• heating and ventilation functions

Dimensions of the device

Performance range of LEO series devices

Specifications
