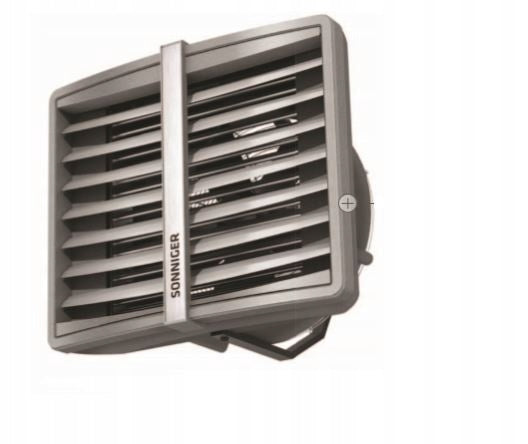

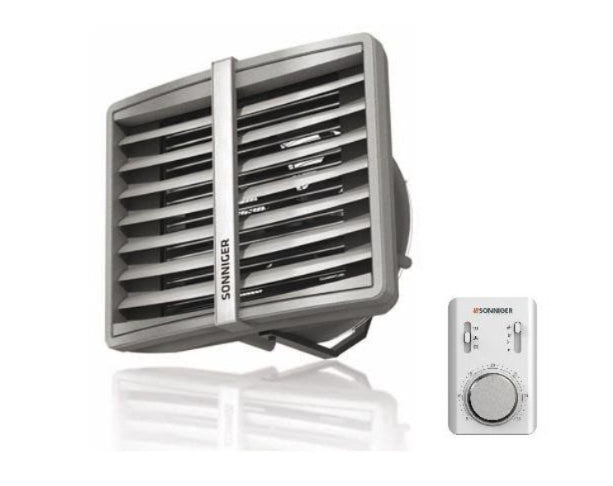

Vandens šildytuvas HEATER CONDENS CR3 (20–70 kW) su konsole ir valdikliu

Trumpai apie prekę

Prekė: Vandens šildytuvas HEATER CONDENS CR3 (20–70 kW) su konsole ir valdikliu. Kategorija: Oro šildytuvai.

• Gamintojas: Sonniger
• Modelis: CR3

HEATER water heaters are a line of modern and reliable devices designed for heating buildings.

They are used wherever high aesthetics are necessary in combination with optimally selected operating parameters.

ADVANTAGES:

• Strong parameters
• New possibilities: 3-speed fan as standard
• compact dimensions
• optimal parameters

PARAMETERS:

• heating power range*: 20-70 kW
• maximum air output: 2 950 m³/h
• number of heater rows: 3
• air temperature increase**: 35 kW / 34'C
• maximum air range: 19 m
• diameter of the nozzles: 3/4”
• supply voltage: 230/50V/Hz 1.6 A
• Engine IP: IP54
• operating volume***: 60dB(A)
• weight without water / weight with water: 14,5/16,9 kg

*heating power range is given for heating medium temperature range 50/30-120/90°C and inlet air temperature 0°C, III fan gear

**for water 70/50 and inlet air temperature 0 °C

***measurement at a distance of 5 m from the device

Description of COMFORT control panel switches

• Unique design SONNIGER
• Changing fan gears
• Ventilation function in summer

(Mounting bracket)

Heaters can be installed to the wall using the mounting console at 0°, 30° or 60°.

The mounting console holder is made of a bent profile. It has two holes for mounting the heater on the wall in a horizontal position.

Mounting to the wall and/or ceiling is also possible at a different angle, however, this requires drilling the necessary holes in the holder.

Specifications
