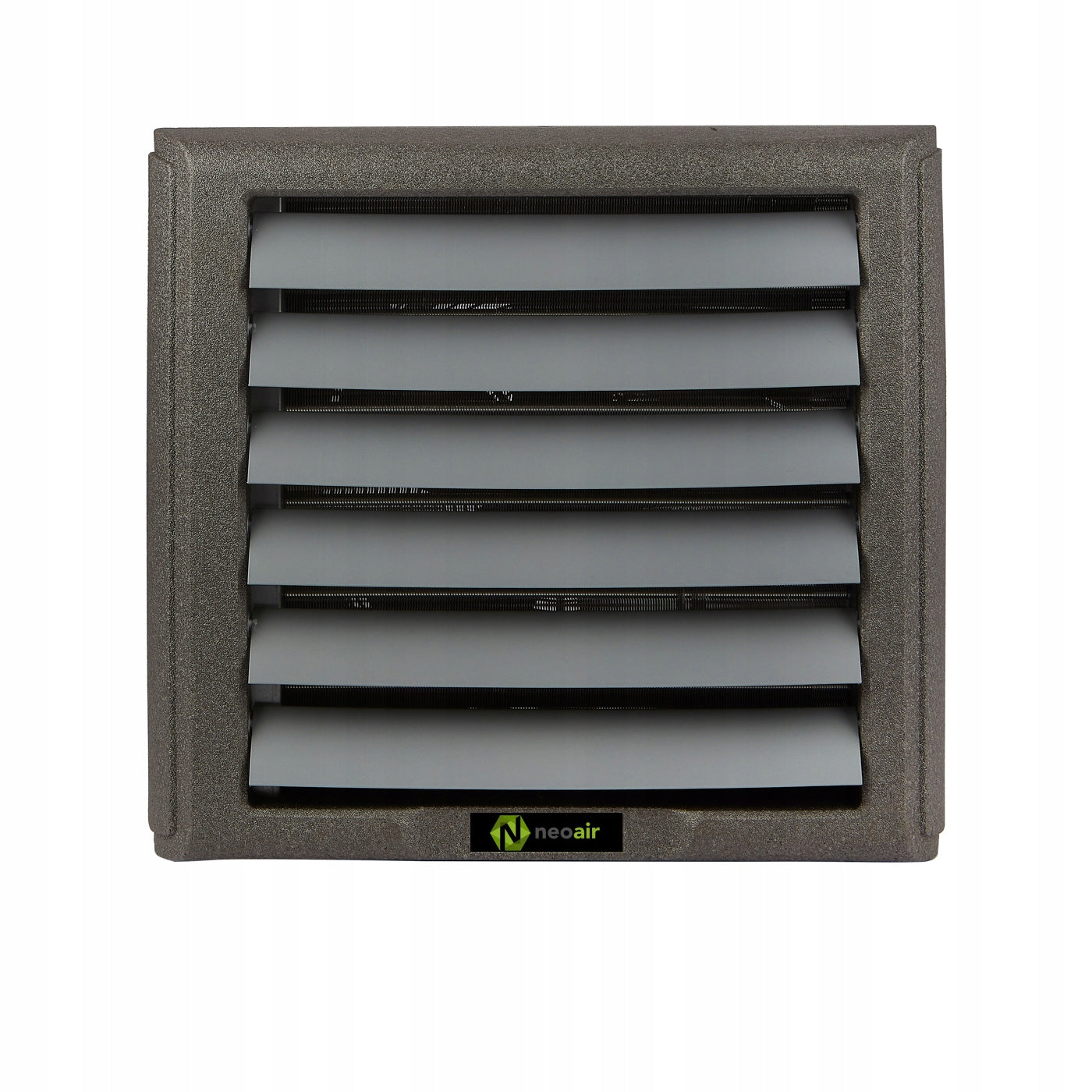

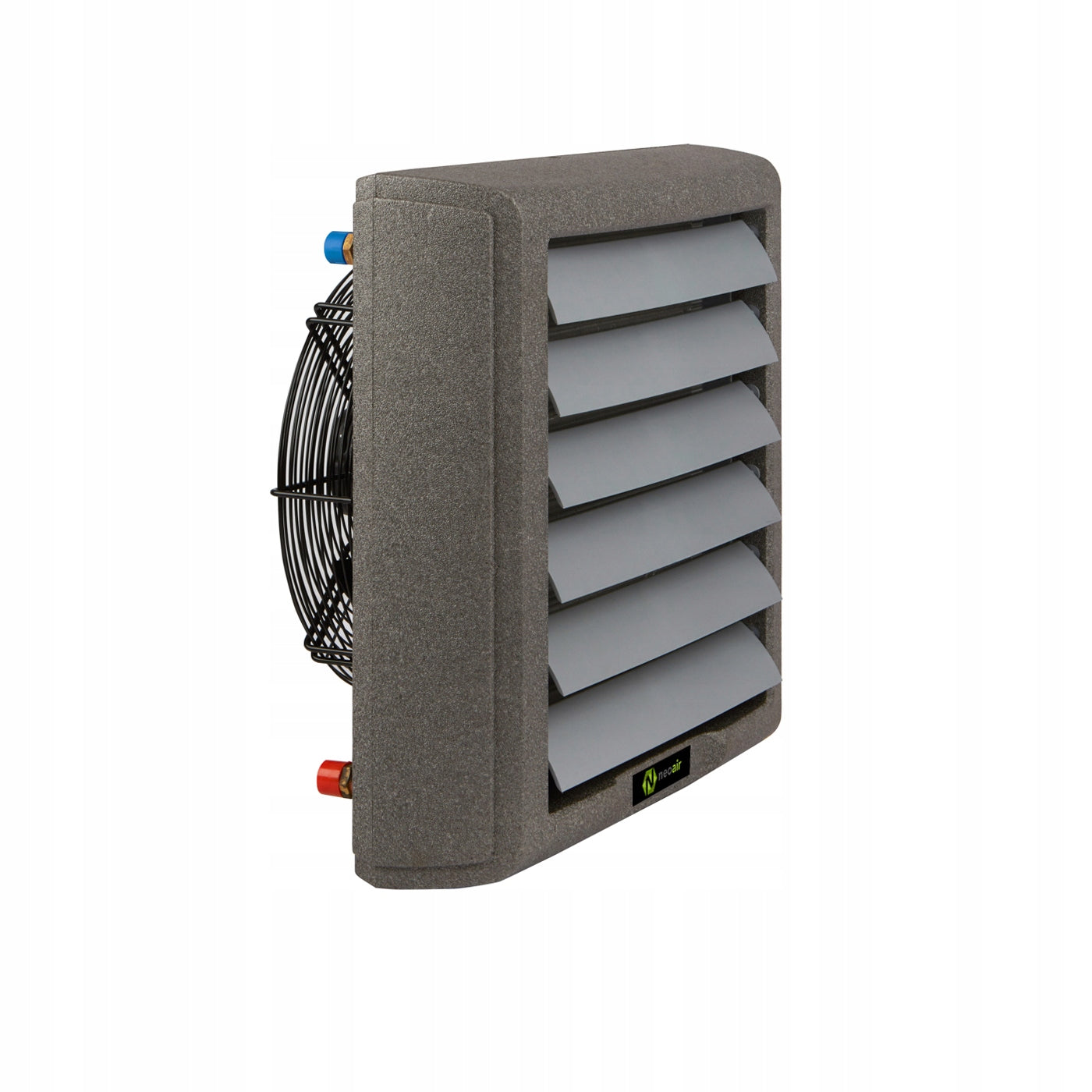

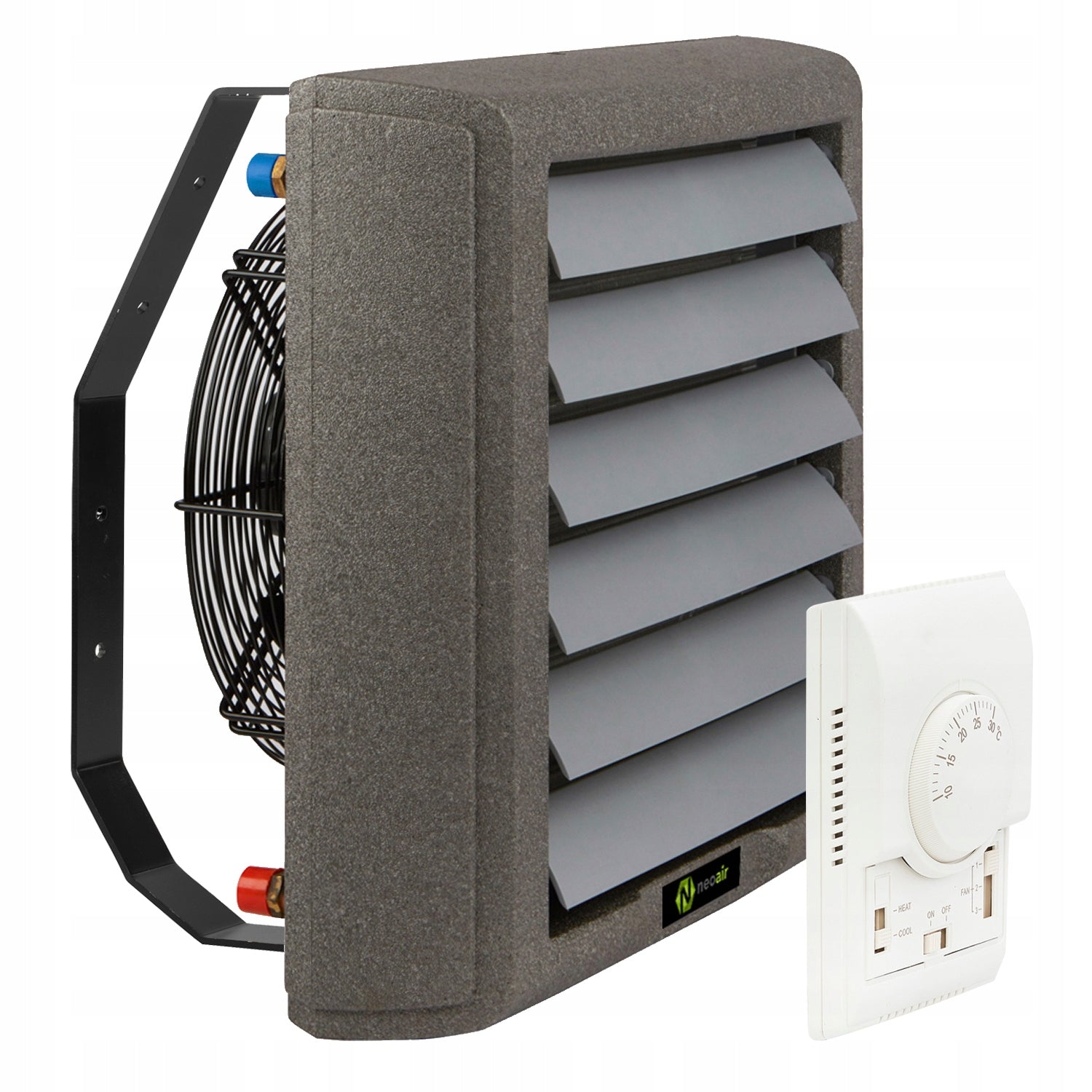

Vandens šildytuvas NeoAir EVO108 108 kW su rankena ir termostatu valdikliu

Trumpai apie prekę

Prekė: Vandens šildytuvas NeoAir EVO108 108 kW su rankena ir termostatu valdikliu. Kategorija: Oro šildytuvai.

• Gamintojas: no brand
• Modelis: EVO108

Included:

- WATER HEATER

- USER MANUAL / WARRANTY CARD

- ROTARY MOUNTING BRACKET

- 3-SPEED CONTROLLER

TECHNICAL DATA:

Maximum heating power [kW]: III GEAR - 108,0

Maximum airflow [m3/h]:

AND GEAR - 2300

II GEAR - 3500

III GEAR - 4200

Number of heater rows [pcs. ]: 3

Maximum temperature of heating medium: 130°C

Maximum working pressure: 2.0MPa

Diameter of connection connectors: 3/4”

Voltage/Frequency: 230V/50Hz

Rated current [A]: III GEAR - 2,2

Engine speed [rpm]: III GEAR - 1350

Maximum engine power [W]: III GEAR - 500

IP Engine: 54

Net weight [kg]: 23

Volume [dB]: III GEAR - 62

Device dimensions (width x height x depth):

697/748/338 mm.

NeoAir water heaters are installed in places such as halls, garages, shops, workshops, production plants, etc. to heat these rooms.

These heaters, also called heating and ventilation devices, have a flow heat exchanger, the carrier of which is hot water. Heat is exchanged and released by highly efficient single and double-row copper tubes and aluminum lamellas. Then the heat is blown out through the outlet with a fan. When the hot water is disconnected, the heater acts as a ventilation apparatus, mixing the air in the room.

Modern technology, enclosed in a small and ergonomic housing for all types of rooms.

INSTALLATION RECOMMENDATIONS:

• It is possible to mount the unit on the wall or under the ceiling.
• Keep the minimum free space between the device and the ceiling 0,2m for ceiling mounting and 0.5m for wall mounting.
• For assembly, it is recommended to use a fixed console or rotary console sold separately. Please respect the distances shown below.

Specifications
