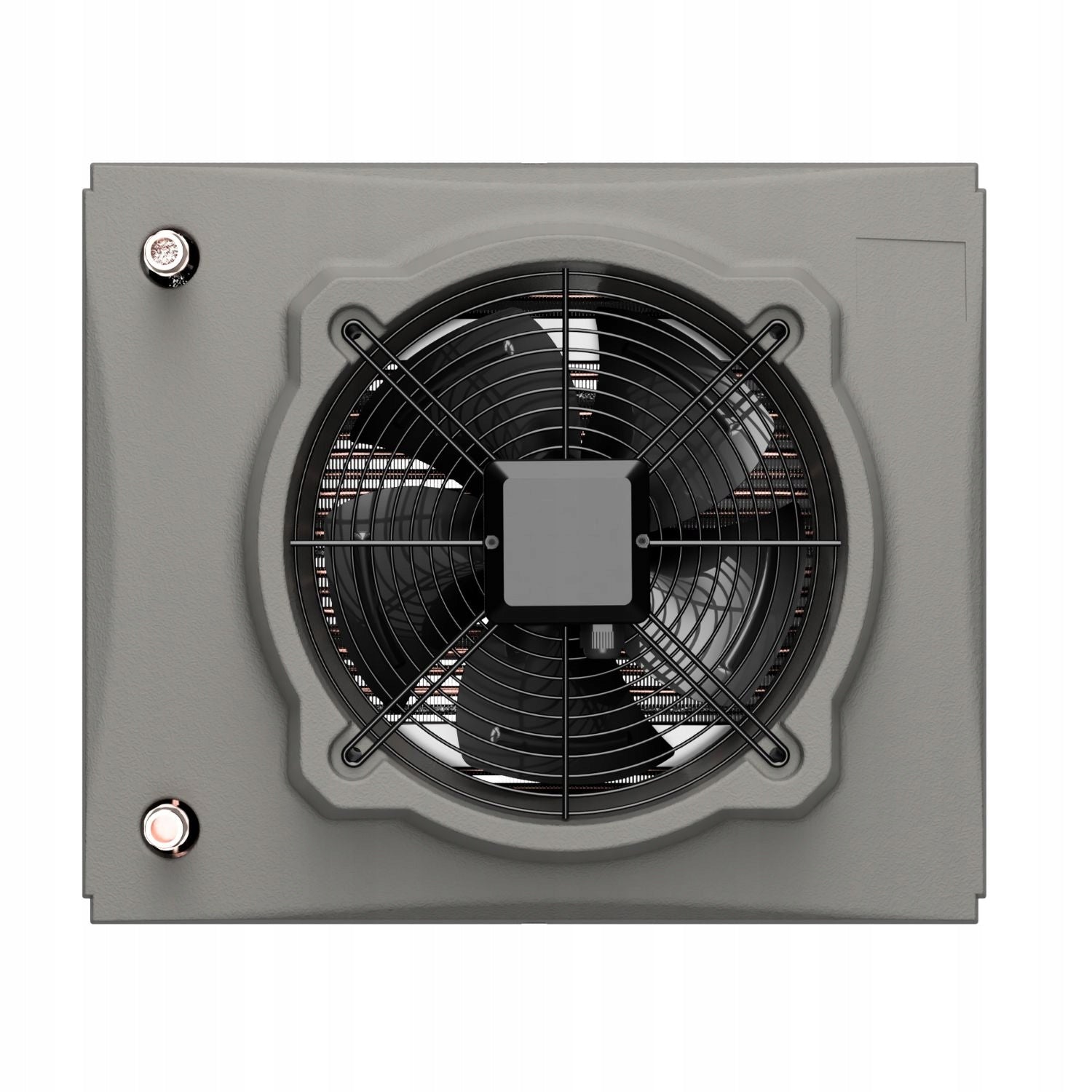

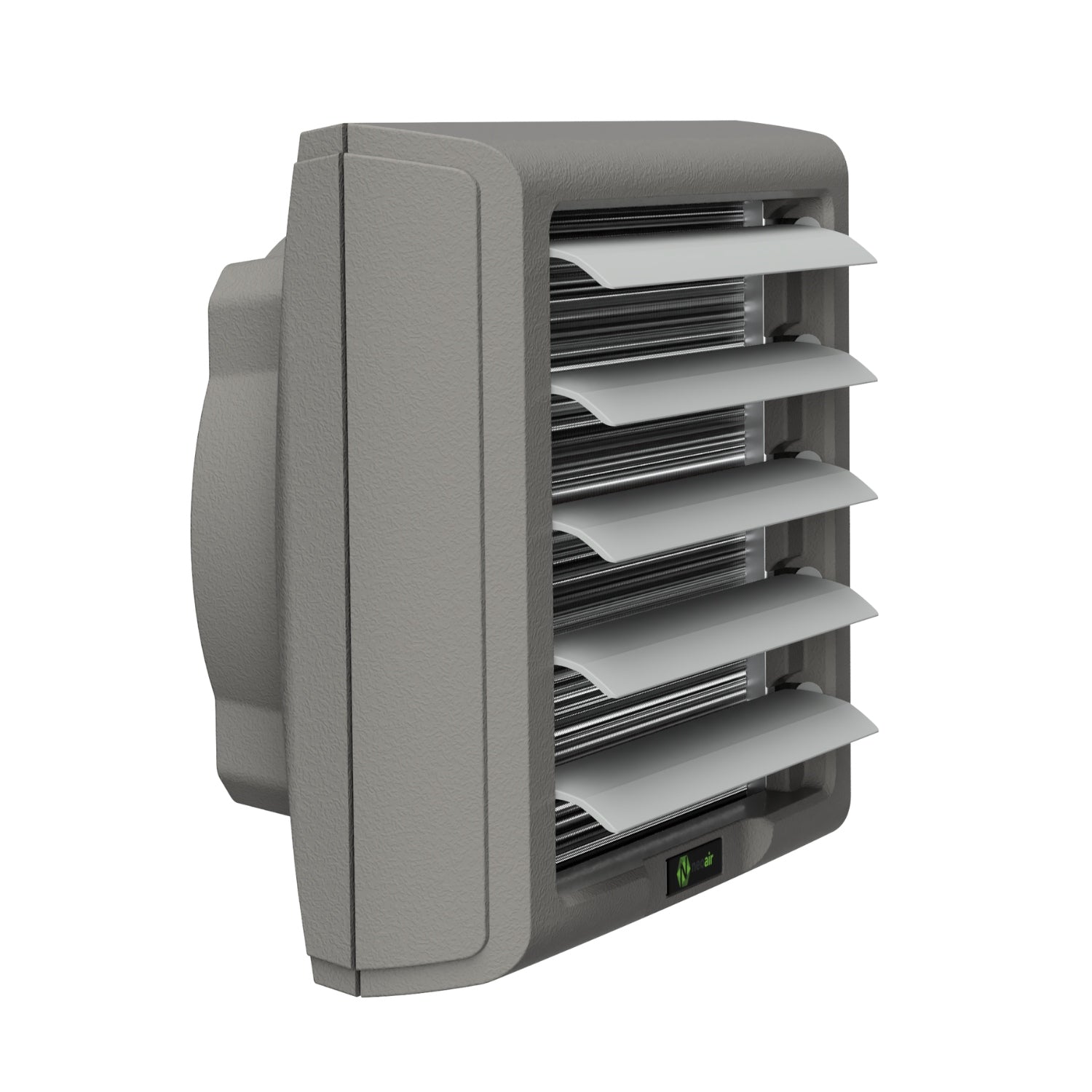

Vandens šildytuvas NeoAir EVO26, 26 kW, su rankenėle

Trumpai apie prekę

Prekė: Vandens šildytuvas NeoAir EVO26, 26 kW, su rankenėle. Kategorija: Oro šildytuvai.

• Gamintojas: NeoAir
• Modelis: EVO26H

NeoAir EVO26 – the latest compact water heater with 26 kW

Are you looking for an effective way to heat a workshop, warehouse, store or other facility? The NeoAir EVO26 water heater is a powerful and compact device that uses heat from the CO system to quickly heat large rooms. With its modern design and double-row exchanger, it is perfect for both small workshops and larger industrial facilities where high power, efficiency and reliability count.

Why choose the NeoAir EVO26 water heater?

• Power tailored to the needs – the heat exchanger generates up to 26 kW of heating power at the third gear, thanks to which the device can quickly raise the temperature even in rooms with large volume.
• Air flow regulation – a three-speed fan provides 850 / 1000 / 1500 m³/h exchange, which allows you to adjust the intensity of the heater to the conditions prevailing in the hall – from quiet heat maintenance to fast heating of cooled objects.
• Performance and efficiency – two-row heat exchanger with copper tubes and aluminum lamellas ensures high efficiency. The device is adapted to water with a temperature of up to 130 °C and an operating pressure of 1,6 MPa, guaranteeing the highest operating parameters.
• Energy-efficient motor – 230 V/50 Hz power supply and motor up to 80 W (third gear) mean low power consumption, and IP54 protection class effectively protects the fan against dust and moisture.

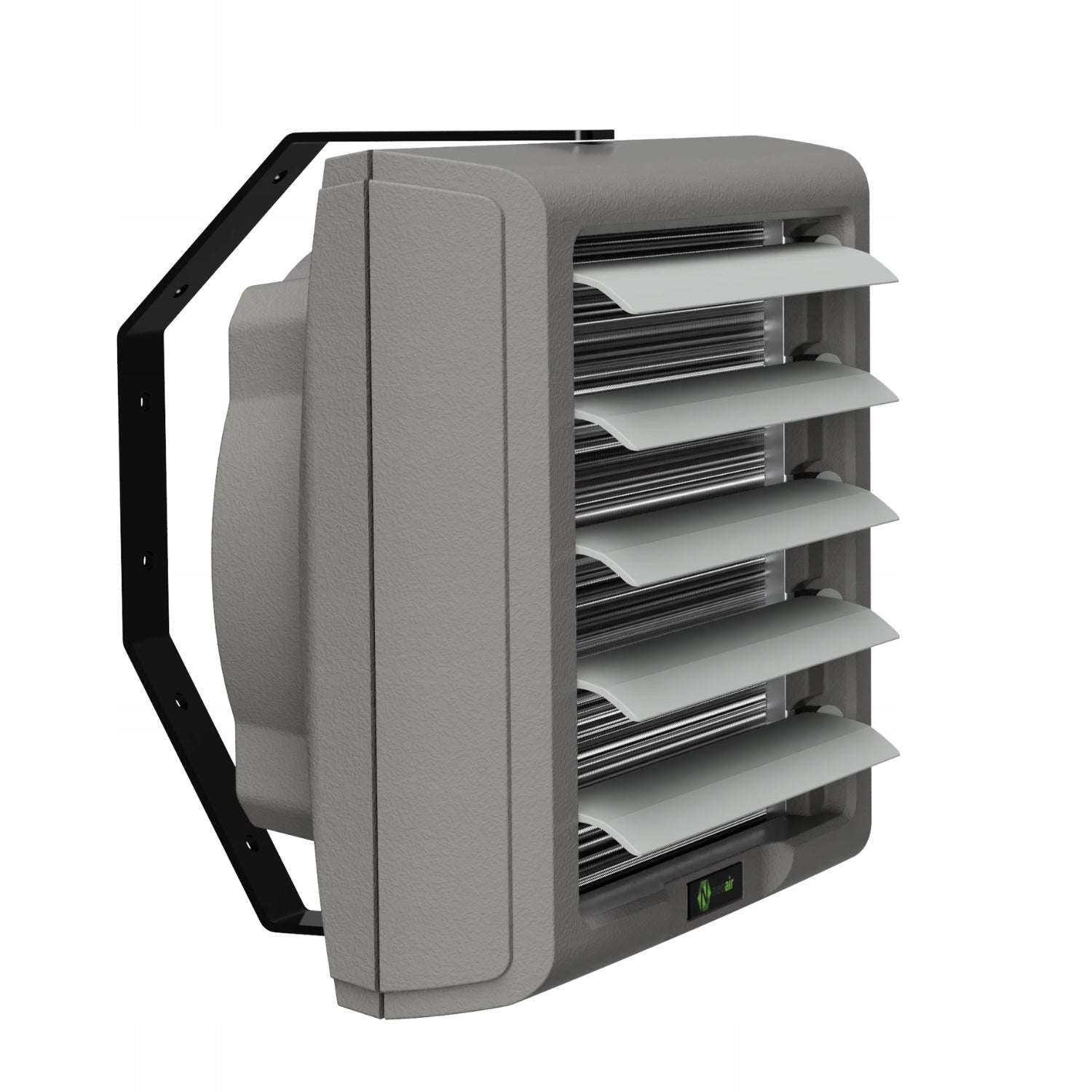

• Light and compact housing – the device weighs only 9 kg and has dimensions of 480 × 570 × 295 mm. The dedicated console allows for easy installation and rotation of the device.
• Silent operation – the noise level at the highest gear is approx. 54 dB(A), which allows for comfortable use even in places where people stay and work.

Application

NeoAir heaters have been designed for halls, warehouse, garages, shops, workshops and production plants, where heating speed and operating economy are crucial. They are also perfect for smaller facilities thanks to their small size and high efficiency. In addition, the device can work as an air mixing fan, equalizing the temperature throughout the room, and after powering the installation with cold water, it can cool the air in the room (e.g. in summer).

Included:

• EVO26 WATER HEATER
• ROTARY MOUNTING BRACKET
• TECHNICAL DOCUMENTATION

NEOAIR EVO HEATERS ARE PRODUCED in Poland

TECHNICAL DATA:

Maximum heating power [kW]: III GEAR - 26,0

Maximum airflow [m3/h]:

AND GEAR - 850

II GEAR - 1000

III GEAR - 1500

Number of heater rows [pcs. ]: 2

Maximum temperature of heating medium: 130°C

Maximum working pressure: 1.6MPa

Connection stub diameter: 3/4”

Voltage/Frequency: 230V/50Hz

Rated current [A]: III GEAR - 0,40

Engine speed [rpm]: III GEAR - 1400

Maximum engine power [W]: III GEAR - 80

Engine IP: 54

Net weight [kg]: 10

Volume [dB]: III GEAR < 54

Dimensions of the device (width x height x depth):

480/570/295 mm.

NeoAir water heaters are installed in places such as halls, garages, shops, workshops, production plants, etc. to heat these rooms.

These heaters, also called heating and ventilation devices, have a flow heat exchanger, the carrier of which is hot water. Heat is exchanged and released by highly efficient single and double-row copper tubes and aluminum lamellas.

Then the heat is blown out through the outlet with a fan. When the hot water is disconnected, the heater acts as a ventilation apparatus, mixing the air in the room.

Modern technology, enclosed in a small and ergonomic housing for all types of rooms.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	NeoAir
Parametry	Kind	water
Parametry	Heating power	26 kW
Parametry	Model	EVO26H
Parametry	Product weight with unit packaging	12.2 kg
Parametry	Manufacturer code	EVO26H
Parametry	Packaging status	original
Parametry	Energy efficiency class	A++
Parametry	Range of energy efficiency classes	A++ - G
