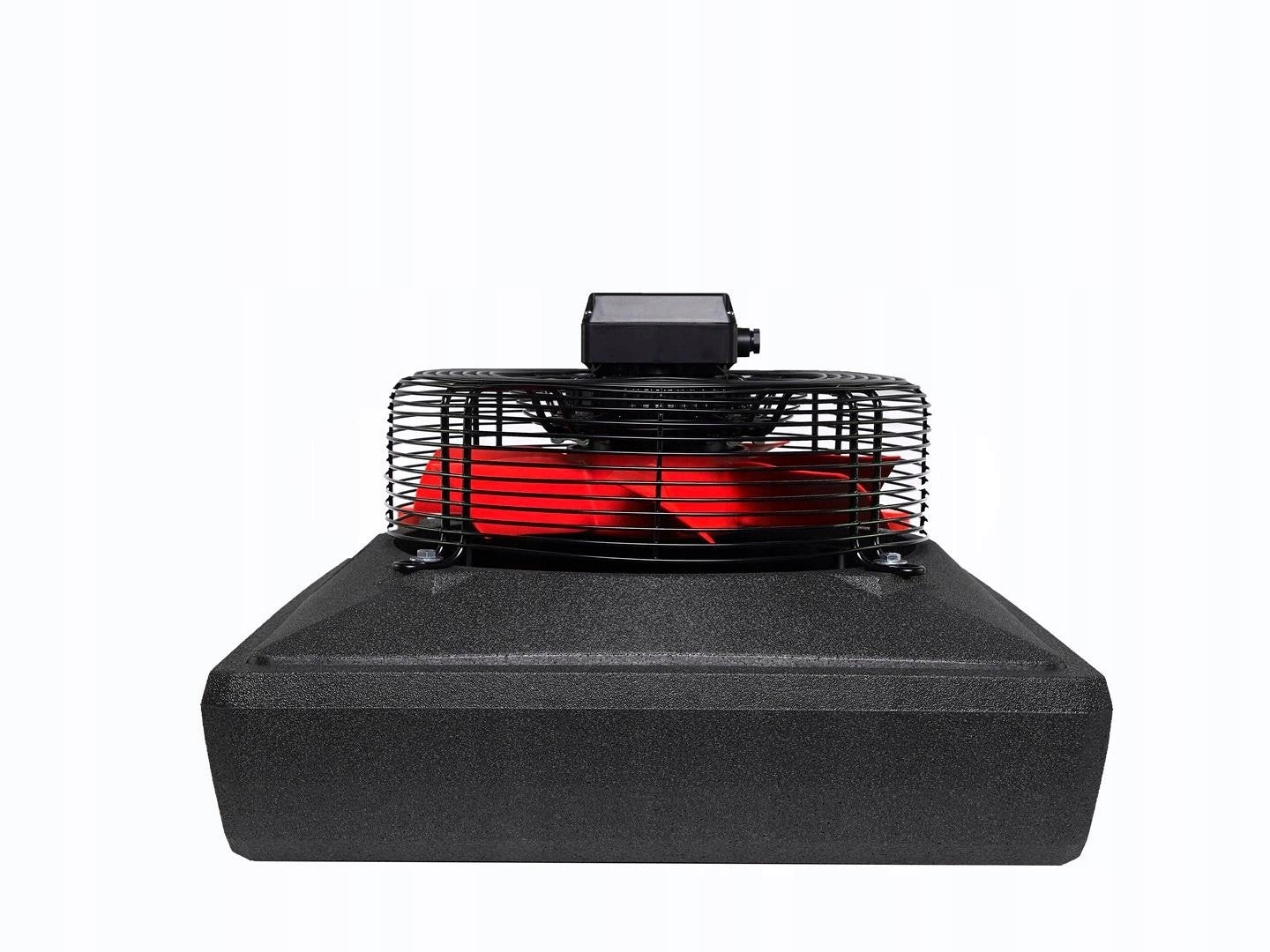

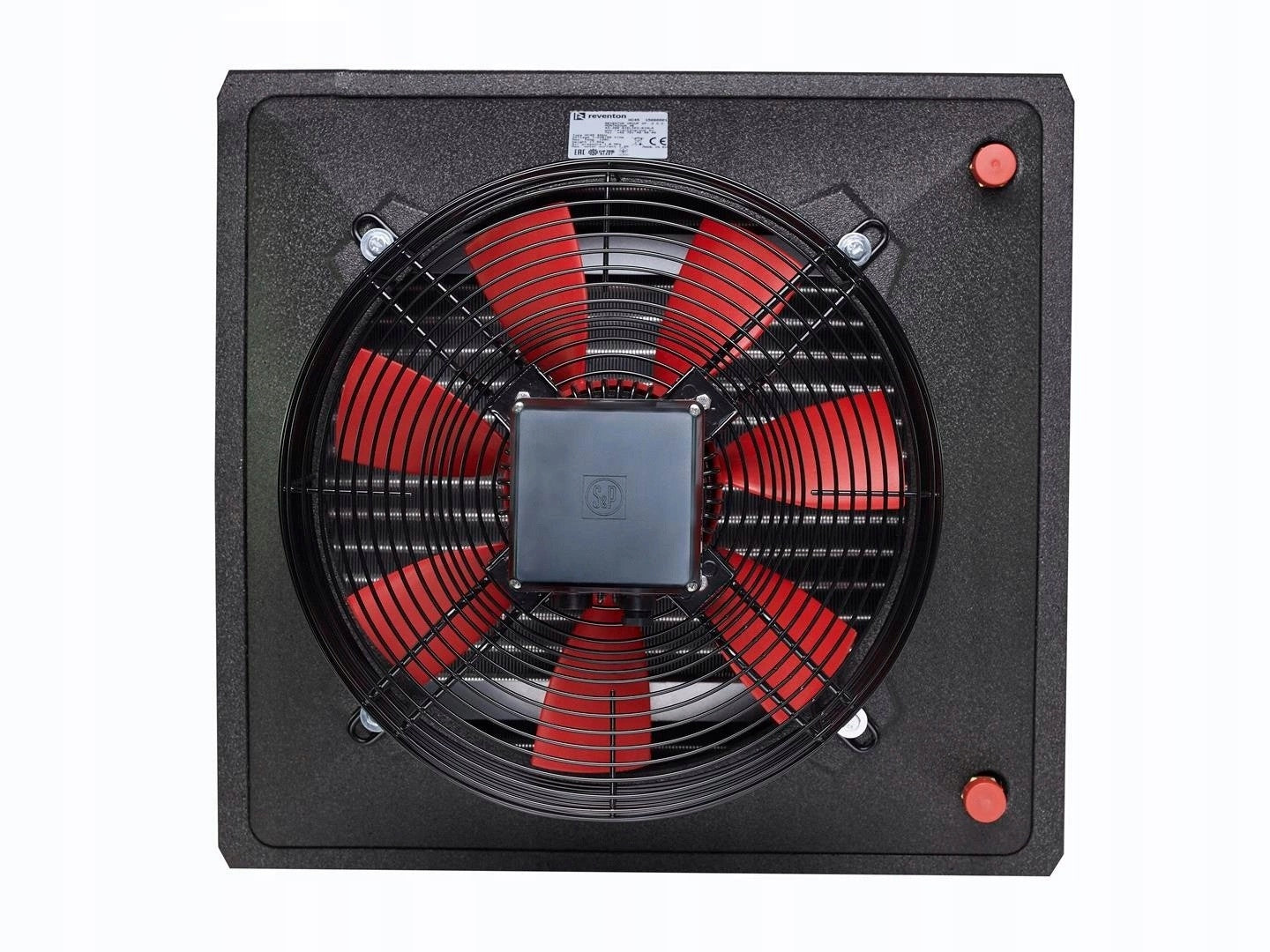

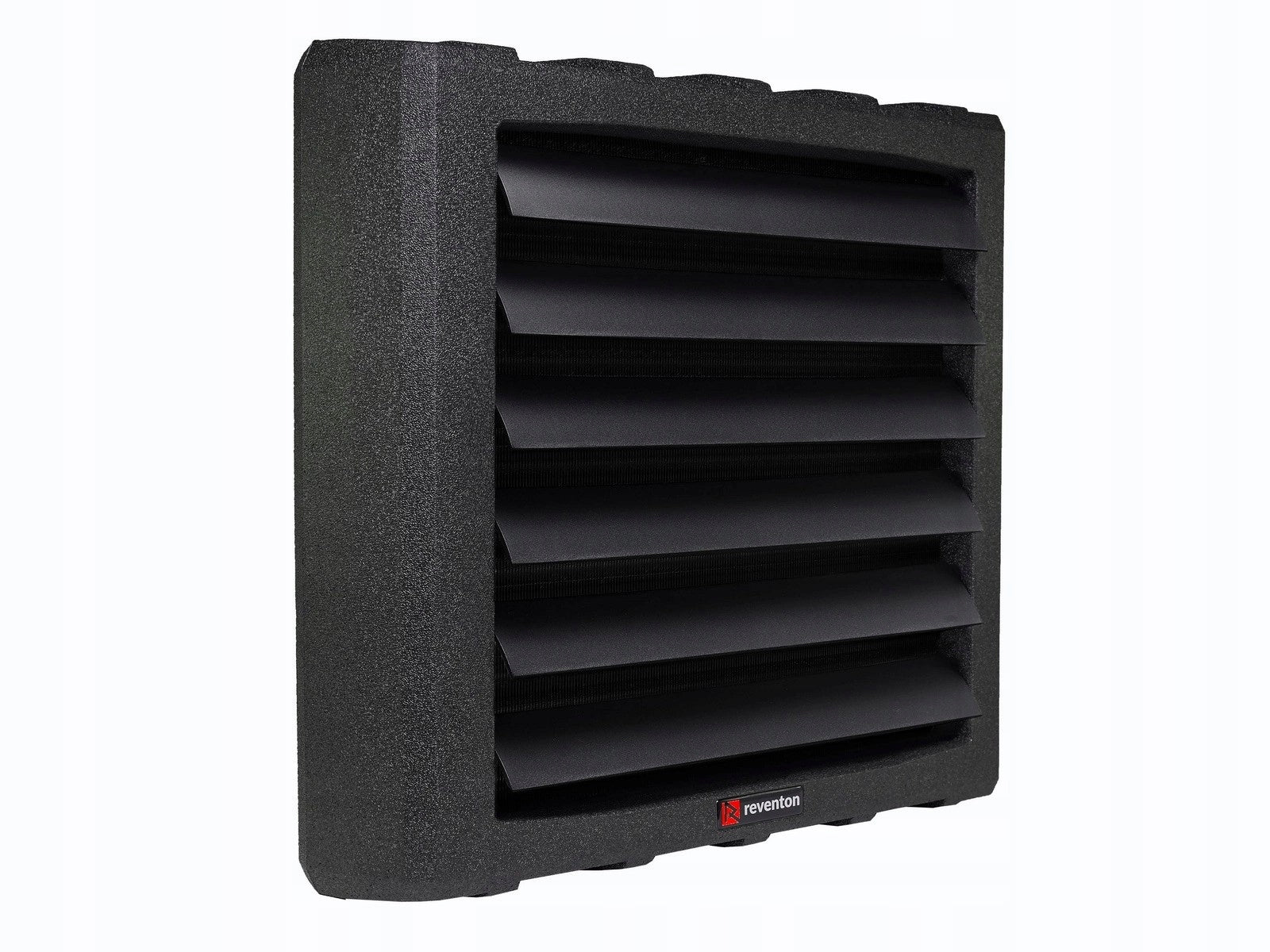

Vandens šildytuvas Reventon Farmer IP66 HCF 50,2 kW

Trumpai apie prekę

Prekė: Vandens šildytuvas Reventon Farmer IP66 HCF 50,2 kW. Kategorija: Oro šildytuvai.

• Gamintojas: Reventon
• Modelis: Farmer HCF IP66

WATER HEATER FARMER HCF IP66 50,2 kW

Water heaters Reventon are high-quality heating and ventilation devices that enable effective and efficient heating of large-size surfaces. The Reventon Farmer HCF heater stands out from other such solutions due to its ability to work in extremely difficult, aggressive conditions, appropriate for such premises as food production halls, chicken farms or pig houses. In this case, a high content of acids, ammonia and a high concentration of dust could interfere with or prevent the operation of the equipment. However, the Farmer HCF heater is fully adapted to this type of conditions.

Advantages

• GOLD EPOXY epoxy coating.
• EPP housing.
• 3-speed supply fan with IP 66 protection.
• Power range 7,01 - 66,2 kW.
• Strength.
• Quiet and reliable operation.

Characteristics

The housing, made of EPP foamed polypropylene, is durable, lightweight and reliable. It is a material that is able to carry heavy loads without undergoing deformation. It does not degrade under the influence of oil, grease, oil and most chemicals. It has very good sound insulation properties, thanks to which the device operates extremely quietly.

Environmentally friendly material that is 100% recyclable. Aesthetic design gives a new character

Farmer heater with GOLD EPOXY coating

In aggressive environments, standard solutions are not enough to keep the air heater running smoothly. Therefore, the Reventon Farmer heater has been equipped with an epoxy coating, adapted to difficult conditions.

Thanks to the GOLD EPOXY coating method, the Farmer water heater has a flexible antibacterial coating. This solution provides:

• longer life of the exchanger in an aggressive environment,
• antibacterial protection preventing the growth of bacteria inside the exchangers,
• protection against mold,
• anti-corrosion action,
• water resistance.

Farmer water heaters – quiet, reliable operation

The Reventon air heater is also a guarantee of quiet and trouble-free operation. The heating power range of the heaters is 4 – 58 kW for the FARMER HCF IP54-3S and 7 – 66 kW for the FARMER HCF IP65 – IP65 model available at another auction, respectively.

The whole is complemented by an aesthetic design that gives a modern character to the devices.

NOTE! On this listing you buy THE heater ITSELF, sets with accessories available at other auctions.

TECHNICAL DATA HCF IP66:

Device Power [kW]*

50.2

Heating Power Range [kW]**

7.01 - 66.2**

Maximum Airflow [m3/h]

5000

Maximum Air Throw [m]

24

Number of Heater Rows [pcs.]

2

Water Capacity [dm3]:

1.95

Maximum Heating Medium Temperature [°C]

120

Maximum Working Pressure of Heating Medium [MPa]

1.6

Connection Nipple Diameter [``]

3/4

Supply Voltage [V] / Supply Frequency [Hz]

230/50

Rated Motor Current [A]

2.7

Motor Speed [rpm]

1335

Motor Power [W]

610

Motor Protection Rating IP [-]

66

Net Weight [kg]

20

Noise Level [dB]***

63

* with water parameters 90/70°C and air inlet temperature 0°C

** max. power 120/90°C, 0°C at inlet, speed III // min. power 40/30°C, 20°C at inlet, speed I

*** measurement at a distance of 5 m from the device
