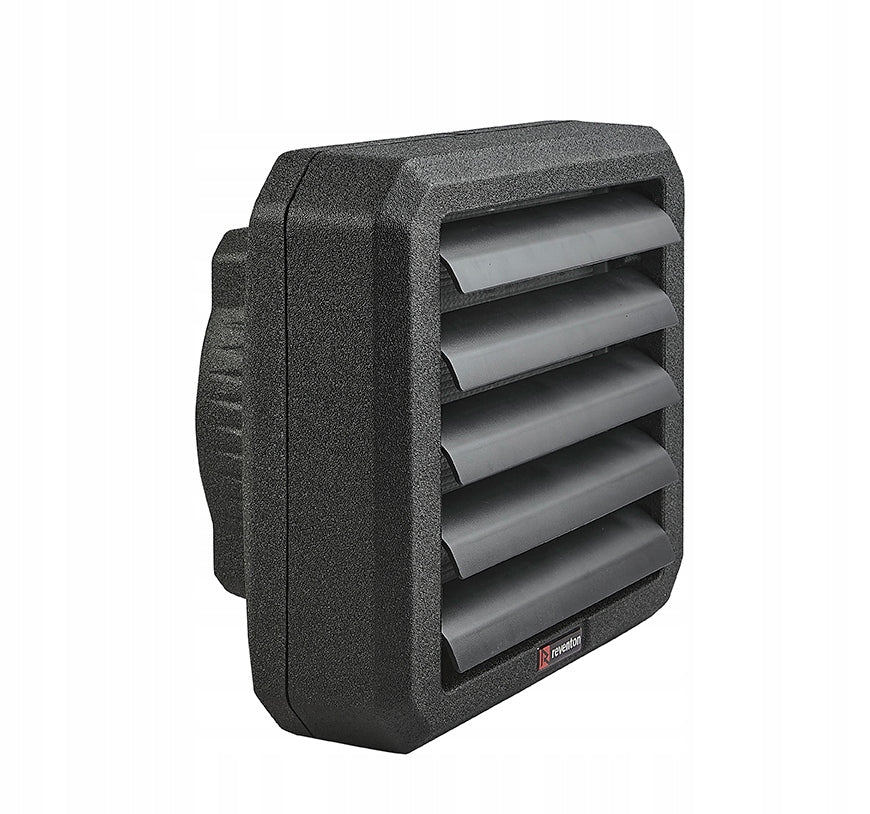

Vandens šildytuvas Reventon HC15-3S, 23,3 kW

Trumpai apie prekę

Prekė: Vandens šildytuvas Reventon HC15-3S, 23,3 kW. Kategorija: Oro šildytuvai.

• Gamintojas: Reventon
• Modelis: HC15-3S

The Reventon HC15-3S water heater is a response to the needs of our customers in relation to a compact device that, despite its small size, will have high heating power. Our device therefore has several key changes that deserve distinction.

The HC15-3S heater is our proposal of a compact device that is successfully suitable for use, both in small commercial spaces, but above all in home facilities such as garages or small handicraft workshops.

Thanks to the use of a fan with a rotor diameter of 300 mm, the power consumption is only 80W.

Built-in fan

This solution minimizes the suction of air from a direction other than perpendicular to the axis of rotation of the fan. This minimizes pressure losses and ensures greater airflow through the heater. This results in greater efficiency and effectiveness of the device.

In the studio

When you have a small workshop that you want to heat, the HC15-3S heater will work perfectly. Its small size and power dedicated to small rooms will make you not afraid of bills, and thermal comfort on winter afternoons will make work a pleasure.

In the workshop

The HC15-3S is perfect for workshop rooms, e.g. car mechanics, which due to the small size of the individual station do not require heaters with high power consumption. In such conditions, our compact heater will work best.

In the garage

If you want your garage to gain efficient heating, install the HC15-3S heater, which thanks to its small size will perfectly fit into any size garage. You can opt for a wall-mounted heater or a heater with a 360 diffuser mounted at the ceiling.

In the shop

The HC15-3S heater with an overlay of 360 (optional) works great in low rooms of small shops, the height of which from the rack to the ceiling determines the choice of the right heater.

ACCESSORIES (optional)

• 3-stage speed controller with thermostat HC3S
• HC speed controller
• Manual thermostat - turning on the heater after reaching the set temperature on the thermostat
• MS service switch - to quickly cut off the heater from the power supply when circumstances require it
• HMI BMS Programmable Controller
• Valves with actuator - for automatic regulation of heating/cooling medium flow
• Thyristor speed controller - controlling the rotational speed of the heater by stepless voltage change

TECHNICAL DATA:

Product code: WHHC15-3S-2402

Power of the device [kW*] 3 gear /2 gear/1 gear17,2 / 13,4 / 12,1

Heating power range: 1,79 - 23,3 kW*Maximum airflow [m3/h]3 gear/ 2 gear/ 1 gear1500 / 1000 / 850

Maximum air range: 10m

Number of heater rows: 2

Water capacity: 0,45 dm3

Maximum temperature of heating medium: 120°C

Maximum working pressure of heating medium: 1,6 MPa

Diameter of connection connectors: 3/4 inch

Voltage/Frequency: 230/50 V/Hz

Rated current [A]3 gear/ 2 gear/ 1 gear0,36/ 0,22/ 0,21

Engine speed [rpm]3 gear/ 2 gear/ 1 gear1400/ 1200/ 1000

Engine power [W]3 gear/ 2 gear/ 1 gear80/ 48/ 45

IP rating: 54

Net weight: 8,8 kg

Volume [dB***]3 gear/ 2 gear/ 1 gear53/ 47/ 45
