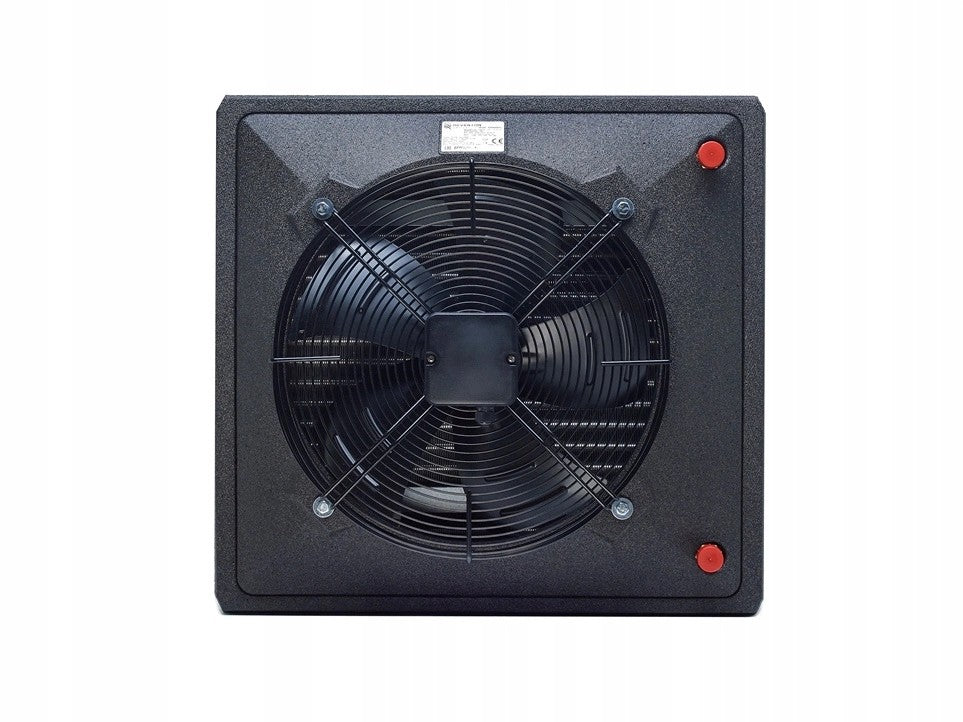

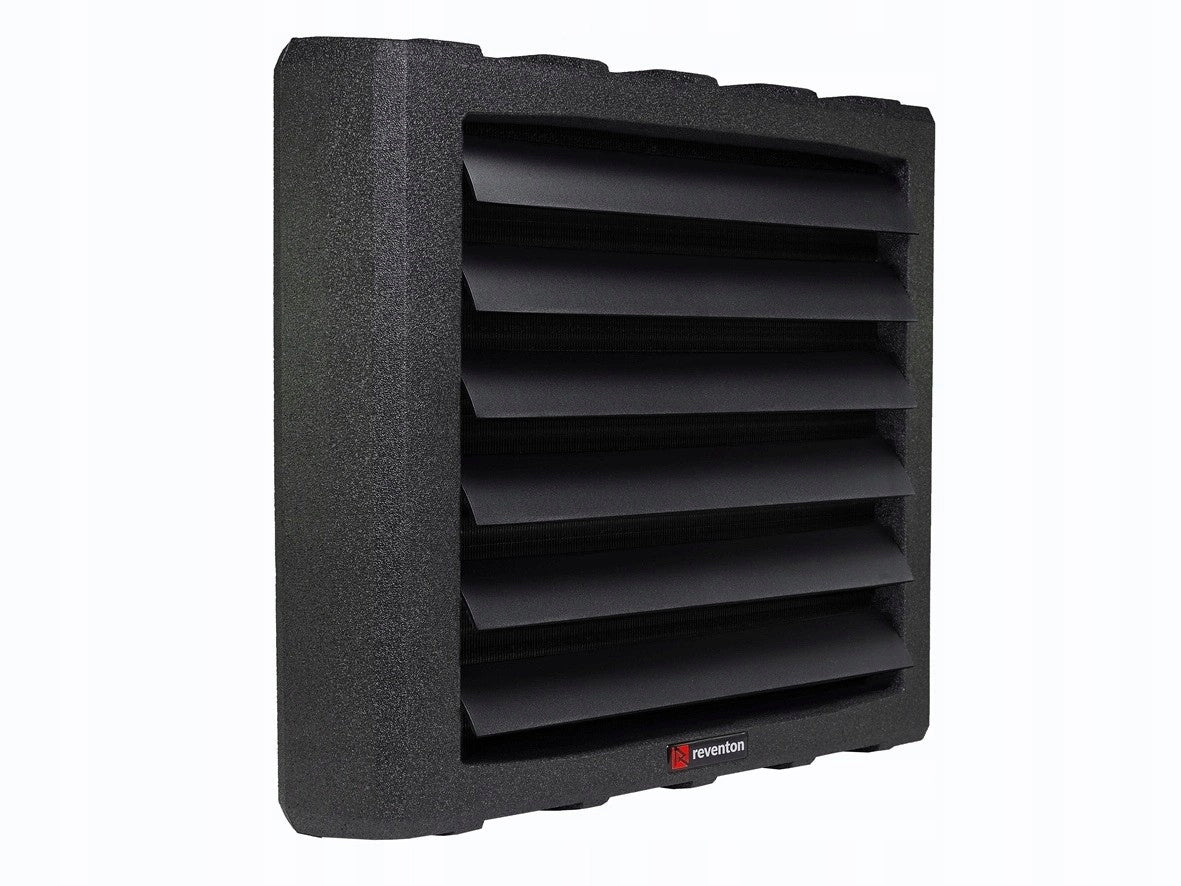

Vandens šildytuvas Reventon HC70, 80,1 kW

Trumpai apie prekę

Prekė: Vandens šildytuvas Reventon HC70, 80,1 kW. Kategorija: Oro šildytuvai.

• Gamintojas: Reventon
• Modelis: HC70-3S

INdustrial WATER HEATER HC70

STANDARD SERIES HC-3S - 80,1kW

Industrial water heater Standard brand Reventon will work in a situation where we have an installation of central heating. The high efficiency of the device guarantees the possibility of obtaining high thermal comfort in a short time, also in rooms requiring heating (such as: large-size rooms). The proposed water air heaters are perfect for industrial premises:

• production,
• warehouse,
• commercial,
• service,

as well as in heating garages, workshops, greenhouses and garden tents, shops, galleries and shopping arcades.

Advantages

• EPP housing.
• 3 speed fan.
• Modern design.
• Endurance .
• High efficiency.
• Wide range of power.
• Additional equipment.
• Energy-efficient fan.
• Quickly achieve thermal comfort.
• Quiet and reliable operation.

Industrial water heater – characteristics

The equipment produced by Reventon is above all impressive quality. The housing of the device made of EPP foamed polypropylene is durable, lightweight and reliable. It is a material that is able to carry heavy loads without undergoing deformation. It does not degrade under the influence of oil, grease, oil and most chemicals. It has very good sound insulation properties, thanks to which it operates extremely quietly.

Industrial water heater – design details:

• The housing is made of environmentally friendly material, which is 100% recyclable.
• Efficient copper-aluminum exchanger provides warmth and comfort – in the offer of 1, 2 and 3 row heat exchangers with a power range of 1,55 – 91,5 kW.
• Energy-efficient, 3-speed fans with IP 54 protection meet the European requirements of ErP 2015.

Industrial water heater for wall or ceiling

Industrial heater can be mounted both on the wall and under the ceiling. Thanks to the rotating mounting console, the installation of the device does not cause much difficulty and allows you to choose a solution that perfectly suits the conditions of a given room.

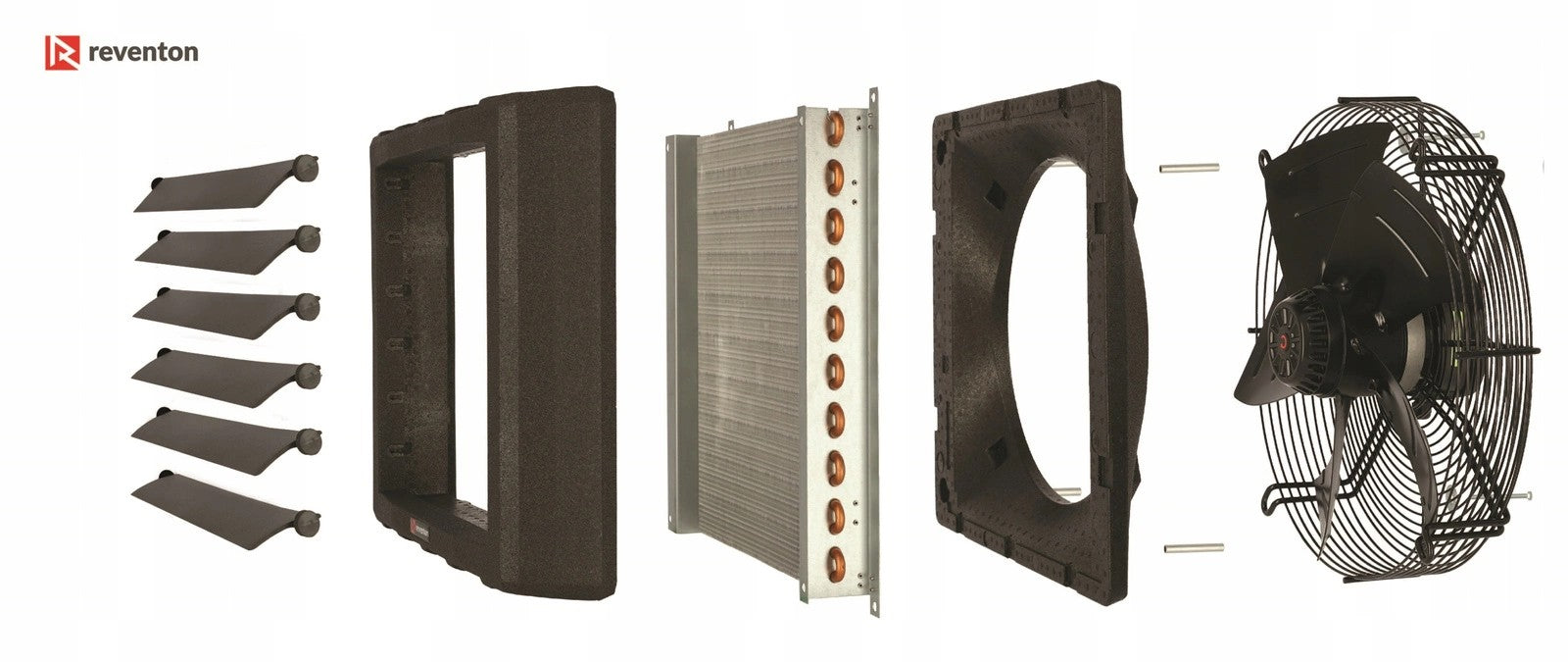

Each offered water heater is equipped with a housing made of EPP foamed polypropylene, air steering wheels made of PP polypropylene, heat exchanger made of copper and aluminum, axial embossing fan (equipped with a protective mesh made of galvanized steel wire and metal blades). All this makes the proposed water heater stand out for its impressive robustness, durability, and at the same time lightness and aesthetics. The Reventon heaters thus guarantee efficient, reliable operation and ease of use for its users.

ATTENTION! On this listing you buy THE heater ITSELF, sets with accessories available at other auctions.

DIMENSIONS OF THE DEVICE

- height (A): 698mm

- width (B): 739mm

- depth (C): 360mm

TECHNICAL DATA OF HC70:

Power of the device [kW]*

III GEAR: 60,6

II GEAR: 40,1

I GEAR: 32,7

Heating power range [kW]**

5,00 - 80,1

Maximum airflow [m3/h]

III GEAR: 3400

II GEAR: 1900

I GEAR: 1450

Maximum air range [m]

18

Number of heater rows [pcs. ]

3

Water capacity [dm3]:

2,85

Maximum temperature of heating medium [oC]

120

Maximum working pressure of heating medium [MPa]

1,6

Diameter of connection connectors [``]

3/4

Power supply voltage [V] / Power supply frequency [Hz]

230/50

Engine rated current [A]

III GEAR: 1,08

II GEAR: 0,86

I GEAR: 0,70

Engine speed [rpm]

III GEAR: 1360

II GEAR: 1050

I GEAR: 750

Engine power [W]

III GEAR: 240

II GEAR: 190

I GEAR: 160

Engine IP protection rating [-]

54

Net weight [kg]

19,5

Volume [dB]***

III GEAR: 58

II GEAR: 53

I GEAR: 49

* with water parameters 90/70⁰C and air intake temperature 0⁰C

** power max. 120/90⁰C, 0⁰C at the inlet, III gear // power min. 40/30⁰C, 20⁰C at the inlet, I gear

*** measurement at a distance of 5 m from the device

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Reventon
Parametry	Kind	water
Parametry	Heating power	80.1 kW
Parametry	Model	HC70-3S
Parametry	Product weight with unit packaging	22 kg
Parametry	Manufacturer code	HC70-3S
Parametry	Energy efficiency class	brak klasy energetycznej
Parametry	Range of energy efficiency classes	no energy class
