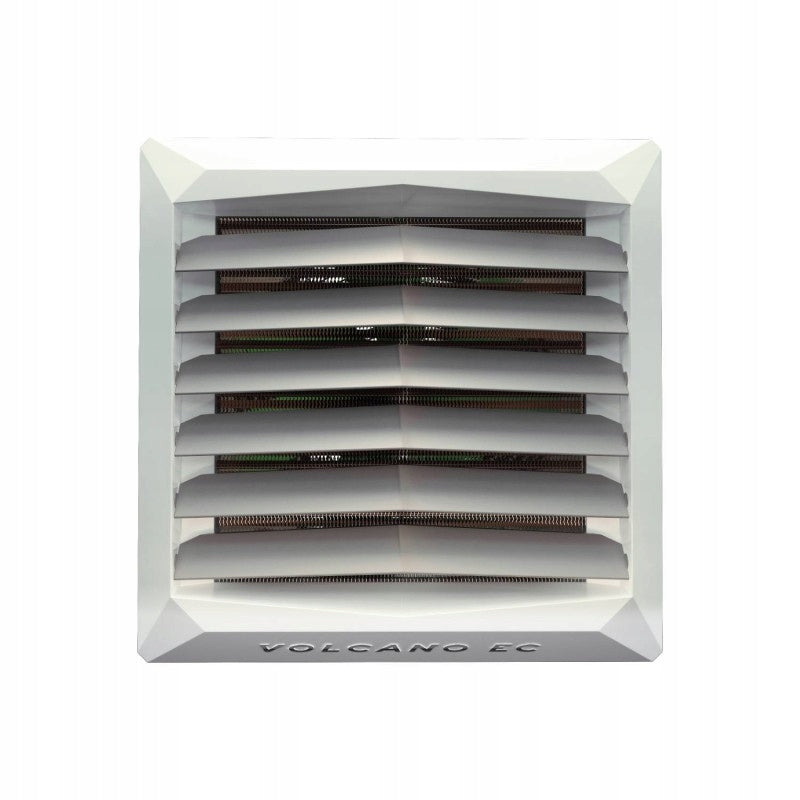

Vandens šildytuvas Volcano VR MINI EC 20 kW su tvirtinimo konsole

Trumpai apie prekę

Prekė: Vandens šildytuvas Volcano VR MINI EC 20 kW su tvirtinimo konsole. Kategorija: Oro šildytuvai.

• Gamintojas: Volcano
• Modelis: 1-4-0101-0455

Water heater Volcano VR MINI EC 20 kW MOUNTING CONSOLE FREE

Catalog No. VTS: 1-4-0101-0455

Technical data:

• Engine: EC (electronically switched)
• Heating power range: 3-20 kW
• Number of heater rows: 2
• Max. air efficiency: 2100 m3/h
• Max. temp. heating medium: 130 °C
• Max. Operating pressure: 1,6 MPa
• Max. horizontal air range: 14 m
• Max. vertical air range: 8 m
• Water capacity: 1,12 dm3
• Diameter of connection connectors: 3/4"
• Weight of the device (without water): 14 kg
• Supply voltage: 1~230/50 V/Hz
• EC motor power: 0,095 kW
• Rated motor current EC: 0,51 A
• EC motor speed: 1450 rpm
• Degree of protection of the EC engine: IP44
• Manufacturer: VTS

VOLCANO EC potentiometer with thermostat

Basic information:

catalogue index: 1-4-0101-0473

• Power supply: 230V AC ±10% / 50Hz
• Output control signal: Analog 0-10V
• Output load: 10mA analog
• Operating temperature range: 0 to 60 °C
• Thermostat adjustment range: 5 to 30 °C
• Output adjustment range: 0 to 100 %
• Material: ABS
• Wall/surface mounting
• Protection class: IP 30 (internal use only)
• Manufacturer: VTS

Basic information:

catalogue index: 1-2-2702-0076

• Length: 0,6-0,9 [m]
• Thread: GW/GW 3/4"
• Max. Operating pressure: 1,6 [MPa]
• Min. temp. working for water: 5 [°C]
• Min. temp. working for glycol: -20 [°C]
• Max. temp. Operating: 130 [°C]

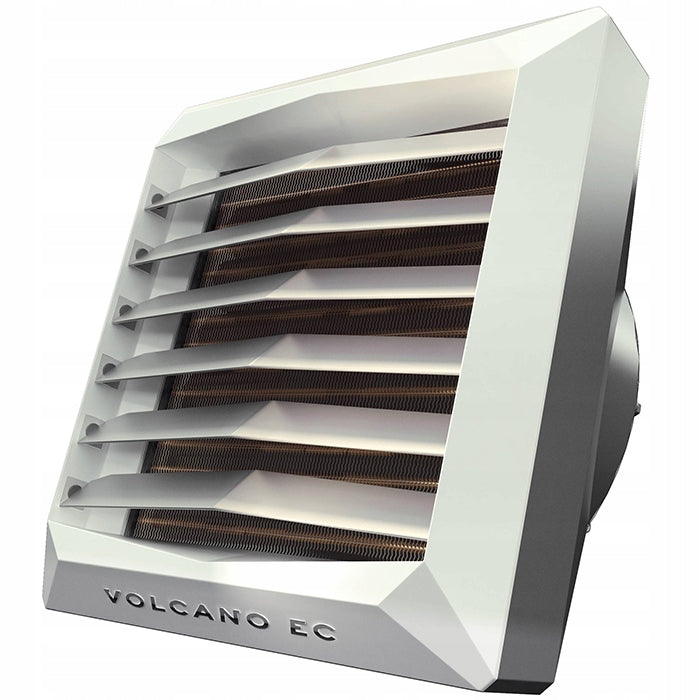

VOLCANO air heaters are next generation devices, combining innovative technical solutions with modern design industrial. Precisely made, light shape housing resembles a beautiful and at the same time perfect in its simplicity form of diamond. The character of the device is emphasized by the composition of selected materials and dynamically shaped air steering wheels.

Its task is to inflate the heated, thanks to the exchanger of warm air into the room in order to establish the set air temperature in it.

• warehouses,
• sports halls,
• greenhouses
• car workshops
• churches
• and other medium and large-sized buildings that require efficient and economical heating by the blow method.

The inflatable heating method is the most effective way to ensure thermal comfort in industrial facilities.

1. Design

Refined housing shape allowing for optimal exposure of the exchanger surface while hiding structural elements.

.

.

2. Shape and colour

Lightweight and clean housing line combined with universal composition ensures harmonious adaptation to any type of room

3. Material

The housing made of the highest quality ABS with an admixture of anti-UV pigments is characterized by high mechanical strength, durability and resistance to high temperature. The material used ensures consistent aesthetics and the possibility of easy cleaning guaranteeing long-term durability.

.

.

4. Smart Lock

The patented connection system guarantees a durable and precise fit of the housing elements.

5. Air steering wheels

The innovative solution of fixing the blades allows their individual adjustment and stable positioning. The steering wheel profile guarantees minimal air flow resistance.

.

.

.

6. Diffuser

The diffuser design is designed to guarantee complete integration with the back of the housing and the fan.

7. Heat exchangers

• 1, 2 and 3-row heaters with a larger heat transfer area ensure optimal adjustment of heating power to the needs of the facility.
• Developed heat transfer surface and the ability to work with low-temperature factors.
• The test of all exchangers ensures 100% verification of their tightness.

.

8. Maximum air efficiency

Accurately fitted fan housing and specially designed diffuser ensure even distribution of air speed in the exchanger guaranteeing low flow resistance and full use of heater power

9. Efficient fans

The optimized profile and increased fan blade area guarantee low operating costs and quiet operation.

.

.

10. Saving electricity

The modern motor and fan design provide savings of up to 40% of electricity compared to traditional solutions.

• EC - heater with modern EC motor
• AC - heater with a previous generation AC motor
• EC1, AC1 - price of the device respectively EC and AC
• EC2, AC2 - indicative cost of energy consumption at the turn of 3 years for devices with EC and AC motors.

11. Full recycling

Designed with the environment in mind, 100% of the materials used can be used in the recycling process.

.

.

12. Efficient EC motors and their energy-saving regulation

Energy-efficient EC motors for optimal adjustment of device operating parameters with minimal electricity consumption.

EC motors ensure maximum efficiency even at reduced revs. Smooth speed control of EC motors allows you to adapt to the needs of any room.

Universal heater for VOLCANO and WING air curtains

The device is used to manually and automatically control the rotational speed of fans in heating devices, such as heaters and air curtains, equipped with a suitable controller, adapted to this type of control signal.

It is powered by 230V AC, so the housing must be closed and protected.

Operating mode

To select the operating mode of the device, set the switch (which is located at the top of the device housing) in one of the three available positions:

• A - support for analog output.
• 0 - disable the output.
• A+T - support for analog output as a thermostat function.

Good to know

The device does not support valves with actuator.

a - 530 mm

- 530 mm

c - 517 mm

d - 395 mm

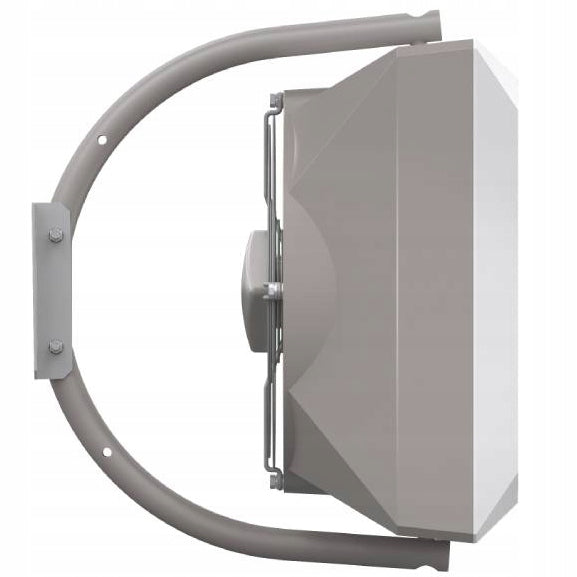

The VOLCANO heater has a mounting console included, allowing you to mount the device both vertically mounting on the wall (Fig.1) and ceiling-mounted, i.e. mounting on the ceiling (Fig.2). The installation height of (h1) heaters should be in the range of 2-5 m from the floor for VR Mini or 2,5-8 m for other models. The maximum vertical range of the devices varies from 8-15 m (h2) depending on the type of heater. The maximum horizontal range is from 14-25 m (a). Failure to maintain a minimum distance of 25 cm (VR Mini) and 35 cm (VR1/ VR2/VR3/VR-D) from the wall or ceiling may cause improper operation of the device, the possibility of damage to the fan or increased volume of its operation. It is possible to group assembly of devices (Fig.3). However, it should be remembered about the recommended distance between (b) heaters, which, depending on the model, can be from 3-7 m (VR Mini) to 6-12 m (VR1/ VR2/VR3/VR-D).

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Volcano
Parametry	Kind	water
Parametry	Heating power	20 kW
Parametry	Model	1-4-0101-0455
Parametry	Product weight with unit packaging	14 kg
Parametry	Manufacturer code	1-4-0101-0455
Parametry	Packaging status	original
Parametry	Energy efficiency class	A
Parametry	Range of energy efficiency classes	A++ - G
