Vandens šildytuvas VTS VOLCANO VR MINI 3 AC 27 kW su konsole ir WING valdikliu

Trumpai apie prekę

Prekė: Vandens šildytuvas VTS VOLCANO VR MINI 3 AC 27 kW su konsole ir WING valdikliu. Kategorija: Oro šildytuvai.

• Gamintojas: Volcano
• Modelis: VR 3 MINI

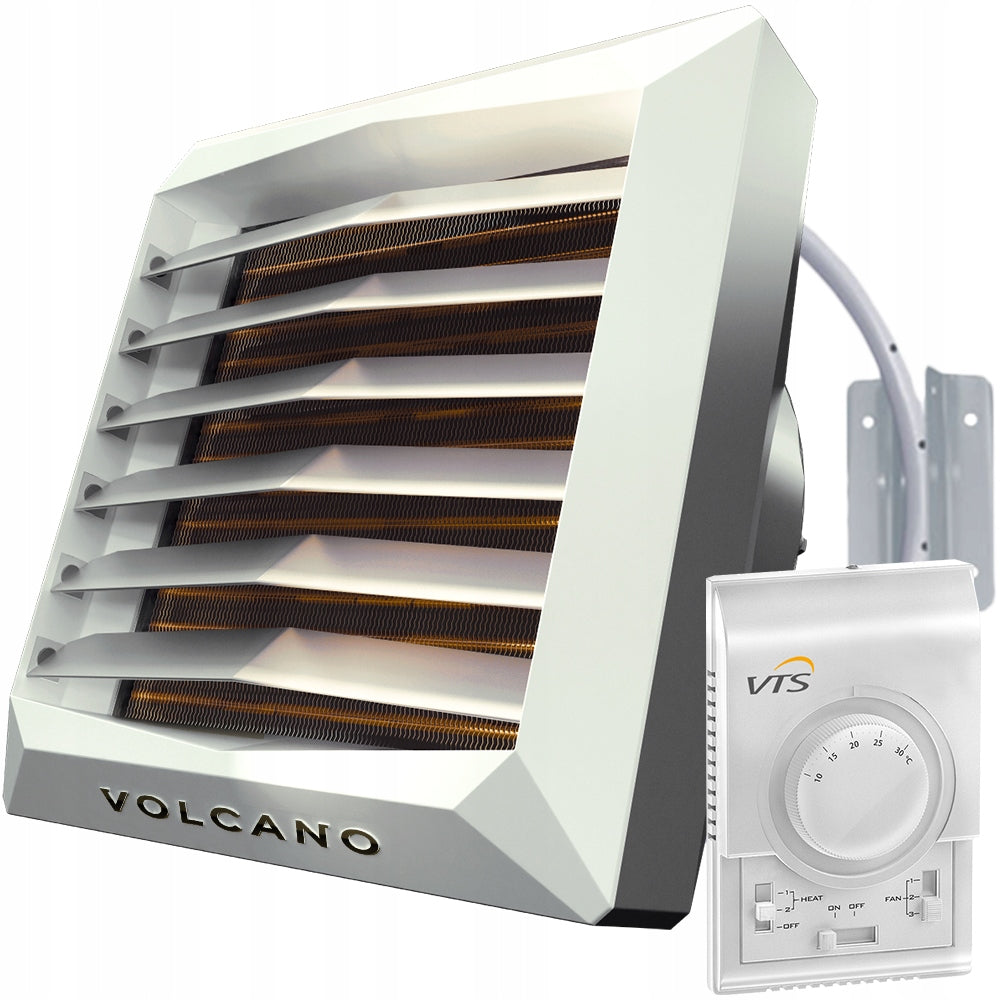

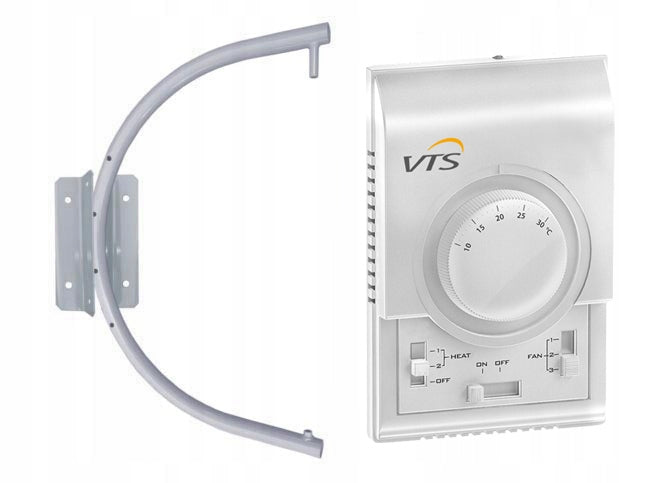

VTS WATER HEATER VOLCANO VR MINI 3 AC (27KW) with console + wing controller

1-4-0101-0625

1-4-0101-0438

Designed to work with a heat pump.

Compact air heater with a three-row heat exchanger with a power of 4-27 kW and an air flow rate of up to 2000 m3/h.

VOLCANOVR Mini 3 is a device equipped with a three-row heat exchanger. This device complements the offer and gives the possibility of using devices with smaller dimensions (in relation to VR3-4) on facilities where a low temperature heating medium is available. Mini 3 VR heaters have the same housing as other Mini devices measuring 53cm by 53cm and are equipped with the same AC/EC motors. Due to the design of the exchanger, it is recommended to connect the heating medium supply to the upper nozzle and return to the lower nozzle to increase the heating efficiency of the device.

Compact heater with reliable 3-speed motor, equipped with a heat exchanger with a power of 4-27 kW.

The refined shape of the housing allows for optimal exposure of the heat exchanger surface while hiding structural elements.

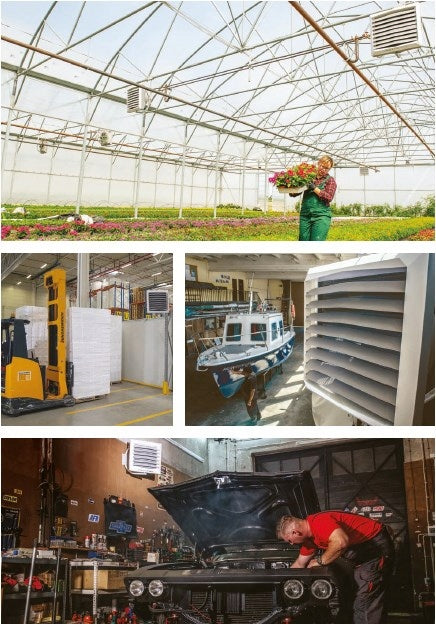

The light and clean line of the VOLCANO heater housing combined with the universal color composition ensures harmonious adaptation to most interiors, while the compact size of the device makes the VR MINI 3 AC heater applicable in many types of rooms.

In order to increase the comfort of users using VOLCANO devices for refrigeration purposes, a drip tray is introduced into the drip tray used to drain condensate formed during the condensation process on the water exchanger. Drip tray for VOLCANO VR Mini-VR Mini3

Specifications
