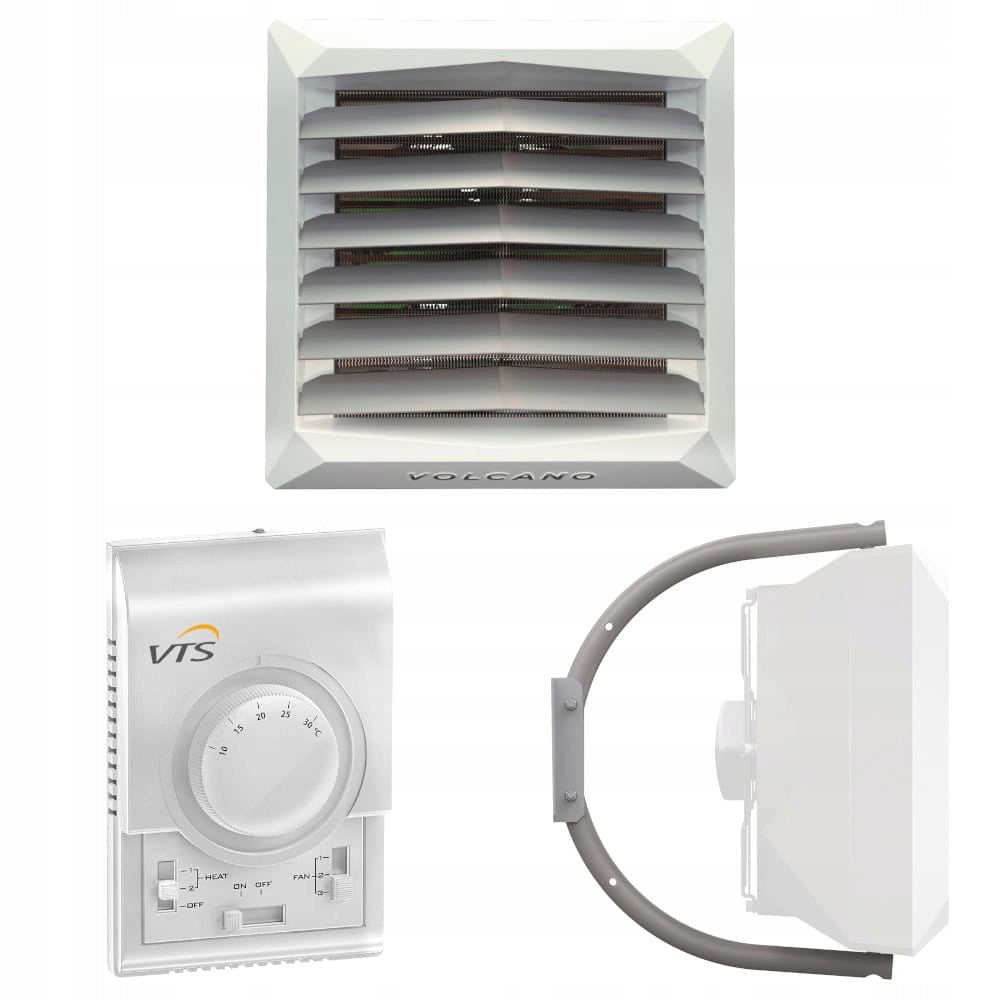

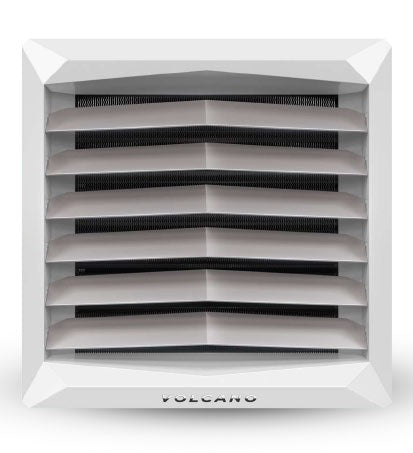

Vandens šildytuvas VTS VOLCANO VR MINI su AC valdikliu

Trumpai apie prekę

Prekė: Vandens šildytuvas VTS VOLCANO VR MINI su AC valdikliu. Kategorija: Oro šildytuvai.

• Gamintojas: VTS
• Modelis: VOLCANO VR MINI AC ZESTAW

Product Features:

• top-class industrial design combined with innovative technical solutions
• materials used in the production of the device housing allowed to achieve aesthetic and functional values unattainable for products offered in low-cost EPP technology
• heater with double-row exchanger with maximum heating power up to 20 kW
• maximum air expenditure without loss of power (thanks to a specially designed diffuser)

Specification:

• perfect combination of top-class industrial design with innovative technical solutions
• materials used in the production of the device housing allowed to achieve aesthetic and functional values unattainable for products offered in low-cost EPP technology
• heater with double-row exchanger with maximum heating power up to 20 kW

Technical data

Supply Voltage: 230V AC

Output load: up to 6 (3) A

Fan adjustment range: 3 gears

Thermostat adjustment range: 10- 30°C

Operating environment parameters: -10 to 50 °C

Producer: VTS

Properties:

DT TR110C – 3-stage speed controller with thermostat

It allows you to choose one of three fan gears and allows you to control the valve actuator depending on the ambient temperature. If the temperature is lowered below the user's set temperature, the valve with the agent opens and closes when it is reached.

DT TR110C allows you to set two fan modes:

• continuous: after reaching the set temperature, the fan continues to operate,
• intermittent: the fan stops when the set temperature is reached.

The DT TR110C controller also allows you to set the heater operating mode: HEAT, FAN, COOL.

Since the thermostat is part of the temperature sensor, it should be installed in such a place of the room that it is not exposed to factors that could disturb its measurement (e.g. solar radiation).

Main functions

• 3 - gradual adjustment of the heater/curtain fan operation
• Temperature control 10- 30°C
• Possibility of connecting several heaters
• Protection class IP 30
• Possibility of wall/surface mounting
• Simple and intuitive operation
• Built-in thermostat
