Vandens siurblio rinkinys su 100 l hidroforu AQB 60, 2100 l/val.

Trumpai apie prekę

Prekė: Vandens siurblio rinkinys su 100 l hidroforu AQB 60, 2100 l/val.. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: BG-INVEST

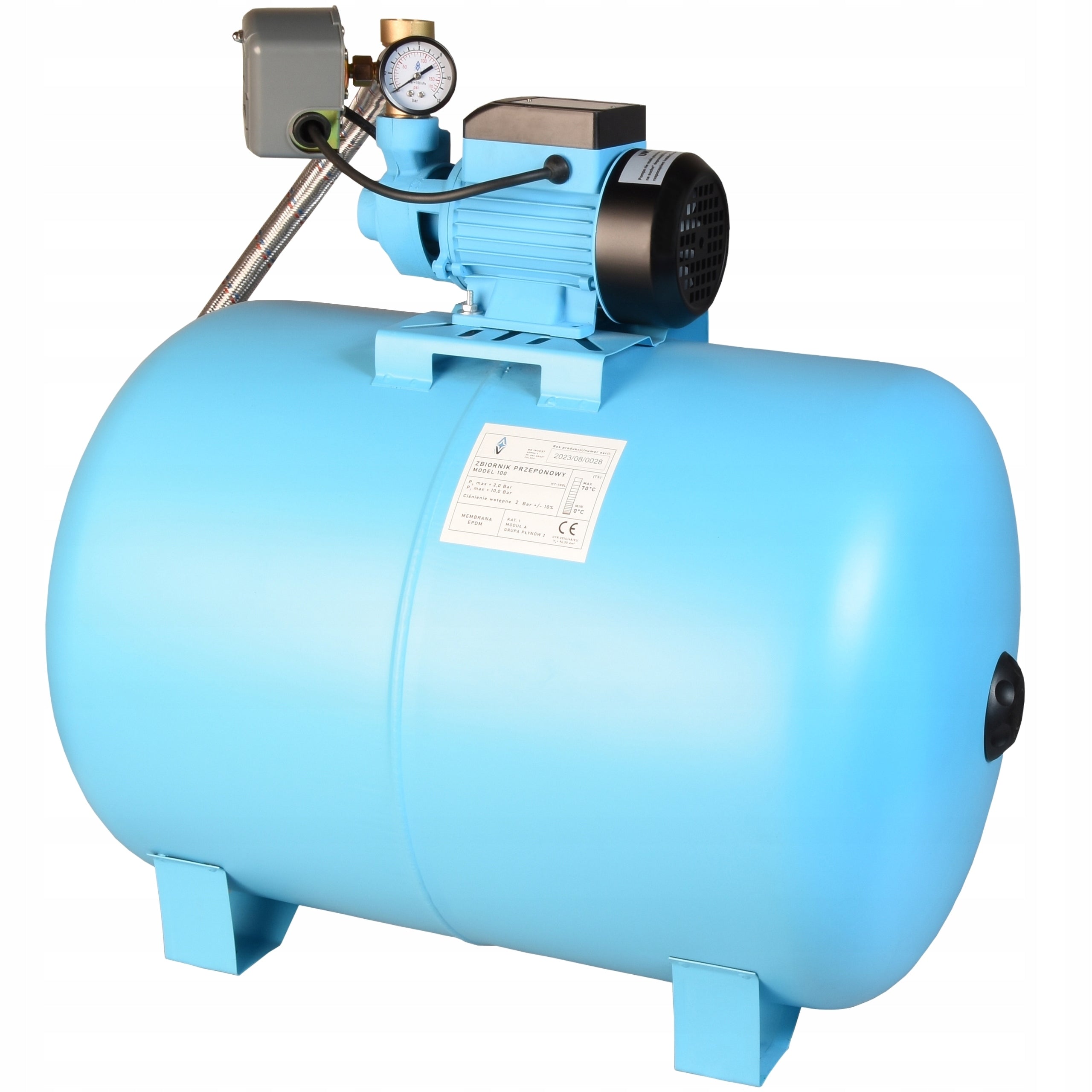

• Modelis: BG-K0003-100

Pump AQB 60 with accessories + hose + tank 100L

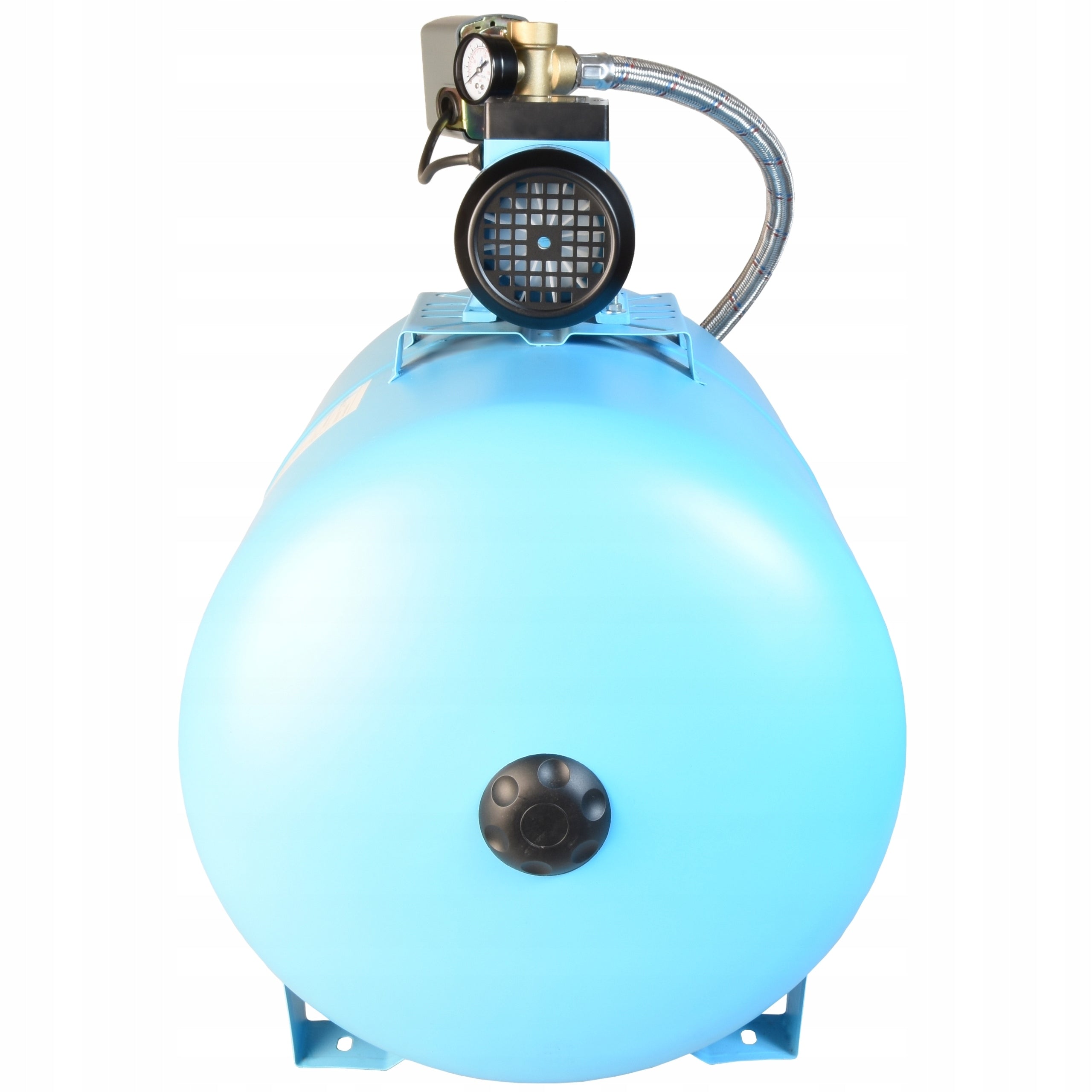

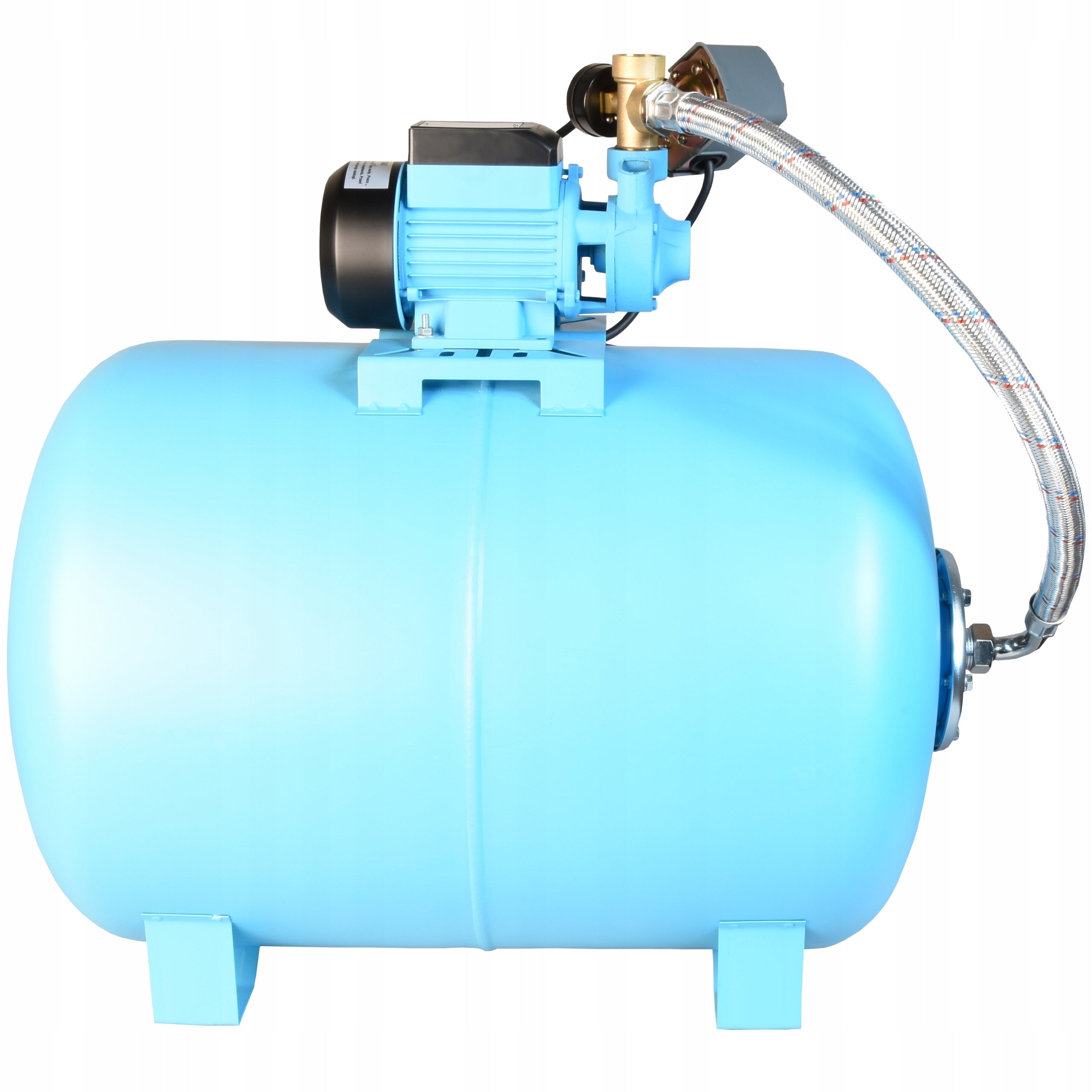

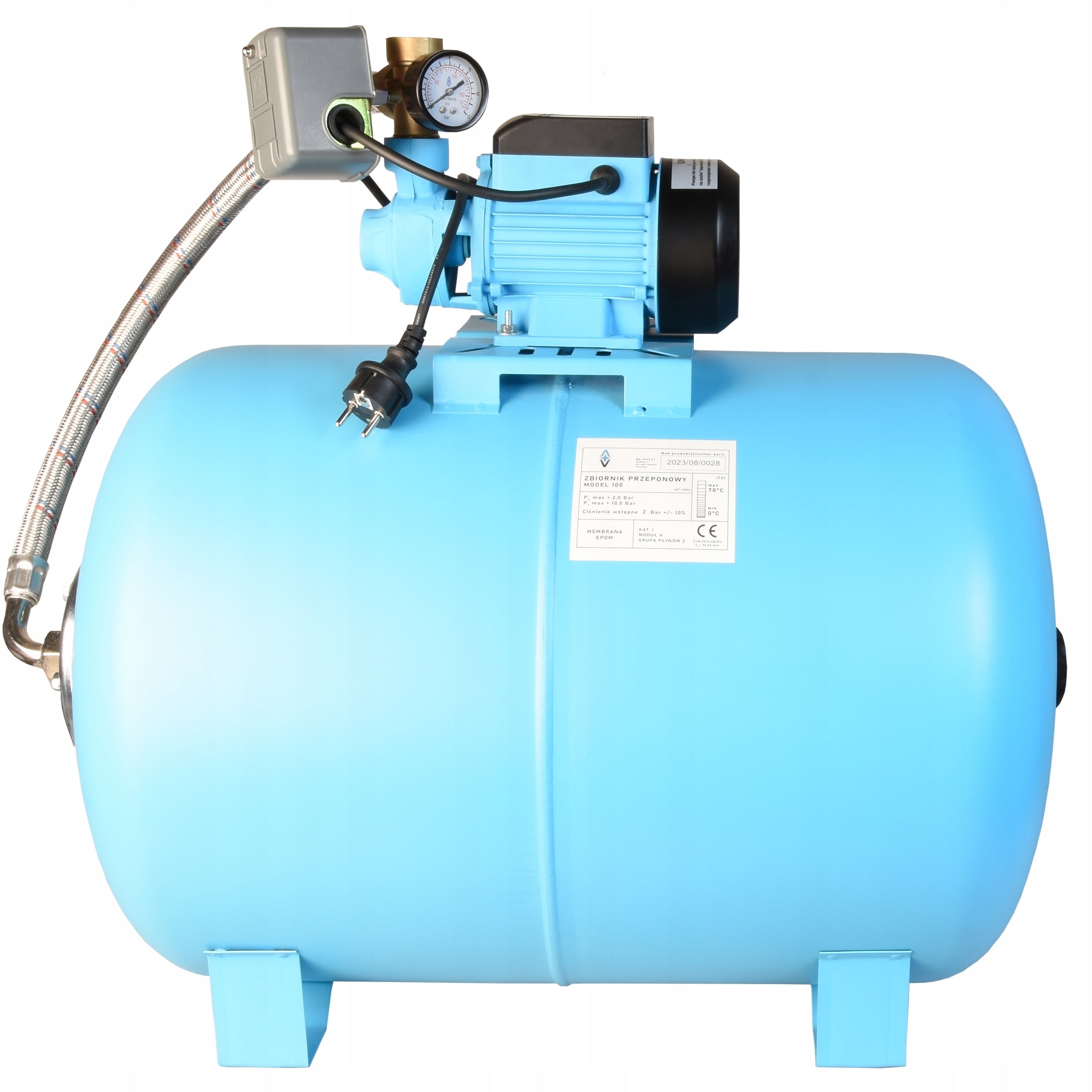

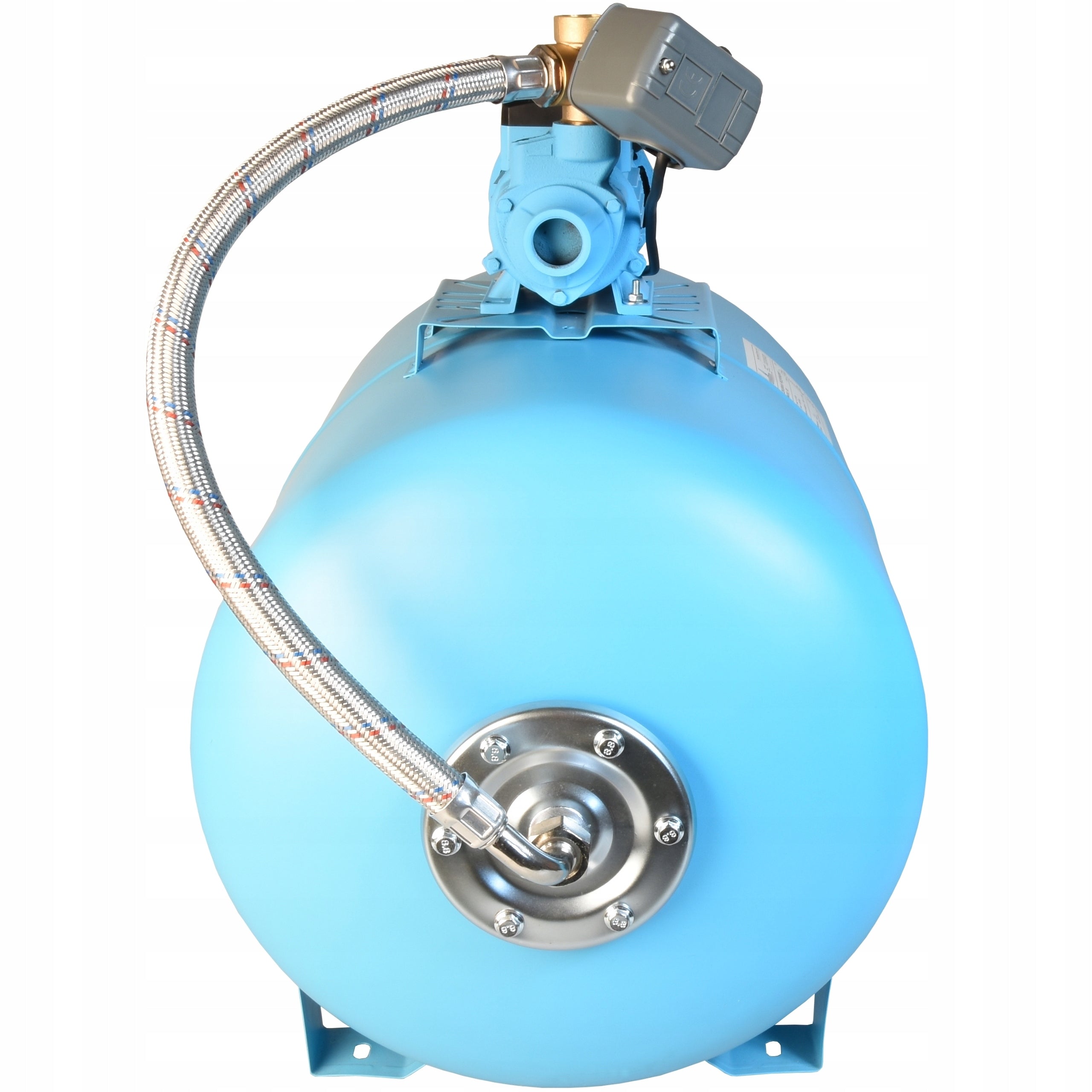

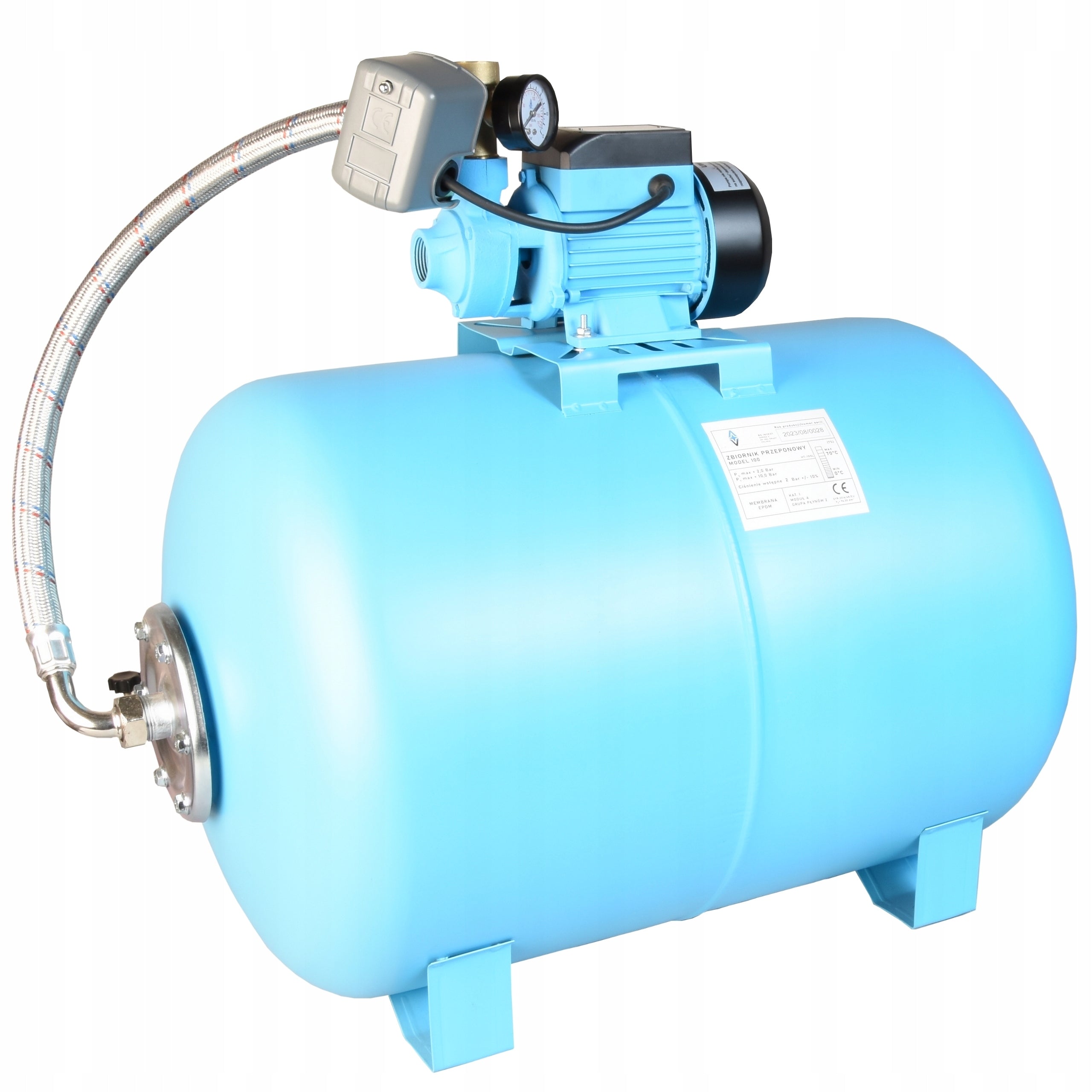

100L Hydrophore Set equipped with an AQB 60 pump with accessories, featuring a maximum flow rate of 35 l/min and a head of up to 39 m. It is ideal for supplying domestic water systems, garden irrigation, or small industrial applications.

The 100L Hydrophore includes a 100-liter tank that stores water and maintains system pressure, ensuring a constant and reliable water supply for use.

Hydrophore pump POLISH BRAND ALUVRA - MODEL AQB 60

The AQB 60 pump is characterized by small size and weight, which makes it an ideal solution for people who need a mobile and efficient water source. In addition, the pump is equipped with a 370W motor, which ensures reliability and efficiency during use.

The AQB 60 model is easy to use and maintain, so that the user will have no problems keeping it in good condition for long time. In addition, this pump is made of high-quality materials, which translates into durability and resistance to mechanical damage.

The pump has a brass rotor, which is corrosion resistant, which allows for a long service life of the pump. Thanks to this, it is able to withstand long periods of use without damage. The brass impeller is very effective in pumping water, which makes the AQB 60 pump characterized by high efficiency. Brass is an easy-to-treat material, which means that a damaged rotor can be easily replaced or repaired without having to replace the entire pump.

All these features make the AQB 60 pump a popular choice among people who need a self-priming pump for home or small industrial applications.

Hydrophore tank 100L

The horizontal hydrophore tank with a capacity of 100l was constructed from durable carbon steel, covered with anti-corrosion varnish, which significantly extends its durability.

Inside the tank there is a rubber diaphragm made of EPDM material. It acts as a membrane, isolating air from the water in the tank. Thanks to this barrier, the tank has no direct contact with water, which contributes to its slower consumption and no corrosion.

The tank has legs that allow stable positioning or fixing on the wall, which can be additionally secured with rubber pads.

The hydrophore tank operates on the principle of air compression. The water is filled into the tank, where there is an increase in pressure, and the air in the tank is compressed.

Technical data:

➡ Max capacity (l/min): 35

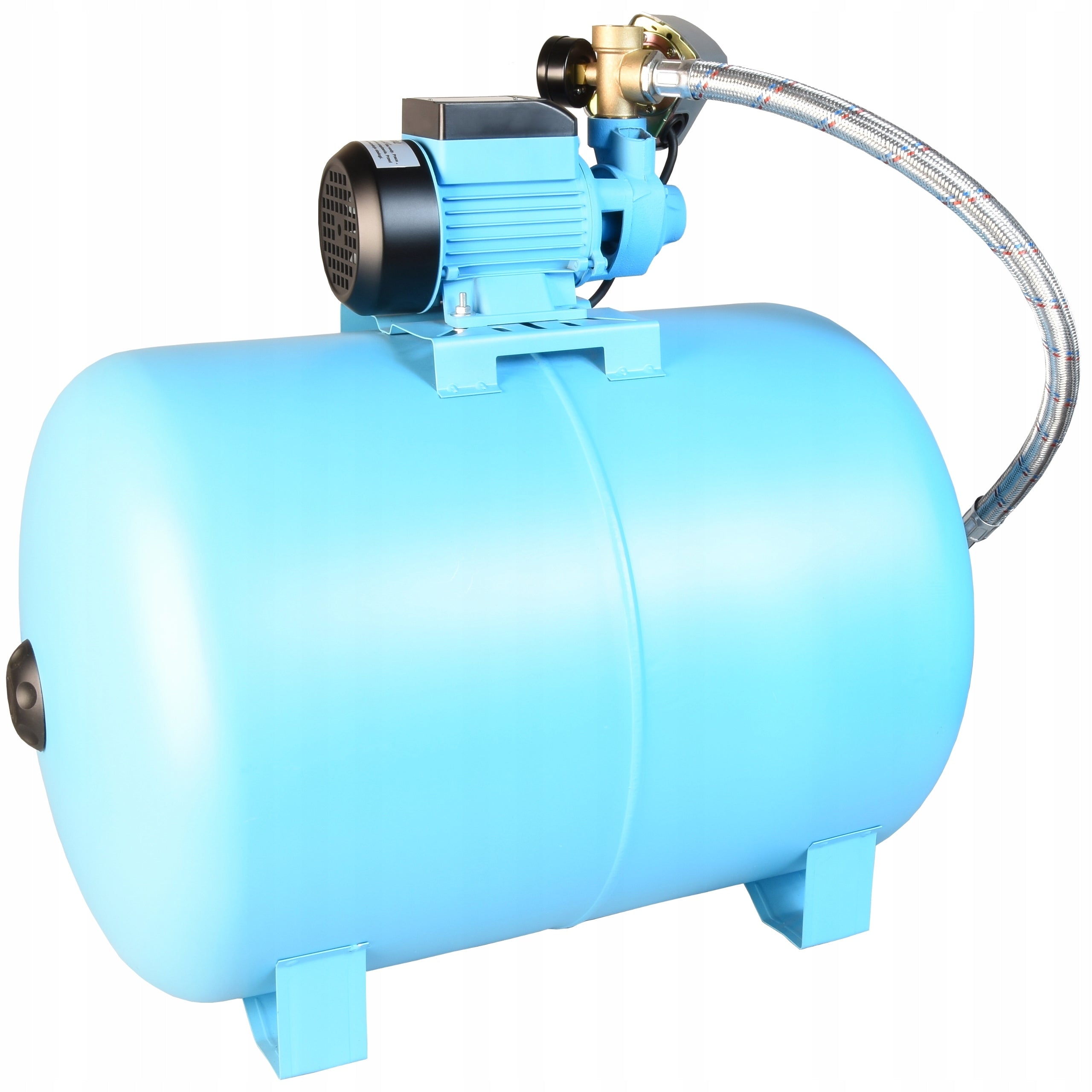

➡ Max capacity (m3/h): 2,1

➡ Lifting height (m): 39

➡ Suction capacity (m): 8

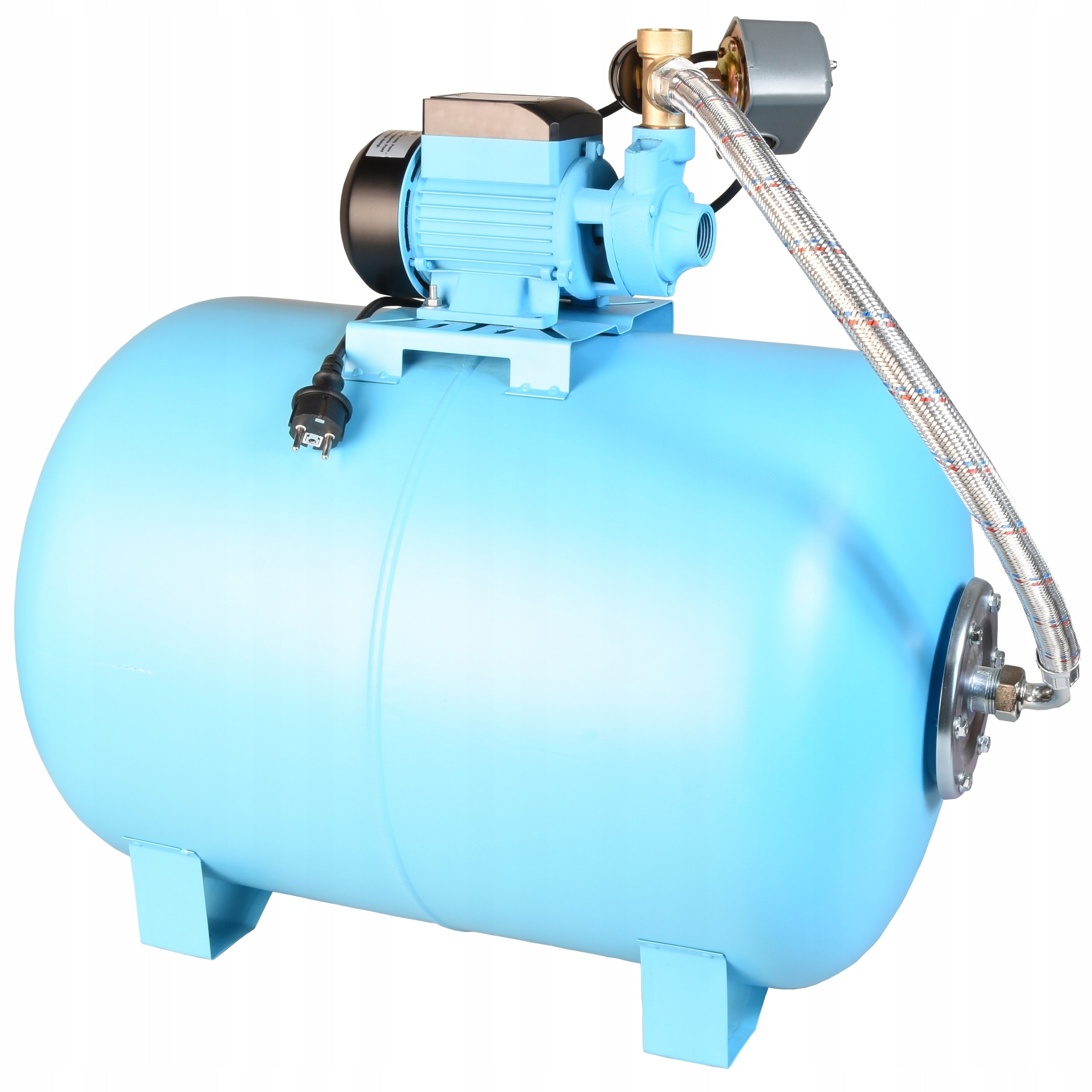

➡ Engine power (W): 370

➡ Engine power (kW): 0,37

➡ Power supply (V): 230

➡ Stub Size(inches): 1 x 1

➡ Diaphragm tank: 100L

➡ Type of tank: diaphragm

➡ Tank orientation: horizontal

Materials:

➡ Pump body: cast iron

➡ Pump shaft: Stainless steel AISI 304

➡ Rotor: Stainless steel AISI 304

➡ Impeller: brass

➡ Mechanical angina: ceramic/graphite/NBR

➡ Diffuser/steering wheel: noryl

➡ Console: cast iron

➡ Engine housing: aluminium

➡ Intermediate: cast iron

Working conditions:

➡ Maximum water temperature: 40°C

➡ Maximum ambient temperature: 40°C

➡ Insulation class: B

➡ Operating mode: continuous

➡ Degree of protection: IP 44

➡ Engine speed: 2850 rpm

Attachments:

Pressure switch - automatically deactivates the device when the pressure reaches a set value, the factory is set in the range of about 1,7 bar to 3 bar with the possibility of additional adjustment

Manometer - is designed to measure pressure in the installation

Pressure output five-way brass- combines hydrophore accessories with pump and tank

Anti-vibration hose - connects the pump to the tank, is easy and quick to install, which reduces time and costs

Included in the set:

➡ Hydrophore pump POLISH brand ALUVRA - MODEL AQB 60

➡ Accessories : five-way discharge outlet, pressure switch, pressure gauge

➡ Power cable with plug

➡ Anti-vibration hose with seal

➡ Hydrophore tank 100L

➡ User manual in Polish

Example of a hydrophore kit connection scheme

1. Hydrophore pump
2. Diaphragm tank
3. Pump accessories with pressure switch
4. Suction tube
5. Anti-sand filter
6. Anti-sand filter valve
7. Check valve
8. Butterfly Nipple Ball Valve
9. Nipple ball valve with handle
10. Protection against dry running
11. Flood tee
12. Flow water filter
13. Pressure regulator with pressure gauge
14. PE coupling
15. PE pipe
