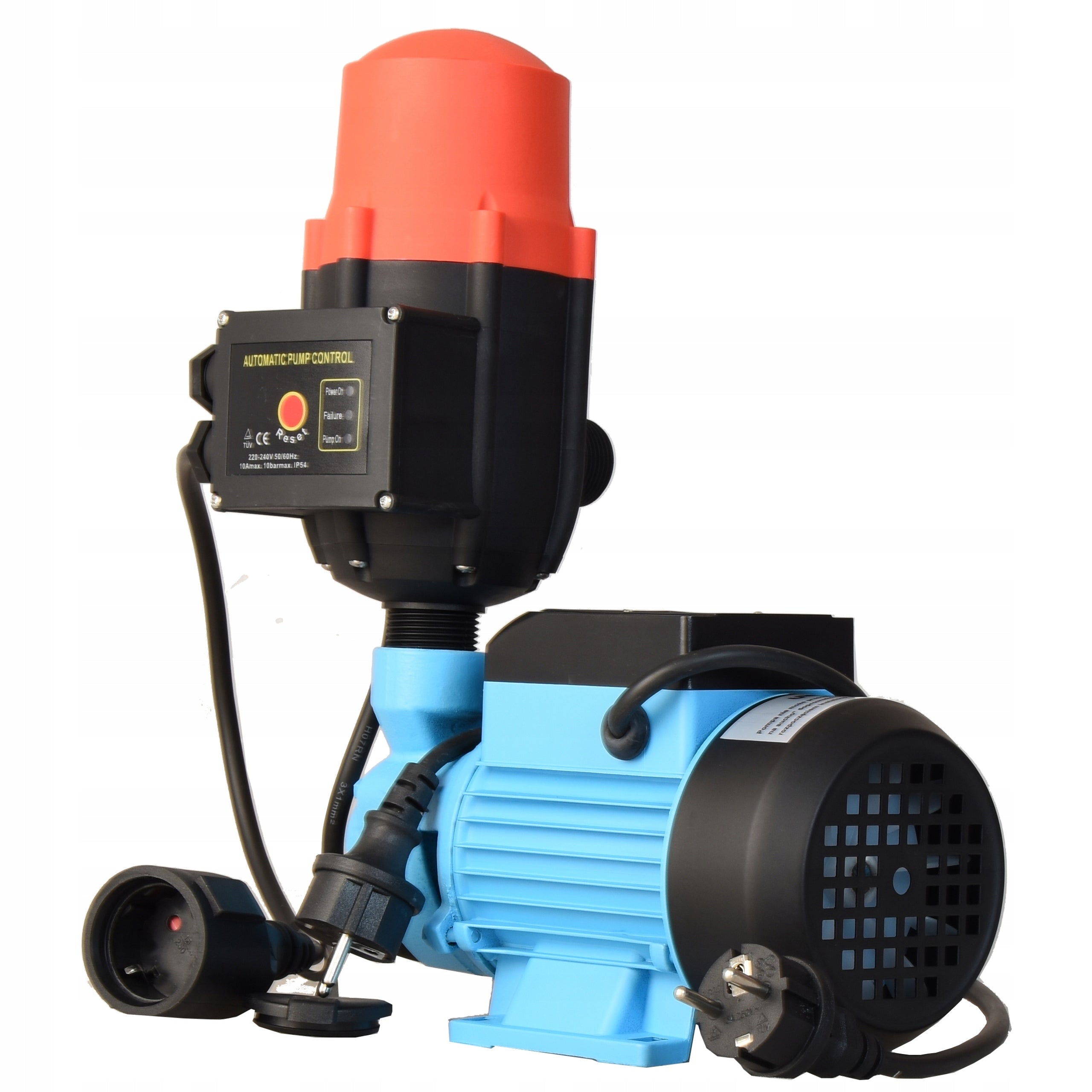

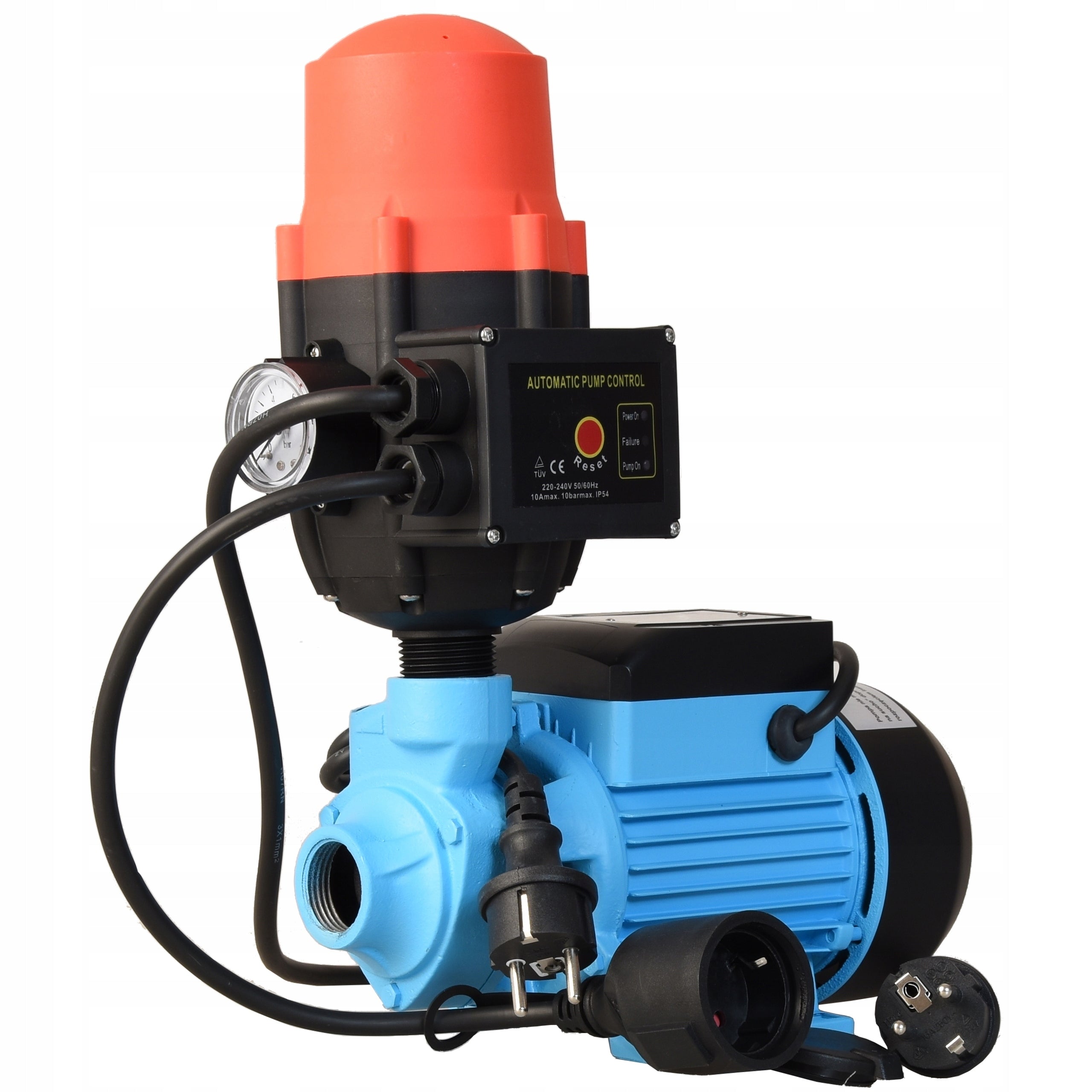

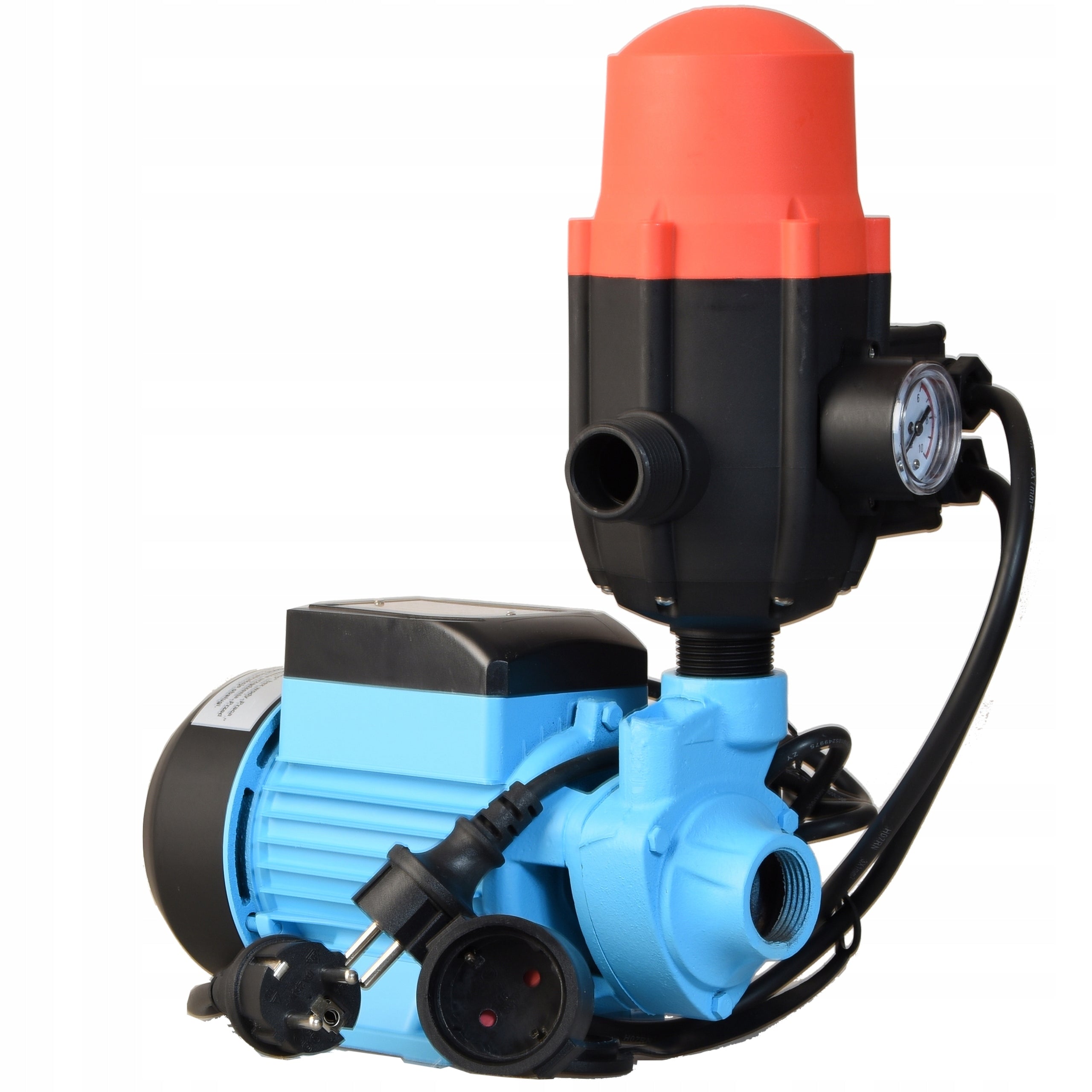

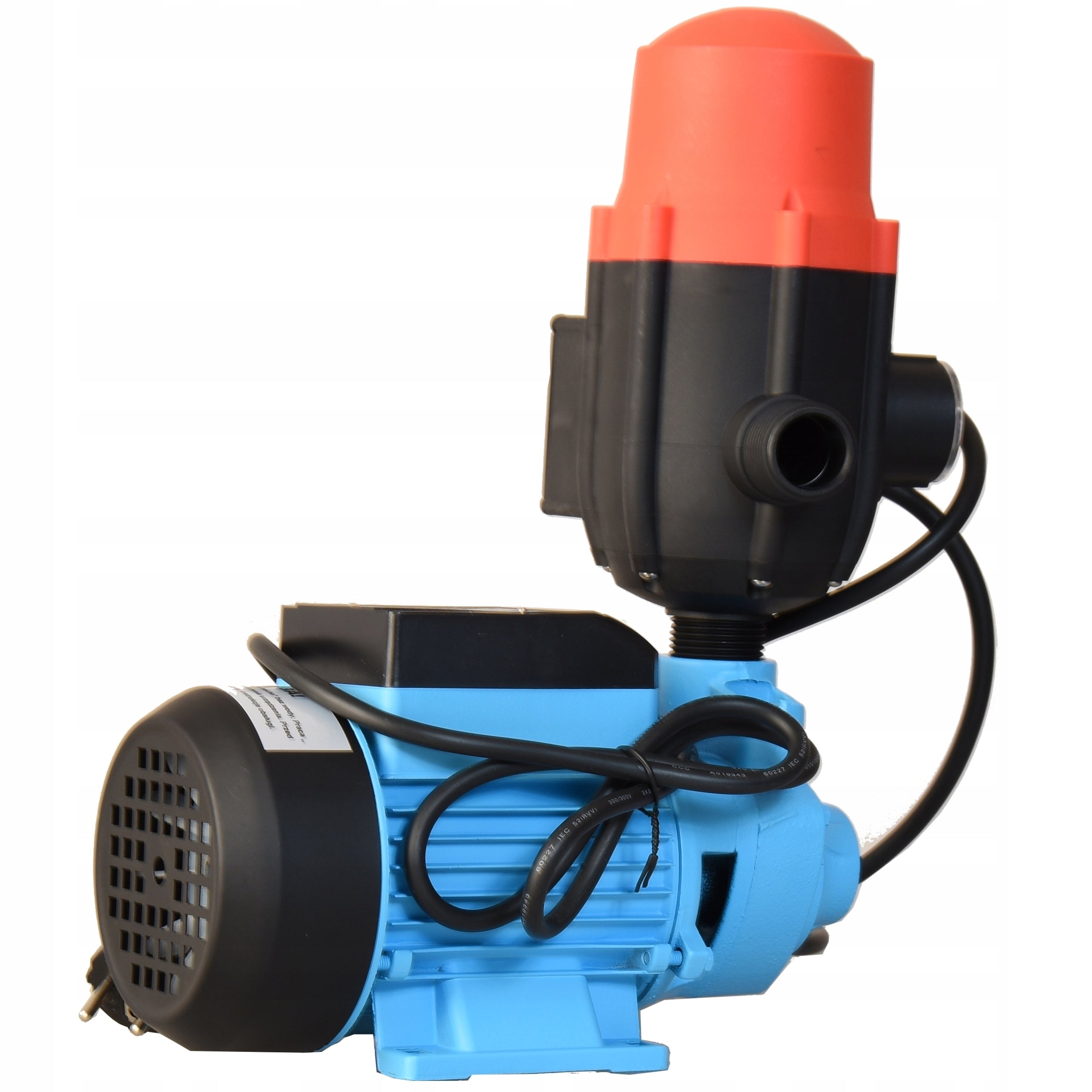

Vandens siurblys AQB 60 su automatika CSK 21 BRIO, 2100 l/val.

Trumpai apie prekę

Prekė: Vandens siurblys AQB 60 su automatika CSK 21 BRIO, 2100 l/val.. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: BG-INVEST
• Modelis: BG-K0003-W1

➡ ALUVRA AQB 60 HYDROPHORE PUMP WITH CSK 21 BRIO

➡ Capacity up to 35l/h = 2100 l/h

➡ Power: 370 W ⚡

➡ Maximum pressure: 3.9 bar

➡ ⚡ Power Consumption 2.2A ⚡

➡ DRY-RUNNING PUMP PROTECTION

➡ SWITCHING PRESSURE ADJUSTMENT: 1,5 - 3 BAR

The AQB 60 hydrophore pump with CSK 21 is a compact device with high efficiency and reliability. It achieves a maximum efficiency of 35 litres per minute, making it an ideal solution for powering domestic water systems and irrigation of gardens, especially for smaller areas or less efficient water sources.

With its simple installation and operation, the AQB 60 pump is easy to use and can be quickly installed without the need for specialized skills. Additionally, robust construction and high-quality materials ensure reliability and long life of the device.

Hydrophore accessories have been added to the pump to control its operation through pressure control.

The pump with accessories is designed for installation with a tank.

⚡Technical data: ⚡

💦 Max capacity (l/min): up to 35

💧 Max capacity (m3/h): up to 2.1

⚡ Max pressure (Bar): 3.5

📈 Lifting height (m): 35

🧲 Suction capacity (m): 8

⚡ Engine power (W): 370

⚡ Engine power (kW): 3.7

🔌 Power supply (V): 230

🔩 Stub Size(inches): 1 x 1

🧰 Polish brand

✅ Materials:

⚙ Body: cast iron

⚙ Shaft and rotor: Stainless steel AISI 304

⚙ Impeller: brass

⚙ Console: cast iron

⚙ Interwall: Stainless steel AISI 304

⚙ Diffuser/Driver: noryl

⚙ Mechanical angina: ceramic/graphite/NBR

⚙ Intermediate: cast iron

⚙ Engine speed: 2850 RMP

The pump is equipped with a rotor made of brass. Firstly, this material is extremely resistant to corrosion, which translates into a long pump life. With this impeller, the pump can run for a long time without the risk of damage.

Secondly, the brass impeller is characterized by high efficiency in pumping water, which ensures high efficiency of the pump itself. This is particularly important for pumps, which must ensure reliable water supply for a long period of time.

Thirdly, brass rotor pumps are usually relatively easy to maintain and repair. Brass is an easy-to-treat material, which means that if necessary, the damaged rotor can be easily replaced or repaired without requiring a complete pump replacement.

To sum up, brass rotor pumps are popular due to their corrosion resistance, high efficiency and easiness of maintenance and repair.

💧Principle of operation of the machine: 💧

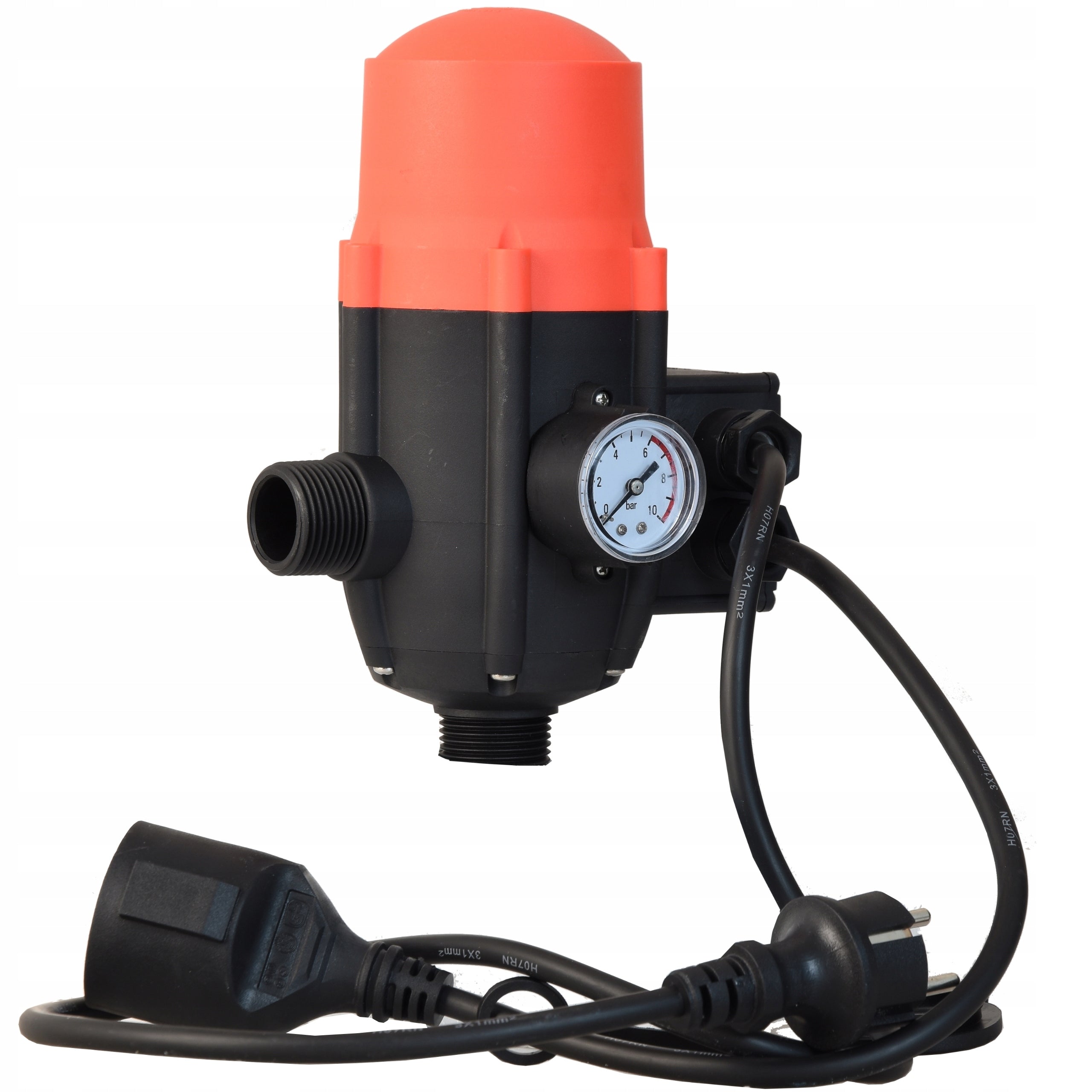

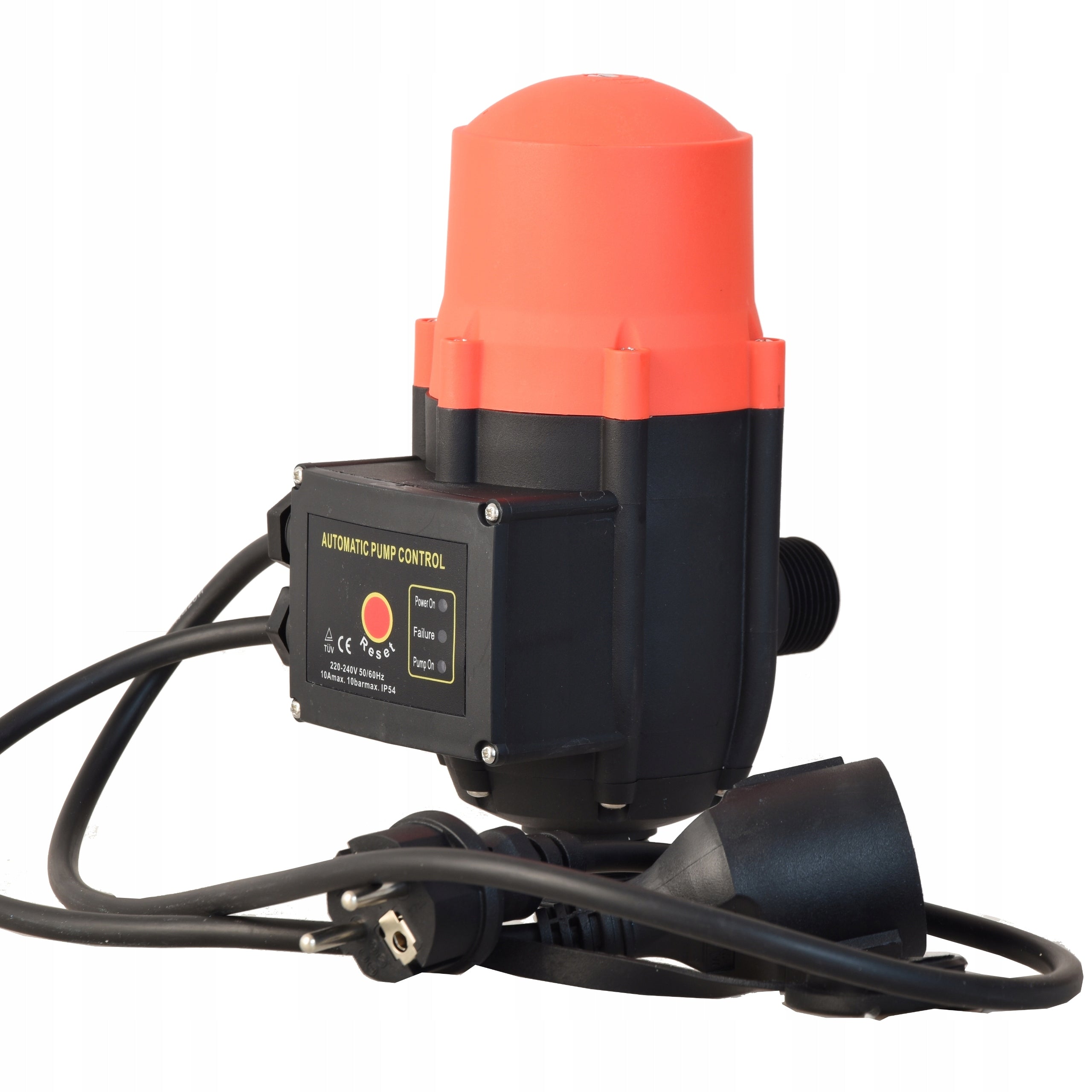

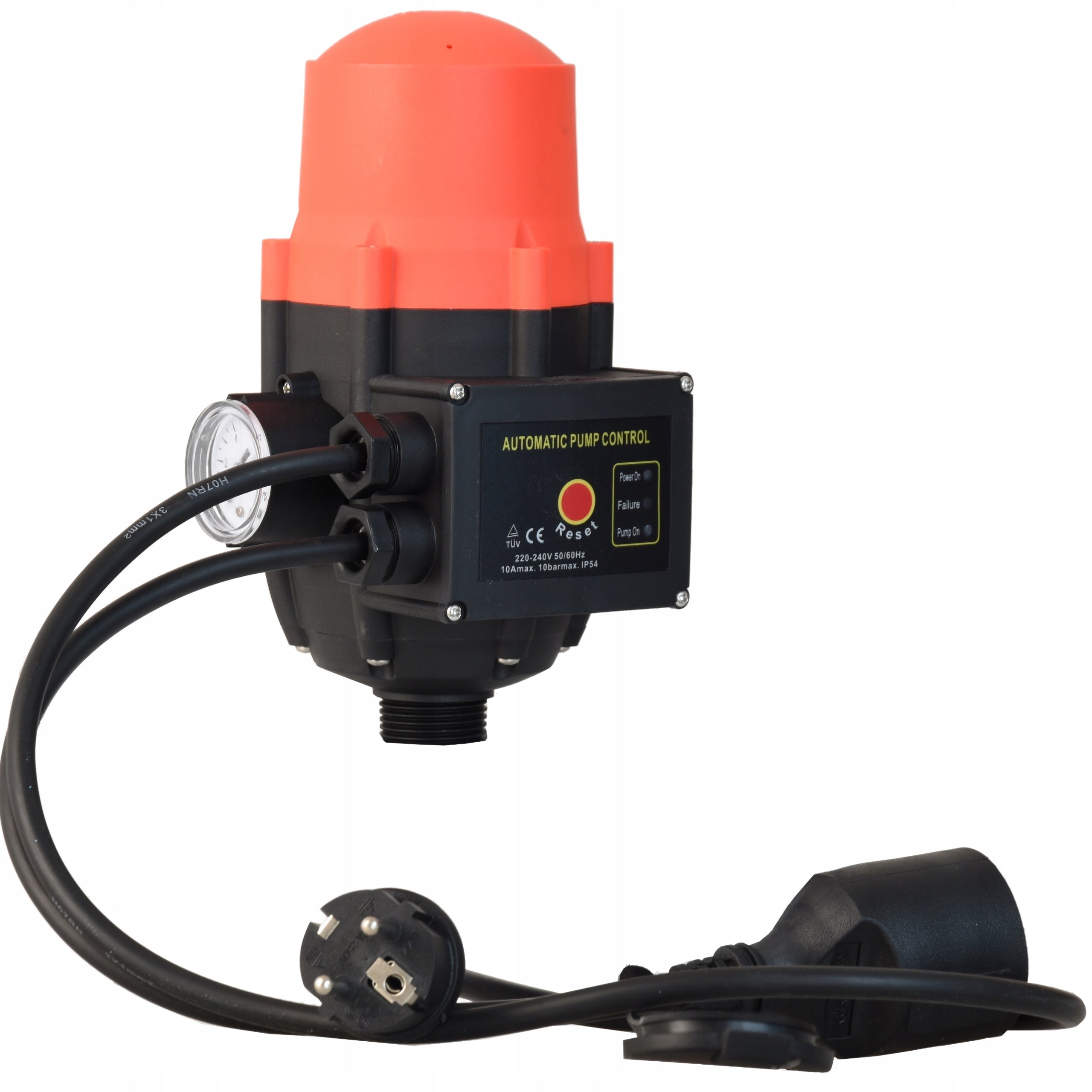

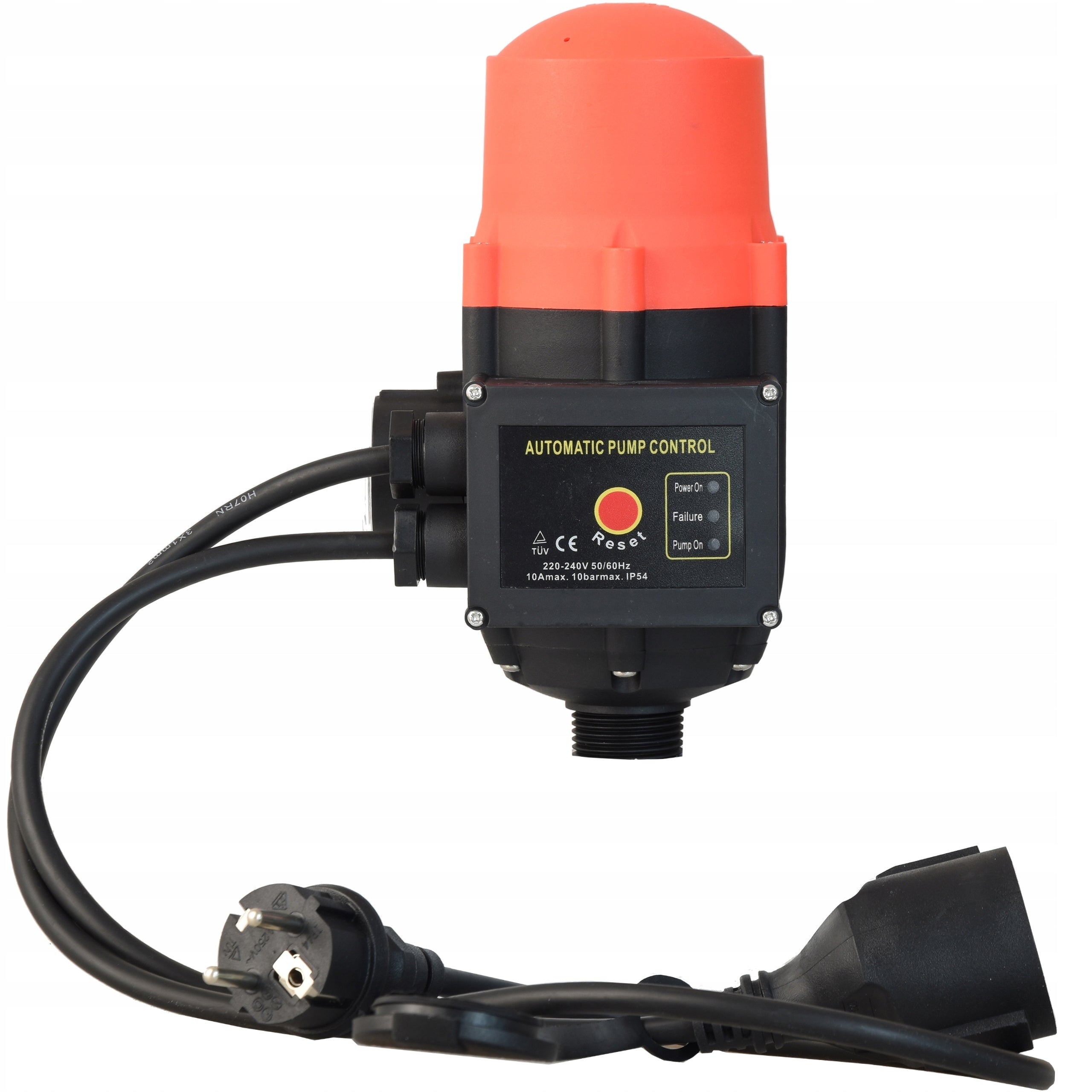

Automatic controller controlling the operation of surface and submersible pumps, replacing traditional solutions such as pressure switch and hydrophore tank. Opening the tap is a signal for the machine to start the pump, while closing the tap turns off the device.

The machine can operate with single-phase pumps with a power of up to 1300 W, whose current consumption during operation is up to 10 A.

The device is additionally equipped with a dry-running protection function. In the absence of water in the well, it automatically turns off the pump.

The product is equipped with a 1” diameter strand and comes with a cable with a plug and socket, making it easy to connect quickly and easily.

⚡ Technical data of the machine: ⚡

🔹Power source 230 V.

🔹Continuous current rating 16(10) A

🔹Degree of protection IP 65

🔹Scope of switching pressure 1,5 - 3 bar

🔹Max. permissible pressure not more than 10 bar

🔹Max. liquid temperature 60C

🔹Diameter of suction/piston connection: 1" (GZ)/ 1" (GZ)

🔹Built-in check valve: yes

🔹Built-in pressure gauge: yes

🔹Reset switch: yes - manual

🔹Dry-running protection: yes

🔹On pressure adjustment: yes

🔹Off pressure adjustment: not

🔹Built-in pressure gauge: yes

🔹Power Indicator LED: yes

🔹Work signaling diode: yes

🔹Work signaling diode: yes

🔹Electrical cables included: yes

🩵 The first of the key features of the AQB 60 pump is its impressive performance for such a small size. The pump can pump up to 35 liters of water per minute, making it an effective tool for delivering water to various locations.

🩵Self-priming is another important feature of the pump. Thanks to this function, the pump is able to draw water from small depths, which increases its versatility and makes it suitable for use in a variety of terrain conditions.

🩵Compact size and light weight are the features that make the pump easy to carry and install. This, in turn, affects their mobility.

🩵Ease of use is another advantage of the AQB 60 pump. Simple installation and operation mean that even people without specialized knowledge can easily take advantage of the benefits of this device. This is especially important in the context of home use.

🩵Durable construction and resistance to mechanical damage are features that emphasize the reliability and long service life of the pump. The high-quality materials used in its production ensure that it is ready to withstand the challenges of heavy use.

🩵Competitive price makes the AQB 60 pump an attractive choice for a wide range of users. It offers high quality at an affordable price.

✅ SAMPLE DIAGRAM OF CONNECTING A HYDROPHORE SET

1. Hydrophore pump
2. Diaphragm tank
3. Pump accessories with pressure switch
4. Suction tube
5. Anti-sand filter
6. Anti-sand filter valve
7. Check valve
8. Butterfly Nipple Ball Valve
9. Nipple ball valve with handle
10. Protection against dry running
11. Flood tee
12. Flow water filter
13. Pressure regulator with pressure gauge
14. PE coupling
15. PE pipe
