Vandens siurblys BARRACUDA WP30HP, aukšto slėgio, 3", 1000 l/min, 6 bar

Trumpai apie prekę

Prekė: Vandens siurblys BARRACUDA WP30HP, aukšto slėgio, 3", 1000 l/min, 6 bar. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: Barracuda
• Modelis: WP30HP

Robust, efficient and reliable motor pump for clean and dirty water. Ideal for irrigation, rain shower, pumping and agricultural, horticultural and construction applications. The BARRACUDA WP30HP is a piece of equipment that has been appreciated by professionals for years.

✅ Why is it worth it?

• 190F OHV engine – 15 HP – the most powerful in its class, four-stroke, quiet and economical
• Efficient four-stroke engine - a reliable unit used in such devices as: tillers, compactors and generator sets
• Average combustion at the level of 0,8l / hour - very economical unit
• Sturdy rotor and turbine – resistance to contamination, durability for years
• Oil level sensor – protection against dry operation
• Performance 1000 l/min – pumps up to 60 000 litres of water per hour
• Light and mobile – solid frame, easy operation by one person
• For clean and dirty water – copes with contaminants up to 6 mm
• High pressure 6 bar - for applications in agriculture, firefighting and other areas of life where a strong stream of water is needed.
• Large lifting height - 60 meters high suction height - so the pump can be used in various off-road conditions

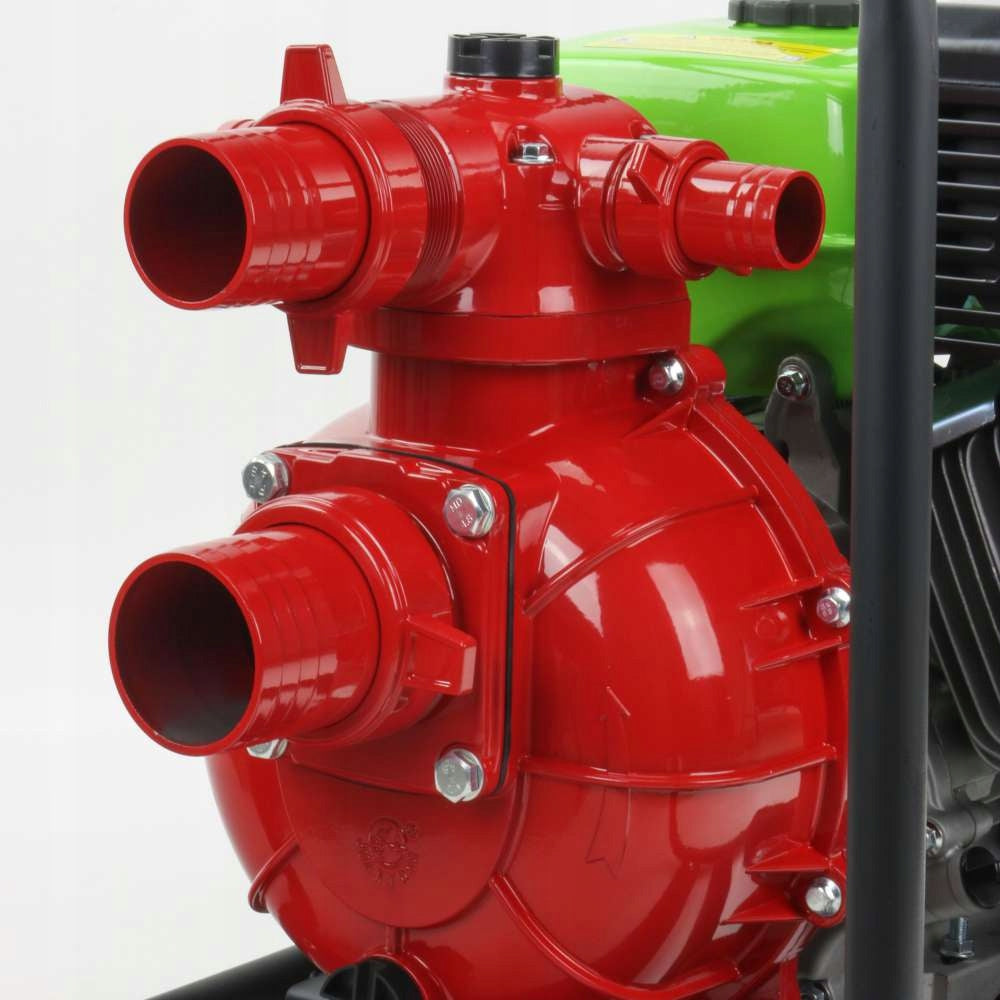

• Three discharge outputs - 3 inches (75mm) and 2 x 1,5 inches(38mm)

The Barracuda brand responds to the real needs of customers – the WP30HP high-pressure water pump is the result of refined design, well-thought-out details and tests in difficult conditions.

⚙ The pump runs smoothly and its components withstand intensive operation. The rotor design allows you to reach a pressure of 6 Bar at the output of the motor pump. Additionally, the pump has 3 outputs that allow you to separate water into several hoses.

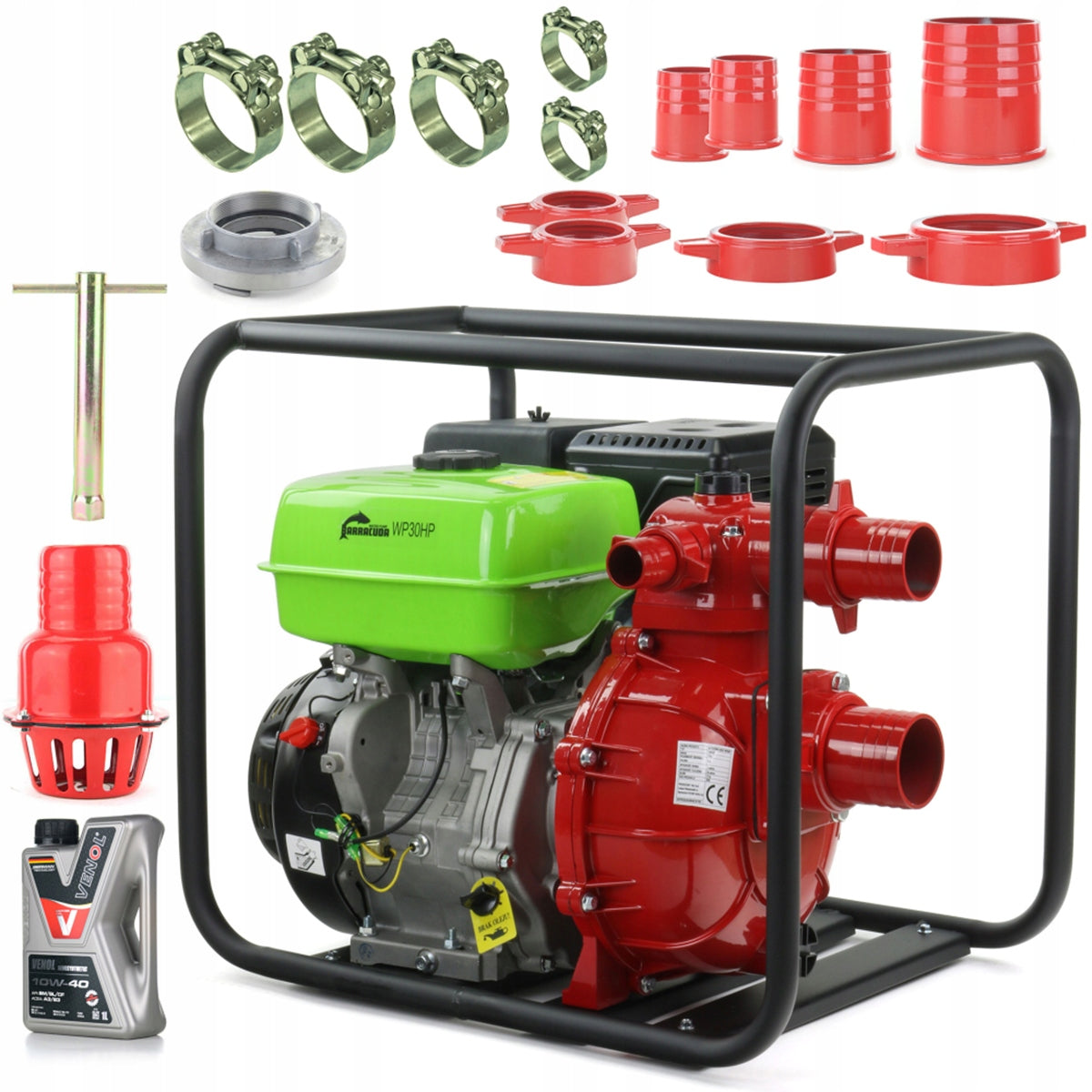

📦 IN THE SET YOU GET:

• motor pump WP-30HP,
• connection adapter 2,5 / 3 inch storz
• set of aluminium connectors (4 x sockets and 4 x nuts),
• suction dragon with check valve,
• 2 x includes GBS 80-85mm
• 1 x GBS 74-79mm
• 2 x includes GBS 36-39
• 1 liter of oil 10W40 FREE!
• key to candles,
• instruction manual in Polish,
• guarantee card

🚀 READY TO GO

Just connect the hoses (they are not part of the set), pour oil and gasoline – the device is ready for operation.

⚙ Technical parameters

• Name: WP-30HP,
• Capacity: 1000 litres/min (60 m3/h)
• Height: lift 60 meters
• Height: suction 8 meters
• Connections: 2,5 inch (6,35cm) and 2x 1,5 inch(3,80cm)
• Engine type: four stroke
• Engine: 420cm3 15HP (11 kW)
• Type of fuel: lead-free petrol
• Tank capacity: 3,6L

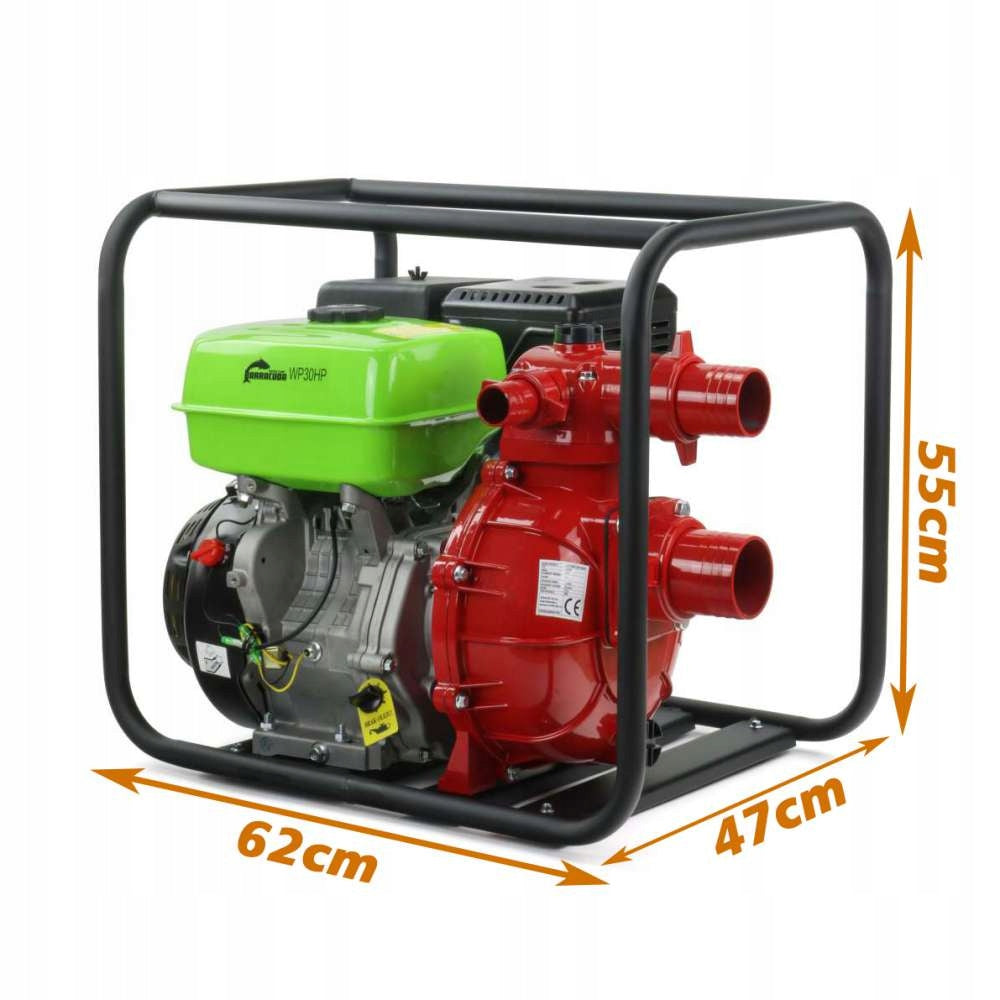

📐 Dimensions of the device

• Height: 55cm
• Length: 62cm
• Width: 47cm

🔥 THE MOST IMPORTANT FEATURES OF THE MOTOR PUMP

• 190F OHV engine – 15HP reinforced, more efficient design, one of the most powerful in its class
• Performance 1000 l/min (60 m³/h) rapid pumping of large quantities of water
• Lifting height 60 m ideal for working on longer sections and higher levels
• The suction height of 8 m works well in wells, ditches and tanks
• Four-stroke engine – economical and quiet used in professional equipment: tillers, rammers, aggregates
• Low combustion – approx. 0,8 l/h economical operation even on long cycles
• 3 inch (75mm) and 2 x 1,5 inch(38mm) connectors full compatibility with fire and suction‑piston hoses
• Oil level sensor automatic protection against dry operation
• Reinforced protective frame stability, safety and easy transport by one person

🛡 Oil level sensor – full engine protection

The BARRACUDA WP30HP is equipped with an advanced oil level sensor that protects the engine from damage. When the oil level falls below the safe value, the automatically blocks the possibility of starting, preventing lubrication-free operation. It is a simple but extremely effective protection that significantly extends the life of the pump and guarantees trouble-free operation in all conditions.

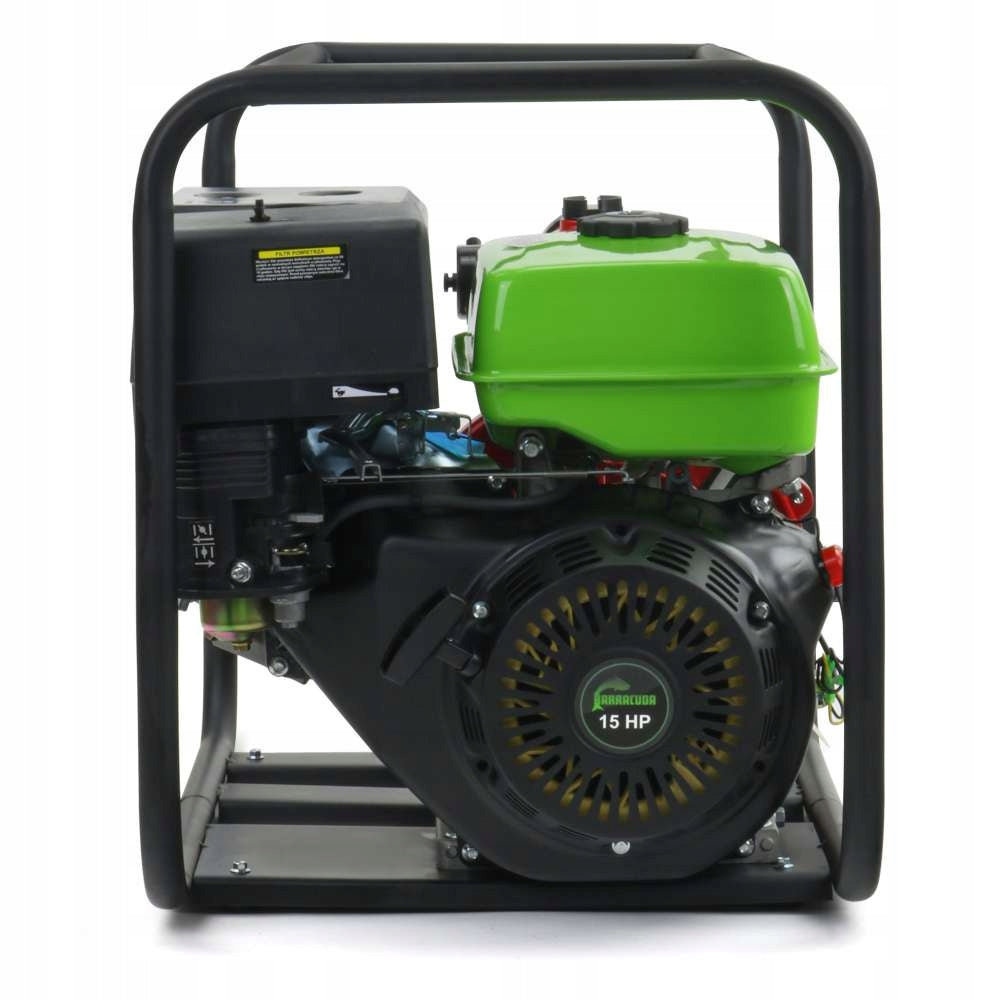

🔧 Engine – the heart of a motor pump that works without compromise

The BARRACUDA WP30HP motor uses the 190F OHV engine with 15HP power – a reinforced and more efficient design, which is an extension of the popular 168F engine. It is a unit used in equipment that must work reliably even in harsh environments, m.in. . w:

• tillers
• Motor pumps
• rammers
• snow blowers
• go-karts
• generator sets

The 190F engine is famous for its high overload resistance and exceptional tolerance to operating errors such as less frequent oil changes or occasional inspections. This makes the WP30HP a device that forgives more and lasts longer – the perfect solution for users who expect durability and trouble-free operation.

🛢 VENOL 10W‑40 OIL – 1 LITER FREE

We add VENOL 10W‑40 oil to each motor pump, so that the device is ready to work immediately after unpacking.

Specification:

• Brand: Venol
• Oil Type: synthetic
• Viscosity: 10W‑40
• Capacity: 1 liter
• Purpose: four-stroke gasoline engines

Why this oil?

VENOL 10W‑40 oil has been developed in ACTIVE POWER technology, which provides:

• effective lubrication of the engine at low and high temperatures
• easier start-up of the cold engine
• protection against wear and overheating
• maintaining the cleanliness of the power unit
• Extended period between exchanges
• lower fuel consumption

The oil is mixable with other branded oils, which facilitates subsequent use.

📦 Each set includes:

🔩 2 × steel clamp 80 to 85 mm

Heavy-duty steel clamps designed for fixing suction hoses in motor pumps. They fit perfectly into 3‑ inch hoses, ensuring a secure and tight connection even during intensive operation of the device.

🔩 1 × steel clamp 74 to 79 mm

Heavy-duty steel clamp designed for fixing discharge hoses in motor pumps. Perfectly matched to 3‑ inch hoses, it provides a secure, tight and stable connection even during intensive operation of the device.

🔥 Suction basket 3" (75 mm) with check valve

Durable suction basket designed for motor pumps with a connection diameter of 3 inches (75 mm). Equipped with a metal‑rubber check valve, which prevents water from receding and facilitates quick suction of the pump. Robust construction guarantees reliability even in intensive field work.

📐 Dimensions:

• stub diameter: 75 mm (3")
• stub height: 68 mm
• dragon diameter (with flange): 160 mm
• mesh dimension: 32 × 10 mm
• Overall height: 188 mm

💧 Application:

Suction basket fits hoses:

• firefighting
• Suction‑pressurized
• PVC hoses

Ideal for use with Barracuda WP30HP motor pumps and other 3" pumps.

🔧 Set of aluminium connectors 3" (75 mm) and 1,5" (38mm)

A set of solid aluminum connection connectors designed for motor pumps and suction and discharge hoses with a diameter of 3 inches (75 mm). Elements made of high quality aluminum ensure durability, tightness and reliability during intensive work.

⭐ Key features of the set

Place:

• outer diameter: 75 mm
• Overall height: 70 mm
• Material: high-quality aluminium

Nut:

• Overall width: 146 mm
• diameter after thread: 85 mm
• Height: 30 mm
• Material: high-quality aluminium

1. Why choose the Barracuda WP30HP 15HP motor pump?

Motopump Barracuda WP30HP is one of the most frequently chosen high-pressure 3” combustion pumps, valued for its power 15 HP, efficiency 1000 l/min and reliability in difficult conditions. It is equipment that quickly drains water, works stably and is ready to work right out of the box.

2. What is the best way to use this 3” diesel pump?

The WP30HP is ideal for:

• water drainage of flooded basements and garages,
• pumping water from swimming pools and tanks,
• agricultural work and irrigation of crops,
• watering of excavations and construction sites,
• water abstraction from rivers, lakes and ponds. It is a universal diesel pump for clean and slightly contaminated water that will work in every farm and company.

3. What is the performance of the Barracuda WP30HP motor pump?

The device offers capacity of up to 1000 liters per minute, which makes it one of the strongest combustion pumps in its price class. If you want to drain large amounts of water quickly – this is a hit.

4. Can the pump handle dirty water?

Yes — the WP30HP motor pump supports clean and slightly contaminated water, e.g. with small sediments. It’s the perfect choice if you need a 3” dirty water pump for home and construction applications.

5. What lifting height does this model offer?

The maximum lifting height is 60 meters, which allows you to work in places where other pumps can not cope. This is a great choice if you are looking for a combustion pump with high pressure and high lift.

6. Is the motor pump easy to use?

Yes — thanks to the manual starter (link), starting is quick and hassle-free. The design is simple and access to filters and nozzles is very convenient. This is a pump for users who want hardware without complications.

7. Which hoses fit the WP30HP motor pump?

The model supports standard 3-inch (75 mm) snakes – both suction and discharge. It's the most popular size on the market, making it easy to purchase additional accessories.

8. What is included with the pump?

When you buy Barracuda WP30HP, you get a complete set ready to go:

• connection connectors,
• clamps,
• suction filter,
• gaskets,
• mounting keys. This means that you do not have to buy the basic elements.

9. Is the motor pump suitable for continuous operation?

Yes — it is a combustion pump adapted to long-term operation, provided that the oil level is regularly checked. It is perfect for farms, construction companies, and intensive seasonal work.

10. What are the safety features of the Barracuda WP30HP motor pump?

The device is equipped with:

• oil level sensor,
• protection against dry work,
• steel protective frame. This guarantees safe and stable operation even in difficult conditions.

11. How often to change the oil in the motor pump?

• first exchange: after 5 hours of operation,
• Next: every 50 hours or once a season. Regular oil change is the key to long engine life 15HP.

12. Are spare parts available for WP30HP?

Yes — rotors, gaskets, filters, nozzles and engine parts are available for Barracuda pumps. It is a piece of equipment that can be easily serviced and maintained for years to come.

13. Is the motor pump mobile?

Yes — thanks to the compact design and steel frame, the device is easy to carry and transport. This is a great choice if you need a mobile 3” internal combustion pump.
