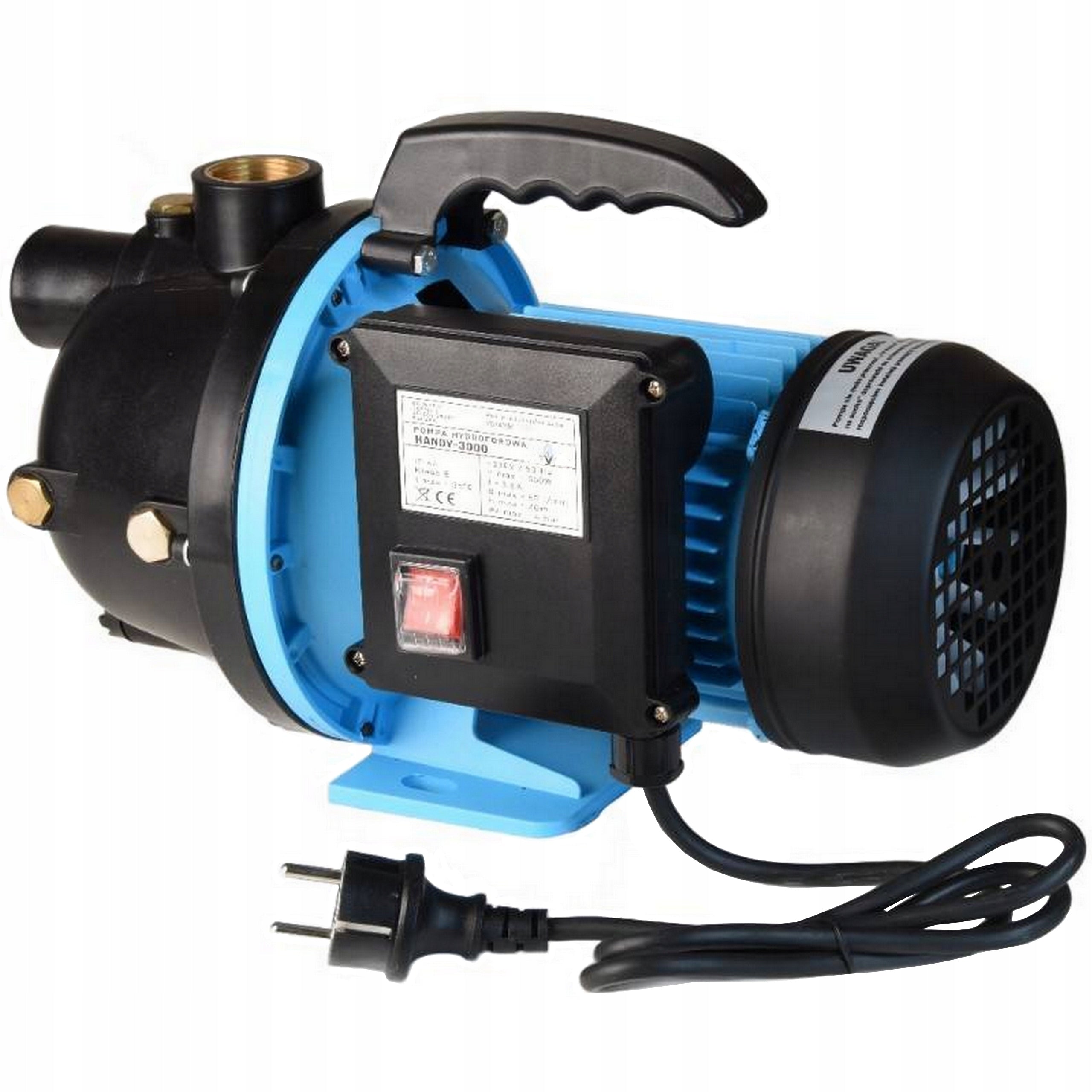

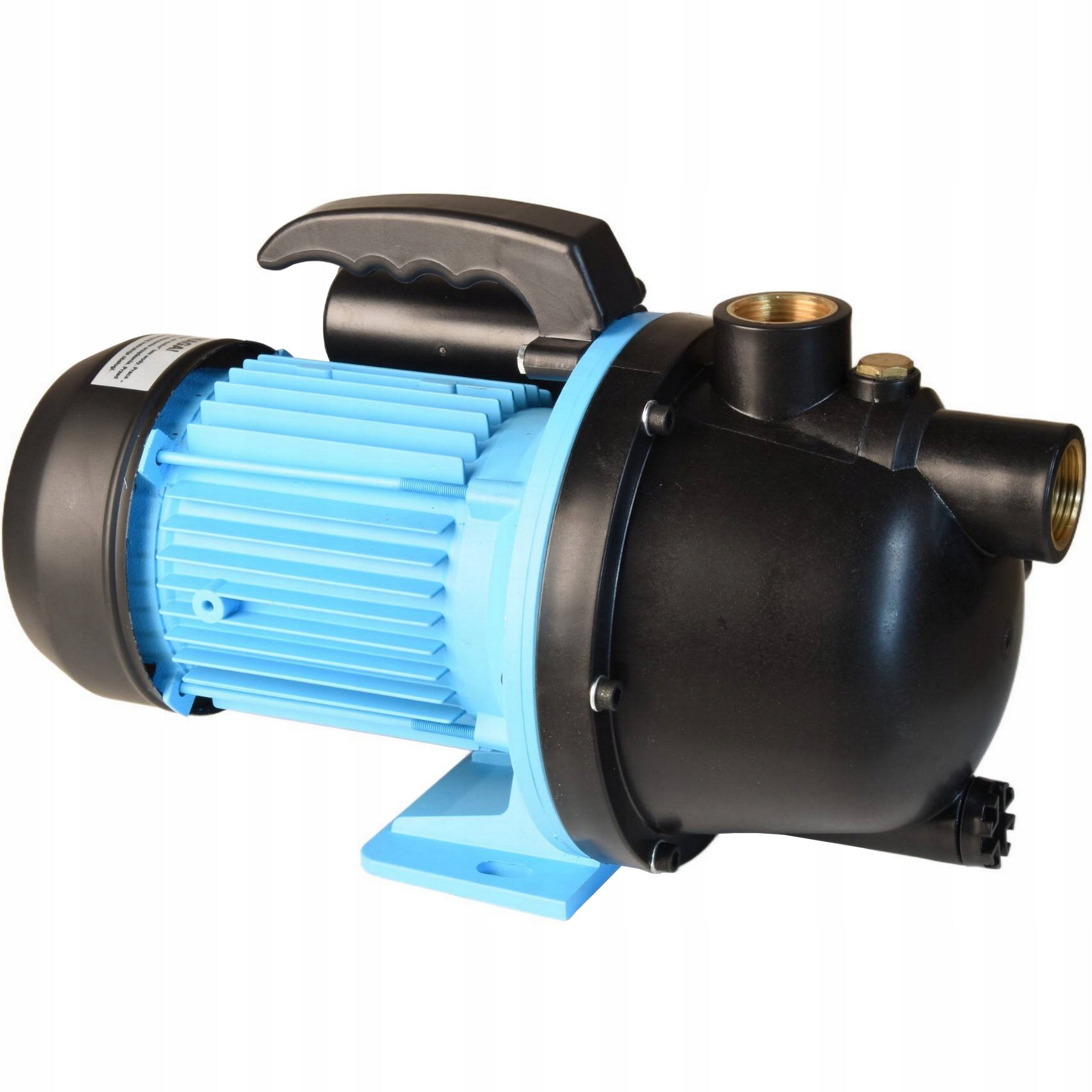

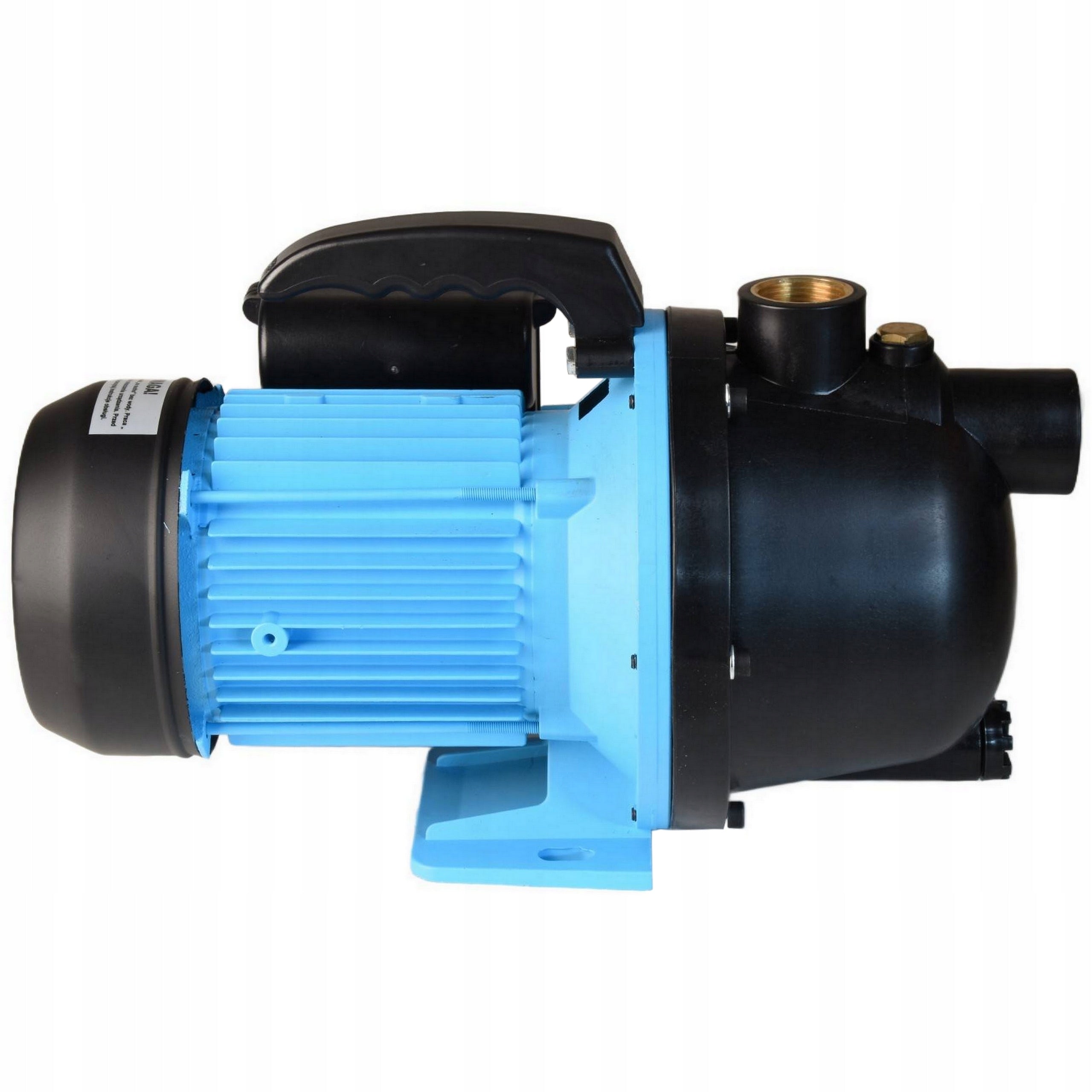

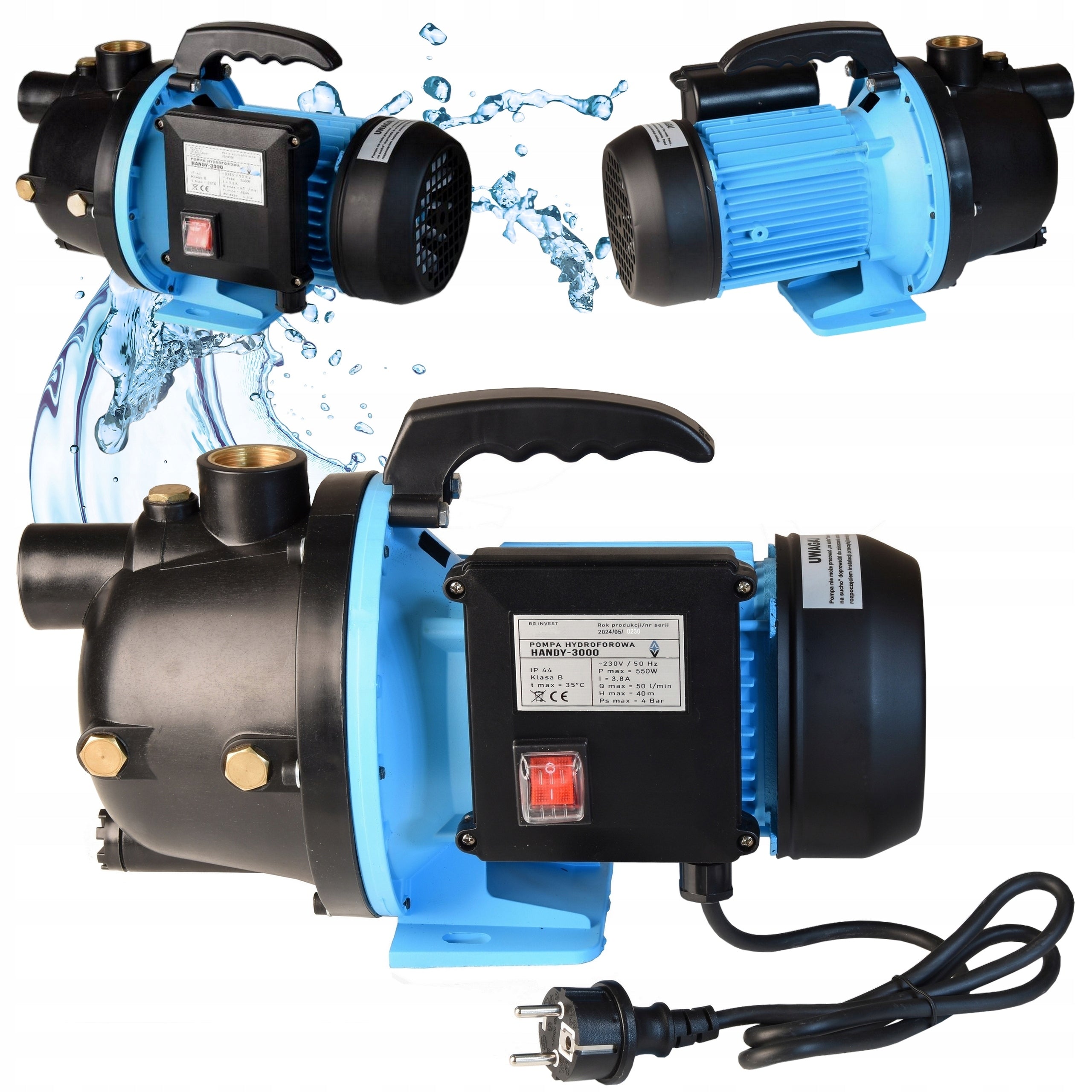

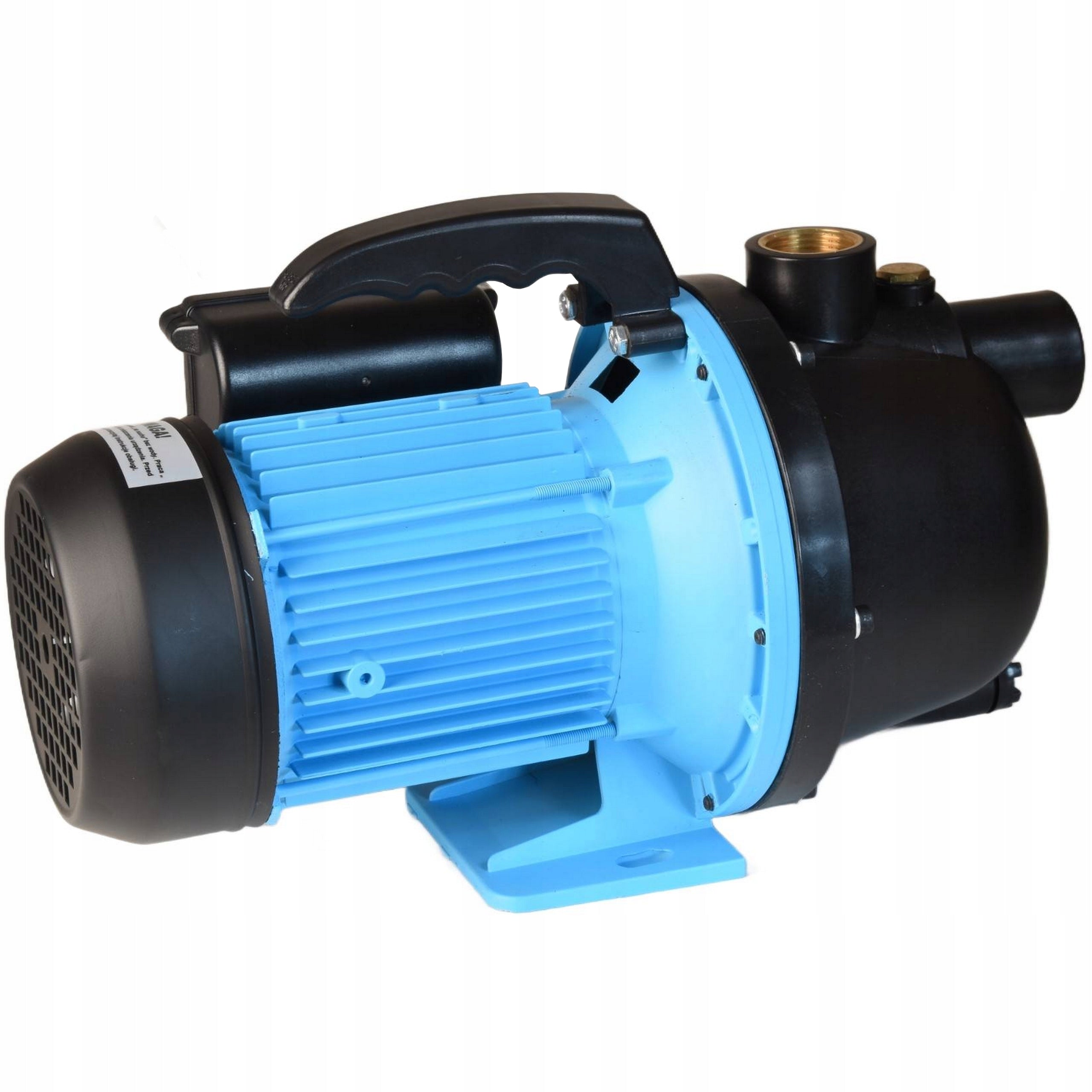

Vandens siurblys HANDY, 3000 l/val., 550 W, laistymui

Trumpai apie prekę

Prekė: Vandens siurblys HANDY, 3000 l/val., 550 W, laistymui. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: BG-INVEST
• Modelis: BG-00043

Capacity: 3000l/h

Maximum pressure: 4 bar

Power: 550W

➡️ The HANDY 3000 jet pump is a device perfectly suited for everyday use in supplying water to: homes, gardens, summer houses, or plots of land.

➡️ It has been precisely designed for the efficient pumping of clean, cool water from depths up to 8 meters, which is achieved through the use of a venturi tube. The pump is also used to increase pressure in an existing water supply system.

➡️ The HANDY 3000 features compact dimensions, a switch integrated into the pump housing, and a convenient handle - making it ideal for carrying. This allows the pump to be installed in virtually any location, making it suitable for many applications. Additionally, the motor uses thermal protection to protect the pump from overheating.

➡️ The solid construction ensures the pump's exceptional durability and corrosion resistance, which in turn translates into many years of trouble-free operation.

➡️ The pump is capable of pumping water with a maximum flow rate of 3000 l/h, a power of 550 W, to a height of up to 40 m.

➡️ It can work both in traditional pressure tank systems and with electronic controllers, replacing pressure tank systems.

➡ Max capacity (l/min): 50

➡ Max capacity (m3/h): 3

➡ Lifting height (m): 40

➡ Suction capacity (m): 8

➡ Engine power (W): 550

➡ Engine power (kW): 0,55

➡ Power supply (V): 230

➡ Stub Size(inches): 1 x 1

➡ Maximum water temperature: 35°C

➡ Maximum ambient temperature: 40°C

➡ Insulation class: B

➡ Operating mode: continuous

➡ Degree of protection: IP 44

➡ Engine speed: 2850 rpm

➡ Pump body: technopolymer/stainless steel AISI 304

➡ Pump shaft: Stainless steel AISI 304

➡ Rotor: Stainless steel AISI 304

➡ Impeller: noryl

➡ Mechanical angina: ceramic/graphite/NBR

➡ Diffuser/Driver: noryl

➡ Console: polypropylene/aluminium

➡ Engine housing: aluminium

➡ Interwall: polypropylene/aluminium

Here are the key features of the pump:

• ✅Water intake capacity:

The pump can draw water from a depth of up to 8 meters.

• ✅Compact design and built-in handle:

The pump is compact in size and comfortable in handle, making it easy to carry and adapt to different spaces.

• ✅ On/off switch on pump housing:

The pump features a switch integrated into the housing, making it easy to turn the pump on/off without having to disconnect it from the power source.

• ✅ Thermal safety:

Special thermal protection built into the motor winding was used, protecting against possible overheating.

• ✅ Cooperation with different tank capacities:

The pump can effectively cooperate with tanks of different capacities, including 24, 50, 80, 100 and 150 liters.

• ✅ Compatible with hydrophore machines:

Adapted to work with hydrophore machines, such as PC, CSK, SK, BRIO, available in other offers on our auctions. In addition, it has the ability to work even without the need for an additional tank.

• ✅ Maximum liquid temperature:

The pump is suitable for pumping liquids with a temperature not exceeding 35°C.

• ✅ Maximum ambient temperature:

It can operate in ambient conditions where the temperature does not exceed 40°C.

• ✅ Insulation class:

It has a Class B insulation, which means it is resistant to specific temperature levels.

• ✅ Operating mode:

It is designed for continuous operation, which means it can run continuously for extended periods of time.

• ✅ Safety:

It has a protection class of IP44, which means that it is protected against access by solids with a diameter of more than 1 mm and against the influence of drip water from any direction.

• ✅Engine speed:

The motor rotates at 2850 revolutions per minute (RPM).

• HANDY 3000 hydrophore pump
• Power cable with plug
• Warranty card
• User manual
• Original packaging

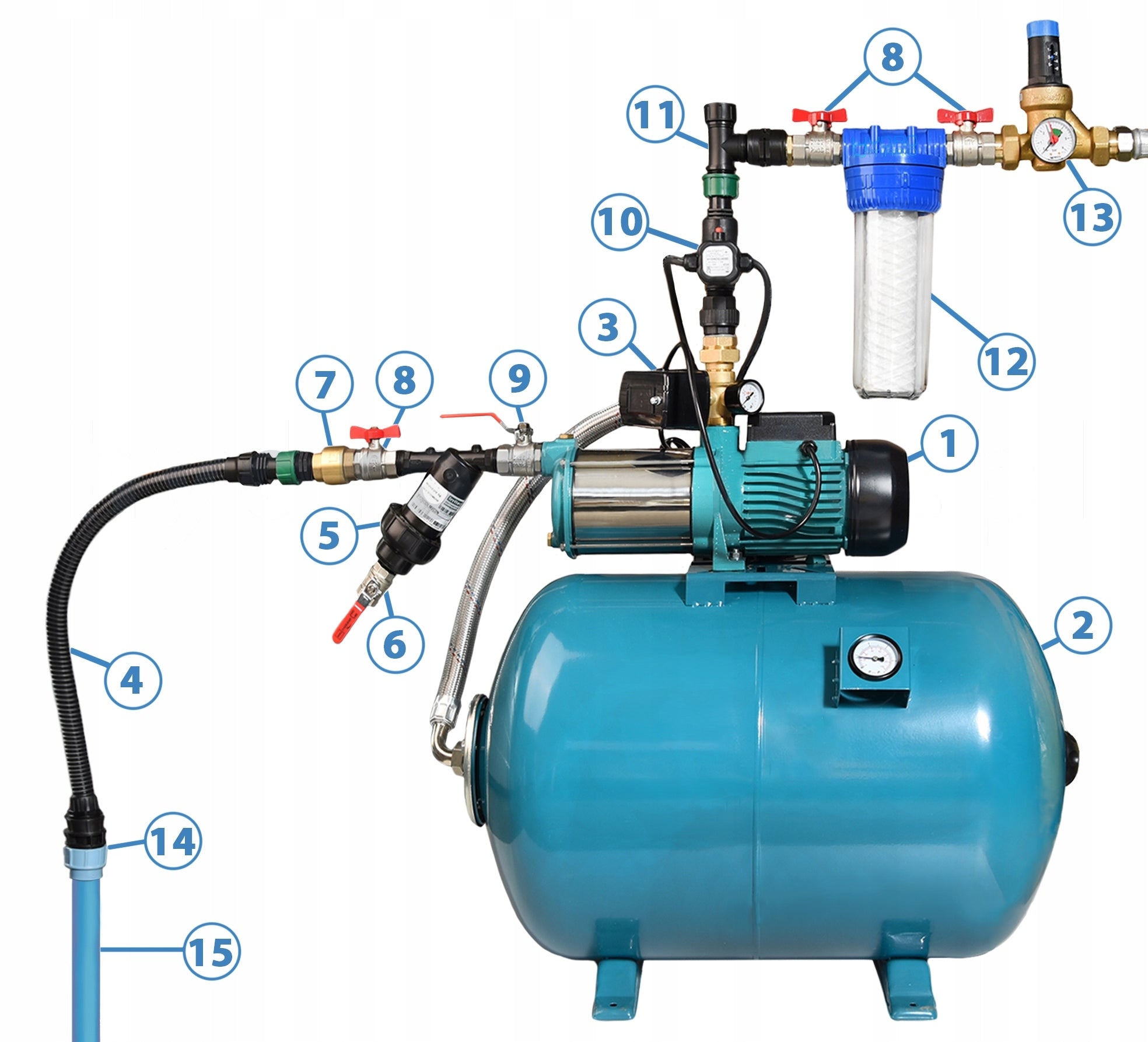

Example of a hydrophore kit connection scheme

1. Hydrophore pump
2. Diaphragm tank
3. Pump accessories with pressure switch
4. Suction tube
5. Anti-sand filter
6. Anti-sand filter valve
7. Check valve
8. Butterfly Nipple Ball Valve
9. Nipple ball valve with handle
10. Protection against dry running
11. Flood tee
12. Flow water filter
13. Pressure regulator with pressure gauge
14. PE coupling
15. PE pipe
