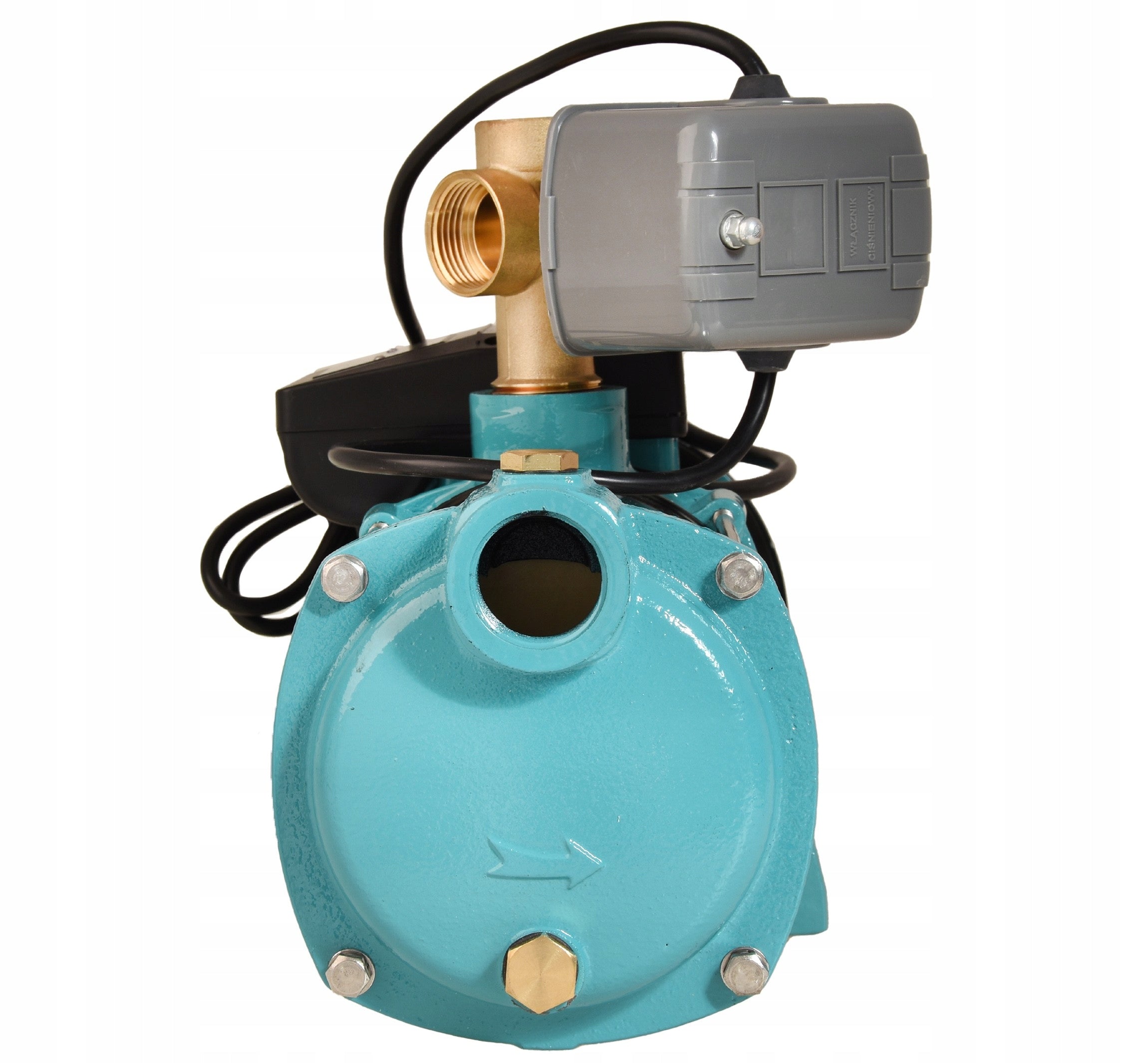

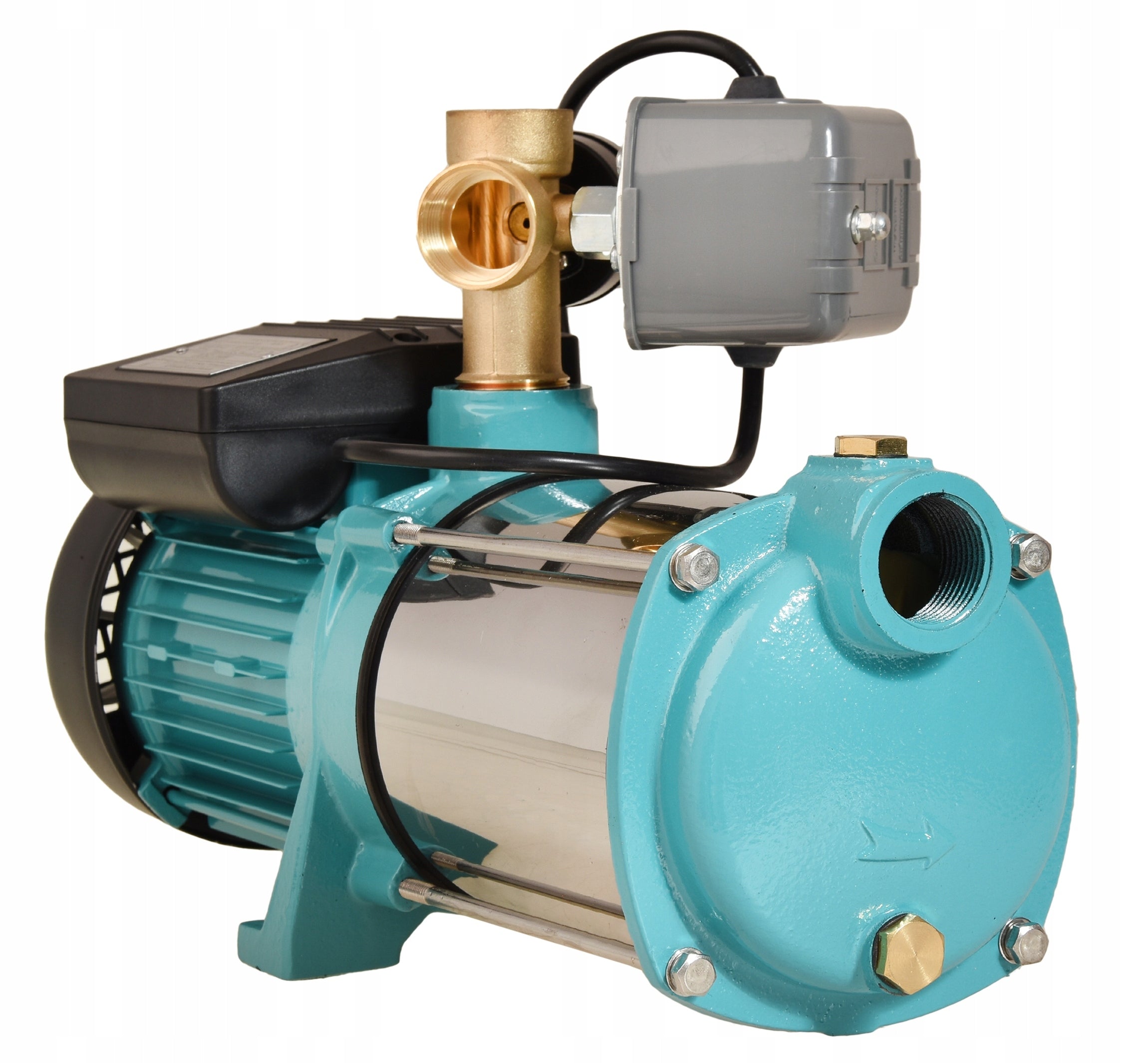

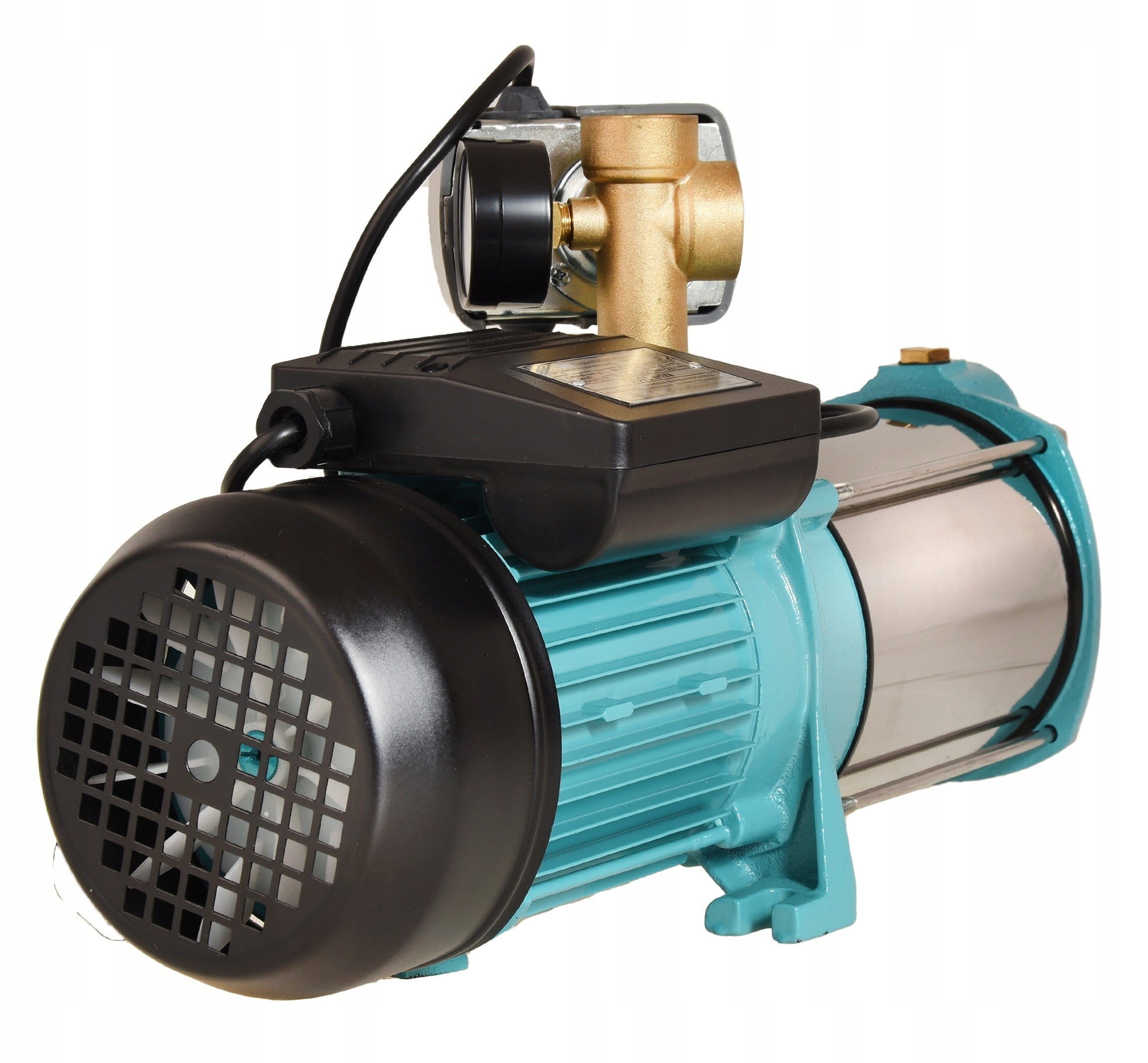

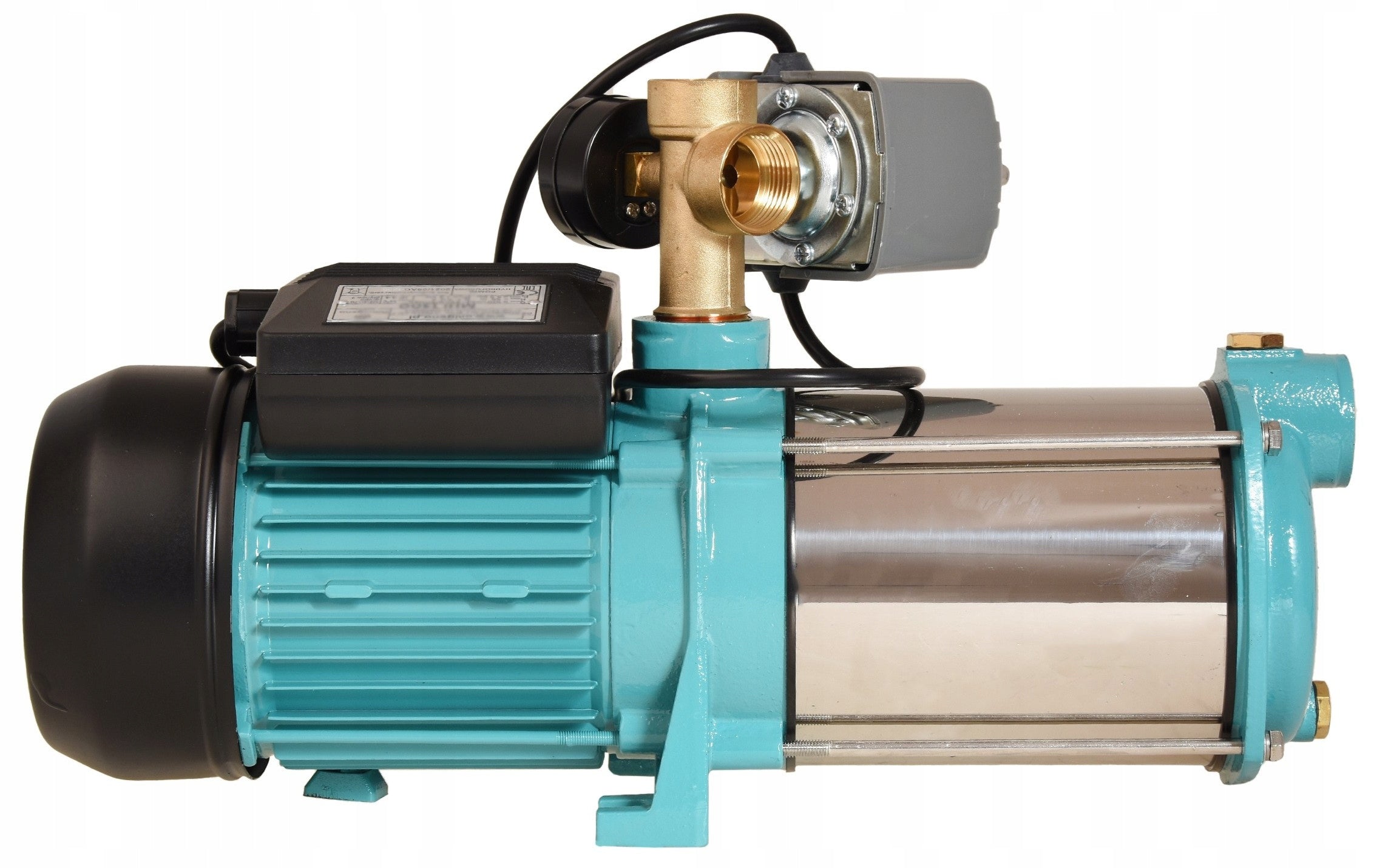

Vandens siurblys hidroforui OMNIGENA MHI 1300 su priedais, našumas 6000 l/val.

Trumpai apie prekę

Prekė: Vandens siurblys hidroforui OMNIGENA MHI 1300 su priedais, našumas 6000 l/val.. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: Omnigena
• Modelis: Pompa MHI 1300 INOX z osprzętem

❤ The auction is for ❤

✅ HYDROPHORE PUMP MHI 1300 OMNIGENA WITH ACCESSORIES

➡ Performance: 6000 l/h

➡ Maximum pressure: 5,5 bar

⚡ Power: 1300 W ⚡

✅ MHI 1300 Omnigena hydrophore pump – robust and efficient

MHI 1300 by Omnigena is a high-quality multi-stage surface pump designed for pumping clean, cold water. With a powerful 1300W motor, it ensures efficient and trouble-free operation in various conditions. The stainless steel housing ensures durability and resistance to corrosion.

🌿 Application of MHI 1300 pump:

✅ Single-family houses – for supplying water supply (included with hydrophore)

✅ Gardens and plots – for watering the lawn, plants, greenhouses

✅ Agriculture and horticulture – for irrigation systems

✅ Spinal wells and tanks – for water intake from intakes

✅ Pressure boosting – in domestic water installations The pump is ideal for people who value reliability, durability and high efficiency.

🔧 Technical data:

➡ Model: MHI 1300

➡ Producer: Omnigena

➡ Engine power: 1300 W

➡ Power supply: 230V~50Hz

➡ Maximum capacity: 100 l/min

➡ Maximum capacity: 6000 l/h

➡ Lifting height: up to 55 m = 5,5 BARA

➡ Suction capacity: up to 8 m

➡ Suction/piston nozzle diameter: 1 inch

➡ Housing material: cast iron / stainless steel

➡ Number of rotors: 5 pcs.

➡ Impellers: Noryl

⏲ Pressure gauge for hydrophore pump | 1/4" thread

A hydrophore pressure gauge is an essential component of a water system with a pump or hydrophore. It enables constant control of pressure in the system, which is crucial for the proper operation of the entire system.

The device is characterized by a clear dial, clear graduation and a solid housing, resistant to typical conditions prevailing in water installations (moisture, vibration). The pressure gauge features a standard 1/4 inch thread, making it easy to install in most pumps and tanks on the market.

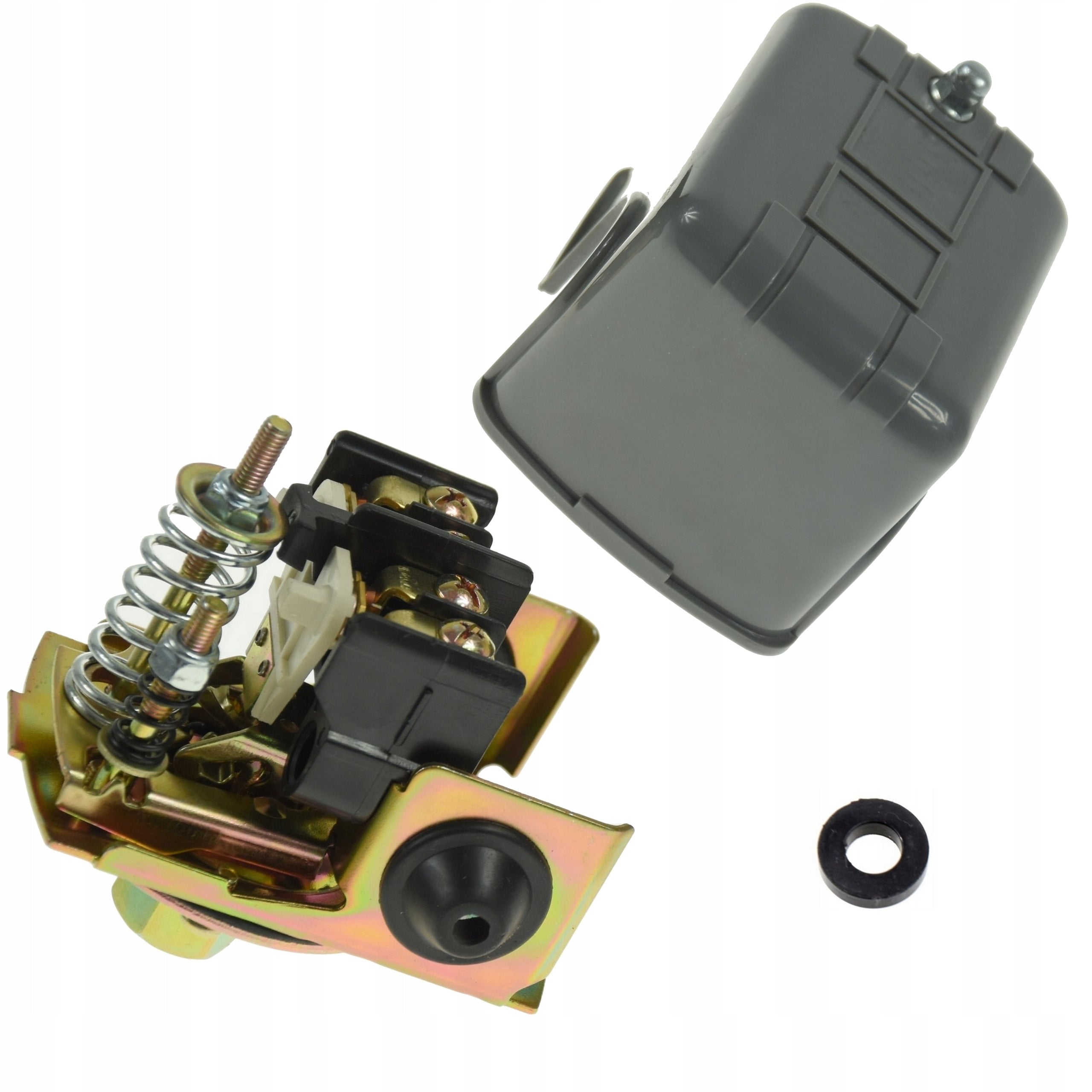

⚡ Pressure switch for hydrophore pump | Pressure switch | 1/4" movable thread

A pressure switch, also known as a pressure switch, is a key control element in automatic hydrophore sets. It is responsible for turning the pump on and off depending on the pressure in the system, which allows you to maintain a constant pressure in the system and save energy.

The device is factory set to the working range:

• Turning on the pump at a pressure of approx. 1.4 bar
• Turning off the pump at approx. 2.8 bar

The range can be adjusted according to the needs of the system.

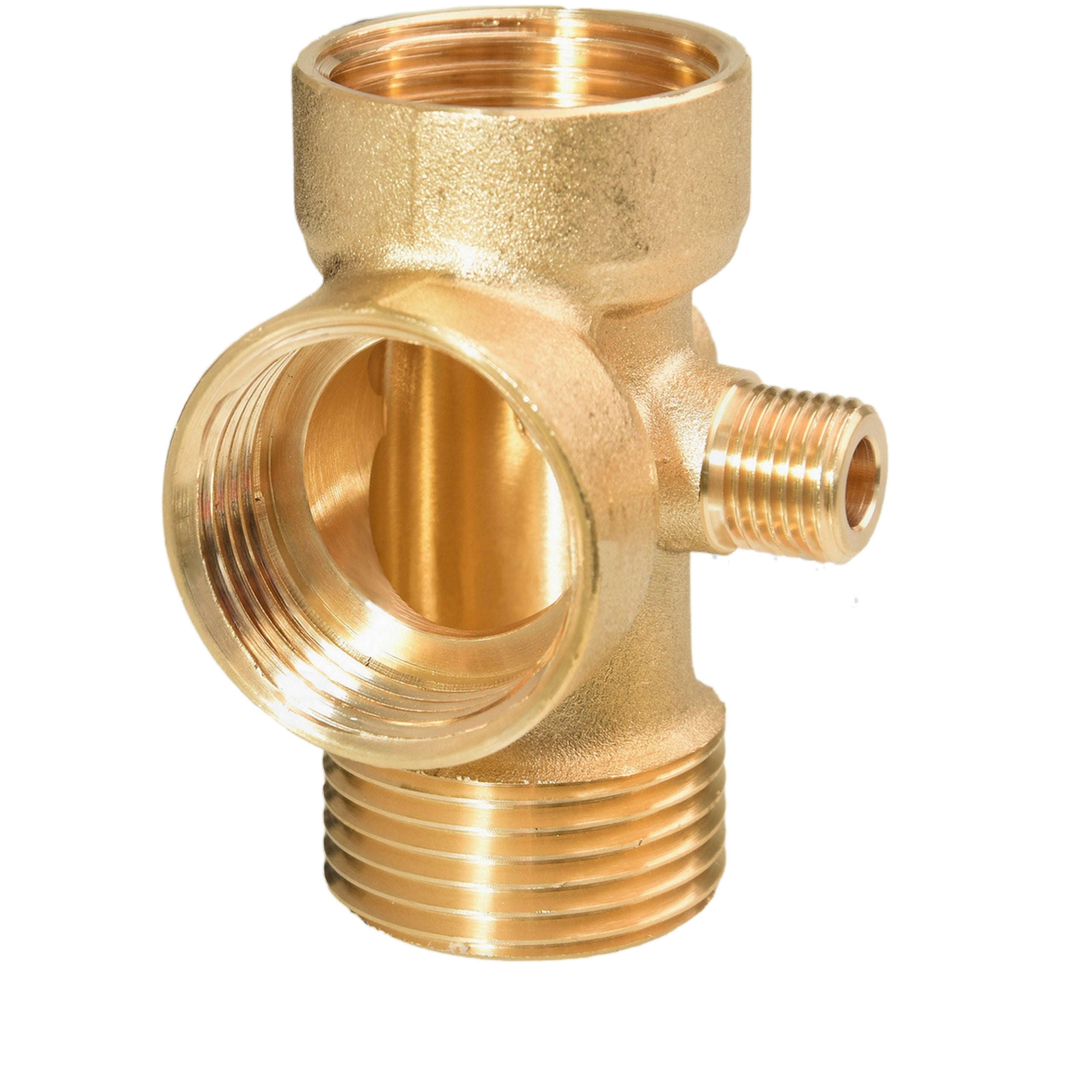

🔧 Five-way discharge output for hydrophore pump | 1" thread

The five-way discharge output is an essential component in hydrophore installations that allows for easy and functional connection of several components of the water system to a pump or tank. Made of durable brass, it guarantees durability and tightness of connections.

With five connections in one body, you can connect m.in quickly and conveniently.:

manometer,

pressure switch (presostat),

Snake,

exit to the installation,

and additional accessories.

🔌 Power cord with 230V plug | Length 150 cm | 3-wire

Cable with plug 150 cm is a ready-to-use solution for connecting hydrophore pumps, garden equipment, power tools and other equipment requiring 230V power supply. Equipped with a standard EU plug and three conductors with grounding, it ensures safety and convenience of use.

⭐Included⭐

✅ MHI 1300 hydrophore pump OMNIGENA

✅ Pressure Gauge

✅ Pressure switch

✅ Brass Piston Output

✅ Power cable with plug

✅ User Manual

* self-assembly elements

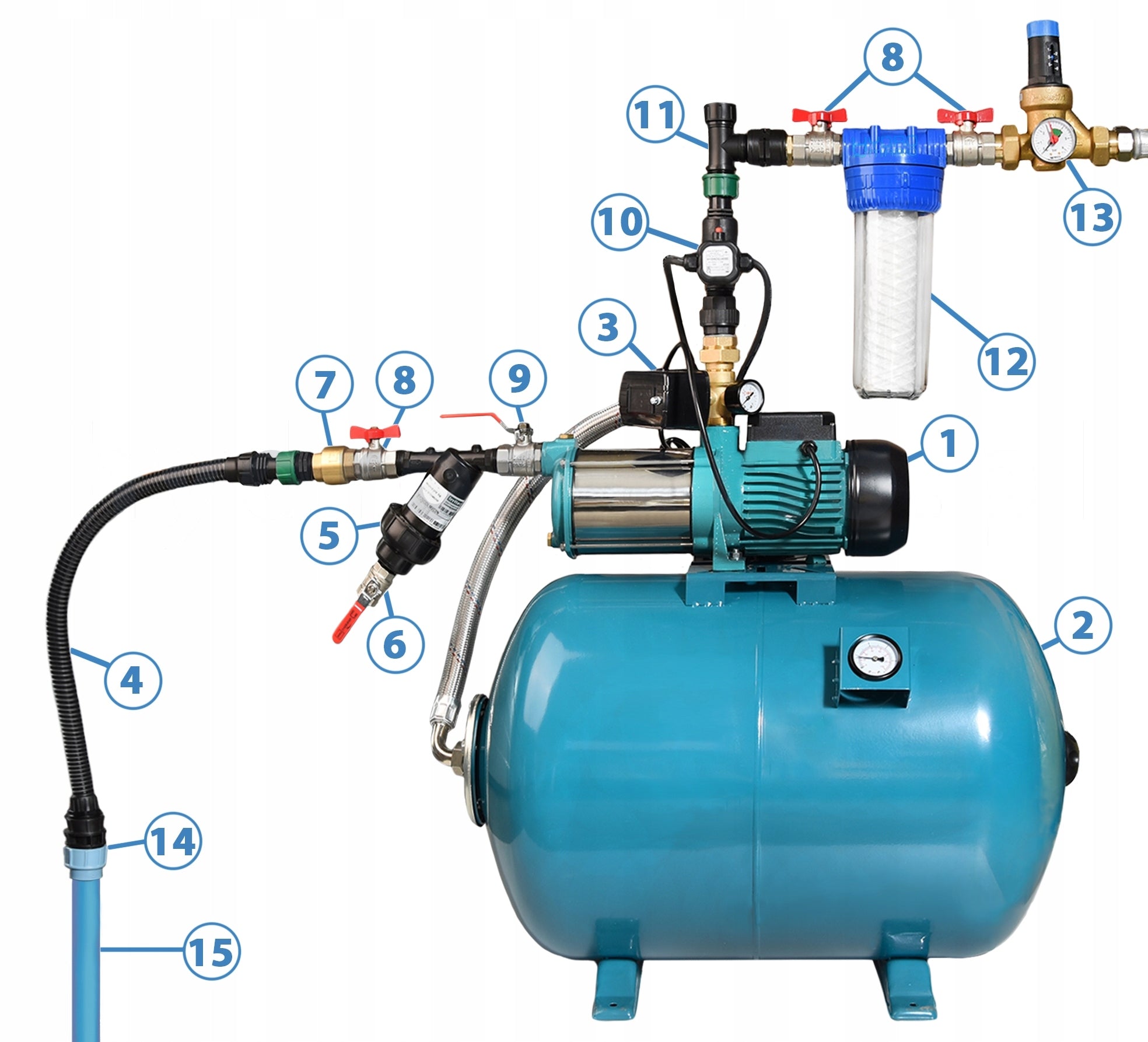

⭐ Sample diagram of connection of hydrophore set⭐

1. Hydrophore pump
2. Diaphragm tank
3. Pump accessories with pressure switch
4. Suction tube
5. Anti-sand filter
6. Anti-sand filter valve
7. Check valve
8. Butterfly Nipple Ball Valve
9. Nipple ball valve with handle
10. Protection against dry running
11. Flood tee
12. Flow water filter
13. Pressure regulator with pressure gauge
14. PE coupling
15. PE pipe
