Vandens siurblys HYDROPHORE, 1100W, 3600 l/val., laistymui

Trumpai apie prekę

Prekė: Vandens siurblys HYDROPHORE, 1100W, 3600 l/val., laistymui. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: BG-INVEST
• Modelis: BG-00005

✅ HYDROPHORE PUMP WITH INOX BODY

➡ Capacity: 3600 l/h

➡ Maximum pressure: 5 bar

⚡ Power: 1100 W ⚡

JX 1100 hydrophore pump is a device used to supply houses, farms, garden irrigation or small enterprises w water.

➡ Thanks to its efficiency and reliability, the pump is able to handle even the most demanding tasks. An additional advantage is quiet operation and small weight pump.

➡ The device generates significant pressure (up to 5 bar), which translates into a long stream of water, e.g. with a garden hose, which is helpful for garden work or washing the vehicle.

➡ The pump is characterized by high quality and ease of use, providing irreplaceable support in everyday needs related to access to clean water.

➡ Max capacity (l/min): 60

➡ Max capacity (m3/h): 3,6

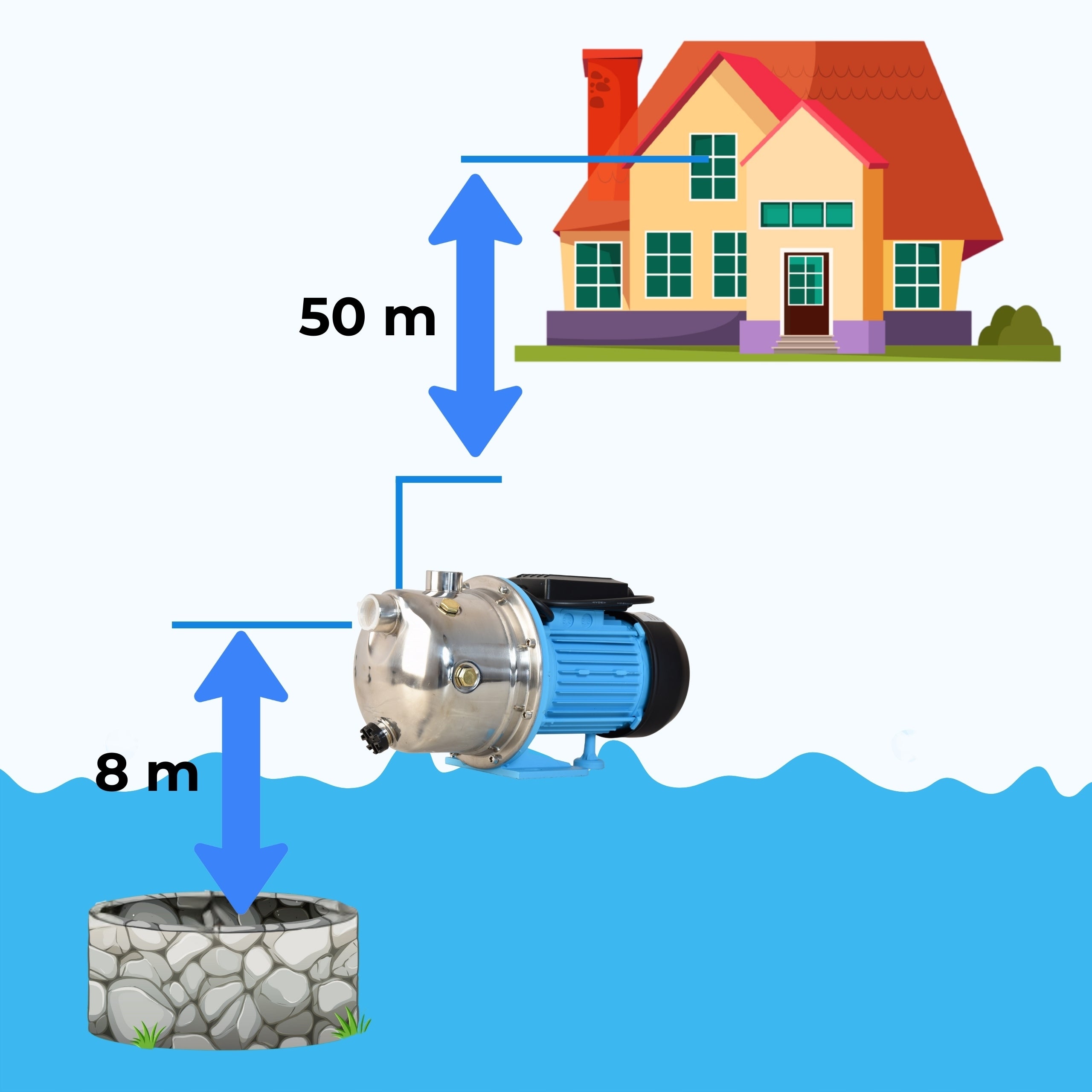

➡ Lifting height (m): 48

➡ Suction capacity (m): 8

➡ Engine power (W): 1000

➡ Engine power (kW): 1

➡ Power supply (V): 230

➡ Stub size(inches): 1 x 1

➡ Maximum water temperature: 35°C

➡ Maximum ambient temperature: 40°C

➡ Insulation class: B

➡ Operating mode: continuous

➡ Degree of protection: IP 44

➡ Engine speed: 2850 rpm

✅ MATERIALS

• Pump body: Stainless steel AISI 304
• Pump shaft: Stainless steel AISI 304
• Rotor: Stainless steel AISI 304
• Impeller: noryl
• Mechanical angina: ceramics/graphite/NBR
• Console: aluminium
• Engine housing: aluminium
• Interceded: Stainless steel AISI 304
• Diffuser/Driver: noryl

The hydrophore pump with the described parameters will find application in various fields, ensuring efficient pumping of water in various conditions.

➡ Households: Providing water to your home from your own water intake or well. Increasing water pressure in domestic installations, which improves the efficiency of showers, taps, etc. Sprinkling the garden and watering the plants.

➡ Gardens and Horticultural Industry: Irrigation of green areas and crops. Operation of irrigation systems.

➡ Industry: Use in production processes where water pumping with specific pressure is required. Supporting cooling systems in industry.

➡ Outdoor Water Work: Washing your car with a jet of pressurized water. Cleaning driveways, terraces, sidewalks.

➡ Agriculture: Irrigation of fields and crops. Operation of irrigation systems.

➡ Pressure boosting: Use for pressure lifting in water supply systems.

✅1100W hydrophore pump

✅Power cable with plug

✅Warranty card

✅Instructions for use

✅Original packaging

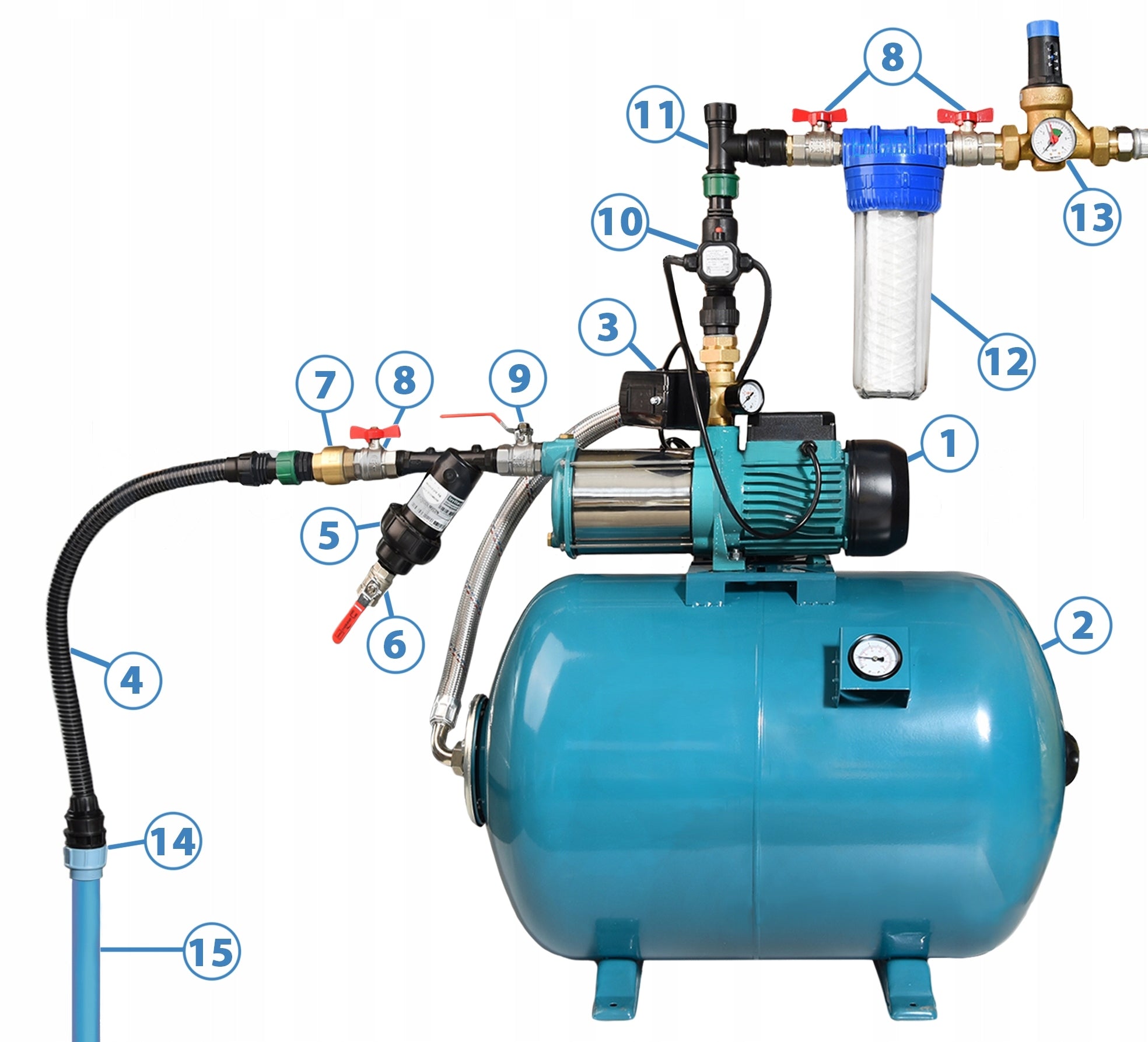

Example of a hydrophore kit connection scheme

1. Hydrophore pump
2. Diaphragm tank
3. Pump accessories with pressure switch
4. Suction tube
5. Anti-sand filter
6. Anti-sand filter valve
7. Check valve
8. Butterfly Nipple Ball Valve
9. Nipple ball valve with handle
10. Protection against dry running
11. Flood tee
12. Flow water filter
13. Pressure regulator with pressure gauge
14. PE coupling
15. PE pipe

Specifications
