Vandens siurblys P3000+ nuotekoms, ketaus korpusas, smulkintuvas

Trumpai apie prekę

Prekė: Vandens siurblys P3000+ nuotekoms, ketaus korpusas, smulkintuvas. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: DAMEX
• Modelis: P3000+

The production costs of our pump are slightly higher than the competitors, this is due to the fact that we have successively removed the ills of this type of pumps.

This translates into reliability, and durability of the product, current models have zero failure rate

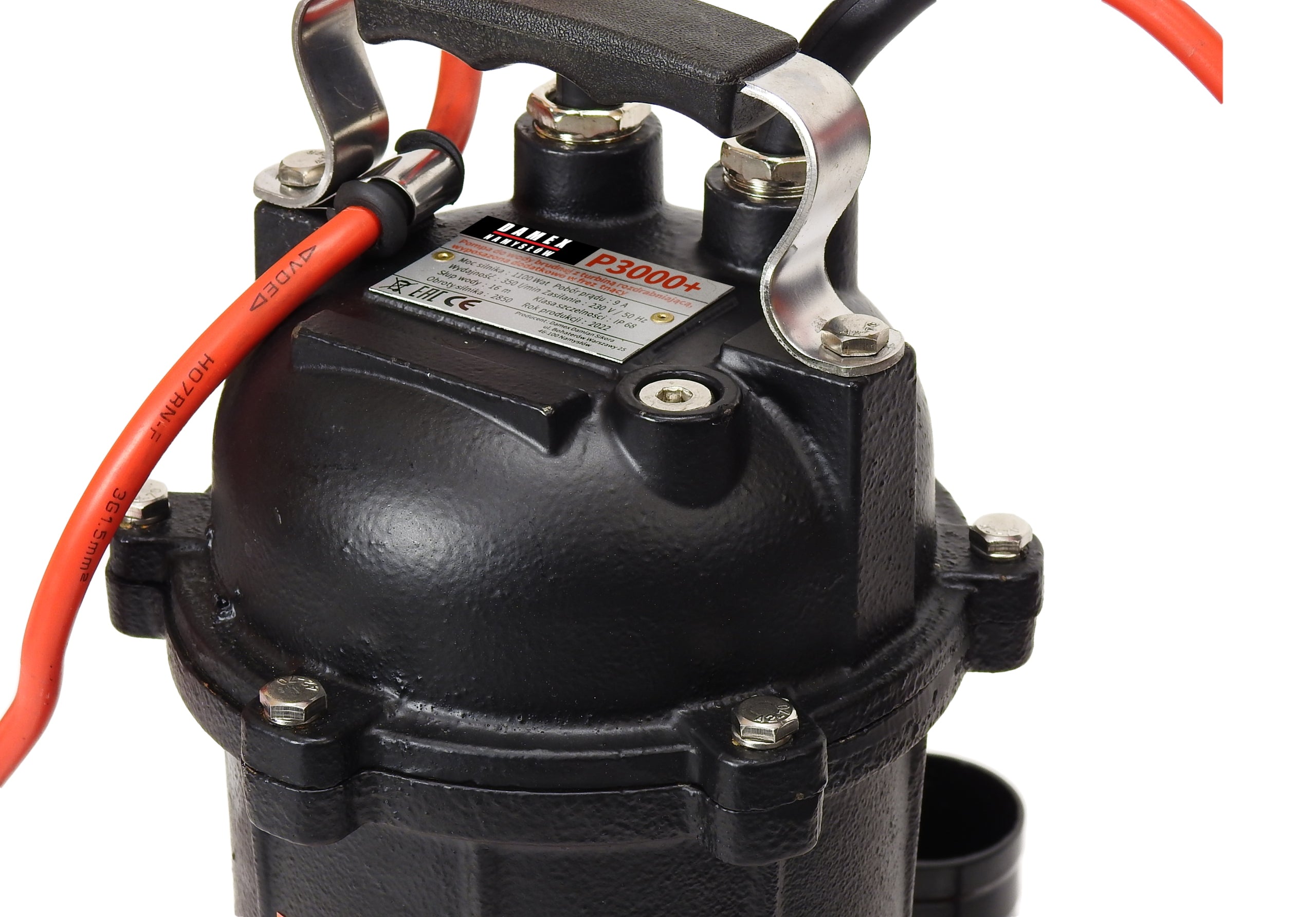

• Construction 100% CAST IRON (rough texture), standard is aluminum (smooth texture)
• Red element made of reinforced ductile cast iron, standard ordinary brittle cast iron cracking in transport
• Enlarged turbine 116mm, standard diameter is 98mm
• Enlarged stator and motor rotor up to 70mm, standard is 50mm
• Winding 100% copper, standard is copper-plated aluminum
• Metal tips, standard are plastic cracking
• Dual thermal sensor, standard is only one
• Extended power cord made of soft rubber up to 10 meters, standard is 7 meters made of hard pvc
• Enlarged cross section of power cord 1mm, standard is 0,37mm
• Bearings and sealants from C&U

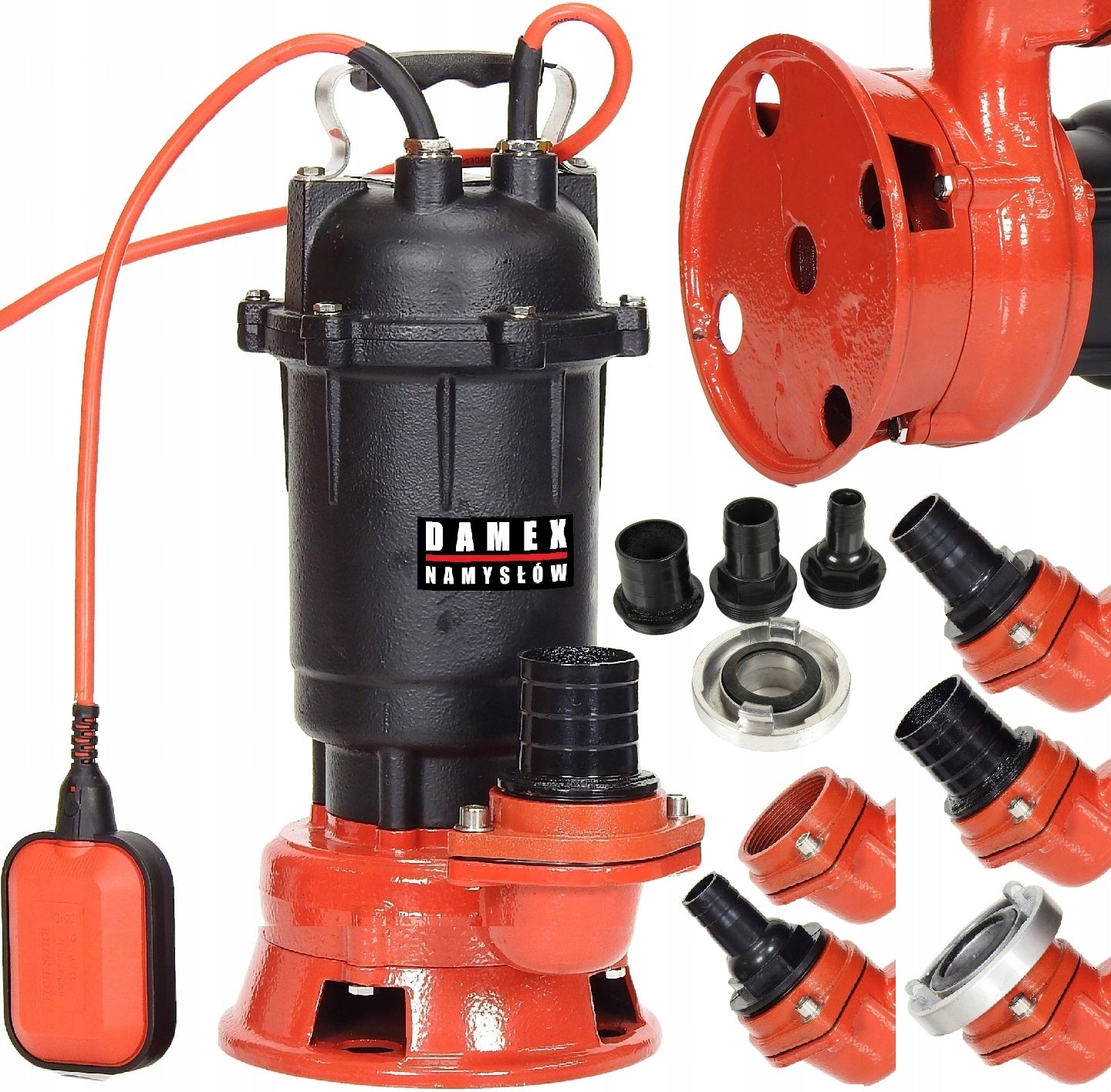

Submersible pump DAMEX NAMYSŁÓW P3000+ with TURBINE shredder for wastewater, septic tank, sludge and clean water.

DAMEX NAMYSŁÓW P3000+ with TURBINE chopper "VORTEX" is a pump powered by a single-phase motor (230V). Operation of the engine with a power of 750W (equivalent to a Chinese pump with a power of 5000 W) allows you to raise water to a height of 12 m, or a horizontal distance above 200m. The maximum capacity of the pump is 300 l/min, but it mainly depends on the length and diameter of the hoses. The pump is fully hermetic and should work fully submerged to provide the engine with the best cooling. The pump is equipped with a control float, thanks to which there is no risk of dry operation (the float falls down and turns off the device after completion of work). The pump has been adapted to work with flexible hoses, rigid hoses and fire hoses thanks to the appropriate ends of nozzles with a diameter of 2” (52 mm), 1,5" (38 mm), 1" (25 mm) and fire quick coupler. It is also possible to screw the piping directly into the pump outlet (2" classic thread). The pump has a iron rotor and cast iron rotor housing, which extends its service life, provides resistance to chemical corrosion and allows operation in adverse conditions. The engine compartment is sealed with a set of ceramic-graphite seals in an oil bath. This solution allows for long-lasting and intensive use without worrying about unsealing the engine. An additional equipment of the device is thermal protection mounted directly on the motor winding, which protects the motor from overheating. An undoubted advantage of the device is the low noise level during its operation, which was achieved thanks to properly selected construction materials. Plus, the pump is easy to install and use.

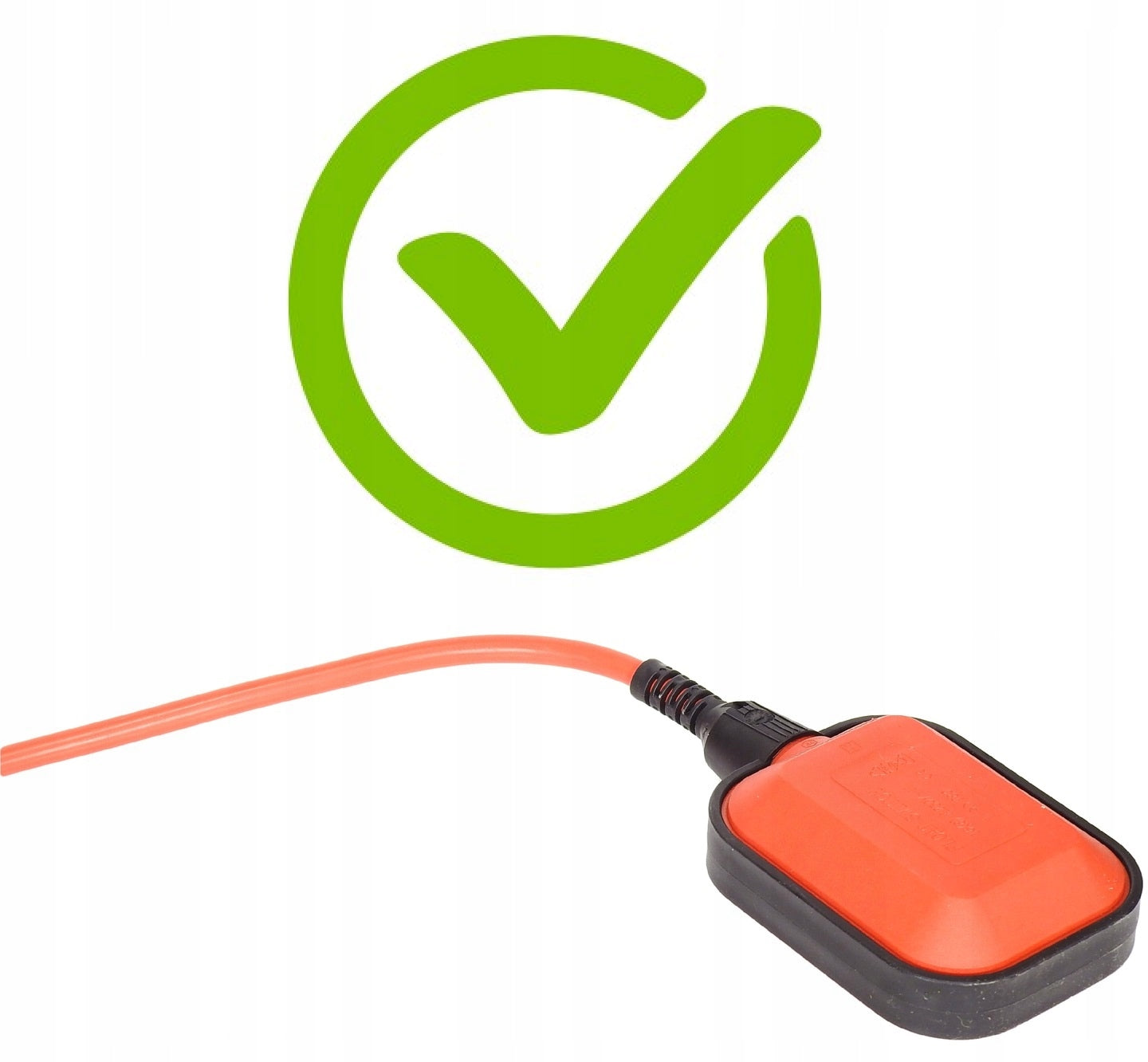

The pump works when the float is lifted up and is fully underwater. When the float falls below half the height of the pump, the pump turns off.

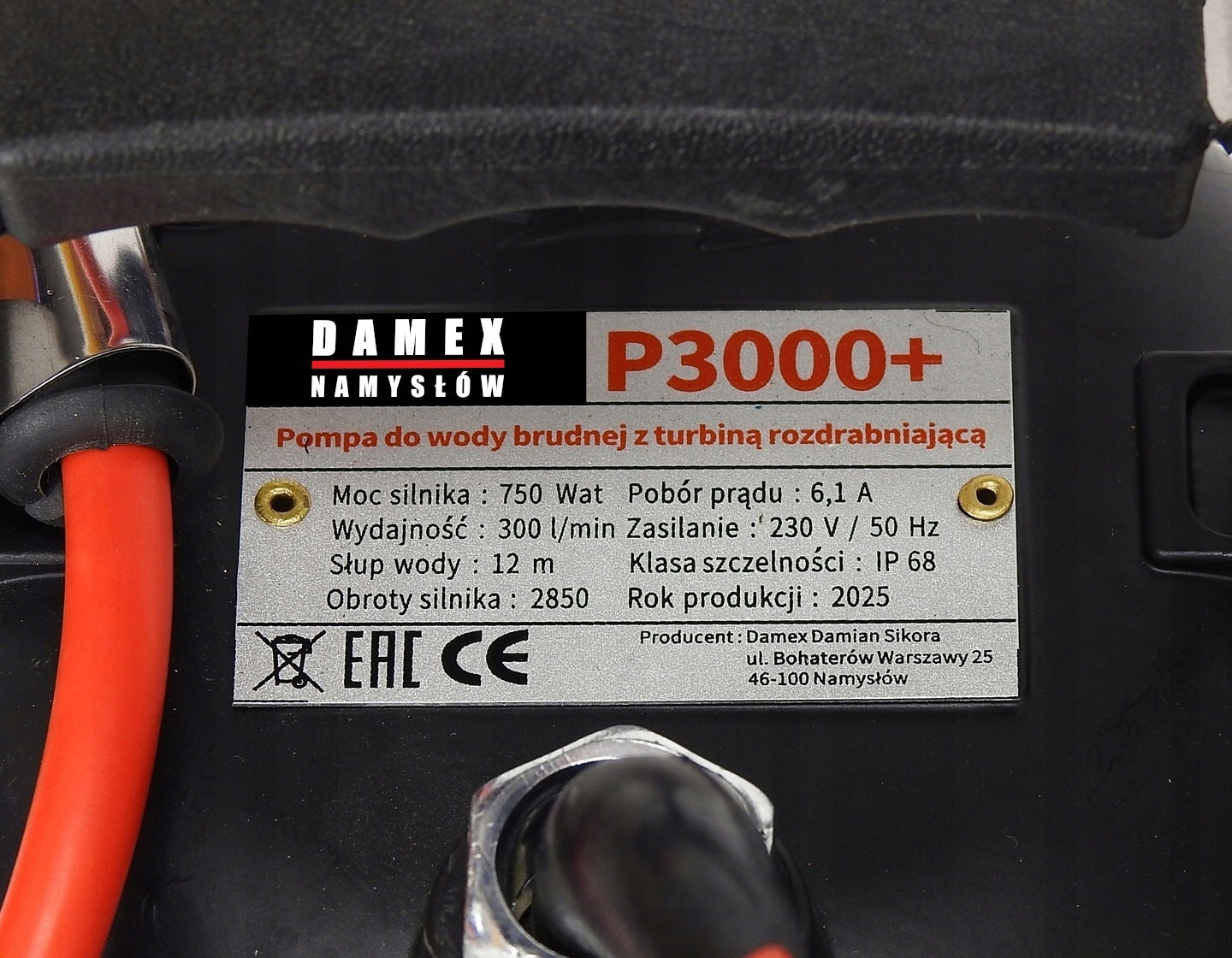

• Capacity : 300 l/min (18 000 l/h)
• Water lifting : 12 m (water stops at this height in the hose, the recommended maximum pumping height is half of this value )
• Pressure : 1,2 BAR
• Horizontal pumping distance : above 200 m
• Maximum immersion : 10m
• Rated Power: 750 W (equivalent to a Chinese 5000 W pump)
• Current Consumption: 6,1 A
• Engine speed : 2850 rpm
• Power supply : 230V / 50 Hz

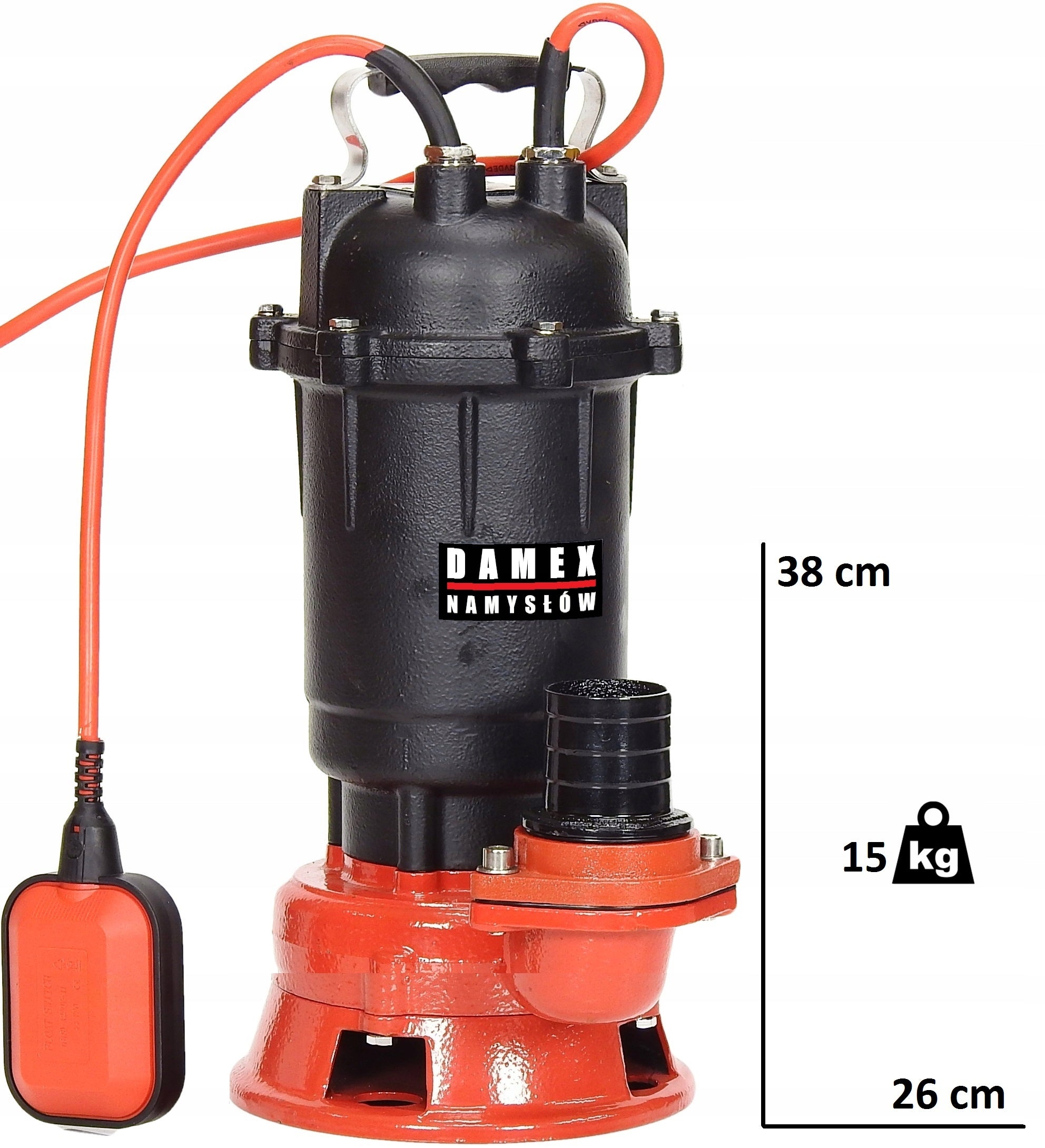

• Weight: 15 kg
• Diameter at widest point with stub: 26 cm
• Height: 38 cm
• Cable Length: 10m
• Wire Thickness: 3 x 1mm

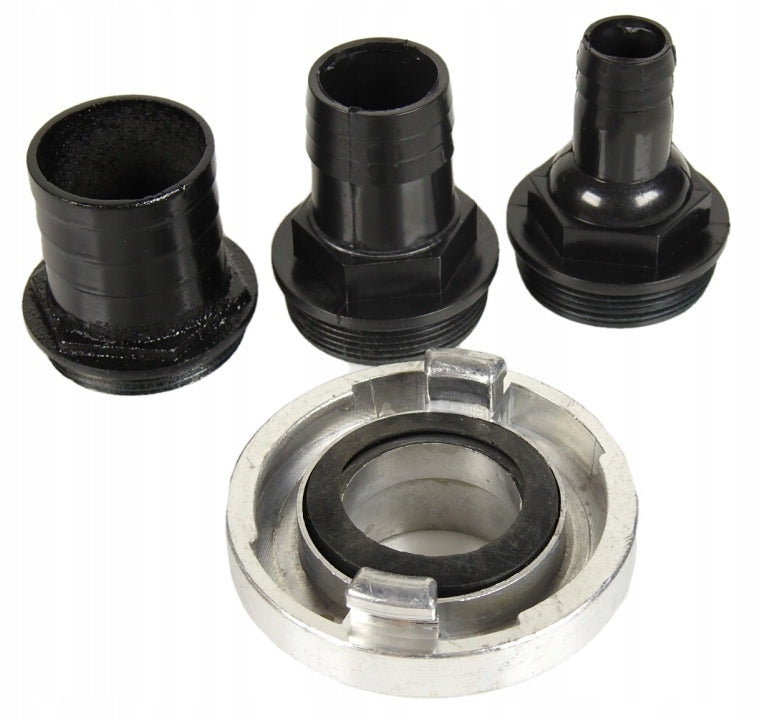

• Outlet connectors : 1"(25mm) , 1,5"(38mm) , 2"(52mm) fire brigade quick coupler 2", thread call. 2"

• Pump DAMEX THOUGHTS P3000+
• Firefighter Quick Coupler 2" (52mm)
• Outlet connector 2" (52mm)
• Outlet nozzle 1,5" (38mm)
• Outlet connector 1" (25mm)
• User manual
• Original GUARANTEE CARD
• Original PACKAGING
• CERTIFICATES, AND DECLARATIONS OF CONFORMITY

Cast iron is resistant to corrosion, oxidation and mechanical damage.

In addition, our pumps have a DUCTILE CAST IRON base that is impact resistant

In the cast iron housing, the engine is tightly pressed rigidly into the body. Thanks to this, very good heat dissipation from the engine is ensured.

In cheaper aluminum housings, the engine is placed on the "stand", so it does not directly touch the body and the heat dissipation is much worse.

The use of a vortex rotor (especially in the withdrawn version) allows for a large free passage of pollutants. This solution is perfect for industry and agriculture, for pumping biological wastewater, slurry and liquids containing solid parts.

Both the turbine and the engine fill all available enclosure space. These are not truncated, budgetary versions in which the turbine fills only half of the pumping chamber and the engine only half of the pump body

Copper winding guarantees long operation, without overheating the motor

plastic can break already when tightening the hose band

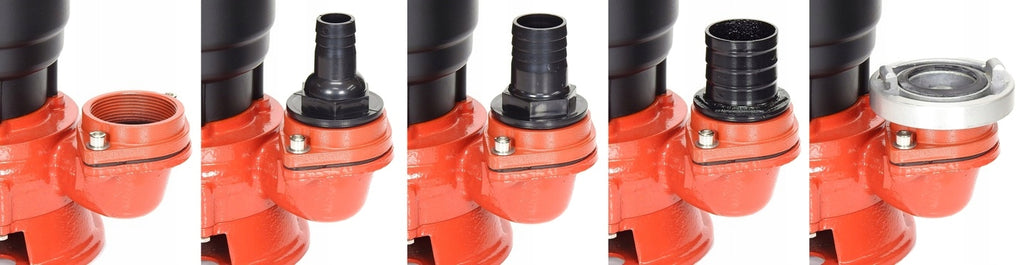

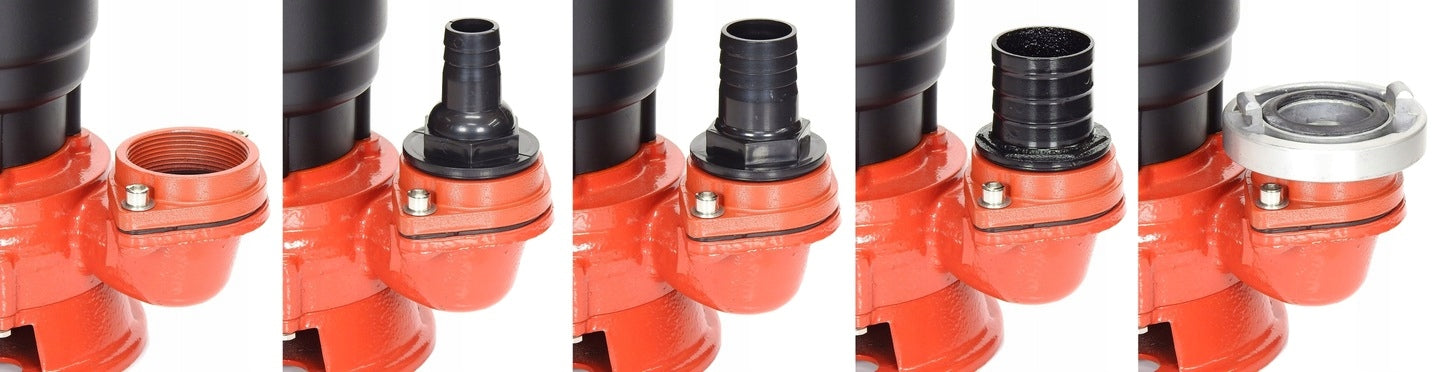

• 1"(25mm)
• 1,5"(38mm)
• 2"(52mm)
• screw-in firefighting quick coupler 2"

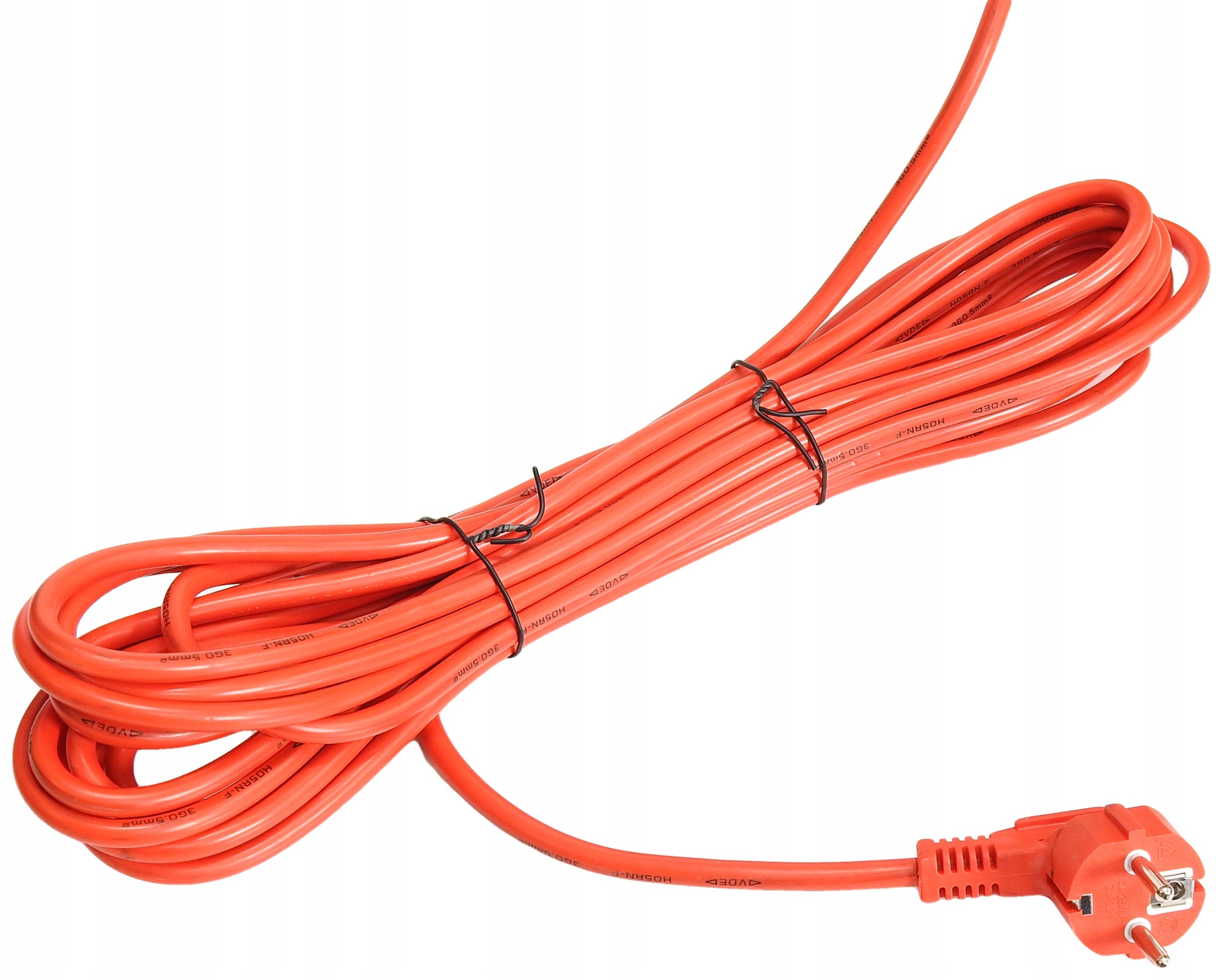

( Designation H05RN-F) flame retardant , oil resistant , low temperature resistant , UV resistant , harmonized

Specifications
