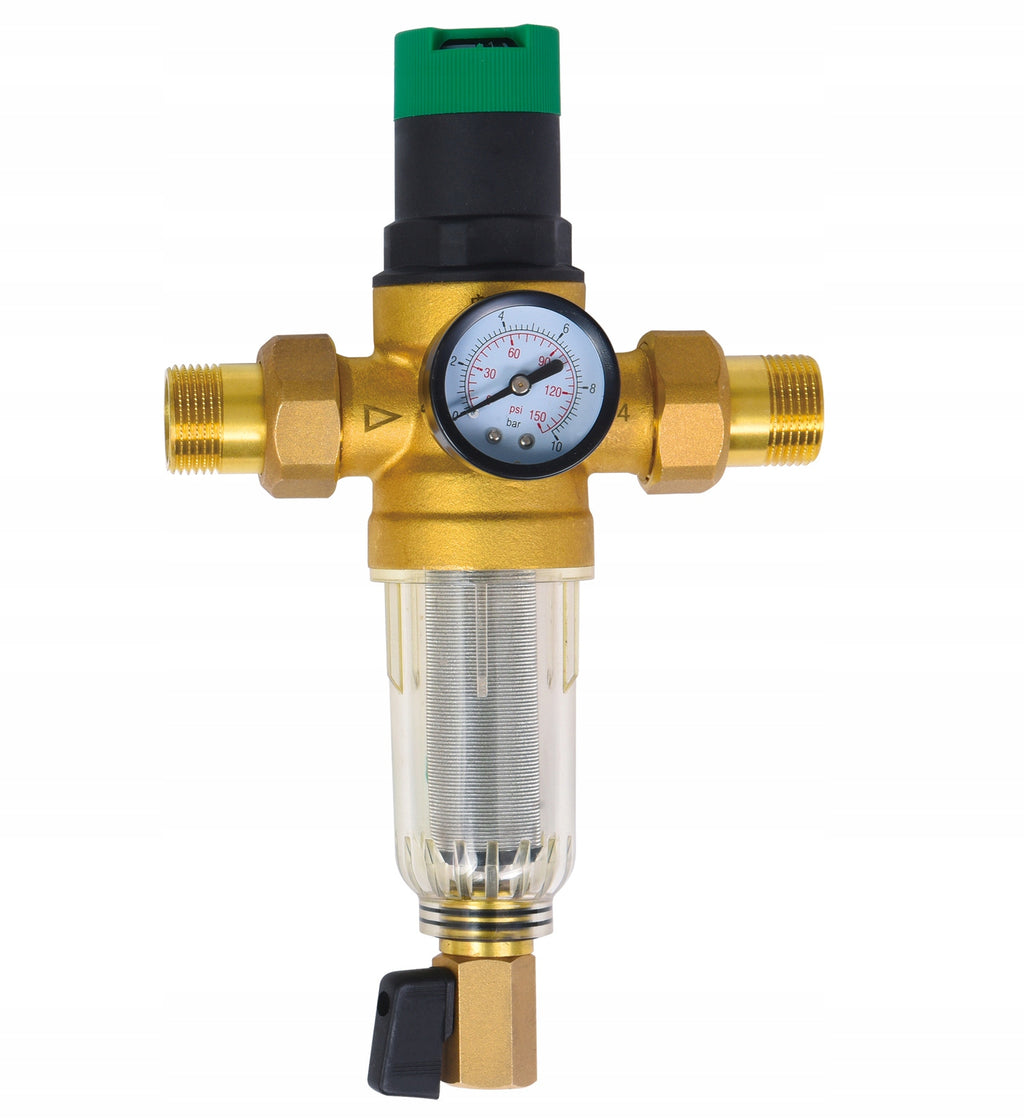

Vandens slėgio mažintuvas 1" su nerūdijančio plieno savaime išsivalančiu tinkleliu

Trumpai apie prekę

Prekė: Vandens slėgio mažintuvas 1" su nerūdijančio plieno savaime išsivalančiu tinkleliu. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: GGB
• Modelis: 1"
• Talpa: 1 l

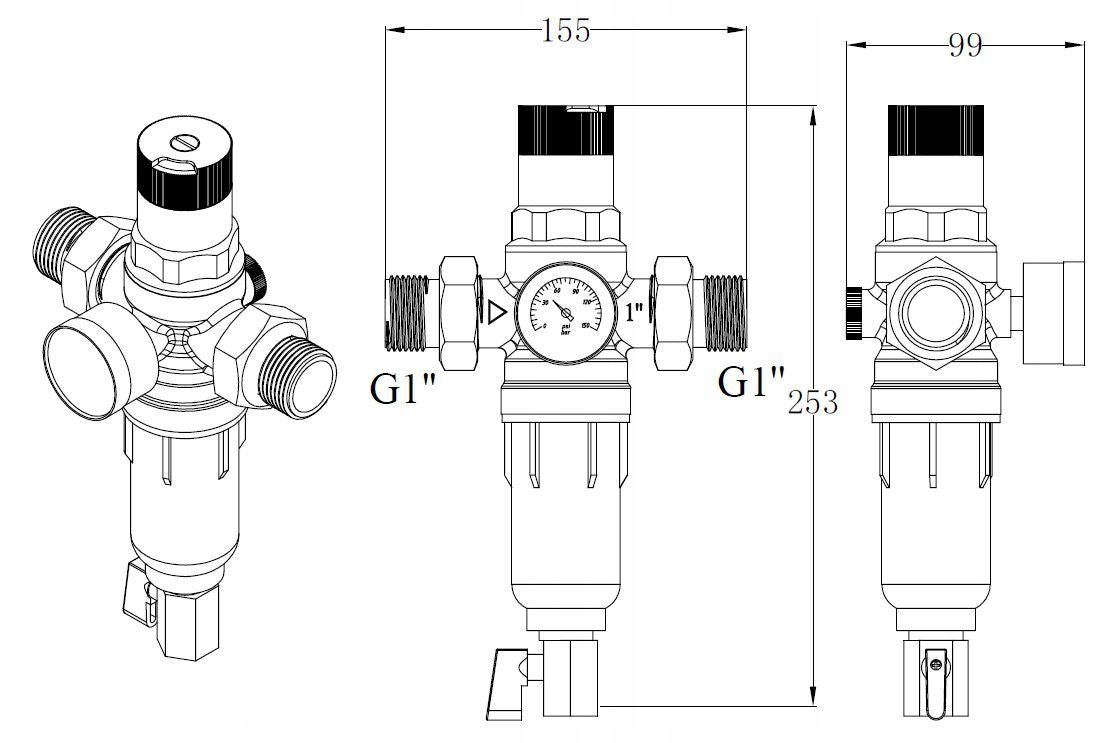

WATER PRESSURE REDUCER 1" WITH SELF-CLEANING FILTER

CHARACTERISTIC:

• material (body) - brass
• medium - water
• connections – 1" (with half-screws)
• max. input pressure - 16 bar
• Output pressure range - 1 ÷ 6 bar
• max. temperature medium - 40°C
• pressure gauge - 10 bar
• mesh filter - stainless steel
• installation - horizontal

ACTION

• Valve operation during flow

If the draw point in the installation is opened, the spring pressure force prevails over the opposing force of the membrane, the valve mushroom moves downwards, allowing water to flow. The higher the water demand, the lower the pressure acting on the membrane, which allows for greater water flow through the device.

• Valve operation without flow

If the draw points are closed in the installation, the output pressure increases and pushes the membrane upwards. The valve mushroom is closed preventing flow through the device while maintaining pressure at a level consistent with the setting. The difference in the force produced by the membrane with respect to the force produced by the spring causes the valve to close.

• Filtering (water purification)

Water entering the filter enters the filter chamber, from the outside it flows through the filter sieve, on the surface of which impurities stop. Opening the valve (at the bottom of the filter chamber) causes rinsing of the filter sieve and removal of accumulated impurities from the outer surface of the sieve.

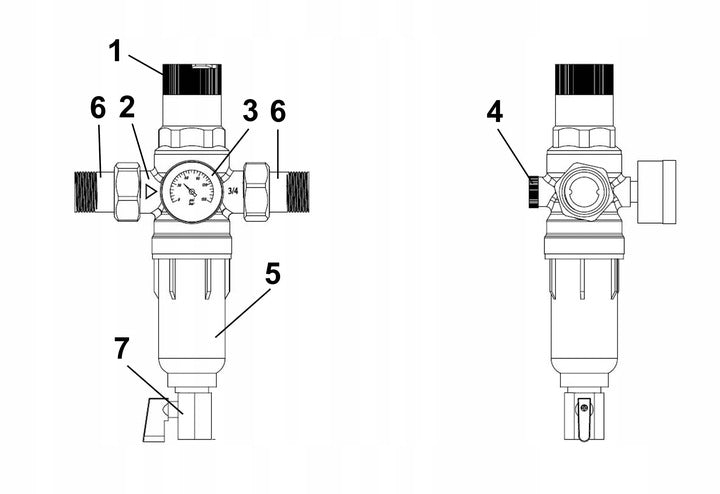

1. Pressure setting adjustment knob
2. Reducer body
3. Manometer
4. Cap at the place of possible installation of the pressure gauge on the other side of the valve
5. Filter chamber with mesh filter
6. Half-screws - with 1" connections
7. Drain valve – purifying

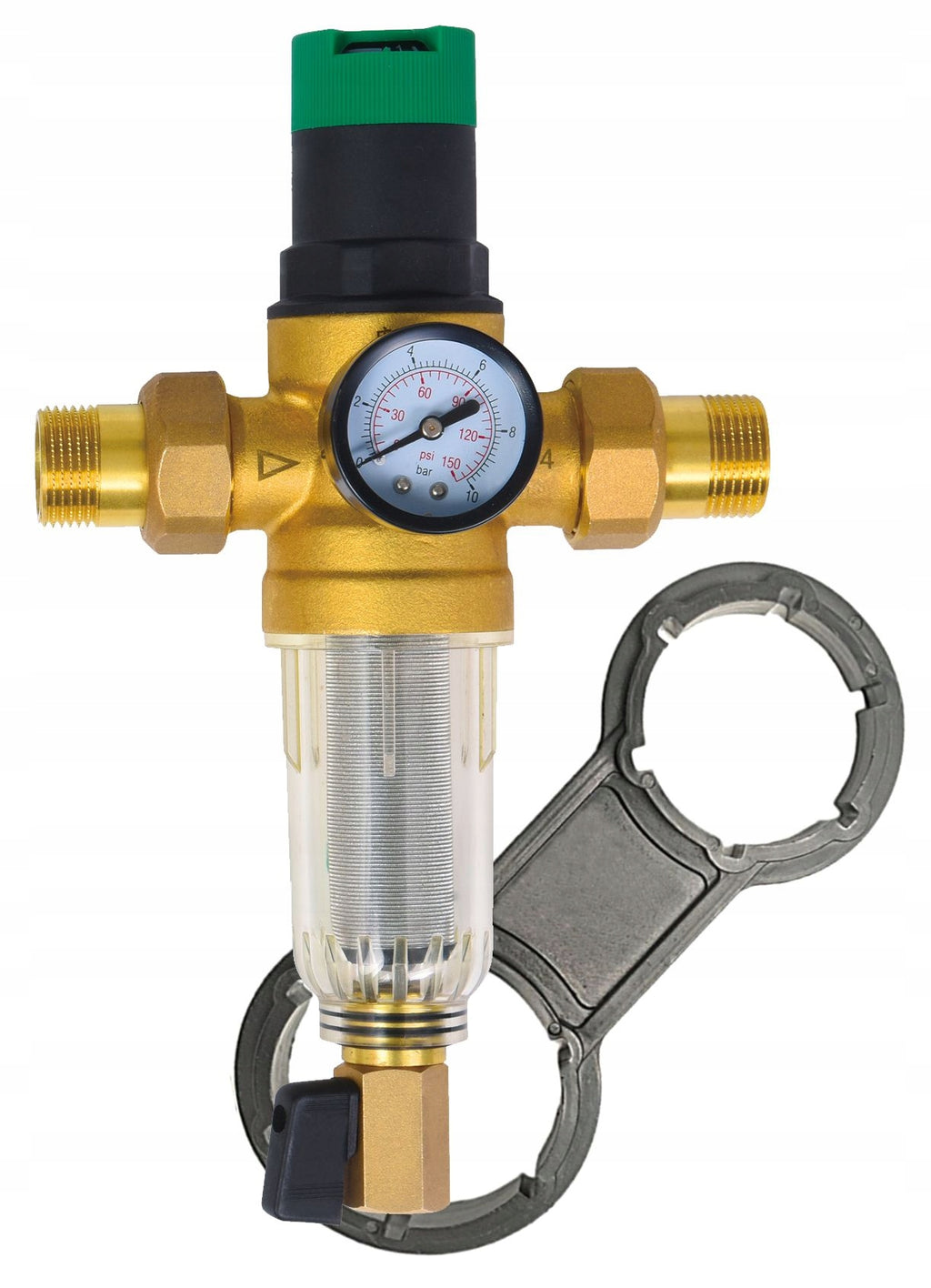

SET

• pressure reducer
• manometer
• screws
• filter housing key
• seals

Specifications
