Vandens užuolaida AERIS AC100WN1P, 1 m, 230 V, balta, stipri

Trumpai apie prekę

Prekė: Vandens užuolaida AERIS AC100WN1P, 1 m, 230 V, balta, stipri. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: AERIS AC100WN1P
• Galia: 150 W

The AERIS water curtain is an effective solution for creating an invisible air barrier over the entrance door. It protects the interior of the room from the escape of warm air in winter and the entry of heat, dust and insects in summer. Thanks to water supply, the device is extremely efficient and economical in operation.

⚙ Efficient Water Exchanger

The AC100WN1P is equipped with a high-performance copper-aluminum heat exchanger. When connected to a central heating system (C.O.), the curtain instantly heats up the air stream, providing thermal comfort right at the entrance, which is crucial in shops and service points with high traffic.

💨 High Range and Quiet Operation

The use of modern transverse fans allows to obtain an air flow range of up to 2,5 meters. Thanks to this, the curtain effectively protects standard door openings. Specially profiled fan blades ensure stable airflow while maintaining low noise emissions.

🛡 Modern Design and Durability

The AERIS curtain is distinguished by a minimalist, white housing made of high-quality powder-coated steel. Aesthetic appearance makes the device discreetly blends with modern interiors. Durable construction guarantees long-term, trouble-free operation even under intensive use.

🔌 Easy Installation and Control 230V

The device is powered by a standard voltage of 230V, which significantly facilitates electrical installation. The curtain is adapted for horizontal installation above the door. Integrated mounting brackets allow for quick and reliable installation of the device on the wall or under the ceiling.

WORKING PARAMETERS:

• Width of the device: 1000 mm (1 meter)
• Maximum flux range: 2,5 m
• Maximum airflow: 1100 m³/h
• Heating power (with water parameters 90/70°C): approx. 8-10 kW (depending on flow)
• Power supply: 230V / 50Hz

📦 SET COMPOSITION – WHAT YOU WILL GET:

• ✅ Water curtain – AERIS AC100WN1P (100 cm)

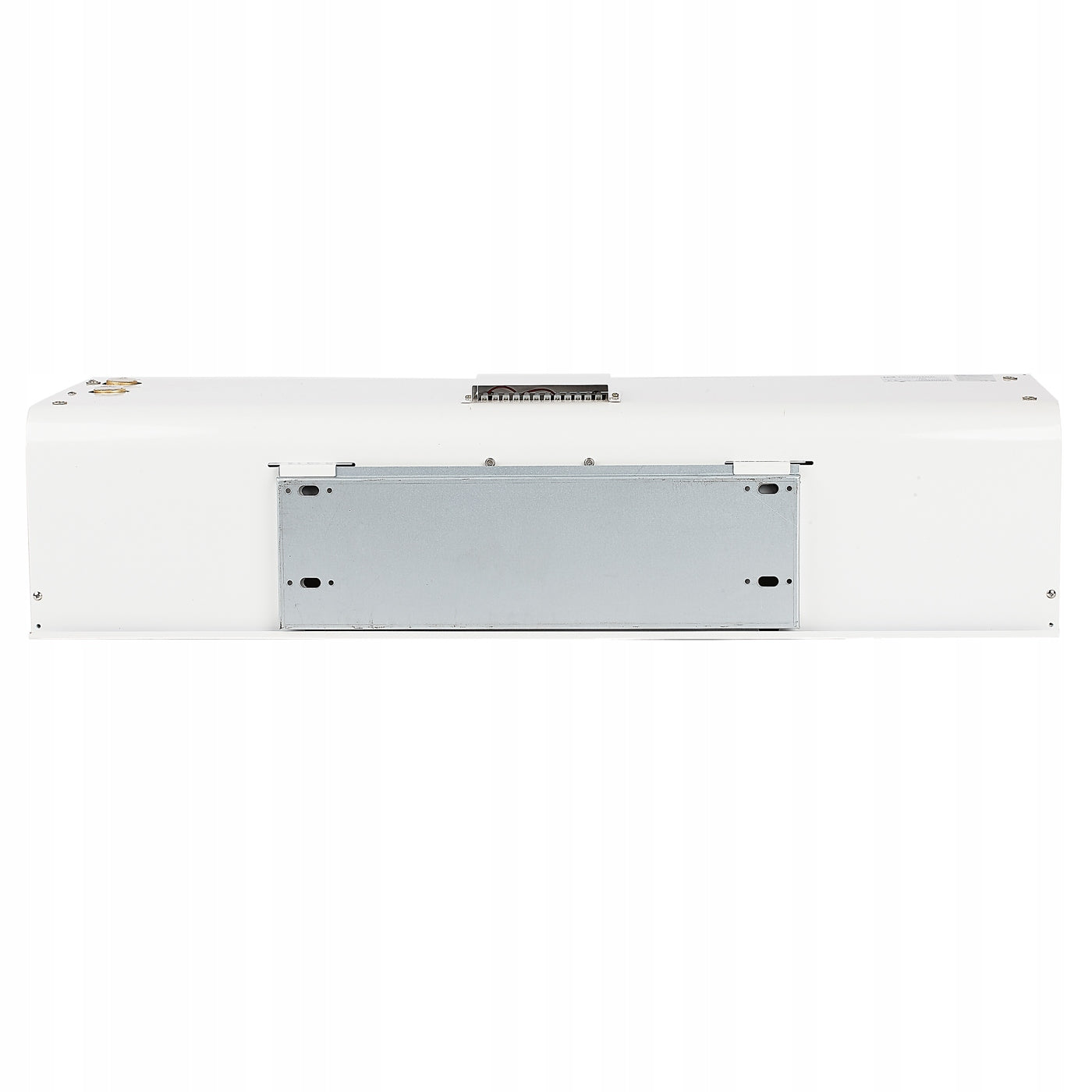

• ✅ Integrated mounting plate – for easy wall installation
• ✅ Instructions for assembly and operation – in Polish
• ✅ Guarantee Card

CONNECTIONS:

• Water connection: External thread 3/4"
• Maximum working pressure: 1,6 MPa
• Maximum factor temperature: 110°C

• EXTERNAL DIMENSIONS:

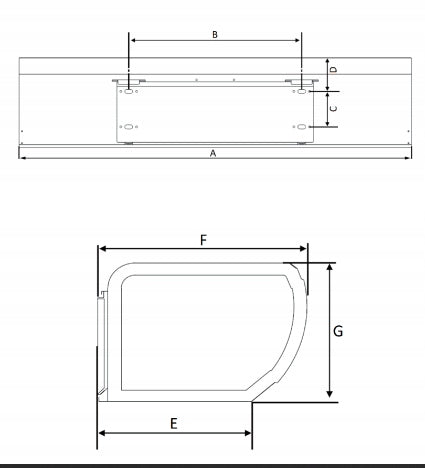

  ASSEMBLY DIMENSIONS (Sheet):

• B (Mounting hole spacing): 520 mm
• C: 130 mm
• D: 40 mm
• E: 143 mm
• A (Total width): 1000 mm
• F (Total depth): 215 mm
• G (Total height): 180 mm
