Vandens užuolaida HUMMER ACH200W, 200 cm, 230V

Trumpai apie prekę

Prekė: Vandens užuolaida HUMMER ACH200W, 200 cm, 230V. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: Hummer ACH200W-1P2R230V
• Galia: 1440 W

The HUMMER water curtain is a high-performance industrial device designed to create a protective barrier over wide entrance openings. Thanks to the use of a double-row heat exchanger, this model is characterized by enormous heating power, which allows you to effectively cut off cold air even on the coldest days.

⚙ Double Row Heat Exchanger (2R)

The heart of the HUMMER ACH200W curtain is a copper-aluminum double-row exchanger. This design provides a much larger heat transfer area than in standard curtains, which translates into a higher airflow temperature with lower feed water parameters. It is an ideal solution for cooperation with modern heating systems.

💨 Industrial Performance and Range

The width of 2 meters and the use of reinforced fans with high air flow allow for effective protection of wide gates and entrance doors. The device generates an air curtain with a range of up to 3 meters, which makes it one of the most effective solutions in its class.

🛡 Solid Hummer Construction

HUMMER series curtains are famous for their durability. The housing made of powder-coated steel is resistant to corrosion and mechanical damage. The classic, industrial design makes the device look great in warehouse halls, logistics centers, large supermarkets and workshops.

230V Power Supply and Easy Connection

Despite the high heating power coming from the water, the fans of the device are powered by a standard voltage of 230V. The connection connectors have been arranged in a way that facilitates the installation and venting of the system, which significantly reduces the installation time.

WORKING PARAMETERS:

• Width of the device: 2000 mm (2 meters)
• Heater type: Water (2-row)
• Maximum flux range: 3,0 m
• Maximum airflow: 3100 m³/h
• Heating power range: 25 - 42 kW (depending on temperature. water)

📦 SET COMPOSITION – WHAT YOU WILL GET:

✅ Water curtain – HUMMER ACH200W (200 cm)

• ✅ Dedicated sheet metal/mounting brackets
• ✅ Instructions for operation and assembly PL
• ✅ Guarantee Card

ASSEMBLY:

• Mounting type: Levels (wall or underfloor)
• Recommended mounting height: Up to 3,0 m above the floor

Advantage: High pressure resistance of the exchanger (up to 1,6 MPa).

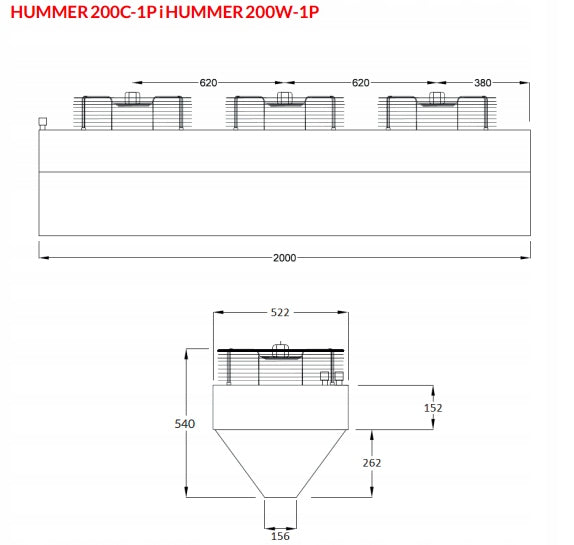

According to the technical graphics you submitted, the dimensions of the device are:

• Total width: 2000 mm
• Total height: 540 mm
• Total depth: 522 mm
• Height of the upper part of the housing: 152 mm
• Conical height (nozzle): 262 mm
• Air outlet width: 156 mm

Specifications
