Vandens užuolaida Sonniger Guard 100W, 10–16 kW, su rinkiniu

Trumpai apie prekę

Prekė: Vandens užuolaida Sonniger Guard 100W, 10–16 kW, su rinkiniu. Kategorija: Oro užuolaidos.

• Gamintojas: Sonniger
• Modelis: CG0019
• Galia: 100 W

Index: 02080350

RELEVANT INFORMATION

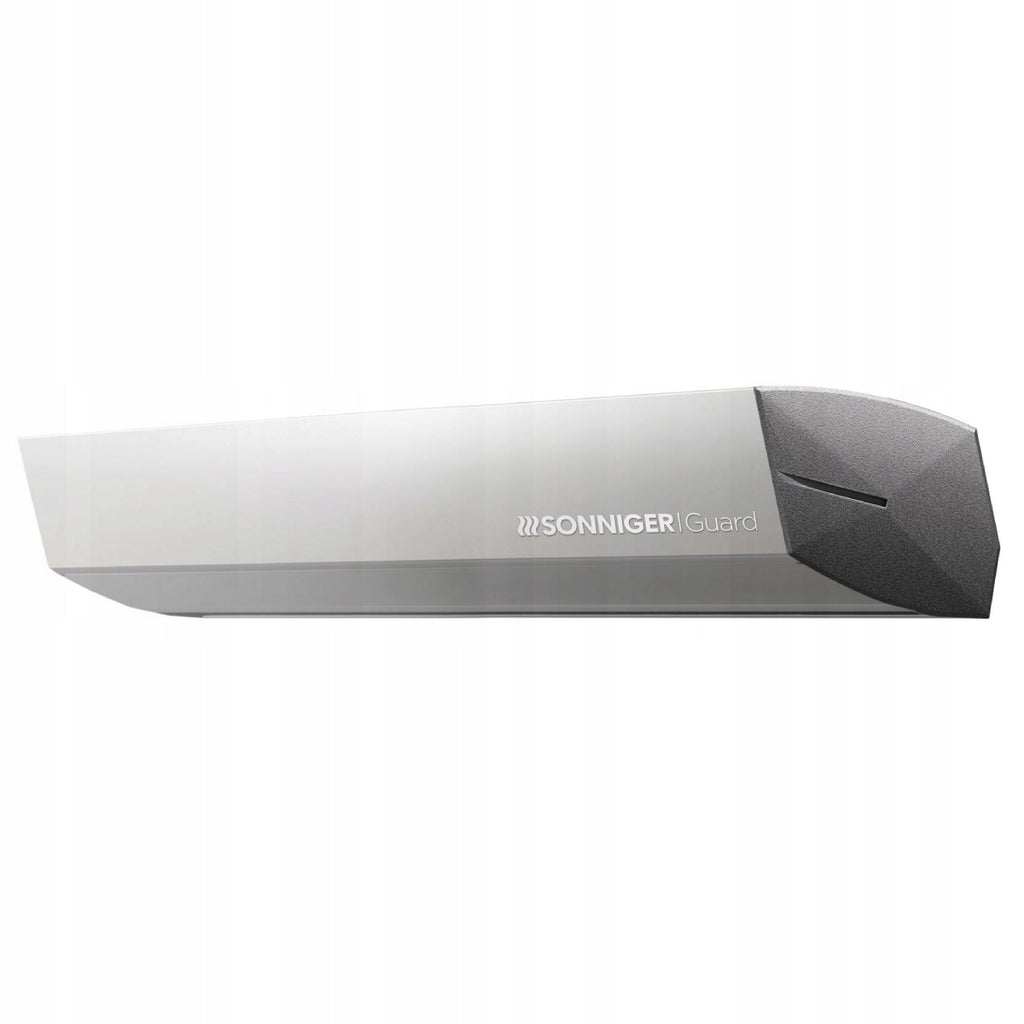

The Sonniger Guard 100W air curtain with water heater helps to maintain the right temperature in medium and large-area facilities with the possibility of adjusting its operation.

This product of the highest quality with modern design, effectively warms and creates efficient protection for air flow from the outside of the room. Comes with Comfort control panel + horizontal mounting brackets.

MAIN ELEMENTS OF THE SET

• Water curtain Sonniger Guard 100W
• Comfort panel Sonniger

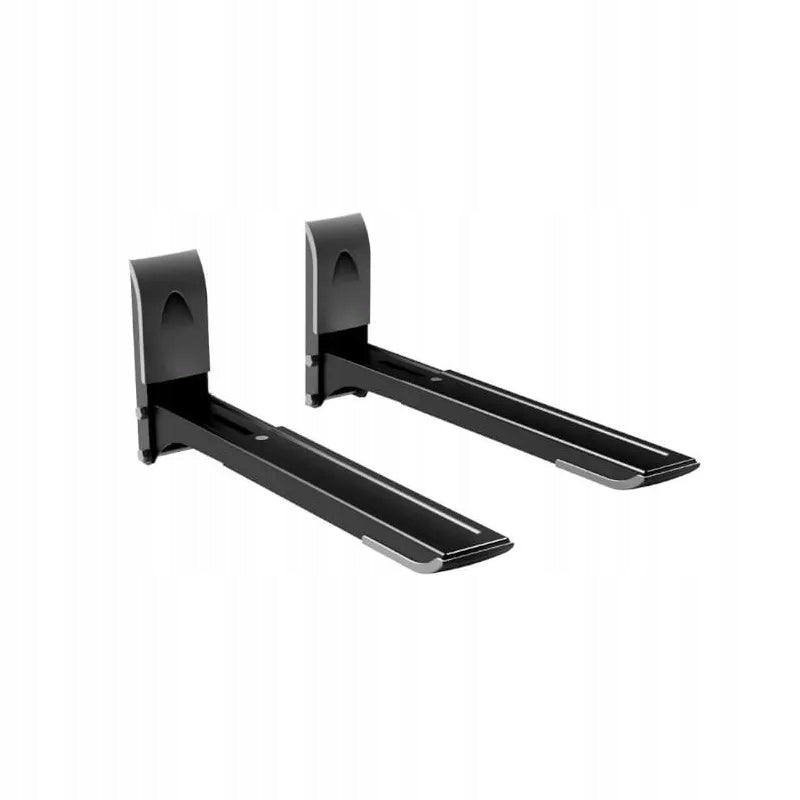

• Mounting bracket set (2 horizontal mounting brackets)
• Mounting screws
• Overlays
• Operation and assembly manual in Polish
• Warranty card

Air curtain by Sonniger with water heater is a professional device whose main task is to effectively create a protective barrier against the loss of warm or cold air, as well as the access of insects, dust, dust and other impurities from the outside of the heated room.

The presented device can also be successfully used as a basic source of heat in heating systems. When choosing the presented curtain as a heating device, it is necessary to take into account the volume of the object and the heat output of the device. For optimal operation of the system, the device is mounted above the door, window or anywhere on the wall. Ensuring proper temperature in commercial premises is important in terms of their possibility of use.

Reliable water air curtain (with water exchanger) Sonniger GUARD 100W with increased air efficiency of 2000 m³/h and a length of 1 m provides a strong air flow, allowing you to create an effective barrier at entrances up to 4 m in height. The device will be used in premises with medium and large areas, such as production plants, sports facilities or other public utility complexes. The product is appreciated primarily in places with increased traffic. It is a solution willingly chosen for rooms where maintaining appropriate climatic conditions is important, not only to maintain the temperature inside the facility, but also due to the possibility of using the product as a traditional form of heating or when there is a risk that such classic heating will not be fully effective. It is a combination of modernity, the highest quality with advanced technology. Ideally suited for dry rooms, ensuring proper circulation and clean air.

The Sonniger water air curtain is made of a combination of stainless steel with the highest quality plastic, is the definition of modernity and quality. The product with an elegant appearance in gray silver color has the ability to choose a 3-stage motor speed adjustment thanks to a high-performance fan with built-in three-stage speed control. The device together with the connection with a double-row water exchanger gives a wide and optimal range of parameters. The water connection is on the left side, while the electrical connection is on the right side of the device (the product does not have a power cord included).

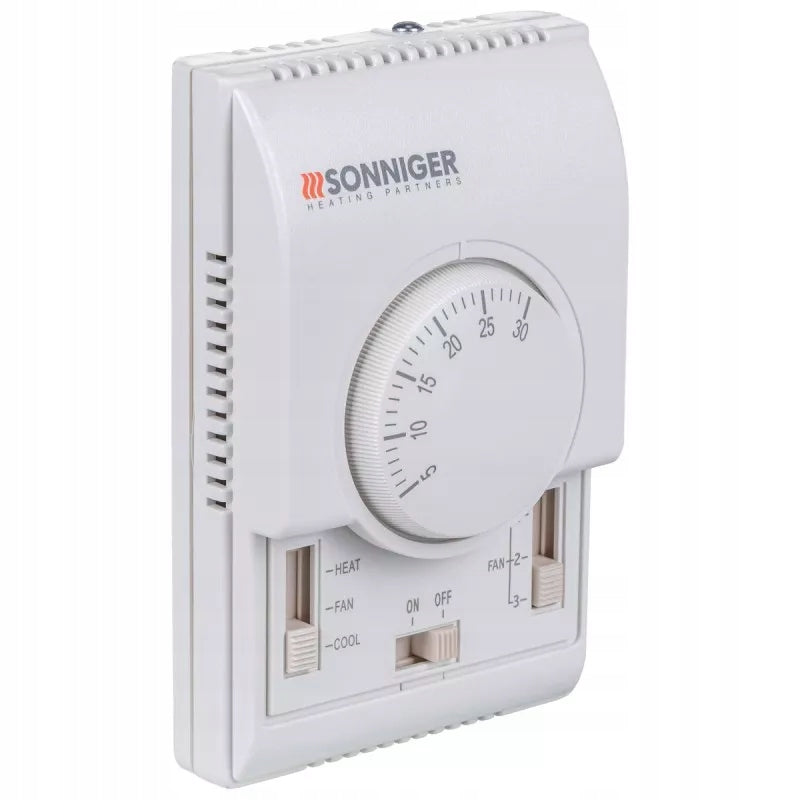

The included Sonniger Panel Comfort controller allows the user to adjust the intensity of the device blowing to their needs. Minimalist panel in white will fit into any interior. With manual and convenient knob control, adjusting the system from 5°C to 35°C is easy and convenient. The wall-mounted installation of the regulator is also not a problem. The Comfort Panel can be used to control two Guard air curtains.

HOW A WATER AIR CURTAIN WORKS

A water air curtain, like all air curtains, protects against heat, cold, and contaminants, providing a solid guarantee of maintaining thermal comfort while saving energy. The operating principle of a water air curtain is simple: it requires connection to a water system. The unit has a fan and a water heater that needs to be connected to a central heating (CO) system. A water heater is a device that heats the air in rooms using hot water from a central heating system. The water heat exchanger, added to the system, acts as a heating curtain when connected to the central heating system. Water heats the exchanger, which in turn heats the air flowing through it.

Indoor air is drawn in by a fan and then heated by the heater, where it is blown into the room at high speed after being heated. The appropriate speed of the blown air creates an effective barrier to outside air. Water air curtains are designed for indoor use only. These products are gaining more and more supporters due to their cheap and effective way of heating medium and large rooms.

Regardless of which air curtain you choose, it will work effectively in both winter and summer. Their use is a fantastic way to maintain the right high or low temperature in the building. By blowing air, it creates a special barrier whose task is to cut off the air exchange between two spaces with opposite temperatures. In winter, when there is a negative, frosty aura outside and it is warm inside, the stream of air produced by the heater will prevent heat from escaping from the building, thus reducing its losses and allowing for a significant reduction in heating costs. In the summer, the air curtain creates a barrier that prevents warm air from outside the building from entering its cooled interior.

NOTE!

When purchasing a product, it is possible to replace horizontal mounting brackets with vertical mounting brackets. Remember to properly install the water air curtain, as well as choose the right heating power of the device, which will result in its proper and effective operation.

FUNCTIONS OF THE CURTAIN SONNIGER

• Effectively heats the room
• The device protects against heat, cold and pollution
• In winter, it prevents uncontrolled heat loss
• In summer, it prevents heat from entering the room from the outside
• Regulate air circulation
• For hanging on the wall, above doors, windows, gates inside the room

ADVANTAGES

• Strong parameters of the device
• High-performance fan with three-stage speed control
• Heat protection in all conditions
• Good price

TECHNICAL PARAMETERS

• Product: Water air curtain
• Model: GUARD 100W
• Mounting method: horizontally, vertically
• Heating power range: 10/16 kW
• Maximum air output: 2000 m³/h
• Maximum working pressure: 1,6 MPa
• Supply voltage, current consumption: 230 V, 50 Hz, 1,4 A
• Blowing force adjustment: 3-degree
• Blower/Fan Power: 220 W
• Volume Level: 59 dB
• Degree of protection: IP21
• Diameter of nozzles: 1/2''
• Curtain length: 1 m
• Maximum mounting height: 4 m
• Dimensions (W) x depth. x H ): 1084 x 368 x 255 mm
• Color: Grey Silver
• Product weight: 16,5 kg
