Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę

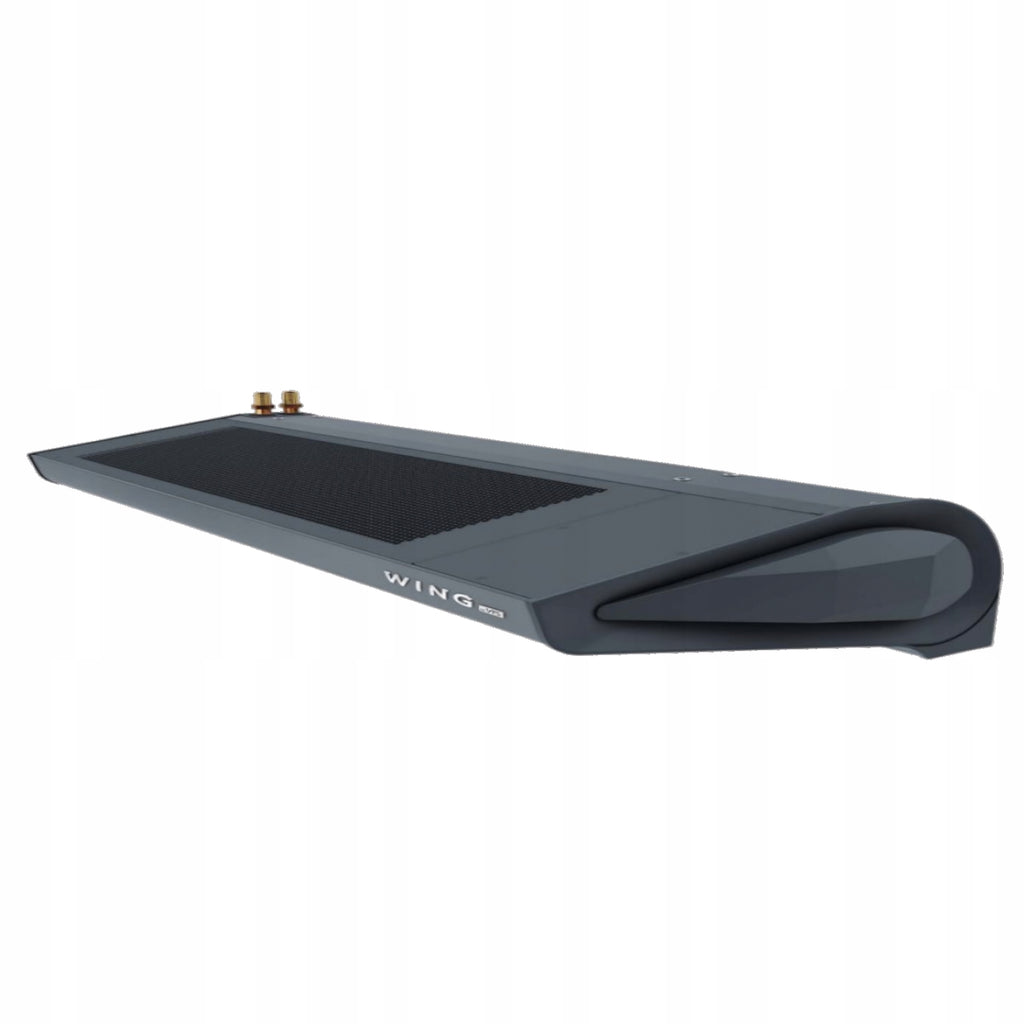

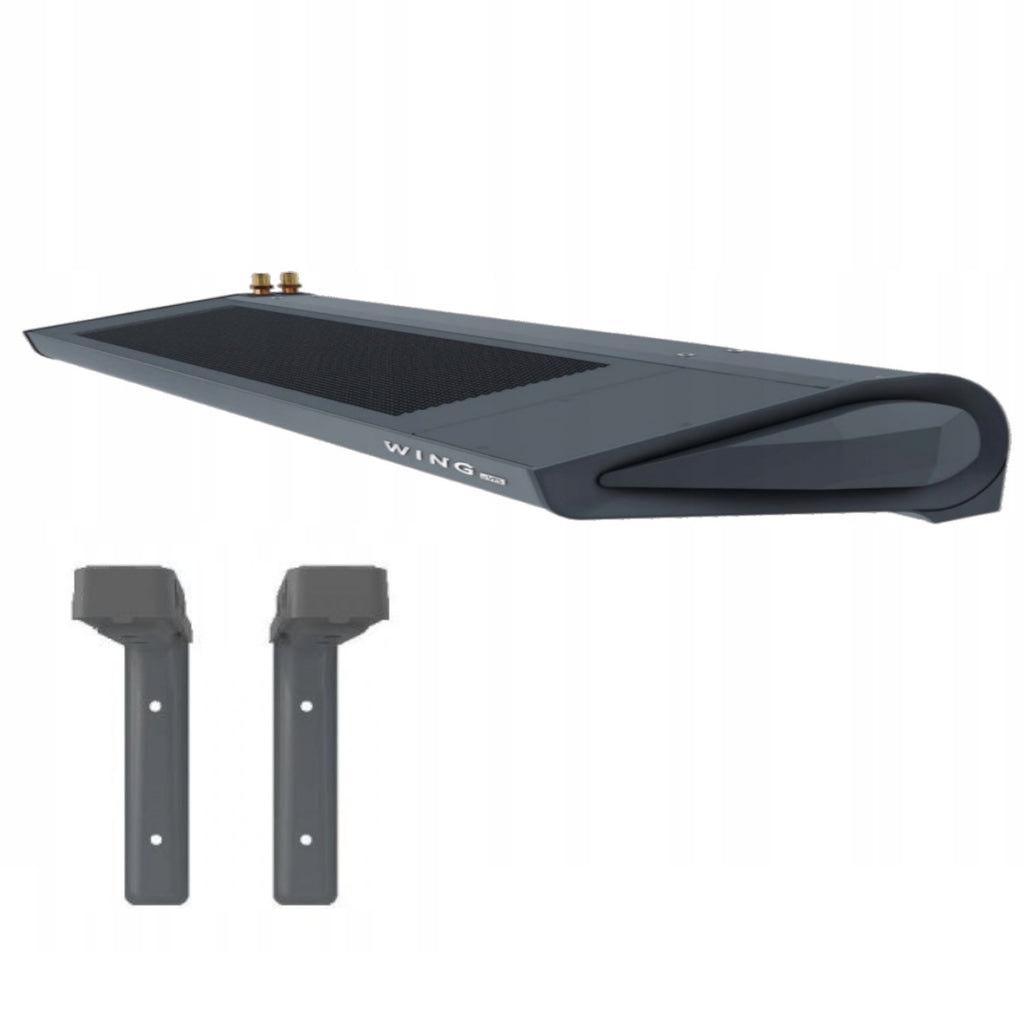

Prekė: Vandens užuolaida VTS Wing W100 EC DARK RAL7016 su tvirtinimo kronšteinais. Kategorija: Oro užuolaidos.
- Gamintojas: WING
- Modelis: 1-4-2801-0308
- Galia: 4 W
QUALITY IS IMPORTANT
CURTAIN WING
is the latest generation device. Designed for a lightweight form and a modern look. The minimalist design of the curtain resembles the perfect glider wing. The EC motors used in the curtain ensure quiet operation along with the highest efficiency.
ADVANTAGES:
✔ The WING air curtain is a new generation device, created with a passion for lightness of form and modern design
✔ The minimalist shape of the WING curtain housing, inspired by the shape of the glider wing and the characteristic diamond-shaped side covers give the curtain form a unique harmony and elegance. The light form is the perfect culmination of any interior
✔ High-quality materials and rigid construction ensure quiet operation of the device and a large air intake area allows you to fully use the power of the heat exchanger.
✔ Easy maintenance of the curtain, double protective coating and trouble-free motor determine the durability of the device.
✔ Energy-saving EC motor, efficient fan makes full use of the heating power of double row electric heater exchanger while maintaining quiet operation and low operating costs

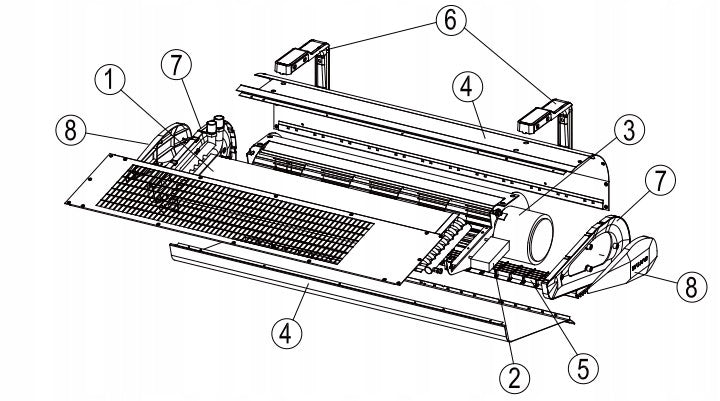

CONSTRUCTION OF THE DEVICE:
1: Heat exchanger
2: Control system
3: Transverse fan
4: Enclosure
5: Exhaust grille
6: Mounting brackets
7: Side guard
8: Side cover
TECHNICAL DATA:
➢ Max. door width (1 device): 1 m
➢ Max. door height (vertical flux range): 3,7 m
➢ Max. air efficiency: 1850 m3/h
➢ Heating power range: 4-17 kW
➢ Max. Operating pressure: 1,6 MPa
➢ Water capacity: 1,6 dm3
➢ Number of heat exchanger rows: 2
➢ Engine power: 0,2 kW
➢ Rated current: 1,1 A
➢ Weight of the device: 21,5 kg
➢ Degree of protection IP: 20
➢ Recommended overload and short-circuit protection: C6/6kA
➢ Recommended residual current protection:
IDN=30mA type AC or A, IN=16A
➢ Power cord cross-section: 3x1,5mm²

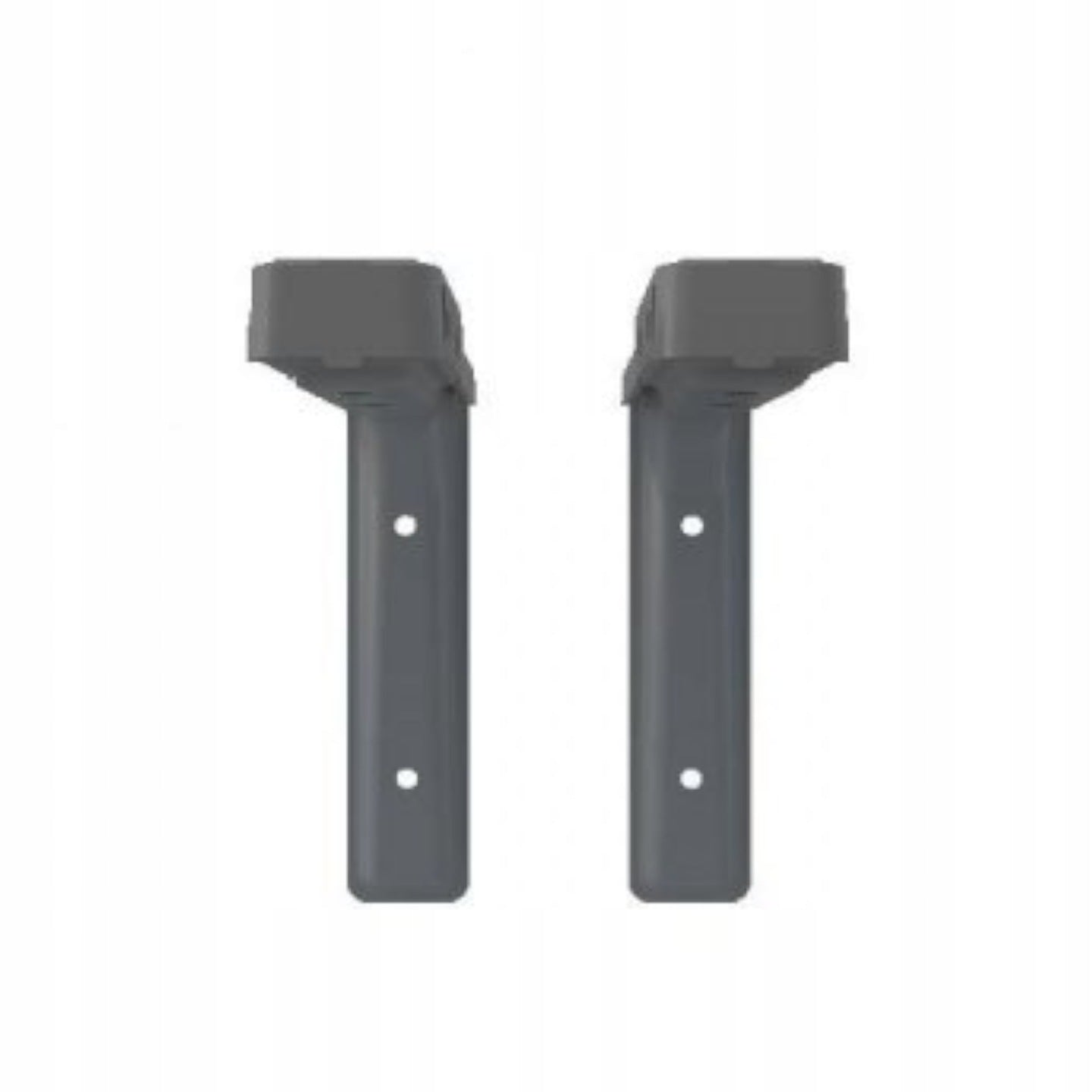

SET OF HANDLES
Set of mounting brackets for curtains WING 100
TECHNICAL DATA:
➢ Length: 48,5 cm
➢ Width: 21 cm
➢ Height: 5 cm
➢ Weight: 500 g
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | WING |
| Parametry | Kind | with water heater |
| Parametry | Power | 4 W |
| Parametry | Product height | 21 cm |
| Parametry | Product width | 100 cm |
| Parametry | Product depth | 46.5 cm |
| Parametry | Maximum mounting height | 3.7 m |
| Parametry | Product weight with unit packaging | 21 kg |
| Parametry | Manufacturer code | 1-4-2801-0308 |
