Vartų pavaros variklis HATO 200

Trumpai apie prekę

Prekė: Vartų pavaros variklis HATO 200. Kategorija: Kietieji diskai.

• Gamintojas: Hato
• Modelis: 5907739360212

The offer applies to the drive without a rail.

Latest HATO 200 for tilting and sectional doors

One of the best drives in its class up to 120W. It is a drive that consumes little energy while maintaining high parameters.

✅ Closing force - 1000N

✅ Maximum gate area - up to 15m2 and height up to 2,5m

✅ Can be used for gates for two cars

✅ Control via video intercom and other radios including WiFi

✅ Possibility to connect an emergency battery

By buying Hato 200 from this offer you will get a complete drive head - without a rail. On our other offers we have drives with rails of different lengths.

Auto-closing

When you open the gate, it can automatically close. The automatic gate closing function can be freely activated and adjusted up to 33 seconds after opening.

Utility lighting

The mechanism is equipped with light, which automatically turns on when the system starts working and goes out after 3 minutes from stopping the drive. This ensures the comfort of using the garage after dusk and saves electricity.

Self-locking motor

The mechanism has a self-locking electromechanical 24V motor with a transmission force of 1000N, which means that the gate does not require additional protection in the form of side bolts or other locks.

Protection against crushing

The HATO FB200 has an amperometric sensor, so it will automatically stop and retract when it encounters an obstacle. This is crucial when it comes to ensuring the safety of yourself and your loved ones.

Quiet operation

The drive has a slowdown function. When opening and closing, the gate shortly before closing and stopping will slow down the work to gently close the gate and stop without bumps or .

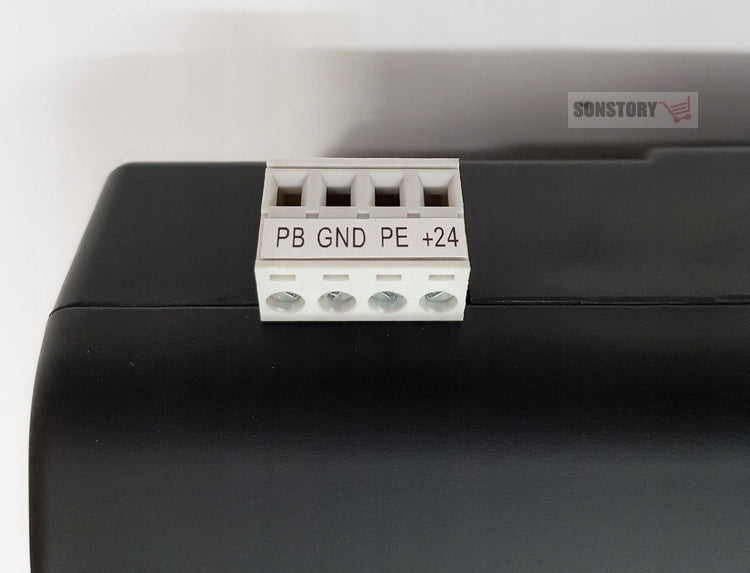

For comfort and safety, the drive has a connection cube on the outside of the housing.

The cube allows you to use additional drive functions:

✅ Connecting safety photocells

✅ Connection of video intercom or intercom with gate opening function

✅ Connecting a mechanical switch, code keyboard or other controller.

✅ Possibility of powering (24V) other cooperating devices, e.g. WiFi radio - control via sartphone

• Power supply - 230V
• Output voltage - 24V
• Power - 120W
• Operating temperature range -20 to +50 degrees C
• Closing force - 1000N
• Frequency of remote controls - 433,92 MHz Variable code
• Maximum number of pilots - 20pcs
• Gate area up to 15m2
• Designed for self-assembly - YES
• Instruction in Polish
• Manufacturer's technical support - YES / Telephone hotline
• Application - Tilting and sectional doors
• Manufacturer - Hato Poland

✅ Drive head HATO 200 1000 N with control panel,

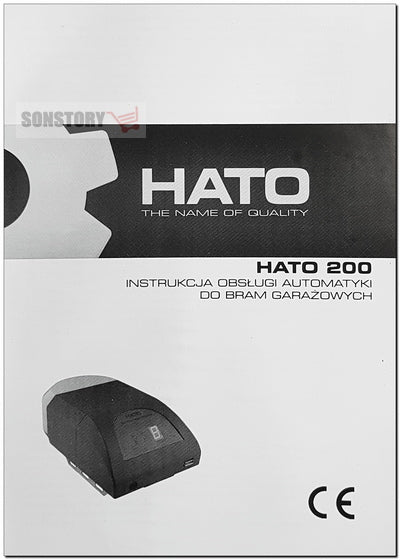

✅ Instruction in Polish

HATO DRIVES HAVE ALL THE TECHNICAL AND SAFETY APPROVALS REQUIRED IN THE EU COUNTRIES : CE, CNAB, ISO9001:2000

Very simple assembly and programming. Phone support for HATO.

Since 2016 we have been the official trading partner of HATO

We are one of the best authorized partners.

We guarantee professional service and telephone technical support during installation or use.

Specifications
