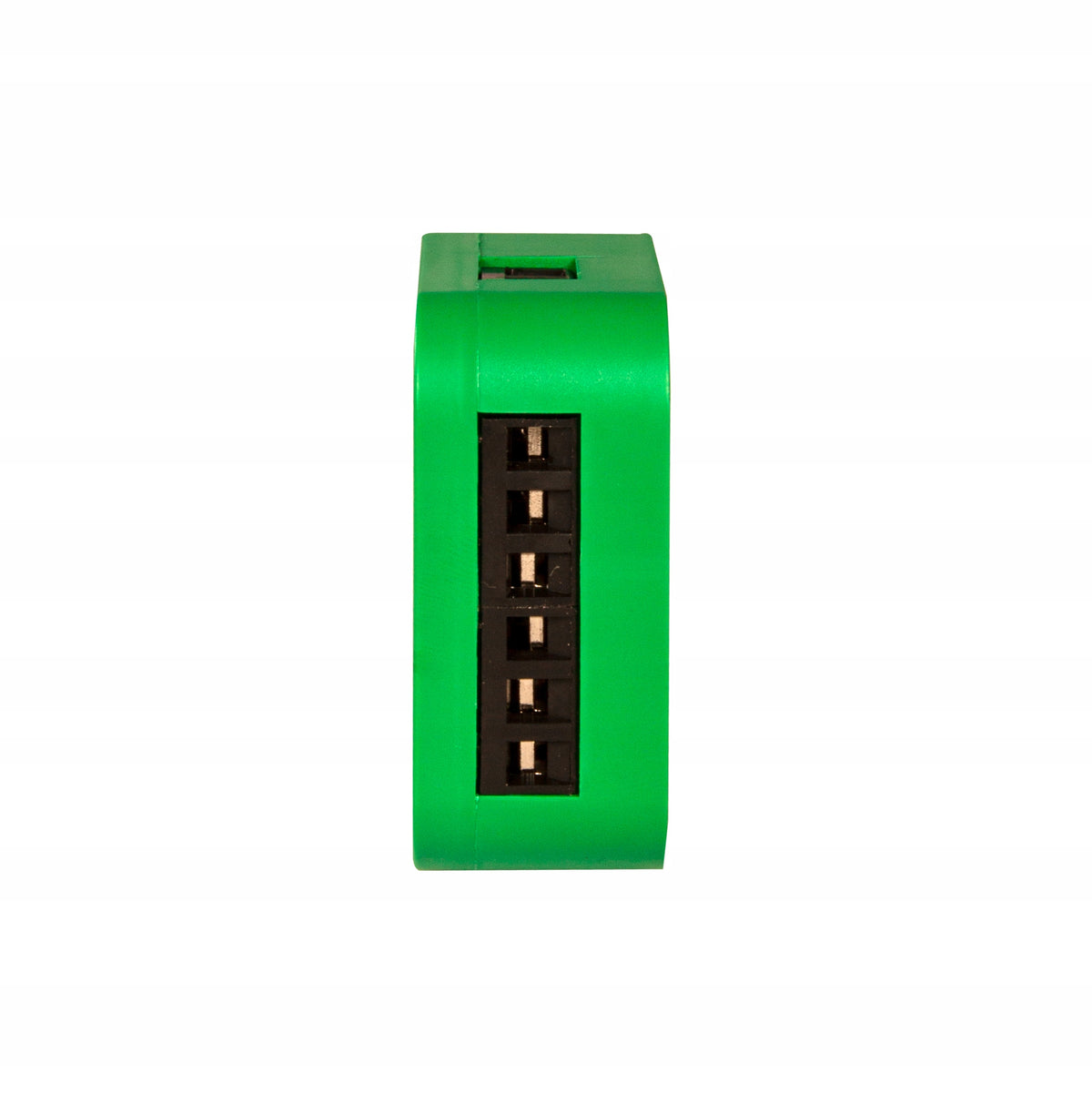

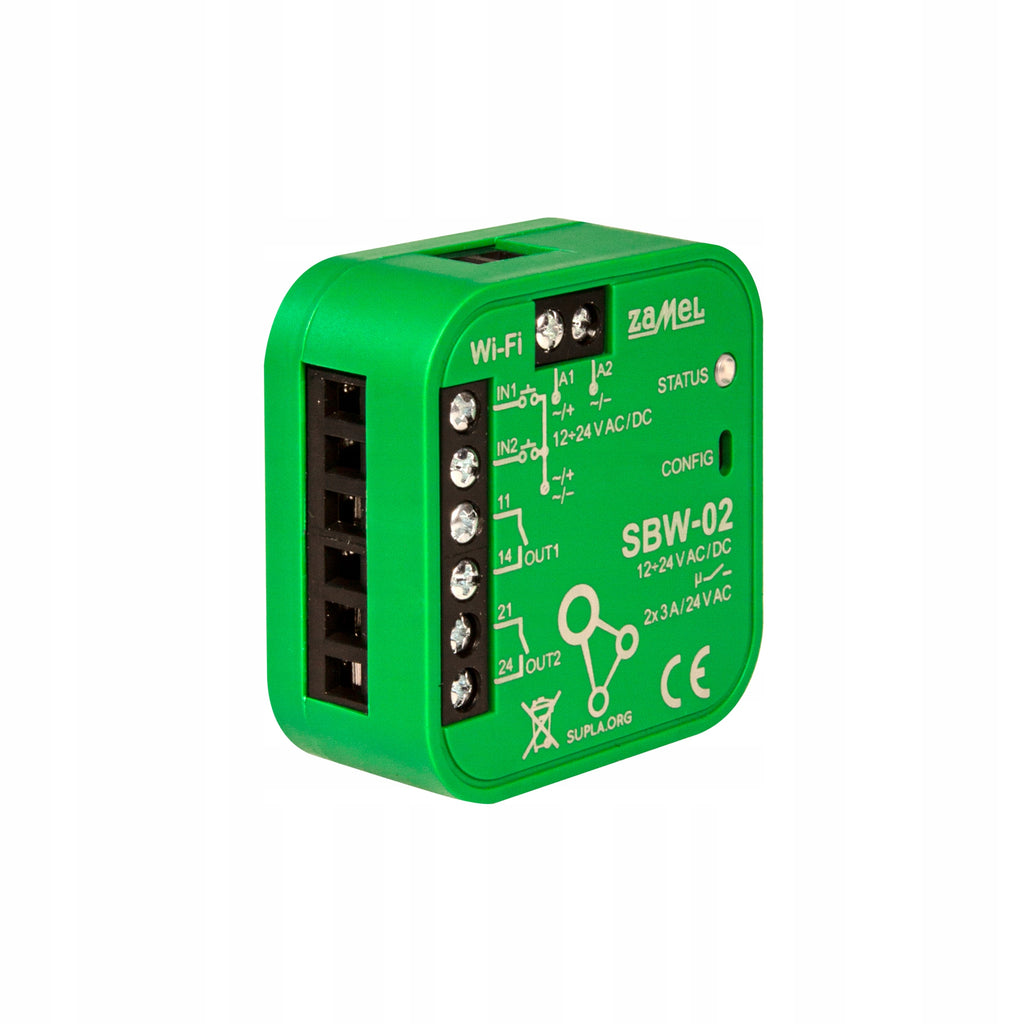

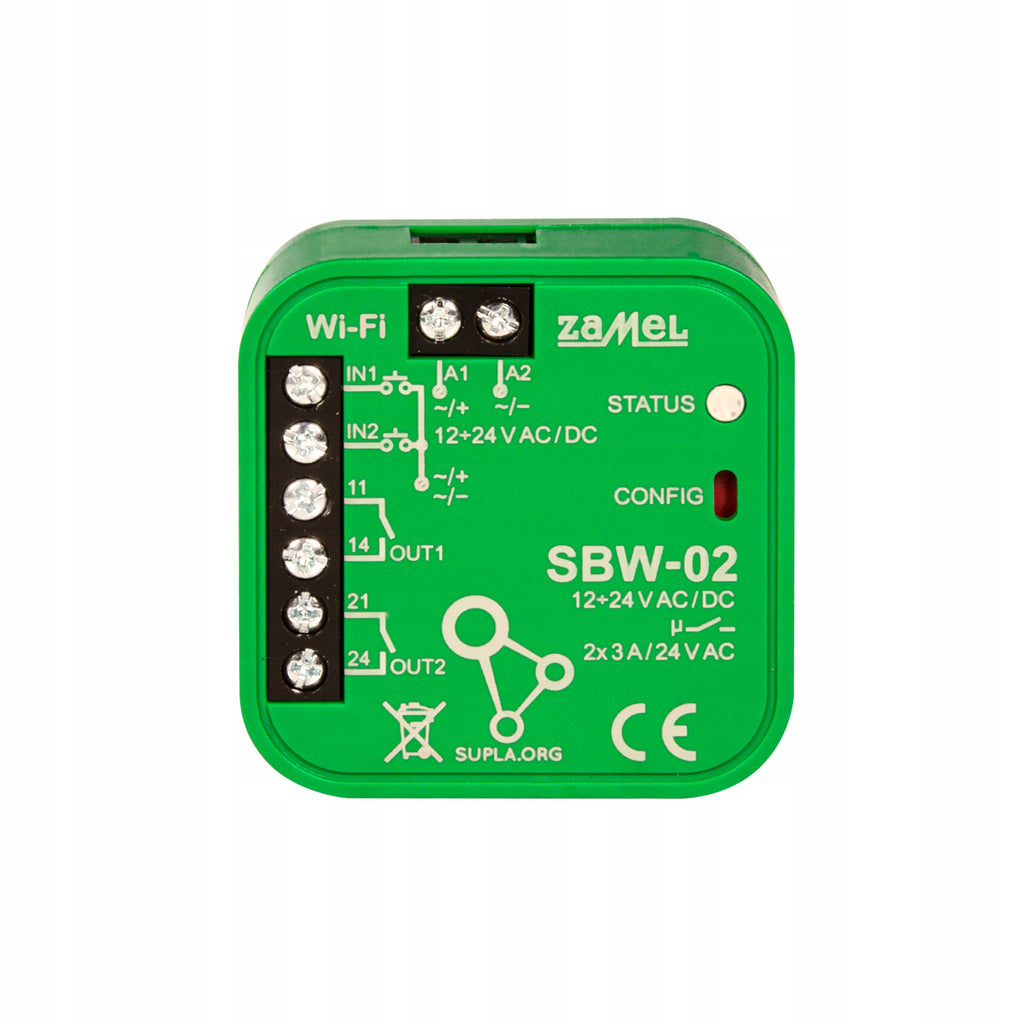

Vartų valdiklis 2 įėjimams, Wi-Fi, ZAMEL SBW-02

Trumpai apie prekę

Prekė: Vartų valdiklis 2 įėjimams, Wi-Fi, ZAMEL SBW-02. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: SBW-02

The gate controller allows integration with any gate drive and gate and enables remote gate control via the Supla mobile application.

The device is adapted to be mounted directly in the drive. With a universal 12 - 24V AC/DC power supply, it can be used in a variety of applications.

By connecting signals from limit switches to the inputs of the controller, we receive information about opening and closing the gate / gate.

FUNCTIONAL FEATURES OF THE PRODUCT:

• wireless control of gate and gate drive using wi-fi technology
• the ability to track the status of the gate by examining the status of limit switches
• the ability to control the controller via the SUPLA mobile application from anywhere in the world
• power supply for 12-24V AC/DC controller

• Assembly method: For 60 mm electric can
• Power Supply: 12-24V AC/DC
• Number of relays: 2
• Relay load capacity: 2 x NO 3A / 24 VAC
• Wi-Fi transmission: 2.4GHz 802.11 b/g/n
• Depth of device: 20 mm
• Weight: 0,04 kg
• Number of output channels: 2
• Maximum output current: 3A / channel
• Working temperature: -20°C ÷ +55°C
