Vartų valdiklis su WiFi (TUYA) ir jutikliais

Trumpai apie prekę

Prekė: Vartų valdiklis su WiFi (TUYA) ir jutikliais. Kategorija: Automatizavimo moduliai.

• Gamintojas: Ineox
• Modelis: Sterownik bramy garażowej wjazdowej SBG-01W

CONTROLLER FOR GARAGE ENTRANCE DOOR WIFI RELAY TUYA + SENSORS

The Tuya WiFi Garage Door Module enables remote control of the garage door via a mobile application or using simple voice commands. Thanks to it, you no longer have to leave the car to enter the garage. What’s more, its operating range is about 100 meters, so you can open the gate to guests without getting up from the couch!

Additionally, in the application we can set the option of notifications about an open or closed gate.

Mini Module, Tuya WiFi Garage Door Controller:

• The controller works in a WiFi network and ensures fast, stable transmission. When connected to the dedicated Smart Life/Tuya App, you can control your gateway from your phone or tablet, as well as use the Google Assistant or Alexa voice assistant. The controller also supports Geofencing, so the gate can open for your arrival at home, as well as close automatically as soon as you leave. If an error occurs and the gateway does not close for some reason, you will immediately receive a notification on your phone.

Wide compatibility:

• If you want your home to use smart technologies, you don’t need to use the services of a specialist. The module is small and its installation will not be a problem for you. It is compatible with multiple garage doors, and because it works on a WiFi network, you can easily connect it to your devices. What’s more, in the app you can give permission to manage the gateway to other family members, so that all household members can comfortably get home.

Solid construction, high quality workmanship:

• The controller is also very resistant to external factors. The protection rating of the device is IP20, which means it is resistant to dust and splashes. The operating temperature of the controller ranges from -10℃ to +40℃, so it is perfect even in extreme weather conditions. Install it in your garage door and get easy access to your home.

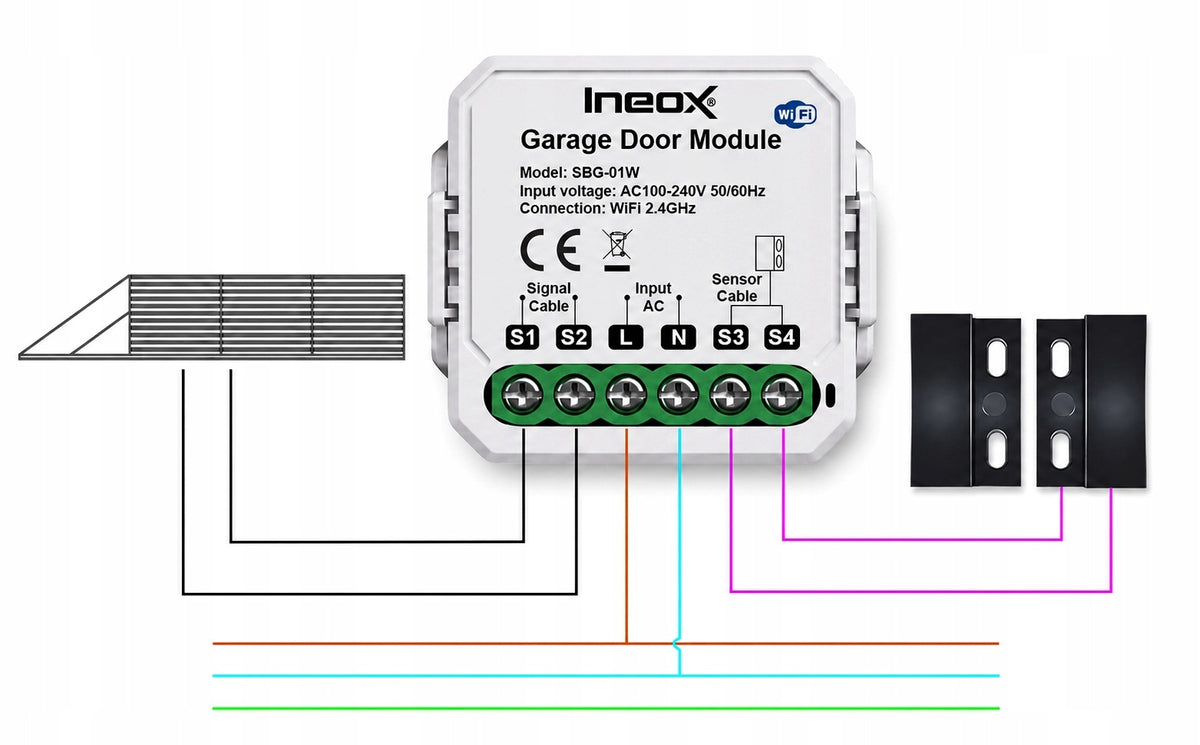

Easy installation of the controller:

The module can be hidden in an electrical box or mounted on a mounting bracket/DIN rail.

• AC100-240V power connection
• Connecting the reed (state sensor) and fixing it
• Installation of the closing sensor so that when the gate is opened, the sensors disconnect from each other
• Connection of the signal cable to the gate machine (so-called. step control - pulse, if the entrance is already occupied - we plug into the same place in parallel)
• Physical opening with the push of a button. Not always used. If it is connected, you can easily track the inputs in the machine to connect the controller

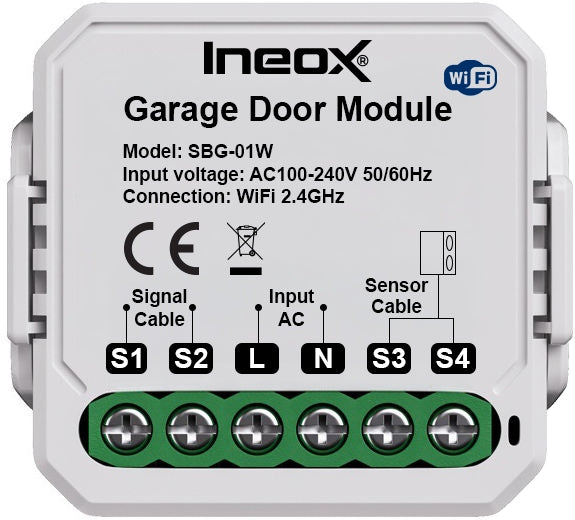

Technical data:

• Brand: Ineox
• Model: SBG-01W
• Name: Wi-Fi Garage Door Module
• Connectivity: WiFi IEEE 802.11 b/g/n 2.4GHz
• Power supply: AC 100-240V ~ 50/60Hz
• Operating temperature: -10 ~ 40°C
• Supported Apps: Smart Life, Tuya, IFTTT, Google Asistant, Amazon Alexa
• Dimensions: Module: 39 x 39 x 19 mm
• Notifications about an open or closed gate

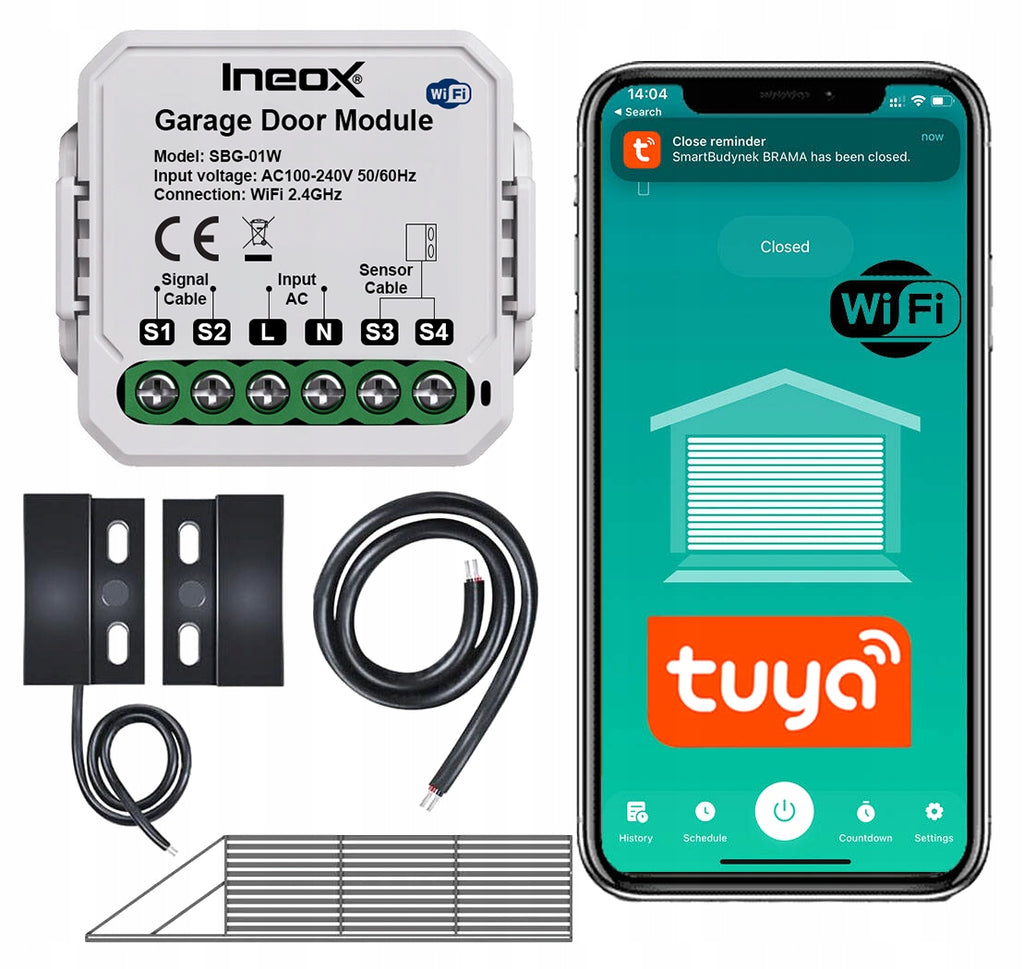

The set includes:

• WiFi controller with DIN rail clip
• Sensor (contactor) with adhesive tape (wire length about 6 m)
• Mounting bracket
• Cable for connection with a mechanism with a length of 50 cm
• Set of screws, pins and cable ties
• User manual
