Vartų valdymo pultas ELMES, 230V, vienam varikliui

Trumpai apie prekę

Prekė: Vartų valdymo pultas ELMES, 230V, vienam varikliui. Kategorija: Išoriniai moduliai.

• Gamintojas: Elmes
• Modelis: STP

STP – gate controller with ONE motor for 230V AC.

Attention! - STP also comes in various hardware and dot configurations. applications of different types of ELMES remote controls, signal lamps, photocells and off. marginal.

Cooperation ONLY with prod pilots. ELMES and selected models of prod pilots. PROXIMA dedicated for ELMES devices.

In other auctions there are sealed plastic housings for controllers.

The auction concerns:

STP

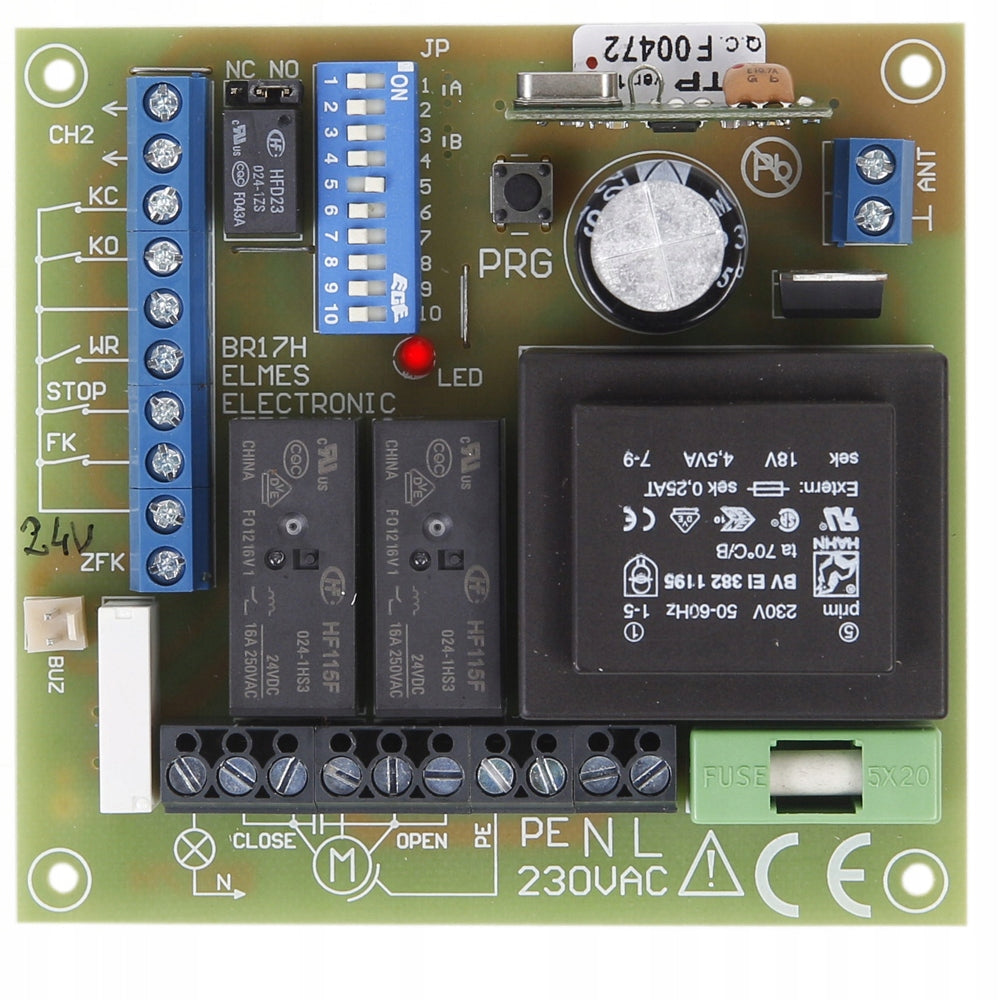

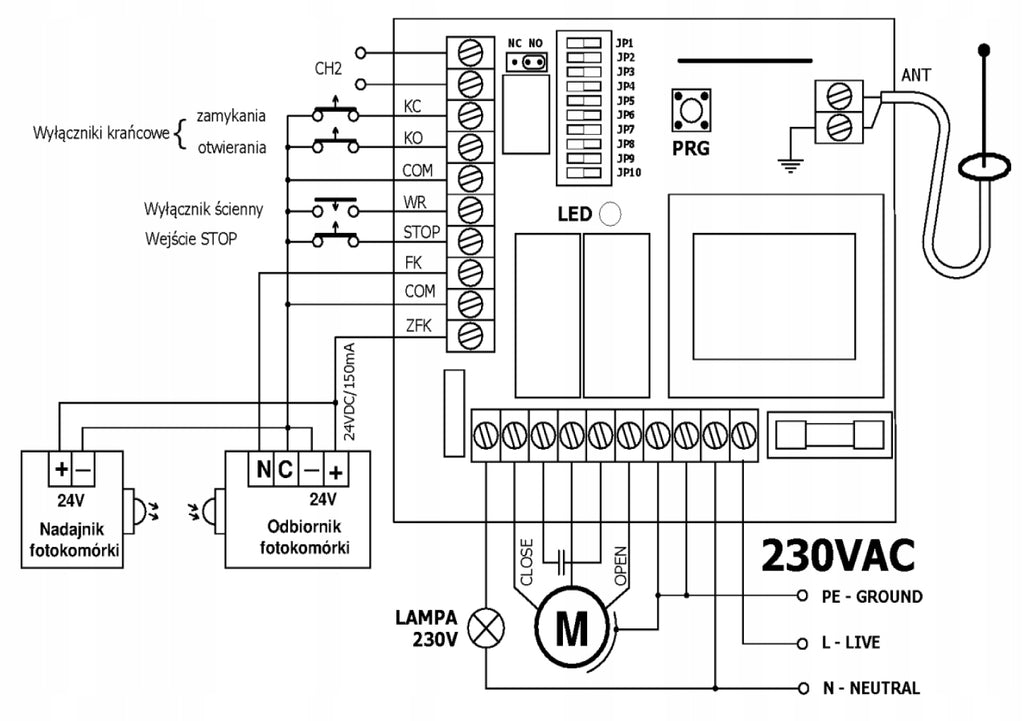

The device is designed for remote control of the gate, for which a single-phase alternating current motor 230VAC is used, enabling operation in two directions. It has the following features:

• radio transmission using the KEELOQ variable code ensuring a high level of safety;
• superheterodyne radio receiver;
• cooperation with all pilots on the 433,92 MHz band produced by Elmes Elektronik,
• pilot memory: 112;
• control of one or two remote control buttons:

  one - the remote control button controls the gate in a cycle:

OPENING-STOP-CLOSING-STOP-OPENING...;

two - the first remote control button controls the gate in the cycle:

OPENING-STOP-OPENING. . , the second ‑ in the cycle: CLOSING-STOP-CLOSING...

• single wired switch control in cycle:

OPENING-STOP-CLOSING-STOP-OPENING...;

• 4 modes of operation
• operating modes: manual, with self-closing and two parking modes,
• automatic closing after the programmed PAUSE time (1sec 4min);
• cooperation with NO or NC type limit switches (normally open or normally compact);
• programmable engine operating time allowing for cooperation with drives not equipped with terminals;
• cooperation with NC type photocell with normally compact output;
• automatic opening of the gate after violation of the photocell during closing;
• STOP safety entrance blocking the movement of the gate in both directions;
• output to a warning (pulsing) or lighting lamp;
• additional, independent NO/NC relay output controlled by a separate remote control button;
• function for easy installation – the ability to reverse the direction of movement of the gate and limit switches using jumpers

Technical data:

• Power supply: 230VAC;
• power consumption: up to 4VA,
• motor relay outputs: 2 x NO, maximum 16A/250VAC
• output to the lamp: maximum 5A/250VAC,
• CH2 relay output: NO or NC (switched by jumper), galvanically separated; load capacity:
• 1A/24VDC or 0,5A/125VAC; output switching time: from 0,5 s to 2 min,
• photocell power output: 24VDC, maximum 150mA, protected by polymer fuse,
• entry to a photocell type NC (normally compact),
• NC type STOP safety input (normally compact),
• inputs for limit switches of type NC (normally compact) or NO (normally open),
• engine running time: from 1s to 4 min, common for closing and opening,
• PAUSE time: from 1s to 4 minutes,
• superheterodyne receiver for the band 433,92MHz operating temperature range: -20st.C to +40st.C
• dimensions (length /W. /H ): 95/90/34 mm.
• spacing of mounting holes ø=3mm: 85 x 80 mm.
