Vartų valdymo pultas Tuya Zigbee 3.0, WiFi, Smart Life

Trumpai apie prekę

Prekė: Vartų valdymo pultas Tuya Zigbee 3.0, WiFi, Smart Life. Kategorija: Centriniai blokai.

• Gamintojas: no brand
• Modelis: 451703511

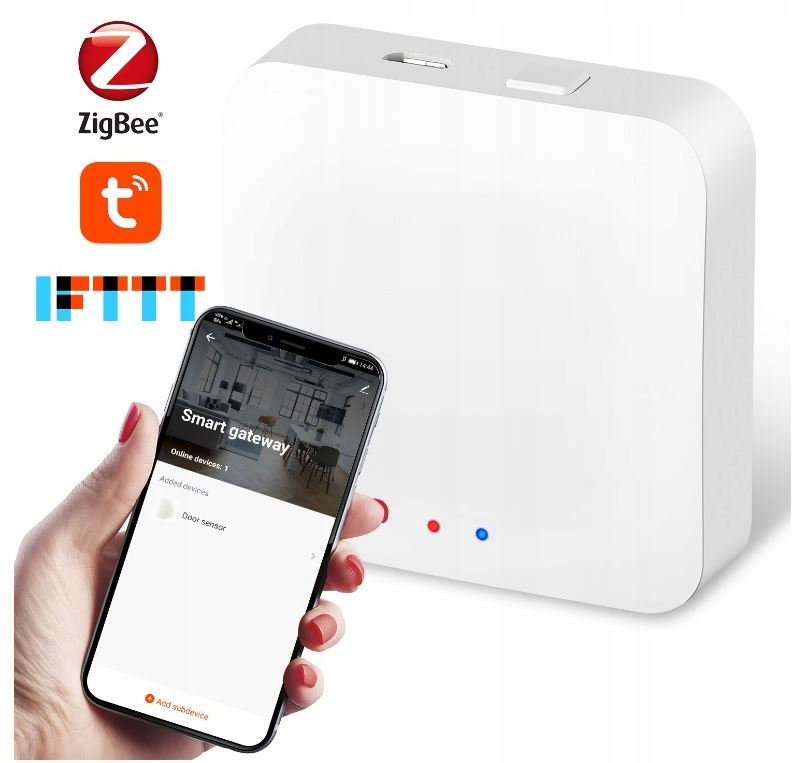

Gate, control panel, heart of the house for devices operating in ZigBee 3.0 network

Wireless connectivity for devices operating in the ZigBee 3.0 standard

CONTENTS OF THE SET

• Zigbee 3.0 Tuya SmartLife gateway ,
• Cable Micro USB,
• Instruction for use.

The local Zigbee gateway for devices running on Tuya Smart is the core of the system and works as a Zigbee network coordinator.

• ZigBee protocol: version 3.0 according to the standard: 802.15.4,
• Wi-Fi protocol: 2,4GHz, 802.03AF,
• Antenna type: built-in,
• Net weight: 50g,
• Status indicator: 2x LED,
• Power supply Micro USB 5V DC,
• Working temperature: -10-55 ℃,
• Moisture: 10% -90% RH (non-condensing),
• Dimensions: 8,5 x 9 x 2,2cm,
• Application: Tuya or Smart Life.

ZigBee protocol

What distinguishes ZigBee from traditional WiFi technology is a much longer working time of battery-powered devices, which is impossible with the standard WiFi protocol. In addition, ZigBee enables transmission of signal through accessories powered by 230V.

Moreover, selected ZigBee devices that are powered from the 230V mains become part of the Mesh network . This means that if a given module is not able to directly connect to the central ZigBee gateway, it can communicate with it through the closest accessories in this system. Devices powered by 230V, such as e.g. Sonoff ZBMINI, 230V sockets or light bulbs, act as signal amplifiers in the ZigBee ecosystem.

This makes it possible to create extensive networks that are able to operate at much greater distances than traditional WiFi connections.

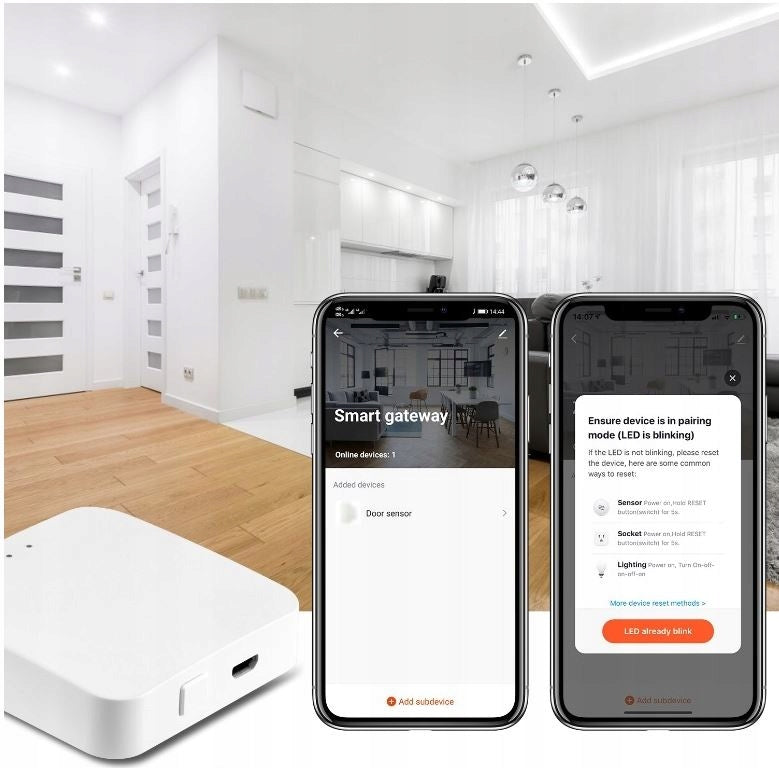

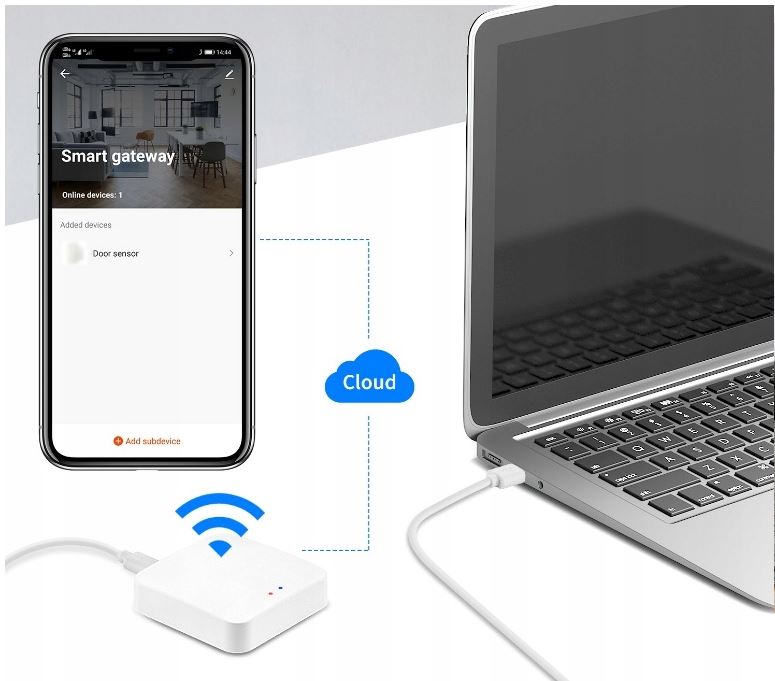

TUYA and Smart Life app

Quick installation with two of the most popular smart home management apps. With the app’s capabilities, you manage your home in one place and don’t have to switch between different apps.

Voice control on your phone

The principle of voice control is very simple. All you need to do is turn on the assistant with the appropriate voice command, and then tell what function on the smartphone to turn on. For voice control you do not need additional devices (central), just a mobile phone with an assistant function.

Works with two voice assistants: Google Home and Alexa.

Basics of ZigBee protocol operation

• ZigBee protocol works on a well-propagated 2.4 GHz frequency,
• ZigBee connectivity is MESH connectivity, which means that any ZigBee device with full L+N power acts as a signal amplifier for other devices. If the remote sensor does not have ZigBee gateway connectivity, it is enough that it has radio communication with another ZigBee device with full L+N power supply, which has gateway connectivity (up to 3 devices). The devices work in a lattice connection chain, which gives reliability and reliability of connection,
• Devices using the ZigBee protocol in case of a state change connect to the control panel in 0,2 seconds, and WiFi takes about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage when automating intelligent rules,
• On a WiFi network with 25 devices, you will start to experience network problems. You can easily add more than 50 devices to the ZigBee control panel
• ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history recorded for months back,
• ZigBee communication consumes very little energy, which gives a long service life on battery power.
