Aprašymas
Trumpai apie prekę
Prekė: Vėdinimo elementų komplektas namams, 90–120 m². Kategorija: Rekuperacinės vėdinimo sistemos.
- Gamintojas: MAX-VENT
- Modelis: 5907344500263

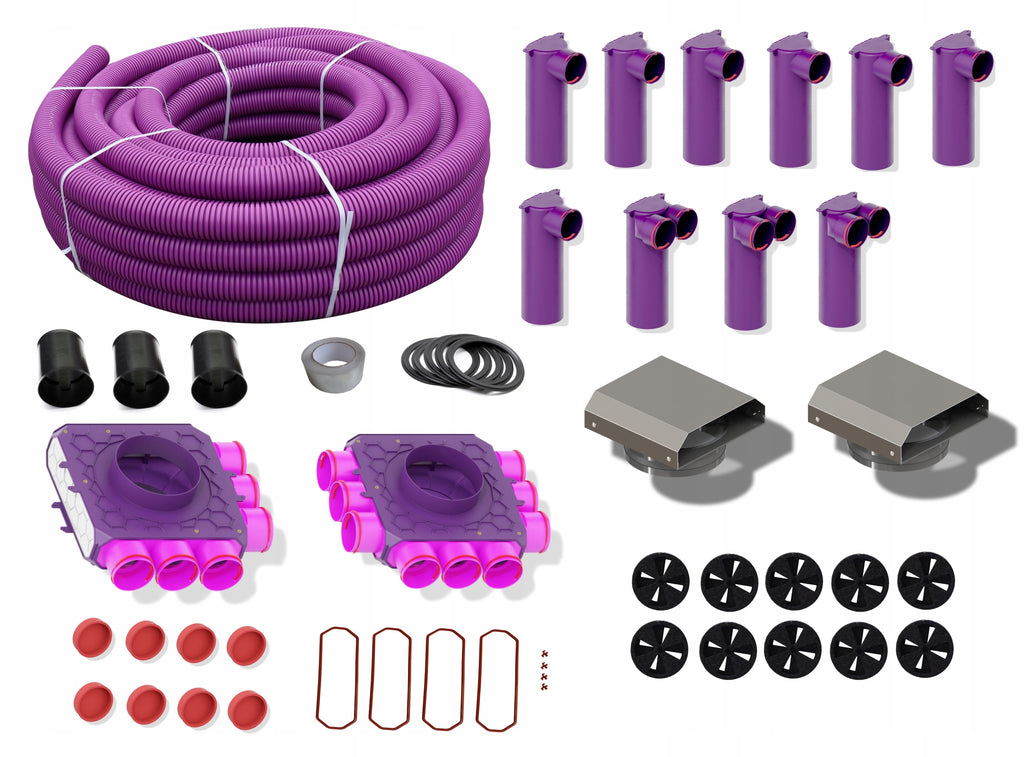

MAX-VENT 90-120 kit
✅Ventilation pipe with antibacterial coating
90 - 100 mb (2 discs)
✅ Distribution box 6x90/200 - 1 pc.
✅ Distribution box 9x90/200/0 - 1 pc.
✅ Expansion box 1x90/125 - 7 pcs.
✅ Expansion box 2x90/125 - 3 pcs.
✅ Intake K1 - 1pc.
✅ Launcher K1 - 1pc.

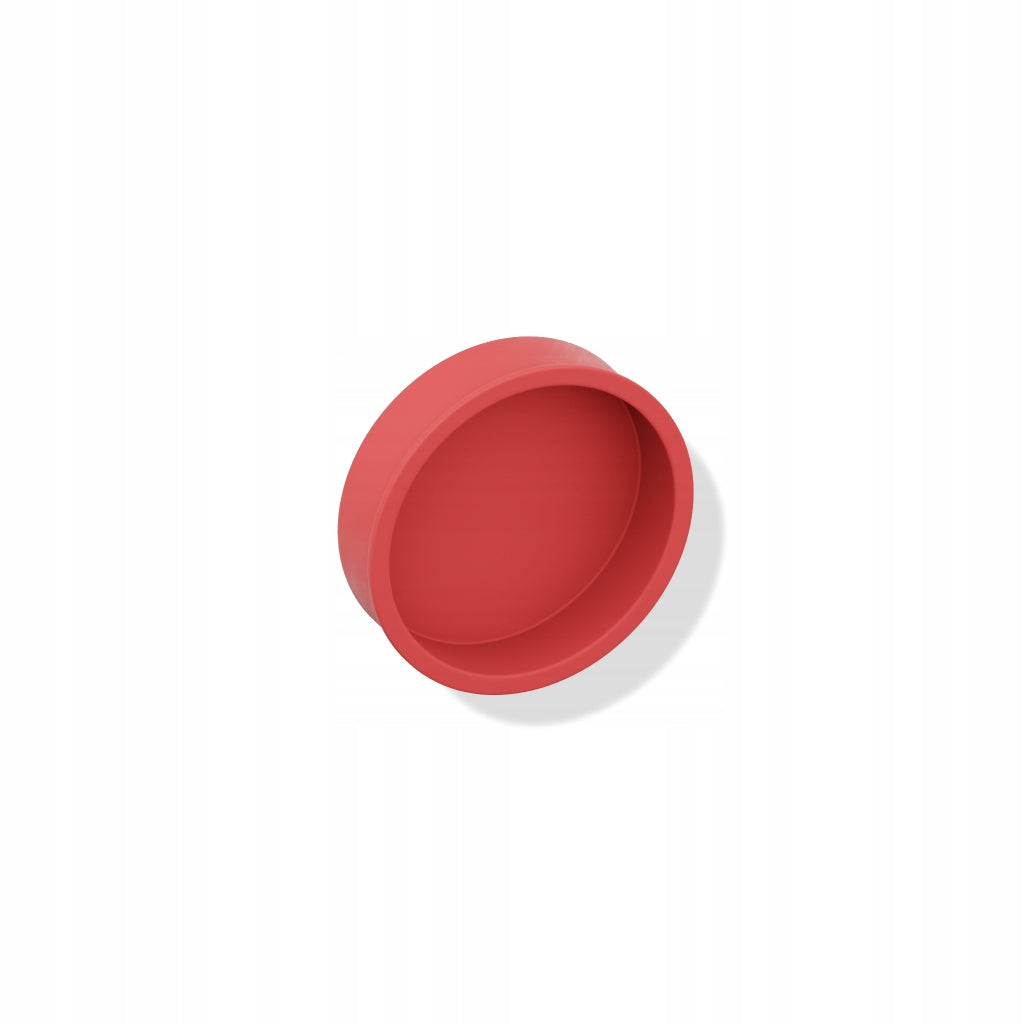

✅ Cap - 8 pcs.
✅ Max-Vent Throttle - 10 pcs.

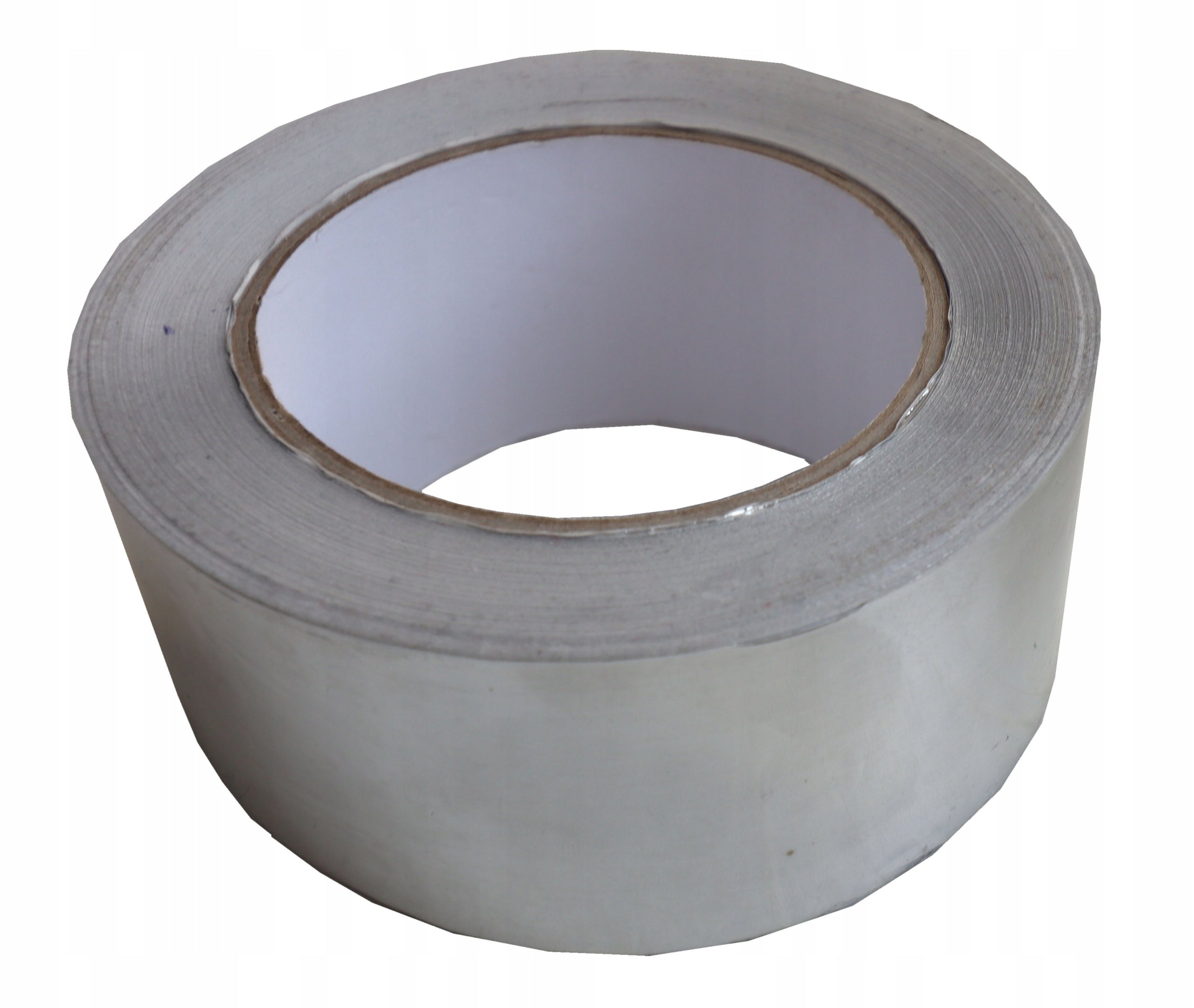

✅ Tape - 1 pc.
✅ Gaskets - 34 pcs.
✅ Perimeter gaskets for distribution boxes 2 sets
✅ Muffins 3 pcs.
plastic with smooth, antibacterial and antifungal
outer diameter: Ø90 mm
MAX-VENT flexible ventilation pipe is used for movement, transport of supply and exhaust air in mechanical ventilation systems
Wires are characterized by:
-Large flexibility
-Two-layer construction guarantees high strength and allows e.g. flooding with structural concrete and suppresses noise and insulates thermally.
MAX-WENT double layer pipe has an internal coating antibacterial and fungicidal in the form of active silver particles The inner layer also has an antistatic action, which reduces the settlement and accumulation of dust in the pipes.

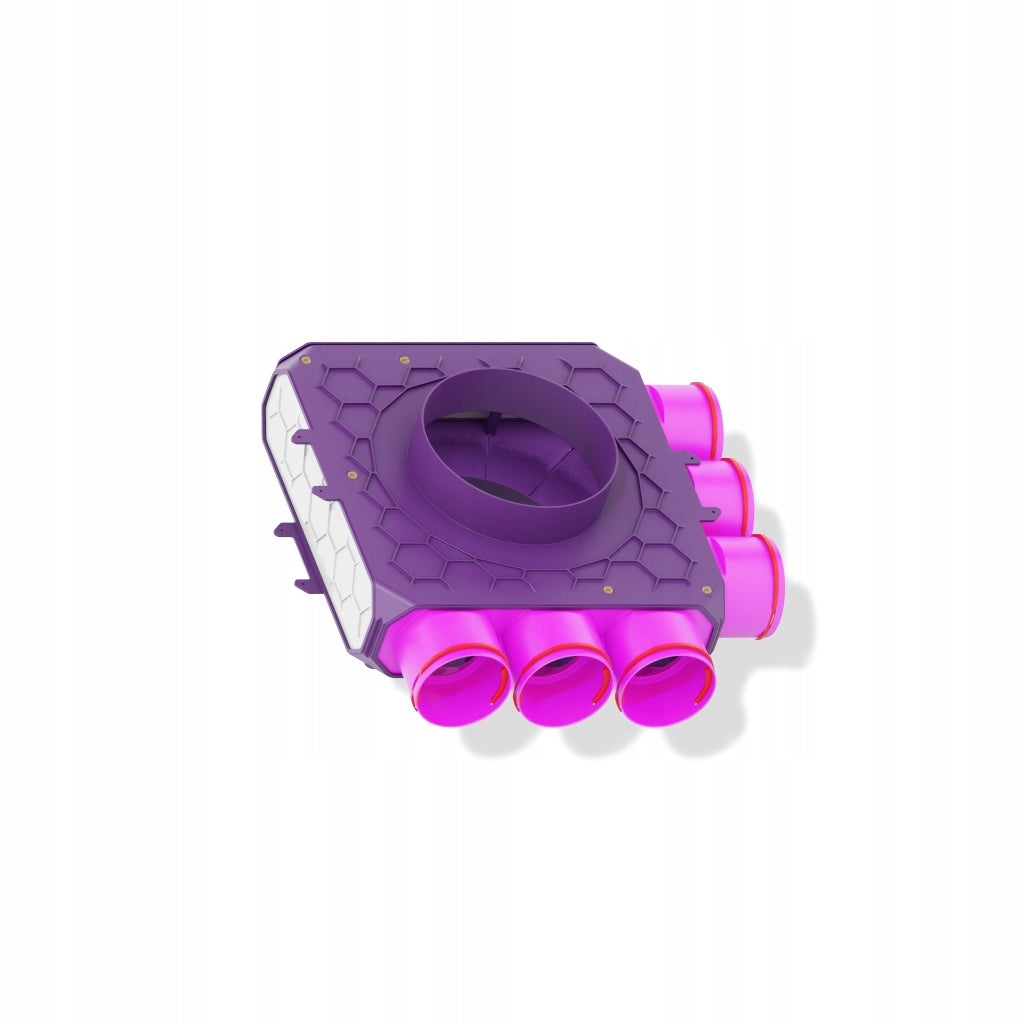

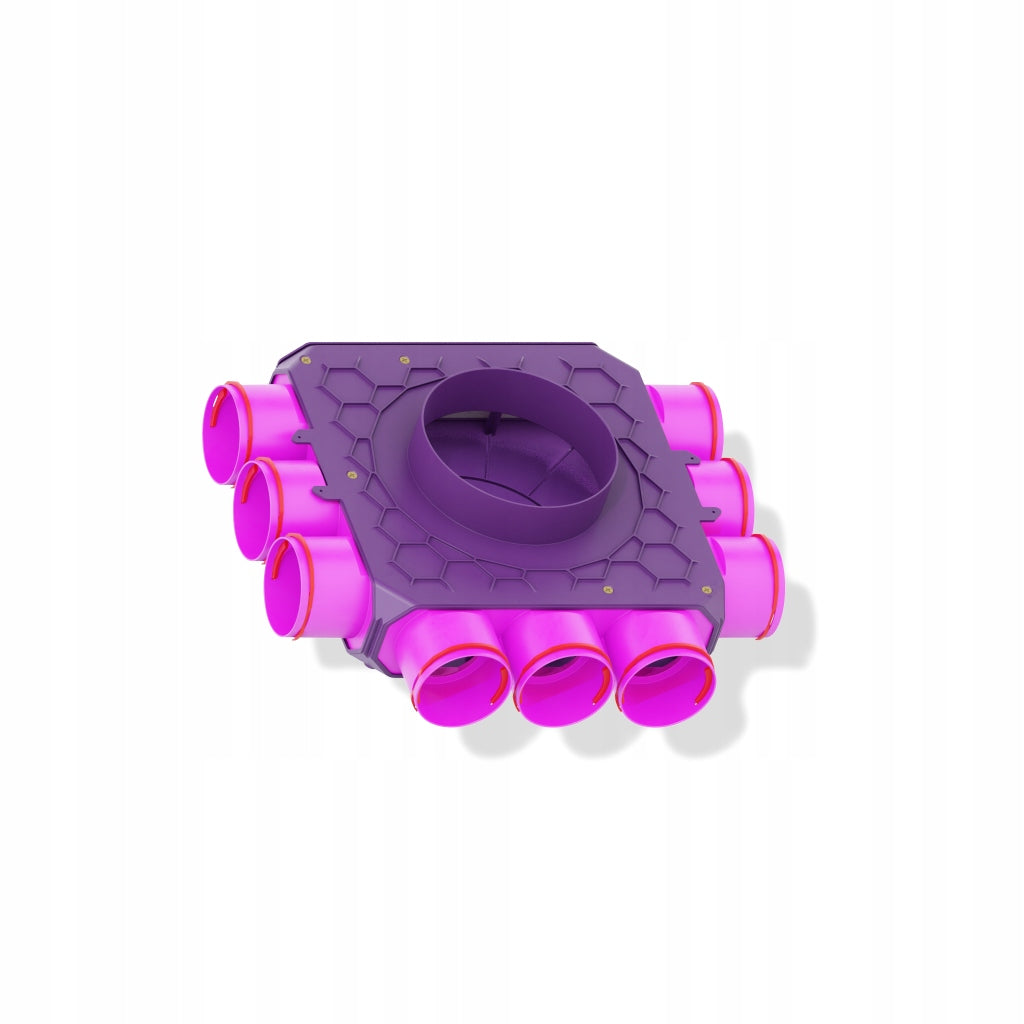

Distribution boxes 200mm
DISTINGUISHING FEATURES OF THE PRODUCT:
- Reinforced construction (inspiration taken from nature HONEYCOMB TECHNOLOGY)
- External reinforcement increases strength does not interfere with flow
- Extended mounting per channel -90mm (in some cases, fixing with rings will be unnecessary)
- The shape in the middle of the boxes soundproofs the sound and stabilizes the air flow, reduces resistance, properly directing the air to the appropriate ventilation duct (they perform much better than some products of this class and higher known on the market so far)
- They are quiet you do not need to suppress them
- They put up a small resistance
- PERIPHERAL SEAL guaranteeing always tightness (you do not need to use a special expensive disposable knife to cut ventilation ducts (pipes) WE CARE ABOUT THE ENVIRONMENT AND YOUR WALLET )
- They have the addition of silver are antibacterial biocides
- They are antistatic
- Technologies of the twenty-first century NANOMATERIALS were used, which improves mechanical properties, better visual and structural properties, increases chemical activity, increases antibacterial activity causing less burden on the environment, provides long-term microbiological protection

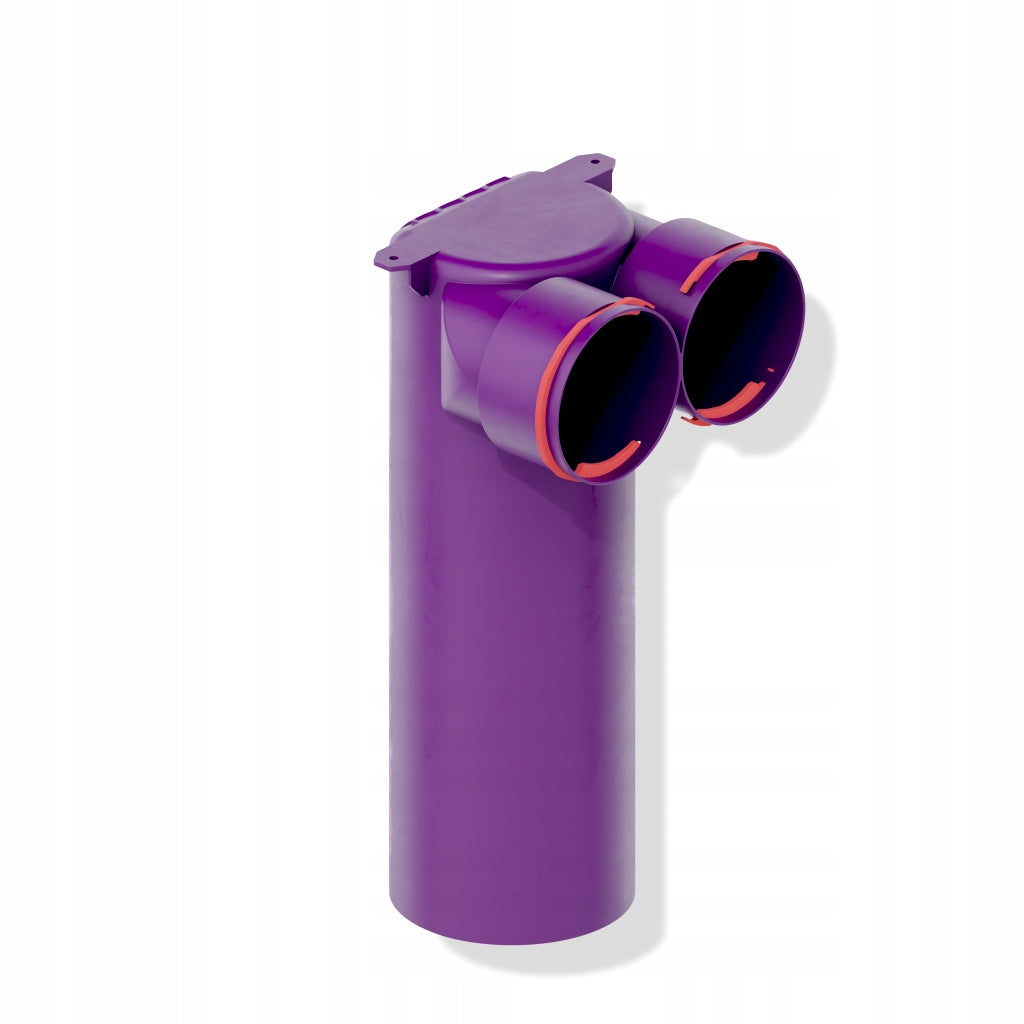

EXPANSION BOX 90mm / 125mm
Includes clamp for ventilation ducts.
- Diameter of ventilation duct - 90mm
- Diameter of the main channel - 125mm.
The layer of silver particles eliminates odors, is antistatic, antibacterial and biocidal.
Possibility of cutting and shortening the box.
I am suitable for the exhaust and supply side.
DISTINGUISHING FEATURES OF THE PRODUCT:
- Reinforced construction (inspiration taken from nature HONEYCOMB TECHNOLOGY)
- External reinforcement increases strength does not interfere with flow
- Extended mounting per channel -90mm (in some cases, fixing with rings will be unnecessary)
- The shape in the middle of the boxes soundproofs the sound and stabilizes the air flow, reduces resistance, properly directing the air to the appropriate ventilation duct (they perform much better than some products of this class and higher known on the market so far)
- They are quiet you do not need to suppress them
- They put up a small resistance
- PERIPHERAL SEAL guaranteeing always tightness (you do not need to use a special expensive disposable knife to cut ventilation ducts (pipes) WE CARE ABOUT THE ENVIRONMENT AND YOUR WALLET )
- They have the addition of silver are antibacterial biocides
- They are antistatic
- Technologies of the twenty-first century NANOMATERIALS were used, which improves mechanical properties, better visual and structural properties, increases chemical activity, increases antibacterial activity causing less burden on the environment, provides long-term microbiological protection
See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself
- System presentation: ▶ https://youtu.be/zwnY-pdrwj8
- Presentation of the entire GWC duct air conditioning: ▶ https://youtu.be/m8BvSsrRX5w
- Durability of our products: ▶ https://youtu.be/ZMhyH29QXEY
- How to choose an exchanger for the air handling unit: ▶ https://youtu.be/PQYRlMa0cU4
- How to select and make intakes and launchers: ▶ https://youtu.be/JaYdZvX_Jl0
- How to choose a recuperator, ventilation units: ▶ https://youtu.be/T4-kbpZCiRg
- Great anemostat theory for ventilation recuperation: ▶ https://youtu.be/hmj_Zri58Wo
- Linear diffuser mezzanine how to do: ▶ https://youtu.be/zW6ewKM40F4
- Great theory of ventilation recuperation: ▶ https://youtu.be/TUGCt0jLmsk
- Theory of anemostat distribution: ▶ https://youtu.be/2DrL7inP8xA
- Anemostat distributions according to PN-83: ▶ https://youtu.be/tT88G79NqjE
- Connecting distribution boxes: ▶ https://youtu.be/Uq1FjNinR7U
- Anemostat placements according to FASHION FACEBOOK: ▶ https://youtu.be/qKcPhyyynKM
- Distribution of anemostats Paruszewski's ideas: ▶ https://youtu.be/TzhaNNL84hU
See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...

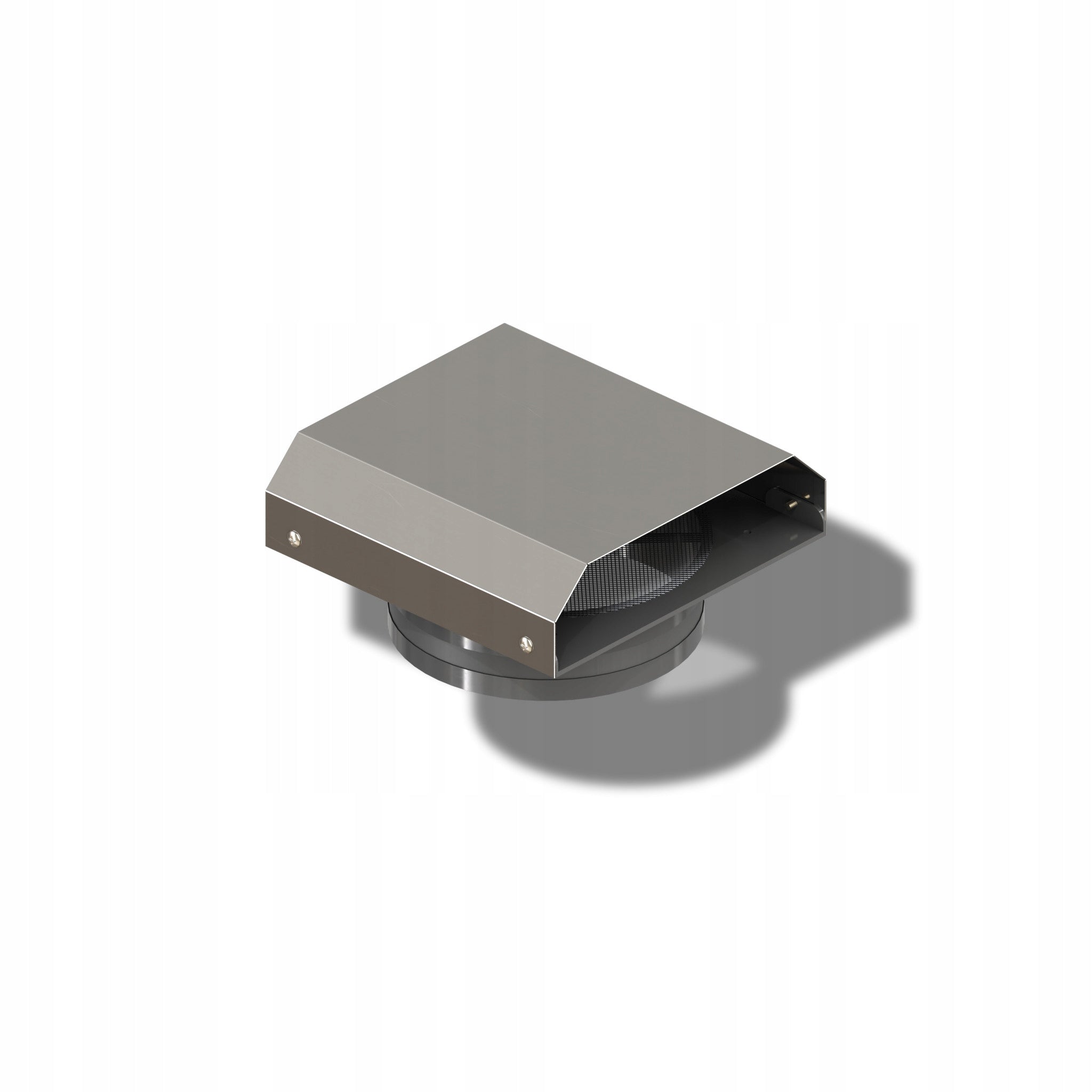

Intake, launcher
- Diameter: Ø 200
- Made of acid-resistant sheet metal
- Quick and easy installation
- High quality workmanship ensures low noise
- Safety net against insects.
Add drainer to the launcher

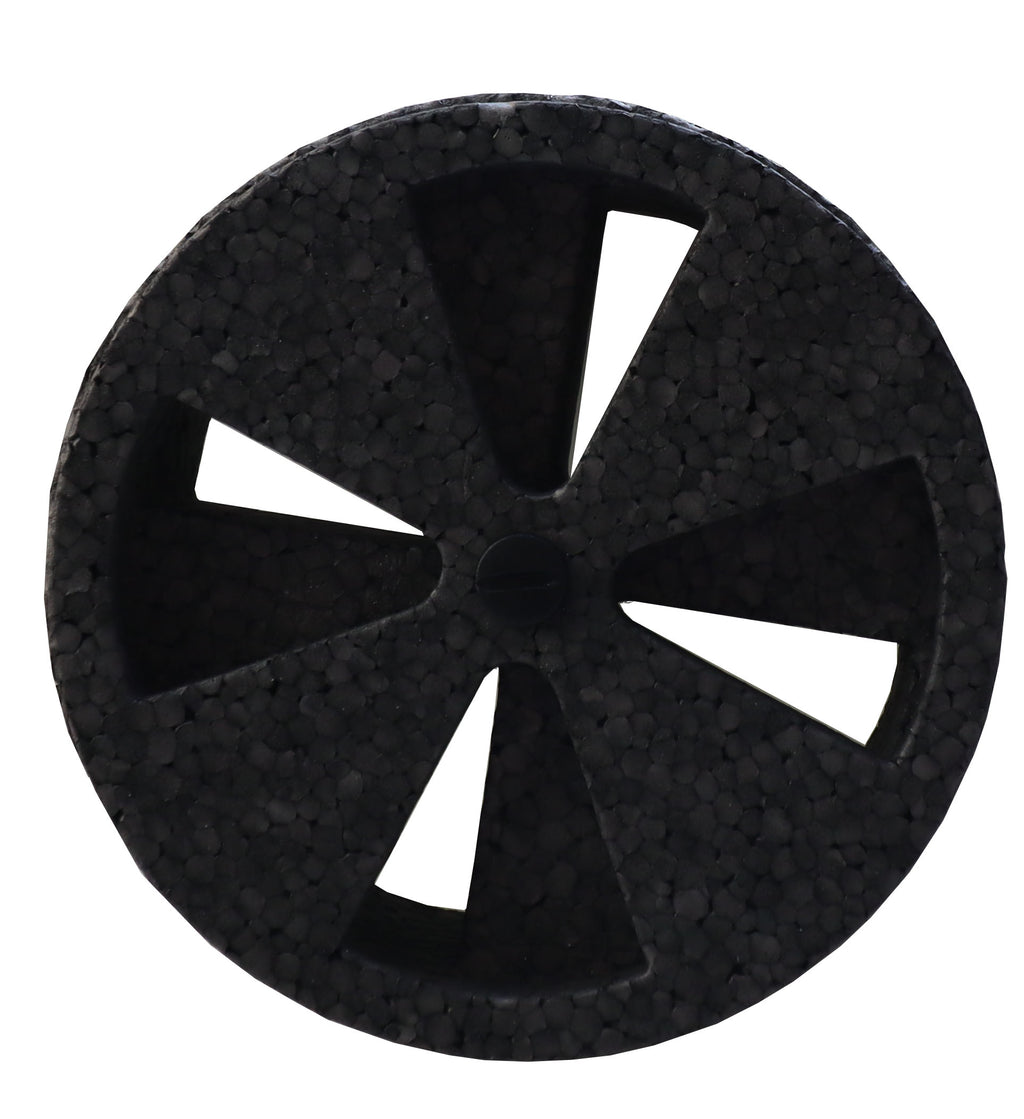

The set includes 10pcs of adjustment dampers to stabilize and silence air flow.
Adjusting these dampers allows you to enjoy an exceptional quiet installation
Foam adjustment damper is an economical damper designed for central ventilation systems with damping properties. It obtains a double role thanks to the construction and the material from which it is made - elastic foam. The throttle slides into a round channel (e.g. before the valve) and then the selected number of factory cut inserts is removed. Several series can be mounted for greater damping
The throttle has very little resistance and adjusts it smoothly
Throttle characteristics
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | MAX-VENT |
| Parametry | Kind | heat recovery ventilator |
| Parametry | Manufacturer code | 5907344500263 |
| Parametry | Range of energy efficiency classes | A+ - G |
| Parametry | Energy efficiency class | A |
| Parametry | Batteries included | no |
