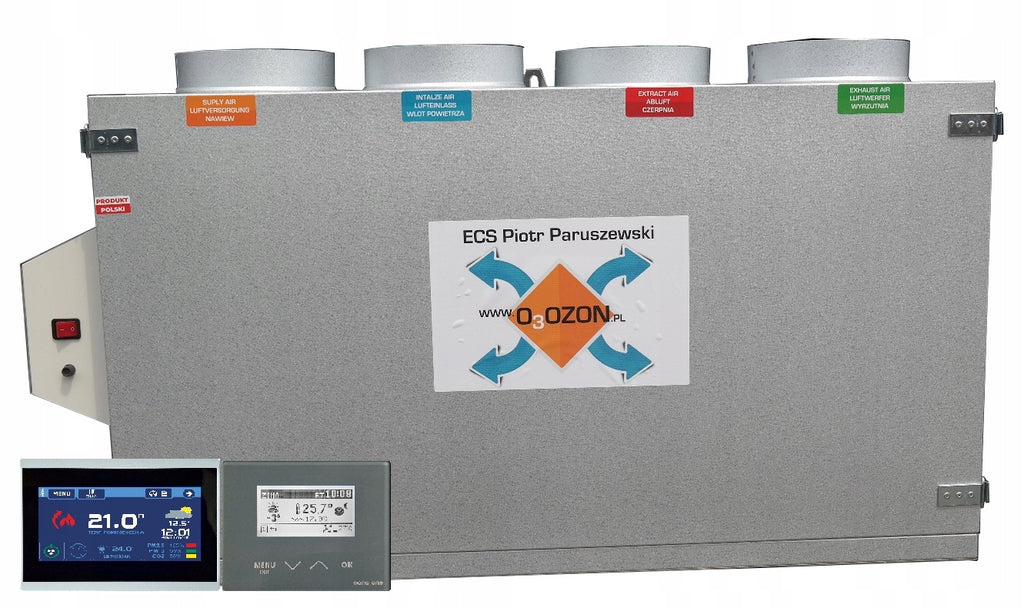

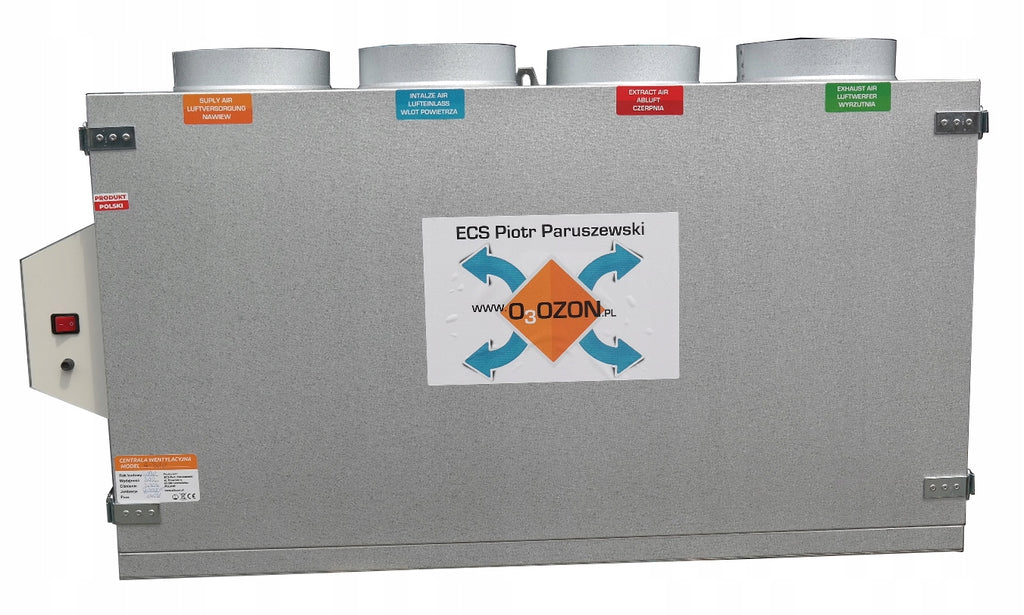

Vėdinimo įrenginys A-300 su entalpine šilumokaičiu, viršutinė, su BYPASS, spalvotas

Trumpai apie prekę

Prekė: Vėdinimo įrenginys A-300 su entalpine šilumokaičiu, viršutinė, su BYPASS, spalvotas. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: 5902838332122

15 years of experience

Before you buy, watch the video https://www.youtube.com/watch?v=m8BvSsrRX5w

SEE THE VIDEO PRESENTATION OF THE A-300 CONTROL PANEL PLATFORM ▶ https://www.youtube.com/watch?v=0AfLRltdxms

Built-in negative ionizer

Negative ions help:

• Kill bacteria, viruses and fungi
• Facilitates breathing
• Clean and refresh the air
• Accelerate rest
• Increases concentration
• Helps in learning
• Improves fitness

The headquarters meets the requirements of WFOŚiGW regarding the Clean Air program.

Contains:

• FAN "ec " MAX CAPACITY UP TO 750m3/h made in taiwan
• BUILT-IN IONIZER
• DIAMETER OF THE STUB 200 mm
• CLASS G4 FILTERS
• COUNTERCURRENT RECUPERATOR PULL-OUT EASY TO WASH
• RECUPERATOR EFFICIENCY FROM 65% to 92% (parameter depends on the difference in flow rate)
• POWER OF THE DEVICE FROM 25 TO 180W
• BUILT-IN AIR PURIFIER SYSTEM (MICRO PARTICLES)
• ANTI-ELECTROSTATIC SYSTEM
• DIRTY FILTER INFORMATION SYSTEM
• BY-PASS ELECTRONIC OR MECHANICAL
• HOUSING MADE OF SHEET METAL
• SOUND INSULATION
• DRAINAGE OF LIQUEFIED WATER!!!
• VERY GOOD VALUE FOR MONEY
• CONTROL PANEL
• OPERATING TEMPERATURE -25 to 50°C
• VERY GOOD VALUE FOR MONEY
• DRIVER

POLISH PRODUCT

ECS has over 16 years of experience in the production of equipment for industry, produces for the largest reputable international companies.

Each model of the air handling unit is created on the basis of well-thought-out solutions and proven technology.

Filter- cartridge made as G4 class nonwoven fabric You do not have to buy expensive filters!!! . You can combine several filters eg G4+F9+H14 ps smog will be reduced in 80-90%

The use of larger fans increases their service life, and soundproofs the ventilation system

Housing

The housing is made of thin alum zinc sheets galvanized on both sides, which are specially shaped on numerical machine tools and permanently mounted with galvanized rivets to create a rigid self-supporting structure. The alum zinc material provides excellent protection for surfaces that come into contact with ventilation air and seals all housing components. In terms of acoustic and thermal, the casing is protected with a 30 millimeter layer of wool

The task of the ionizer is to naturally clean the air of impurities, such as: , mites, anaerobic bacteria, cigarette smoke dust, pollen, etc.

The ventilation system with recuperation allows up to 8 times reduction of ventilation heat losses.

Filter:

Nonwoven fabric G4 (exhaust and supply)

• Very tannin filter, possibility of replacing the non-woven fabric itself, cost PLN 2-4
• Possibility to configure any filter from G1 to U15 (filters used in the operating room)
• Possibility to combine several filters at the same time
• Industrial work

Control:

• Possibility of control in facilities with intelligent installations
• Possibility to adjust optimal fan operating parameters

Specification:

• CAPACITY MAX 350m3/h

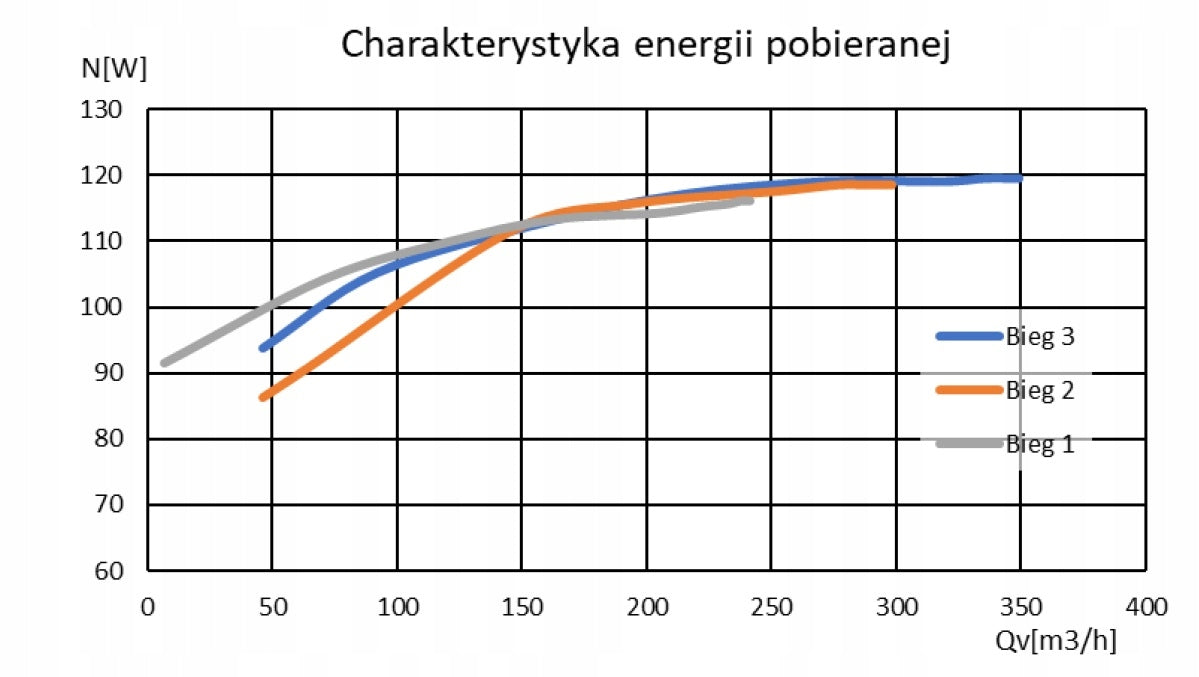

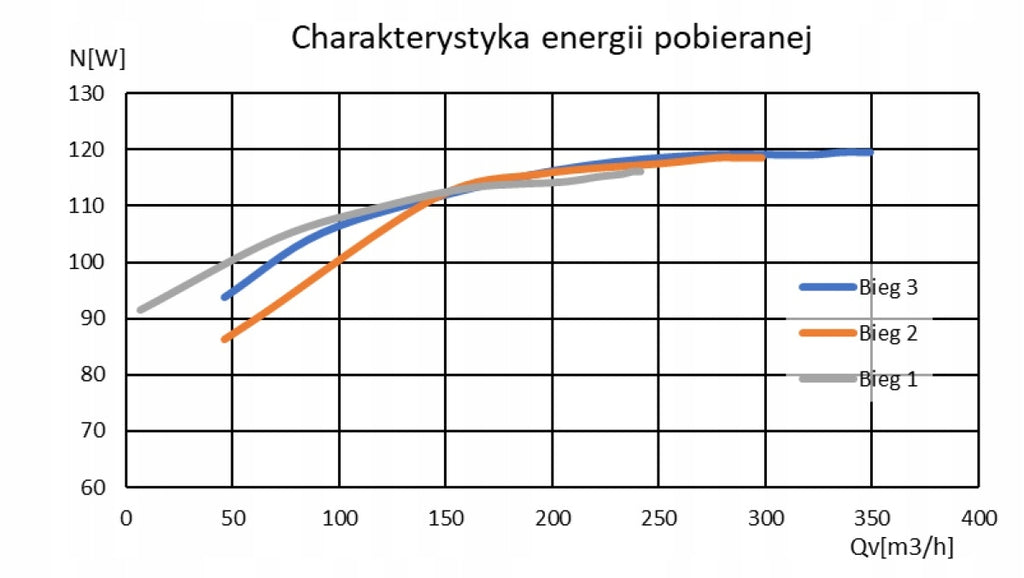

• Power min 25W max 180W

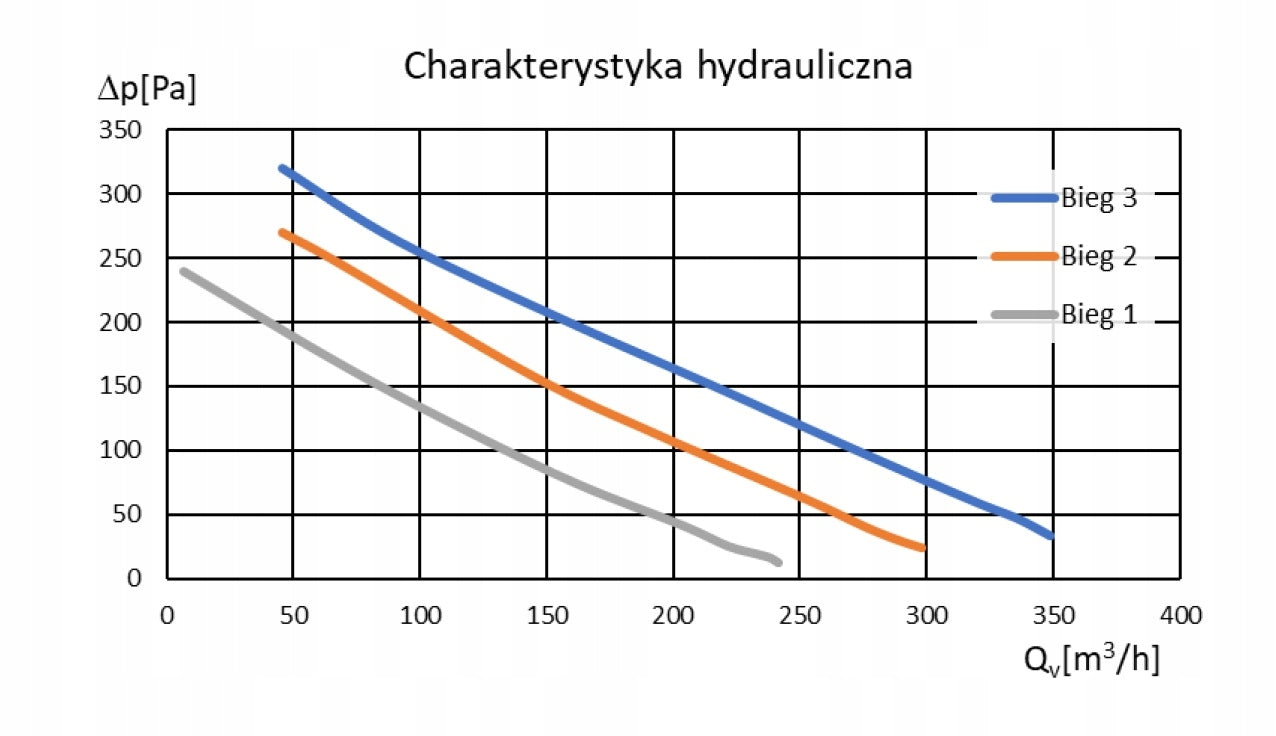

• Pressure up to 350Pa
• FAN CAPACITY 2x750m3/h
• VOLTAGE 230 V 50 Hz

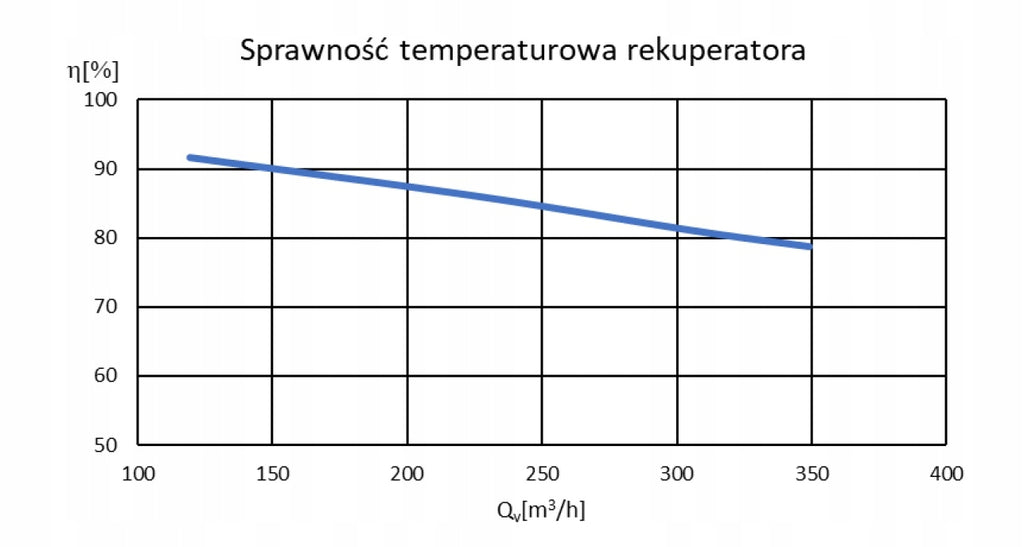

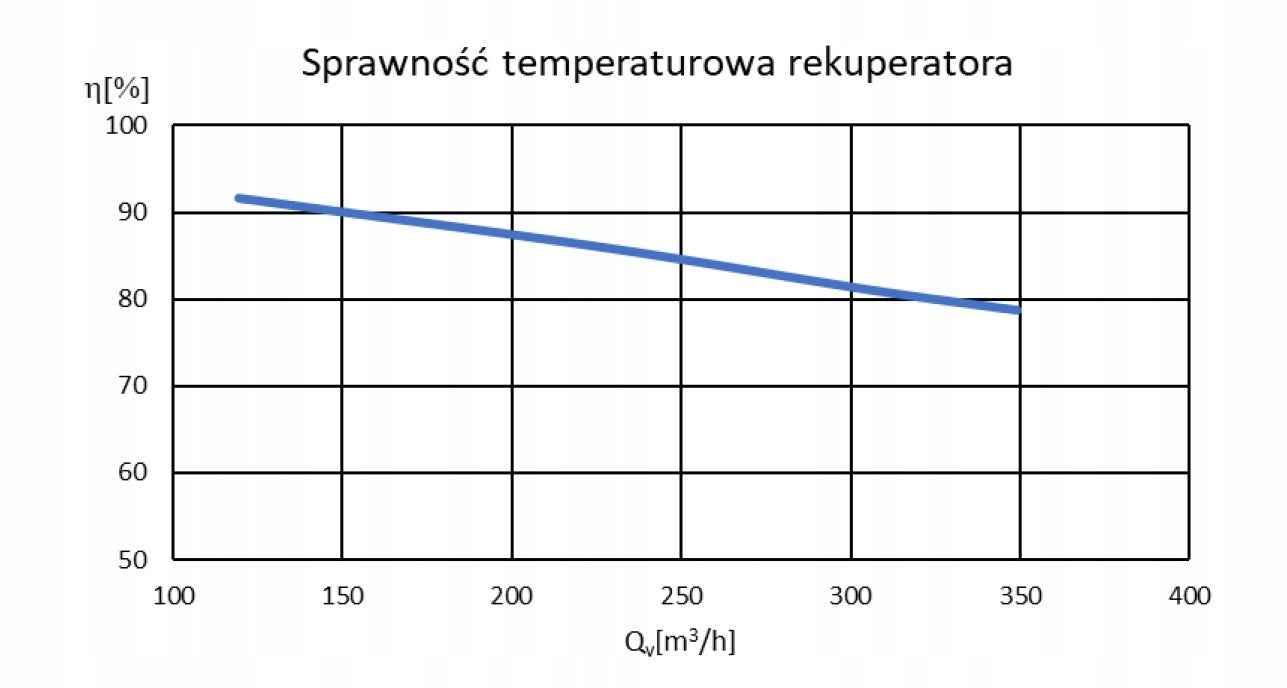

• Heat recovery efficiency from 65% to 92%
• Noise level db/(A)3m 24-40
• Maximum operating speed up to 45C
• Housing material alumcynk sheet 0,7mm
• Wool 30mm
• Air supply filter G4
• Filter extractor G4
• Diameter of stubs 200 mm
• Recuperator efficiency up to max 92%
• ENTHALPIC EXCHANGER
• Recuperator PLASTIC
• Dirty filter signalling system
• Electronic and MECHANICAL By-pass (automatic)
• Anti-freeze system
• Weight about 50 kg QUALITY MUST WEIGH COMPARE WITH OTHER PRODUCTS OF THIS CLASS

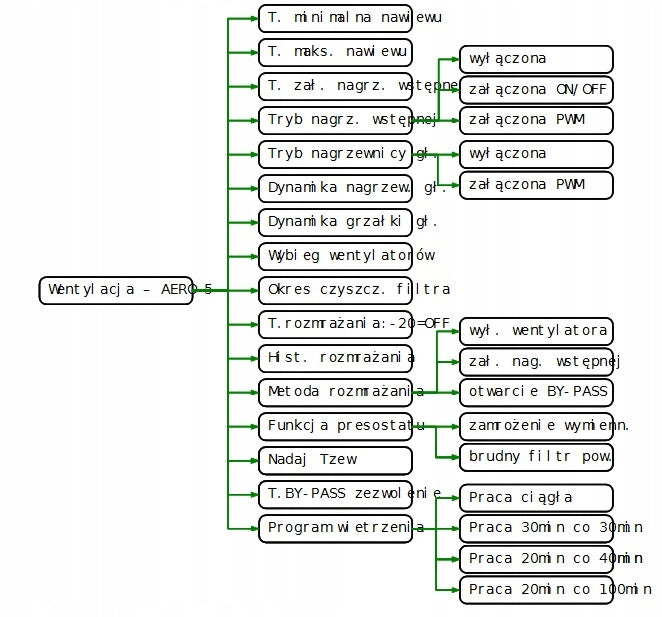

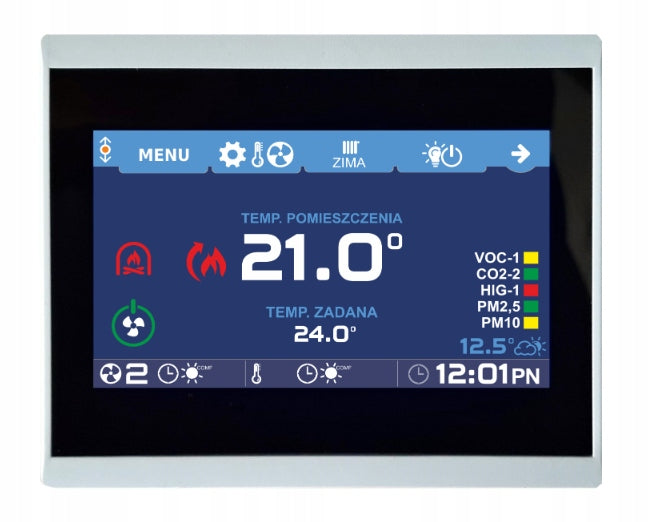

• PANEL

• temperature measurement
• regulation of the supply force
• by-pass control
• setting a schedule
• heater control
• Configuration of secondary radiator control
• switching on the preheater
• indication of soiled filter
• air conditioning control
• zonal control
• connection of additional sensors
• etc...

See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself

• System presentation: ▶ https://youtu.be/zwnY-pdrwj8
• Presentation of the entire GWC duct air conditioning: ▶ https://youtu.be/m8BvSsrRX5w
• Durability of our products: ▶ https://youtu.be/a3_OZIj2fLI
• See recuperation assembly course: ▶ https://youtu.be/ZMhyH29QXEY
• How to choose an exchanger for the air handling unit: ▶ https://youtu.be/PQYRlMa0cU4
• How to select and make intakes and launchers: ▶ https://youtu.be/JaYdZvX_Jl0
• How to choose a recuperator, ventilation units: ▶ https://youtu.be/T4-kbpZCiRg
• Great anemostat theory for ventilation recuperation: ▶ https://youtu.be/hmj_Zri58Wo
• Linear diffuser mezzanine how to do: ▶ https://youtu.be/zW6ewKM40F4
• Great theory of ventilation recuperation: ▶ https://youtu.be/TUGCt0jLmsk
• Theory of anemostat distribution: ▶ https://youtu.be/2DrL7inP8xA
• Anemostat distributions according to PN-83: ▶ https://youtu.be/tT88G79NqjE
• Connecting distribution boxes: ▶ https://youtu.be/Uq1FjNinR7U
• Anemostat placements according to FASHION FACEBOOK: ▶ https://youtu.be/qKcPhyyynKM
• Distribution of anemostats Paruszewski's ideas: ▶ https://youtu.be/TzhaNNL84hU
