Aprašymas
Trumpai apie prekę

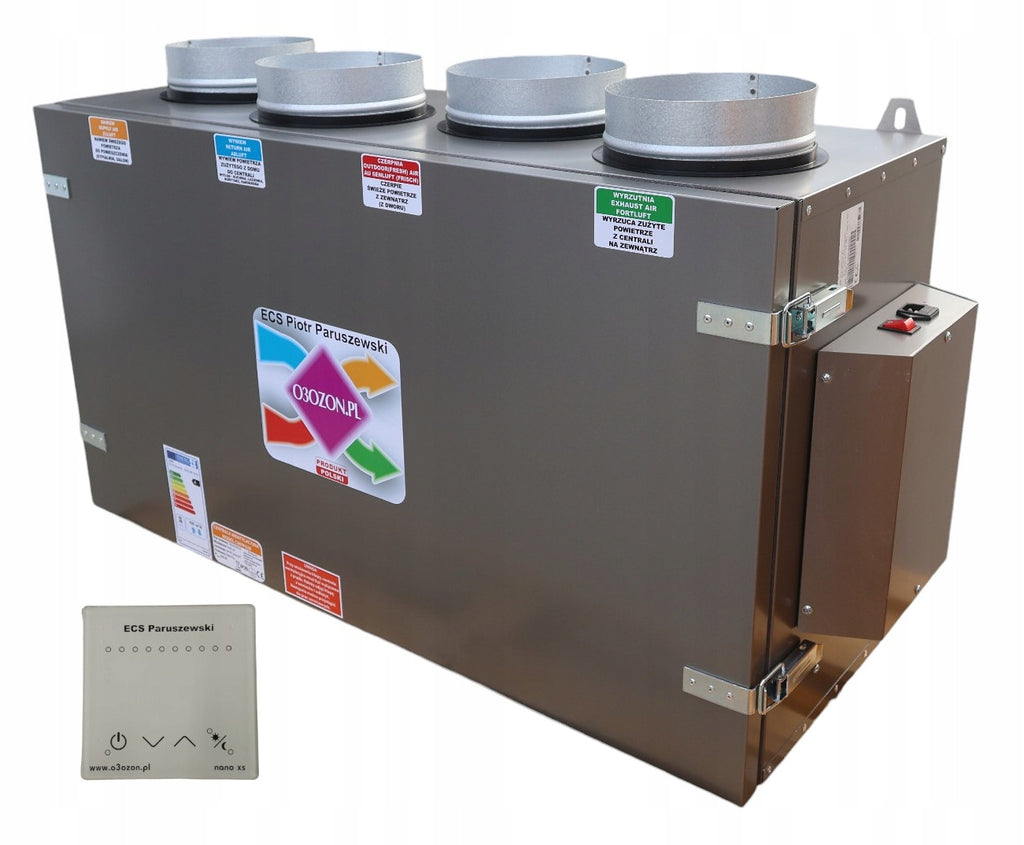

Prekė: Vėdinimo įrenginys CWP 360/200 UPPER su Nano XS valdikliu. Kategorija: Rekuperacinės vėdinimo sistemos.
- Gamintojas: no brand
- Modelis: 5902838336236
Ventilation unit recuperator + Nano XS controller
CWP 360/200 UPPER ION16
Product Specifications:
- Fan capacity: up to 550 m³/h (German quality)
- Built-in ionizer: for cleaner air
- Diameter of the stub: 200 mm
- Maximum RPM: 2400 rpm
- G4 class filters: effective air filtration

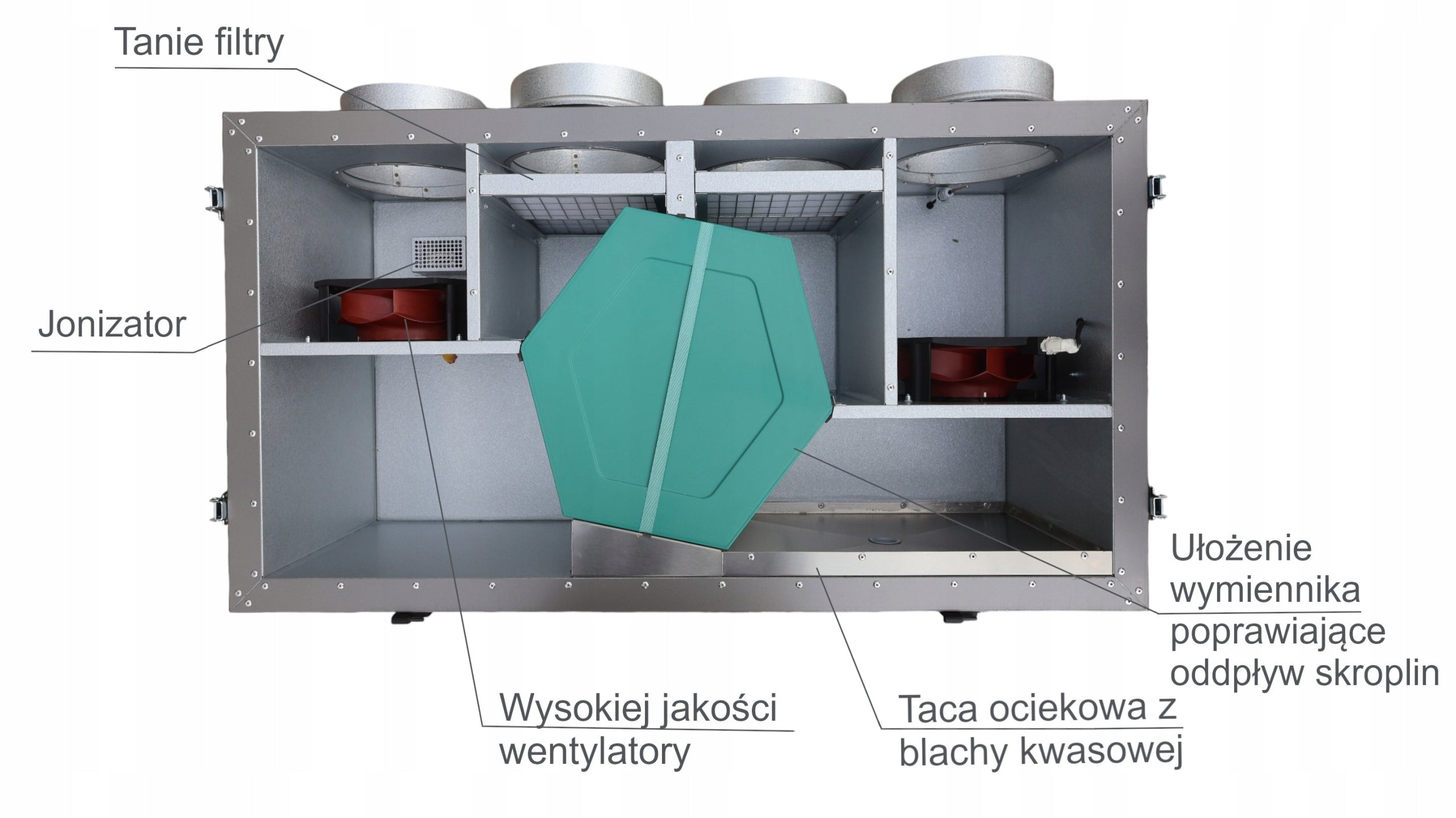

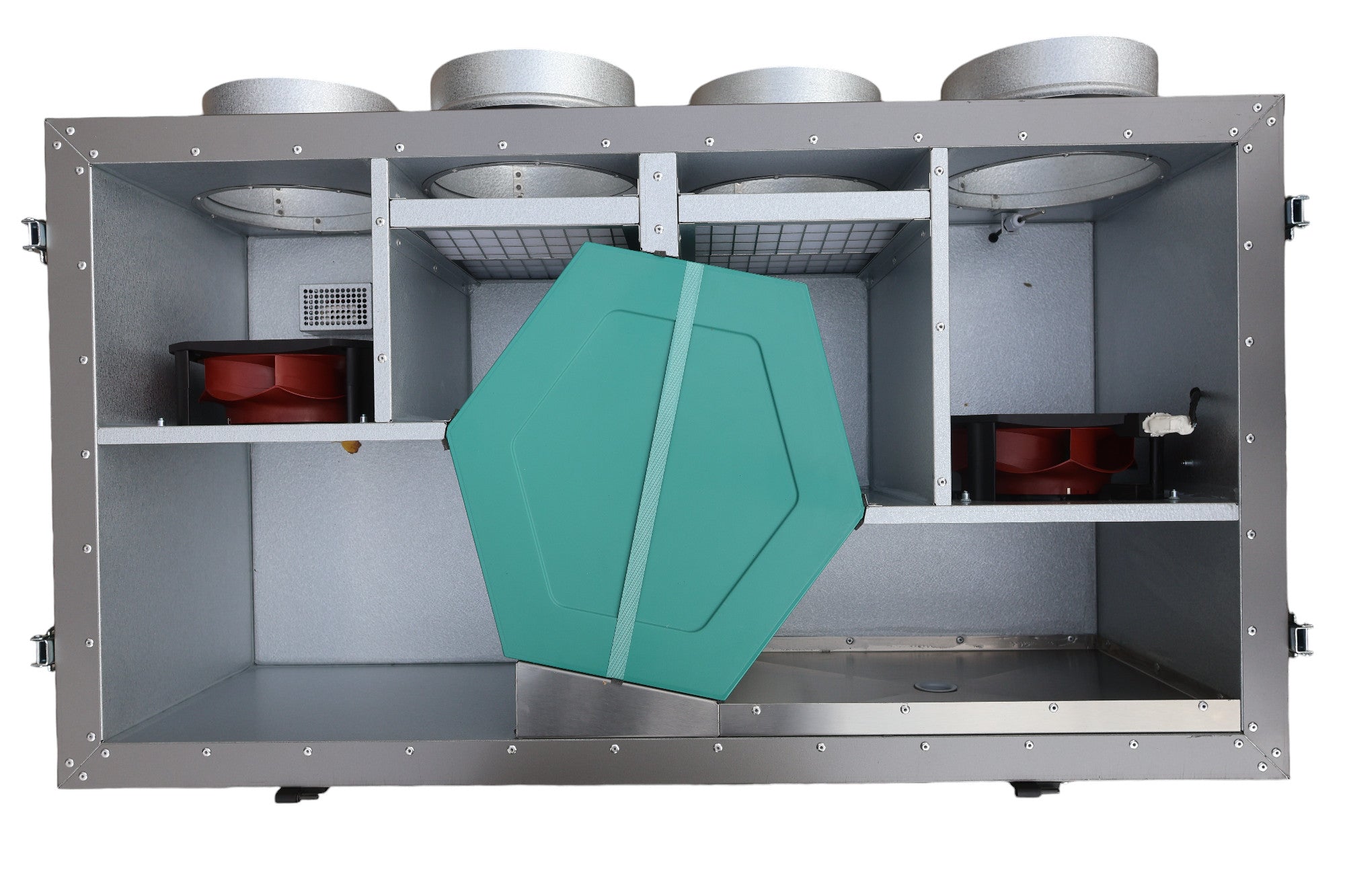

- Countercurrent recuperator: easy to remove and clean
Efficiency from 65% to 92% (depending on the difference in flow temperature)
- Power of the device: from 30 to 120 W
- Built-in air purification system: removes microparticles
- Anti-electrostatic system
- Housing: sheet metal
- Insulation thickness: 40 mm (4 cm)
Acoustic and thermal insulation
High temperature resistant, with aluminium jacket
- Drainage of liquefied water
- Rotation speed controller
- Operating temperature range: -20°C to +50°C
- Driver included
- Very good value for money
This product guarantees performance, durability and high quality at an affordable price, ensuring comfortable use for many years.
PRODUCT Polish
ECS has over 14 years of experience in manufacturing equipment for industry, providing solutions for the largest, renowned international companies. Each ventilation unit is created with care for well-thought-out solutions and proven technology, which guarantees the highest quality.
Filters
- G4 class filter: cartridge made of high quality non-woven fabric.
Advantage: no need to buy expensive filters!
- The ability to connect several filters, such as G4, F9, H14, which allows effective removal of impurities.
Efficiency: the combination of filters removes smog 80-90%.
By choosing ECS products, you invest in proven technologies and high quality, which contributes to better air quality and savings on operating costs.

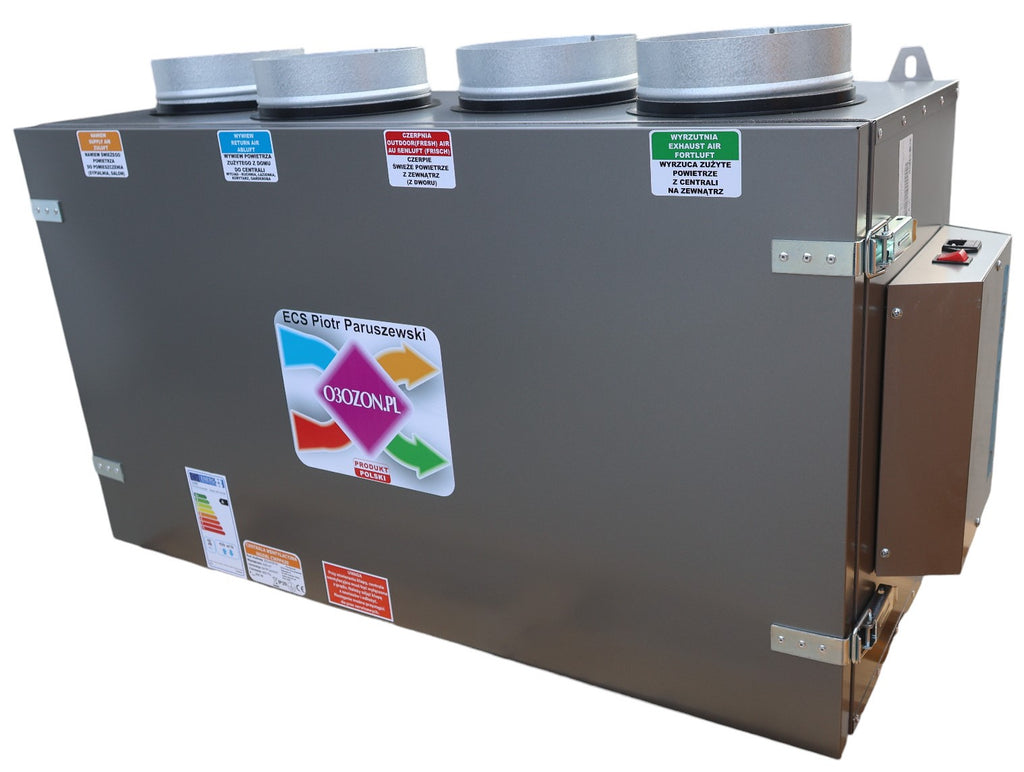

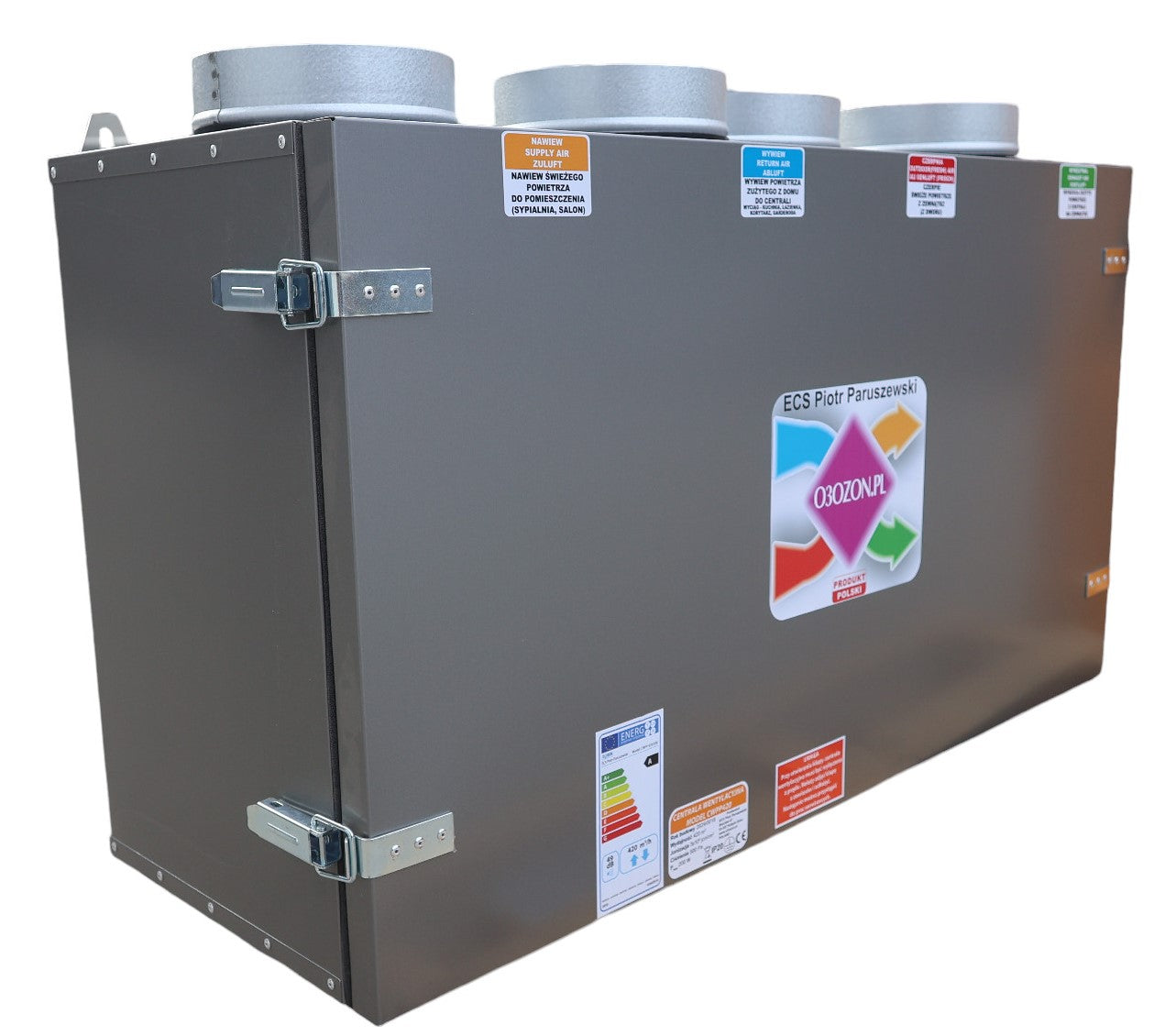

Case
The housing is made of high quality thin alum-zinc sheets, galvanized on both sides. The sheets are precisely shaped on numerical machine tools and mounted with galvanized rivets, which creates a rigid and self-supporting structure. Thanks to the use of alum-zinc, surfaces in contact with ventilation air are perfectly protected and all elements of the housing are sealed. The housing is also acoustically and thermally protected with a 40-millimeter layer of wool.
Ionizer
The task of the ionizer is to naturally purify the air from pollutants such as mites, anaerobic bacteria, dust, cigarette smoke, pollen, etc. The ventilation system with recuperation allows for up to 8 times reduction of ventilation heat losses.
Negative ions help:
- Remove bacteria, viruses and fungi
- Facilitate breathing
- Clean and refresh the air
- Accelerate recovery and rest
- Increase concentration
- Facilitate learning
- Improve physical condition
Filter
- G4 class filter: non-woven fabric used on both exhaust and air supply.
Low price: replacing the fleece itself costs only PLN 2-4.
Flexibility: the ability to configure filters from G1 to U15 (even those used in operating rooms).
Ability to combine filters: e.g. G4+F9+H14 for better filtration.
Industrial use.

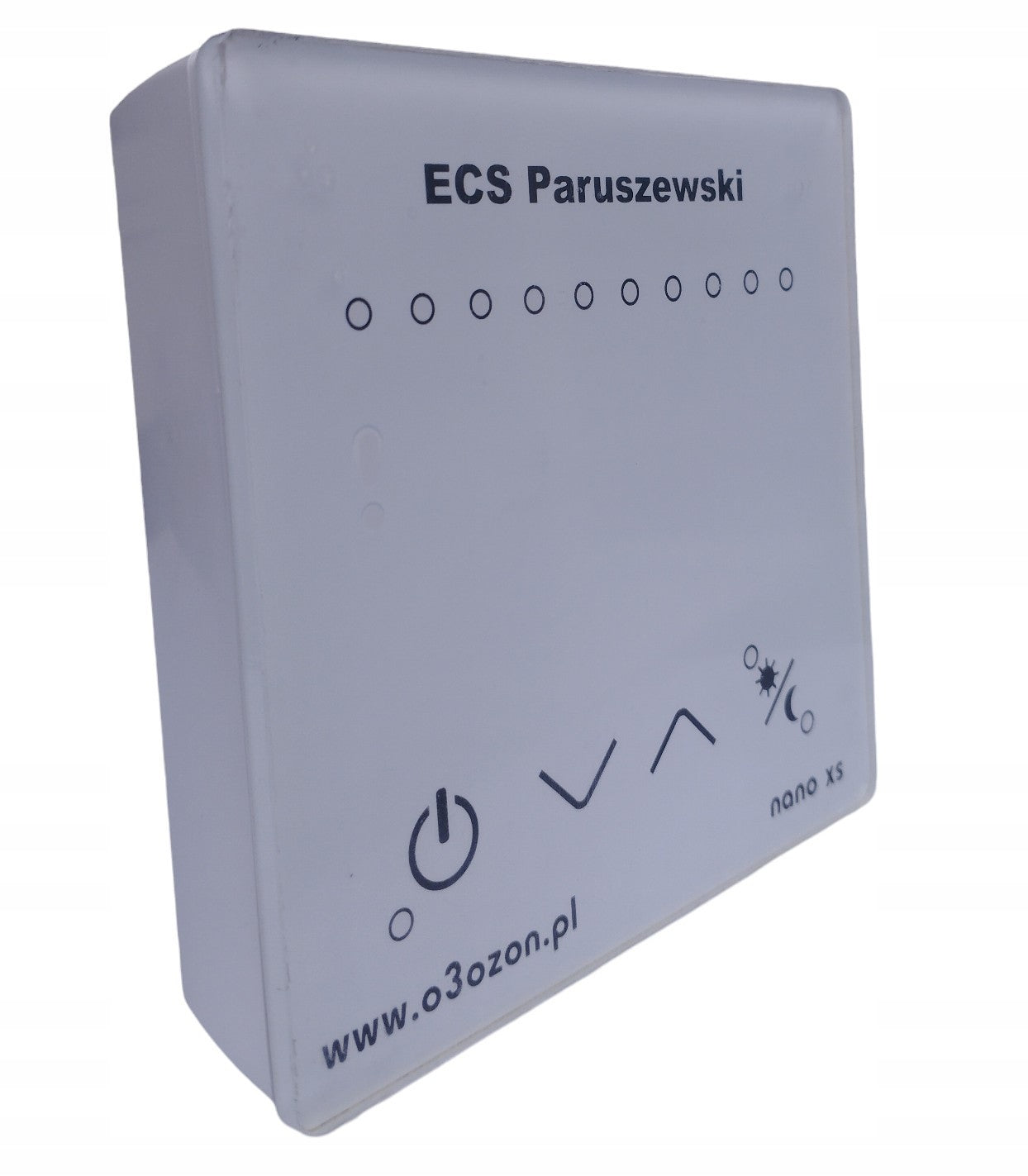

Control
A set of devices NANO XS control panel and AERO 2 actuator module are used to operate
ventilation units. The set allows you to program the fan rotation in two operating modes, force airing (fan operation at maximum speed). In addition, the panel signals the occurrence of alarm states.
The controller allows you to:
- switching on, turning off fans
- Enabling BYPASS
- reducing fan speed
- Increased fan speed
- change day/night modes (standard or reduced revolutions, the controller remembers the settings for both modes)
- LED ruler determining the level of rotation
- LED exclamation point to indicate failure
Technical specification
- Control panel capacity: up to 280 m³/h
- Power: min. 30 W, max. 120 W

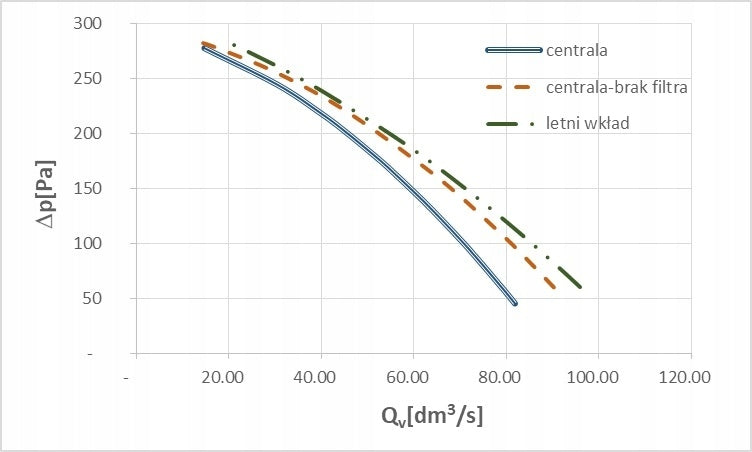

- Pressure: up to 200 Pa
- Fan capacity: 2x550 m³/h
- Voltage: 230 V, 50 Hz

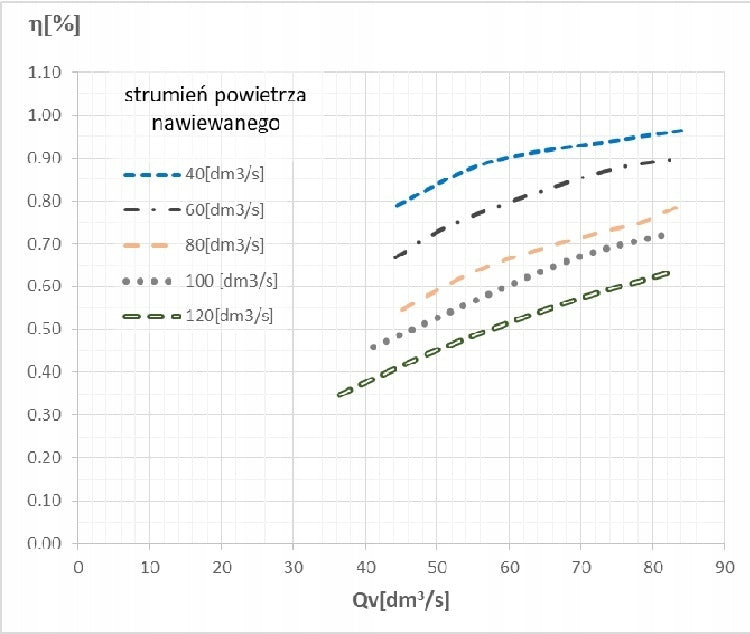

- Heat recovery efficiency: 65% to 92%
- Engine speed: 2400 rpm
- Noise level: 24-40 dB(A)
- Maximum operating temperature: up to 45°C
- Housing: sheet metal
- Insulation: 40 mm wool
- Air supply filter: G4
- Extractor filter: G4
- Diameter of stubs: 200 mm
- Recuperator efficiency: up to 95%
- Recuperator type: countercurrent, made of plastic
- Anti-freeze system
- Weight: about 50 kg (compare with other products of this class! )
- Rotational speed controller
Presentation of MAX-VENT gen2
This system is very easy to install. On the Piotr Paruszewski YouTube channel you will find guides on how to properly perform recuperation, mount devices, select and design a ventilation system with recuperation and channel air conditioning. See how to do it – it’s not difficult, see for yourself!
- System presentation: ▶ https://youtu.be/zwnY-pdrwj8
- Presentation of the entire GWC duct air conditioning: ▶ https://youtu.be/m8BvSsrRX5w
- Durability of our products: ▶ https://youtu.be/ZMhyH29QXEY
- How to choose an exchanger for the air handling unit: ▶ https://youtu.be/PQYRlMa0cU4
- How to select and make intakes and launchers: ▶ https://youtu.be/JaYdZvX_Jl0
- How to choose a recuperator, ventilation units: ▶ https://youtu.be/T4-kbpZCiRg
- Great anemostat theory for ventilation recuperation: ▶ https://youtu.be/hmj_Zri58Wo
- Linear diffuser mezzanine how to do: ▶ https://youtu.be/zW6ewKM40F4
- Great theory of ventilation recuperation: ▶ https://youtu.be/TUGCt0jLmsk
- Theory of anemostat distribution: ▶ https://youtu.be/2DrL7inP8xA
- Anemostat distributions according to PN-83: ▶ https://youtu.be/tT88G79NqjE
- Connecting distribution boxes: ▶ https://youtu.be/Uq1FjNinR7U
- Anemostat placements according to FASHION FACEBOOK: ▶ https://youtu.be/qKcPhyyynKM
- Distribution of anemostats Paruszewski's ideas: ▶ https://youtu.be/TzhaNNL84hU
See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Kind | heat recovery ventilator |
| Parametry | Manufacturer code | 5902838336236 |
| Parametry | Range of energy efficiency classes | A+ - G |
| Parametry | Energy efficiency class | A |
| Parametry | Batteries included | no |
