Vėdinimo įrenginys VENTO Expert A50-1 S10 Pro, decentralizuotas

Trumpai apie prekę

Prekė: Vėdinimo įrenginys VENTO Expert A50-1 S10 Pro, decentralizuotas. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Blauberg
• Modelis: A50-1 S10 PRO

VENTO Expert A50-1 S10 Pro - decentralized

Blauberg

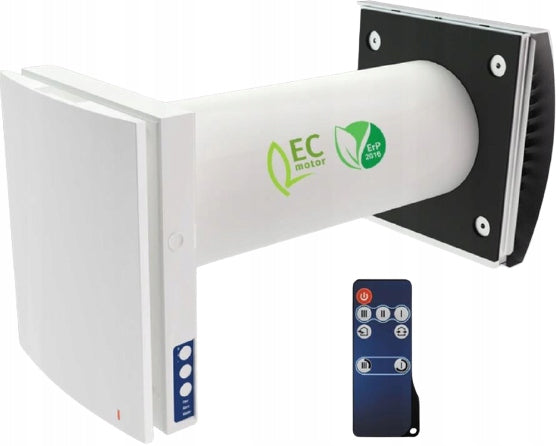

VENTO Expert A50-1 S10 Pro - decentralized ventilation unit with ceramic hygroscopic heat exchanger and external outlet. AH-10WHITE160

EFFICIENCY

Up to 50 (14) m³/h (l/s)

POWER

FROM 3,61 IN

NOISE LEVEL

FROM 11 dB(A)

APPLICATION:

• Efficient energy-efficient supply and exhaust ventilation of apartments, cottages, villas, social and utility rooms.
• Significant reduction of heat loss during room ventilation, thanks to effective heat recovery.
• Ensuring the balance of humidity and regulated air exchange to create an individual microclimate.
• Creation of a supply and exhaust ventilation system based on several centrally controlled units.

• Polluted, warm air removed from the room outside passes through the heat exchanger, gradually heating it up and giving away some of the moisture. After the ceramic exchanger heats up, the device automatically switches to air intake mode.,
• Fresh, cool outside air passes through the exchanger, absorbing the moisture and heat accumulated in it. After 70 seconds, the heat exchanger cools down, the device switches to mode I - internal air exhaust.

CONTROL:

• Control of the device operation is carried out by means of a sensor panel on the housing or by means of a remote control.

INSTALLATION:

• The device is designed to be installed in the internal wall, through a pre-prepared hole in the external wall of the building.
• The optimal solution is the installation of an even number of units working cyclically and in the counterphase. This means that some devices simultaneously provide fresh air from the outside, and some - remove polluted air from the room. This allows for high-efficiency, balanced ventilation.
• During the construction of new buildings, the installation of equipment is carried out in two stages:
• Pre-assembly: when making internal and external facades (installation of ventilation duct and external outlet with hood, cable routing).
• Final assembly: before putting the house into use. Installation of a container with an exchanger, fan and filters, installation and connection of an internal block with control and blinds.

VENTO Expert A50-1 S10 Pro - decentralized ventilation unit with ceramic hygroscopic heat exchanger and external outlet. AH-10WHITE160

MORE DETAILS IN THE PRODUCT CARD

Specifications
